SIEGMUND

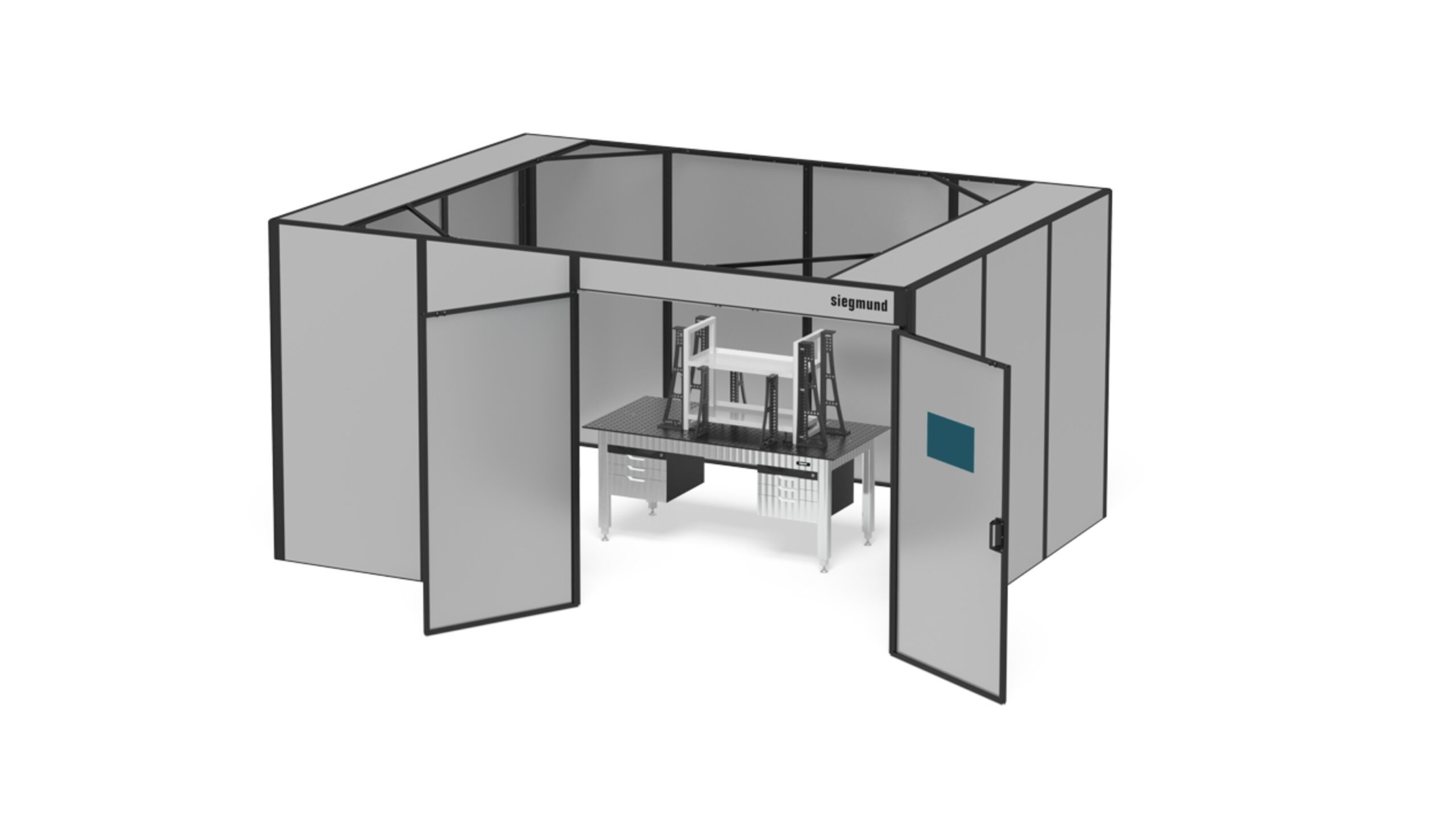

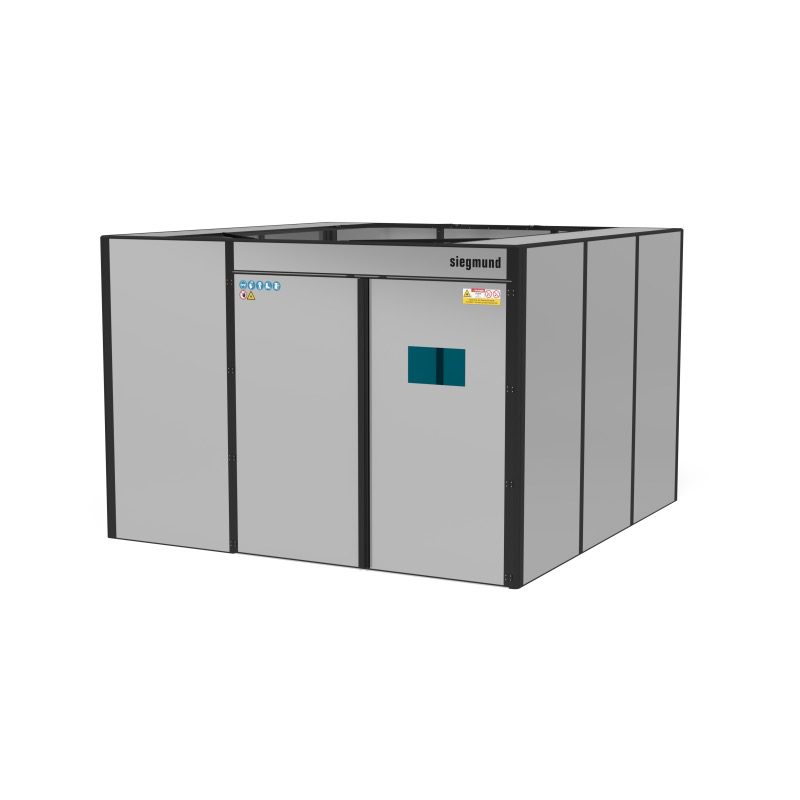

Modular Laser Welding Cell
Elevate your laser welding operations with the Siegmund Modular Laser Welding Cell, designed for maximum safety and easy commissioning. Ideal for manual laser welding and laser cleaning, this cell provides optimal protection against scattered radiation and reflections, offering a customisable and modular solution tailored to your needs.
SAFETY
Certified protection
Scattered radiation shield
CE compliant
FLEXIBILITY
Modular design
Expandable anytime
Customisable
efficiency
Quick startup
Pre-assembled walls
Spacious work area
USABILITY
Easy assembly
Lightweight components
Clear visibility
Pre Assembled Walls, DIN EN 60825-4
The side walls are made of certified aluminium composite panels and profiles, approved for laser use (940–1090 nm, up to 3 kW) and are pre assembled for easy installation.
✓ Aluminium composite panels (Color: RAL 9006, B1 certified)
✓ Approved for a maximum laser power of 3 kW
✓ Certified according to DIN EN 60825-4
✓ Wall thickness: 4 mm
✓ Wall height: 2520 mm
✓ Expandable anytime
Certified Laser Protection Window
The integrated protective viewing screen ensures a safe and clear view into the cell during the welding process and is certified according to DIN EN 60825-4 and DIN EN 207.
✓ Optimal eye protection when looking into the cell
✓ Good visibility inside and out
✓ Window thickness: 3 mm
✓ Made of high quality polycarbonate
✓ Certified according to DIN EN 60825-4 and DIN EN 207

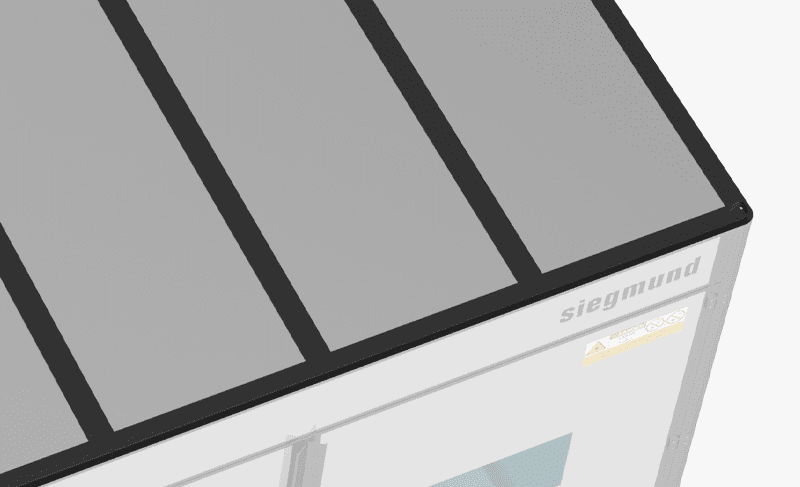

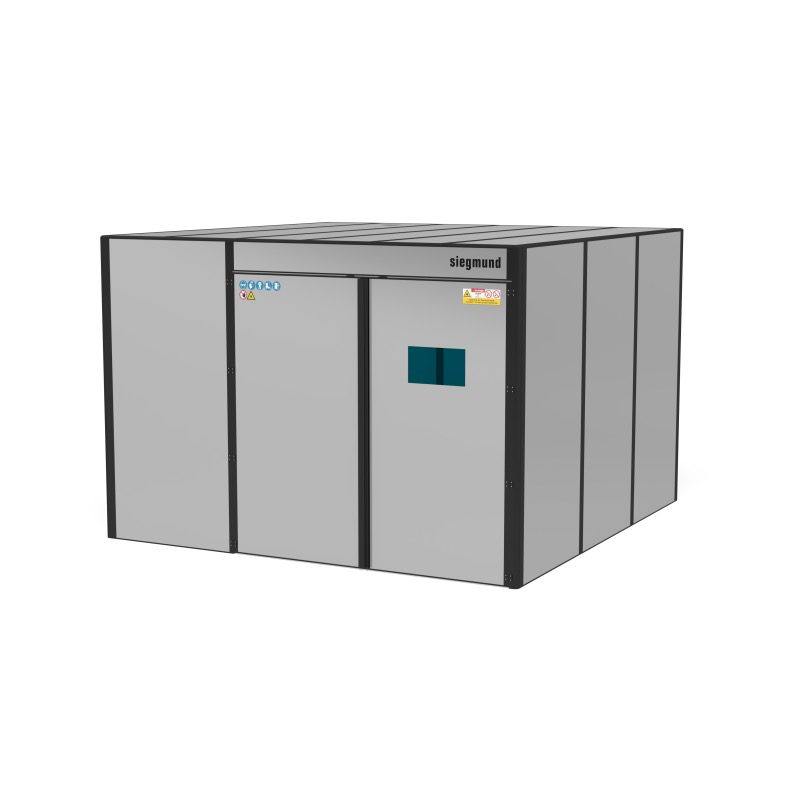

Our Recommendation: Closed Roof
The closed, certified roof with the option of connecting a welding fume extraction system offers additional protection.
✓ Connection available for fume extraction system (Ø 200 mm)
✓ Aluminium composite panels
✓ Wall thickness: 4 mm
✓ Certified according to DIN EN 60825-4
✓ Upgrading possible at any time
Optional Safety Package
Upon request, we offer a safety package for monitoring the cell. Installation is carried out by the customer.
✓ Safety switch with door lock monitoring
✓ Display signal for laser operation
✓ Emergency stop switch
✓ Integration of lasers from all manufacturers
✓ Upgrading possible at any time
All Sizes at a Glance
Recommended Table Sizes
The work surface should be positioned at least 600 mm from the cell wall for a power output of 1,5 kW and at least 700 mm for a power output of 3 kW.
Laser welding cell 2480×2480 mm: recommended for welding tables up to 1200×1200 mm
Laser welding cell 3680×3680 mm: recommended for welding tables up to 2400×1200 mm
Laser welding cell 4880×3680 mm: recommended for welding tables up to 3000×1500 mm

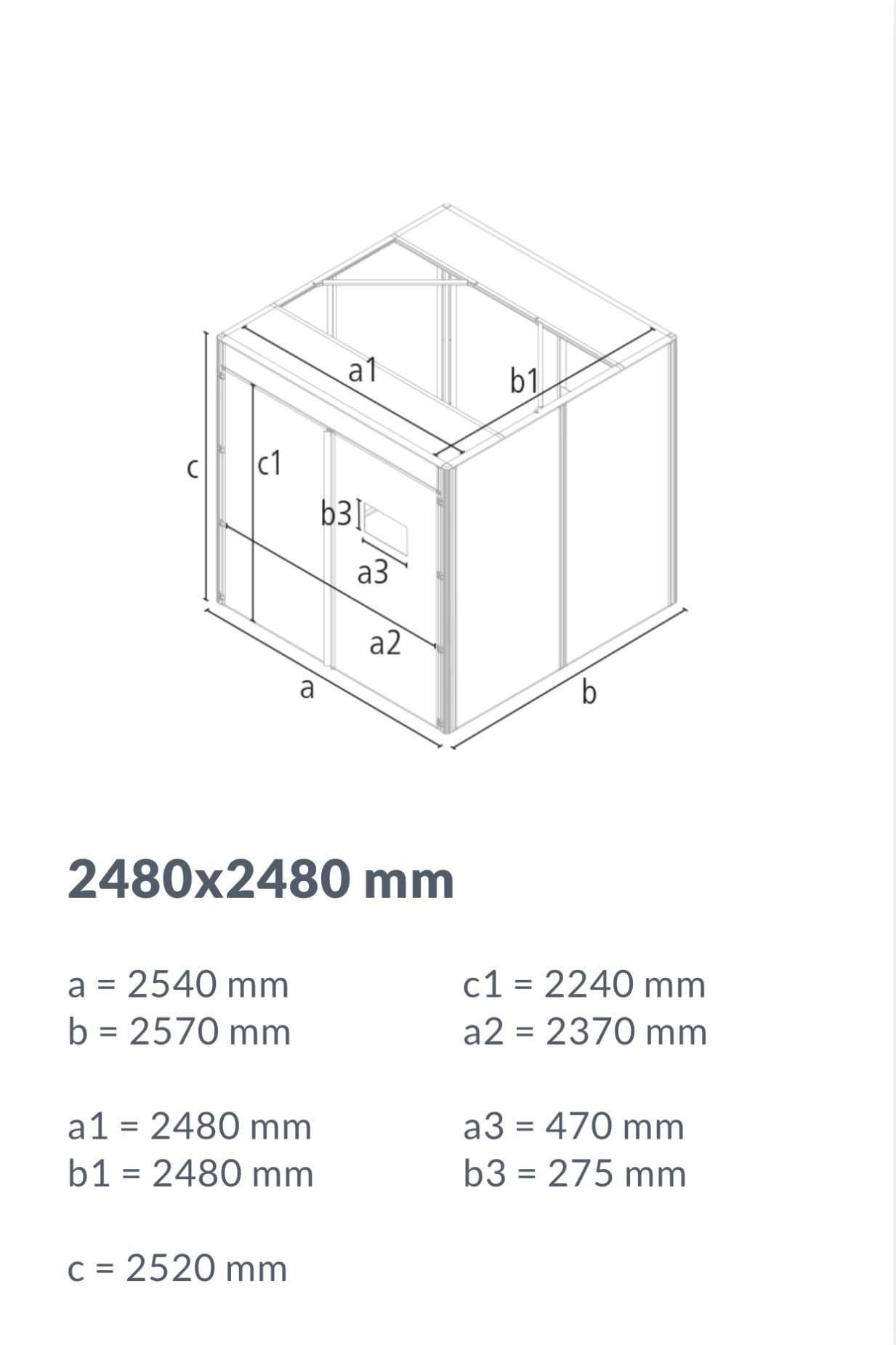

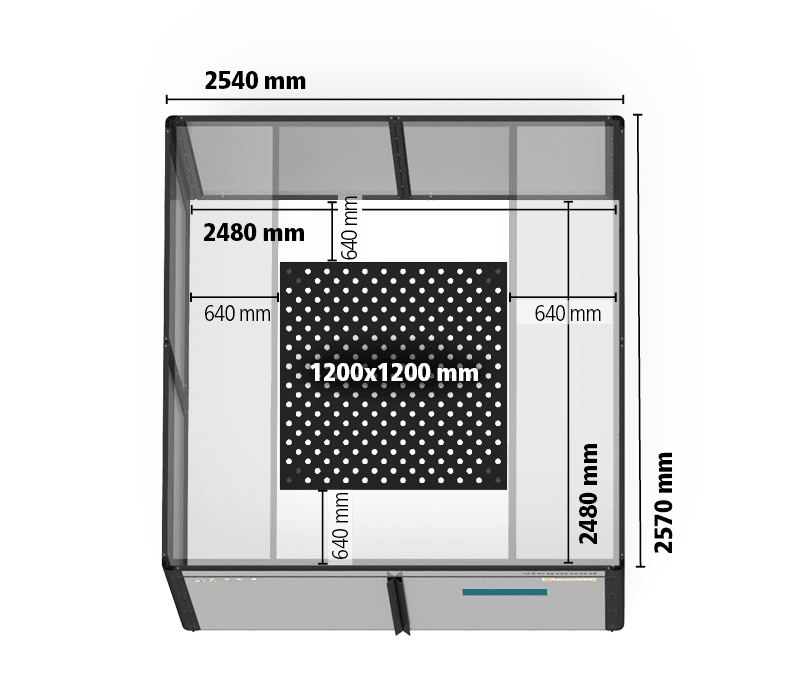

Laser welding cell 2480×2480 mm
Welding Table 1200×1200 mm

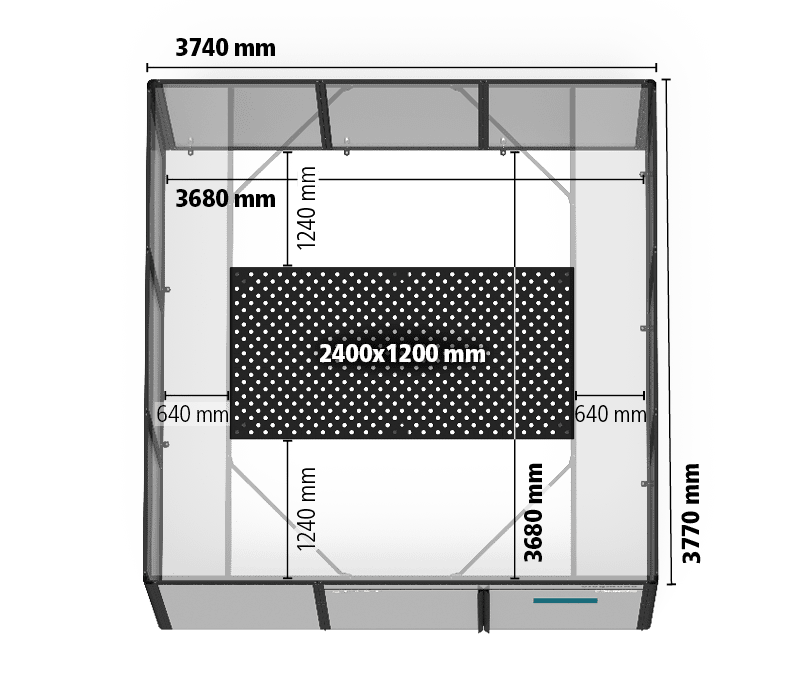

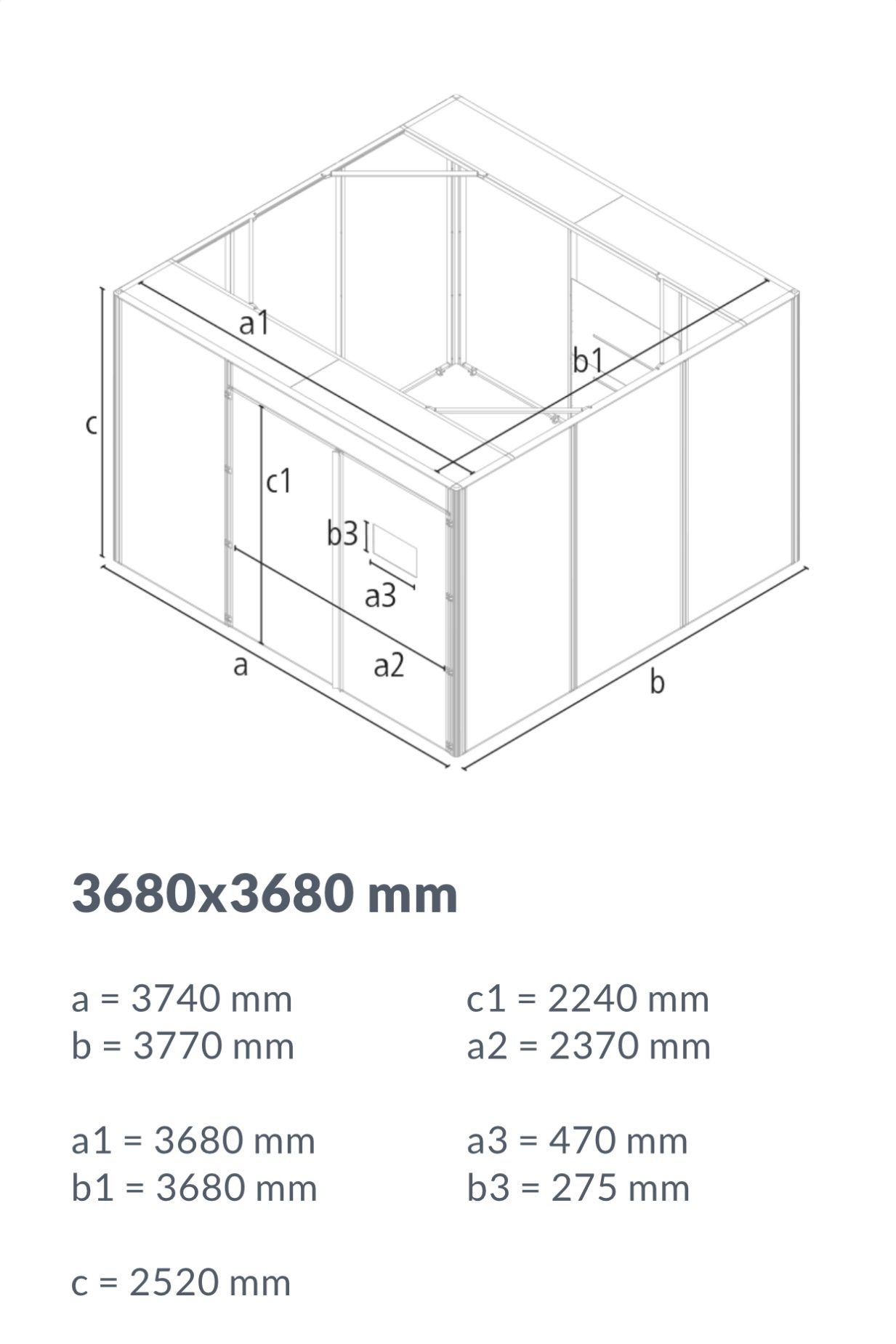

Laser welding cell 3680×3680 mm
Welding Table 2400×1200 mm

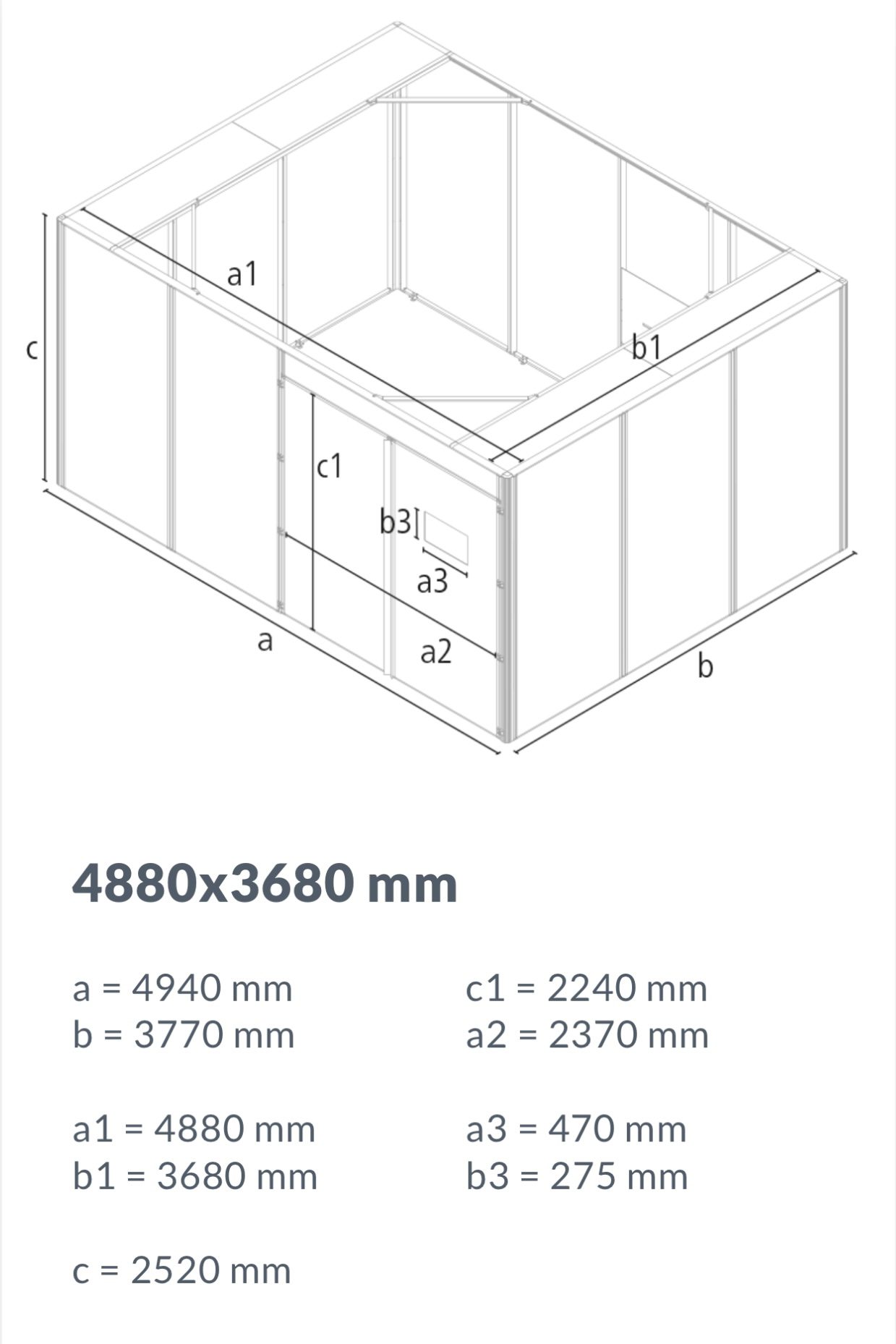

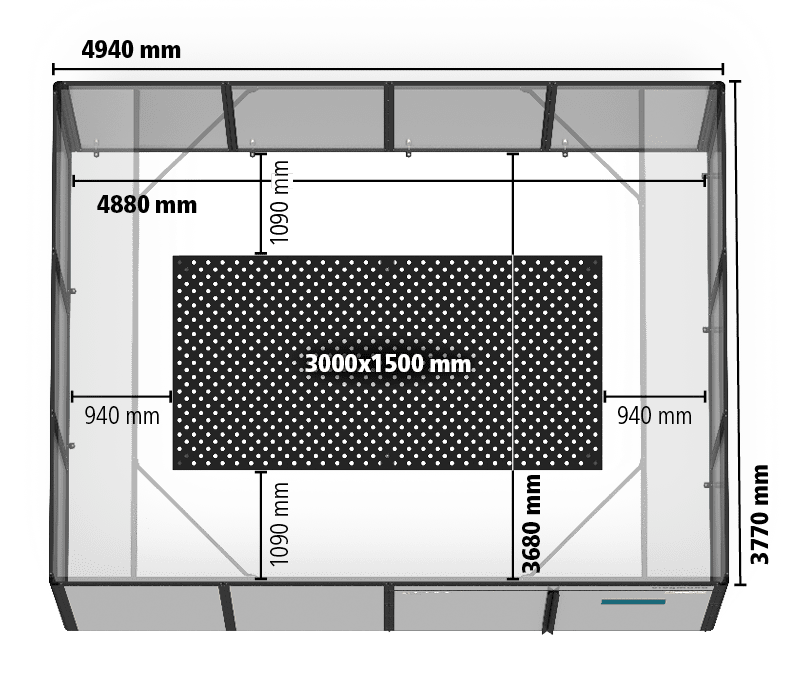

Laser welding cell 4880×3680 mm
Welding Table 3000×1500 mm
Configure Your Own Sizes
Combine a standard size laser welding cell with additional extensions to create your individual cell size.

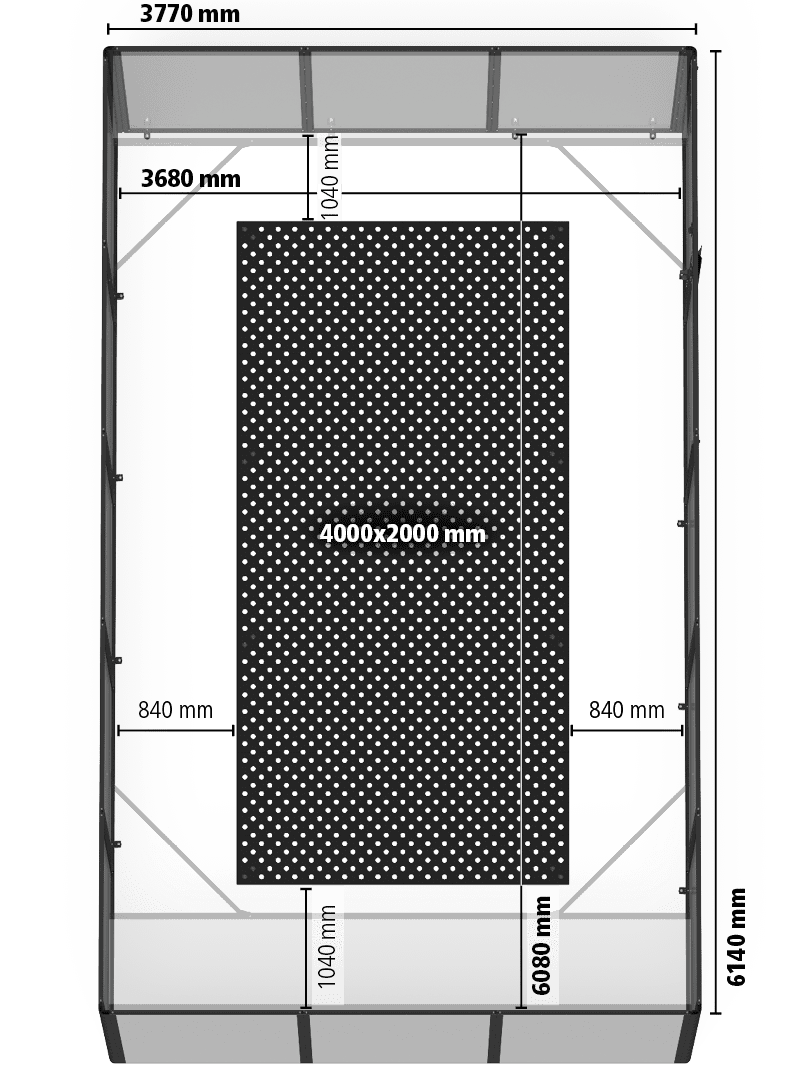

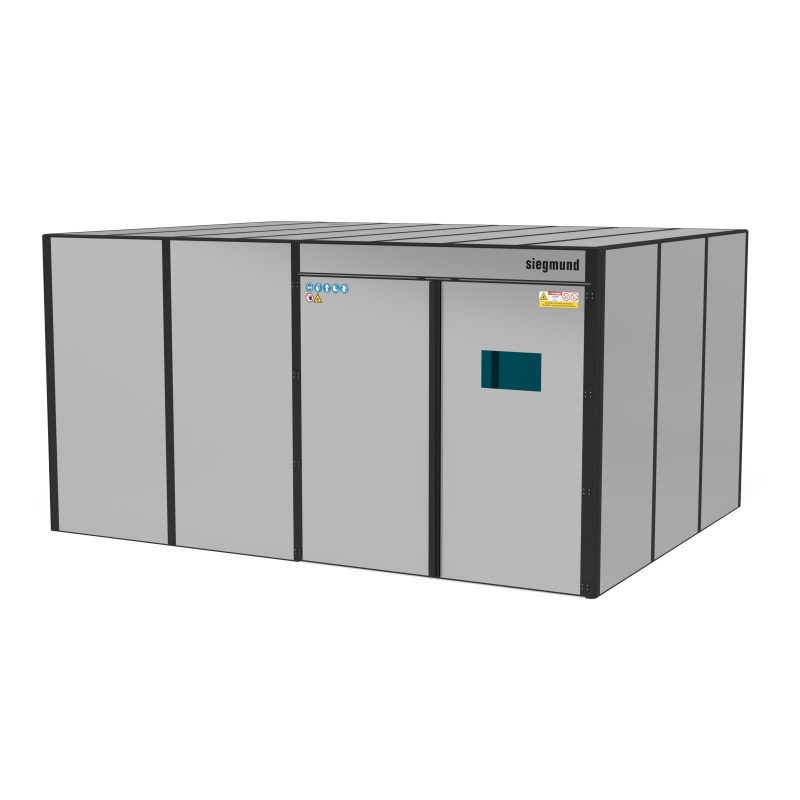

Example: 6080×3680 mm
Laser welding cell 3680×3680 mm

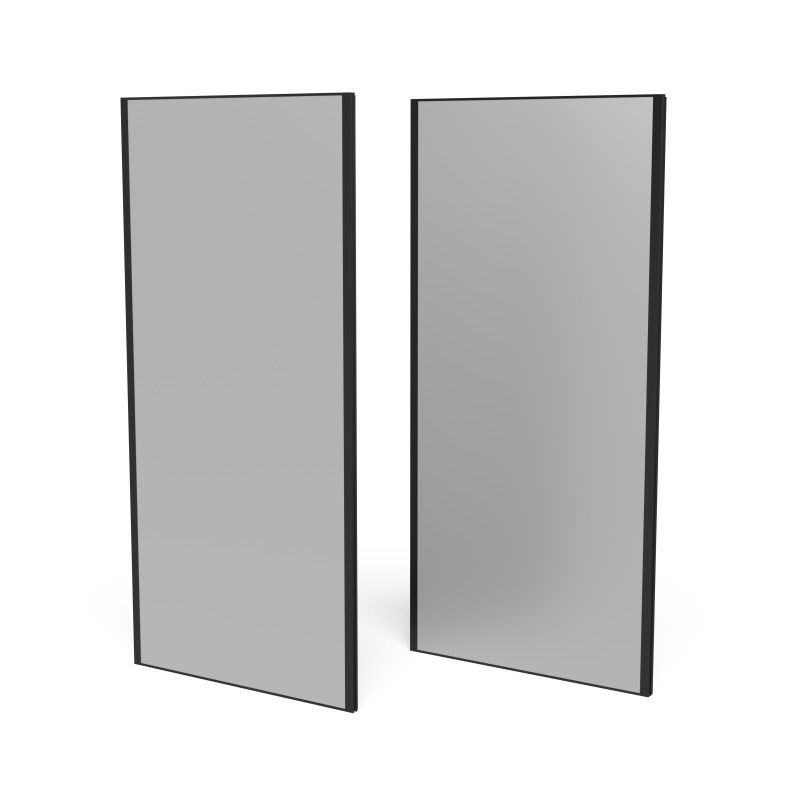

2x Extension wall element
Welding Table 4000×2000 mm
