FILTER SYSTEMS

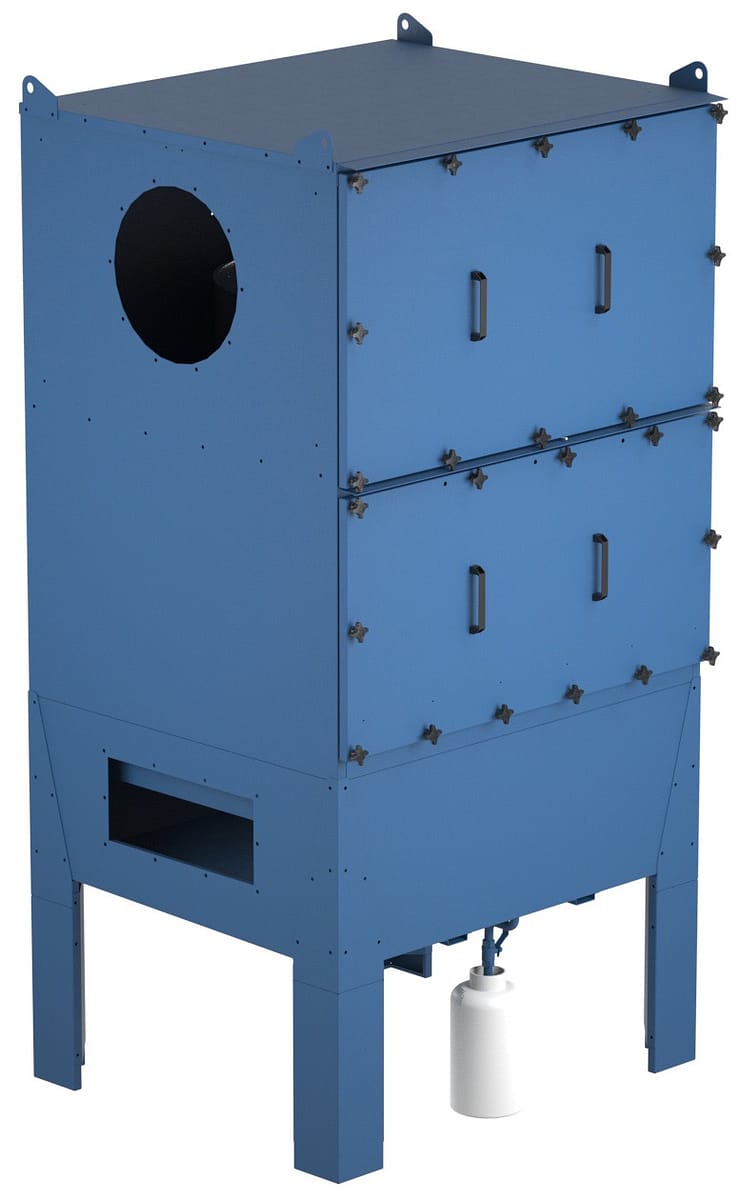

OIL MIST FILTER (GOF)

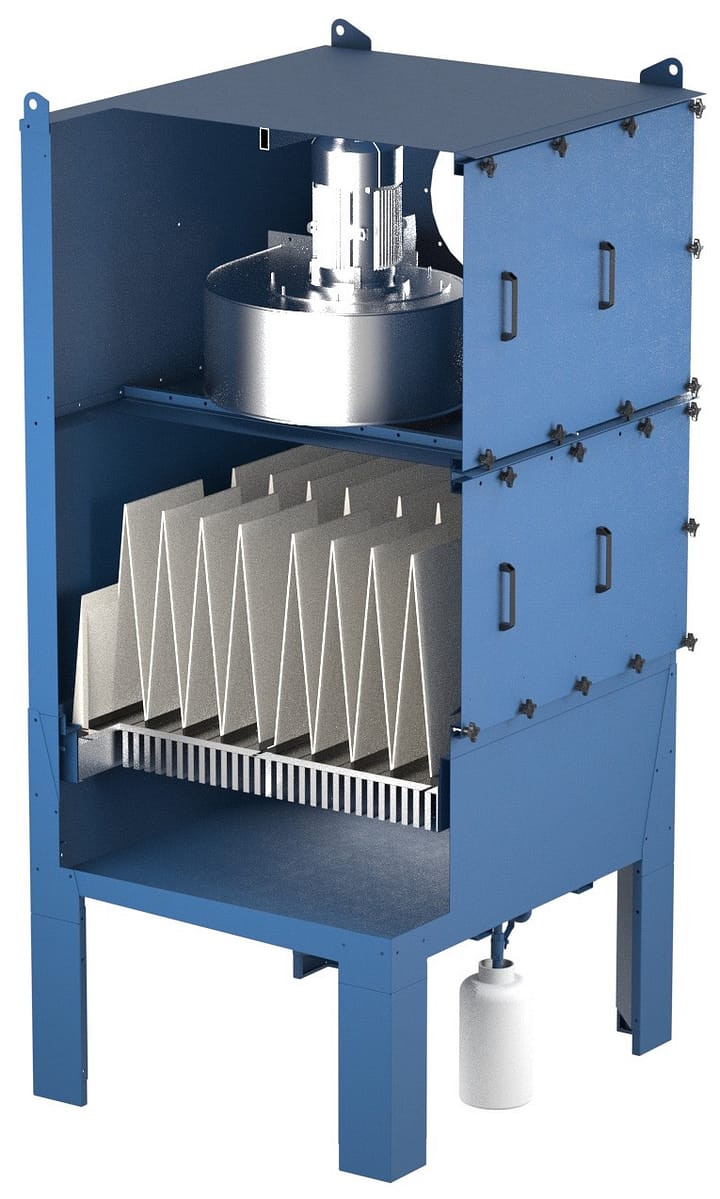

The GEF GOF Oil Mist Filter is designed to remove oil mist and fumes generated during machining processes using neat or emulsified oils. A multi-stage filtration system combines droplet separation, metal filtration and oil pocket filters to efficiently capture airborne oil particles through coalescence. Polluted air enters from the lower section of the unit, allowing initial inertial separation that improves filtration efficiency and extends filter life. Built-in fan versions are available with a soundproofed enclosure, providing reliable extraction performance in machining environments.
Standard Version Specifications:
- Oil tight welded hopper
- Oil repellent pocket filter with surface from 6 to 48 m2
- Fan (GOFV)
- Collection bin 10 L
- Maximum vacuum 2500 Pa
- Maximum temperature 70°C
Accessories:
- Pocket with more filter surface
- Control panel with/or inverter
- Differential pressure gauge
- Collection tank for oil placed under the filter
- HEPA filter on discharge (GOFV)
Materials and finish:
- Galvanized metal sheet
- Stainless steel
- Painted
OIL MIST FILTER (GOF)
Technical Sheet
Download the technical documentation for this product to review detailed information and support system selection, installation and operation.
