GEF EXTRACTIONS
Downdraft Benches
MPAC supplies GEF downdraft benches, engineered for effective dust and fume extraction at the source. Designed for reliability and operator safety, GEF tables combine durable construction with efficient airflow control to maintain clean working environments. From basic empty benches to advanced cartridge filtration systems, each model offers precision craftsmanship and robust performance for industrial applications. Built to European standards, GEF extraction solutions ensure long term durability, easy maintenance and seamless integration into any workshop setup.
GEF Bench
Reliable all purpose downdraft bench for clean and efficient workspace airflow.
GEF Pocket Bench
Compact design with powerful suction for localised dust and fume control.
Cartridges Bench
Advanced filtration system for maximum air purity and operator protection.
Welding Table
Heavy duty extraction bench designed for safe and efficient welding operations.

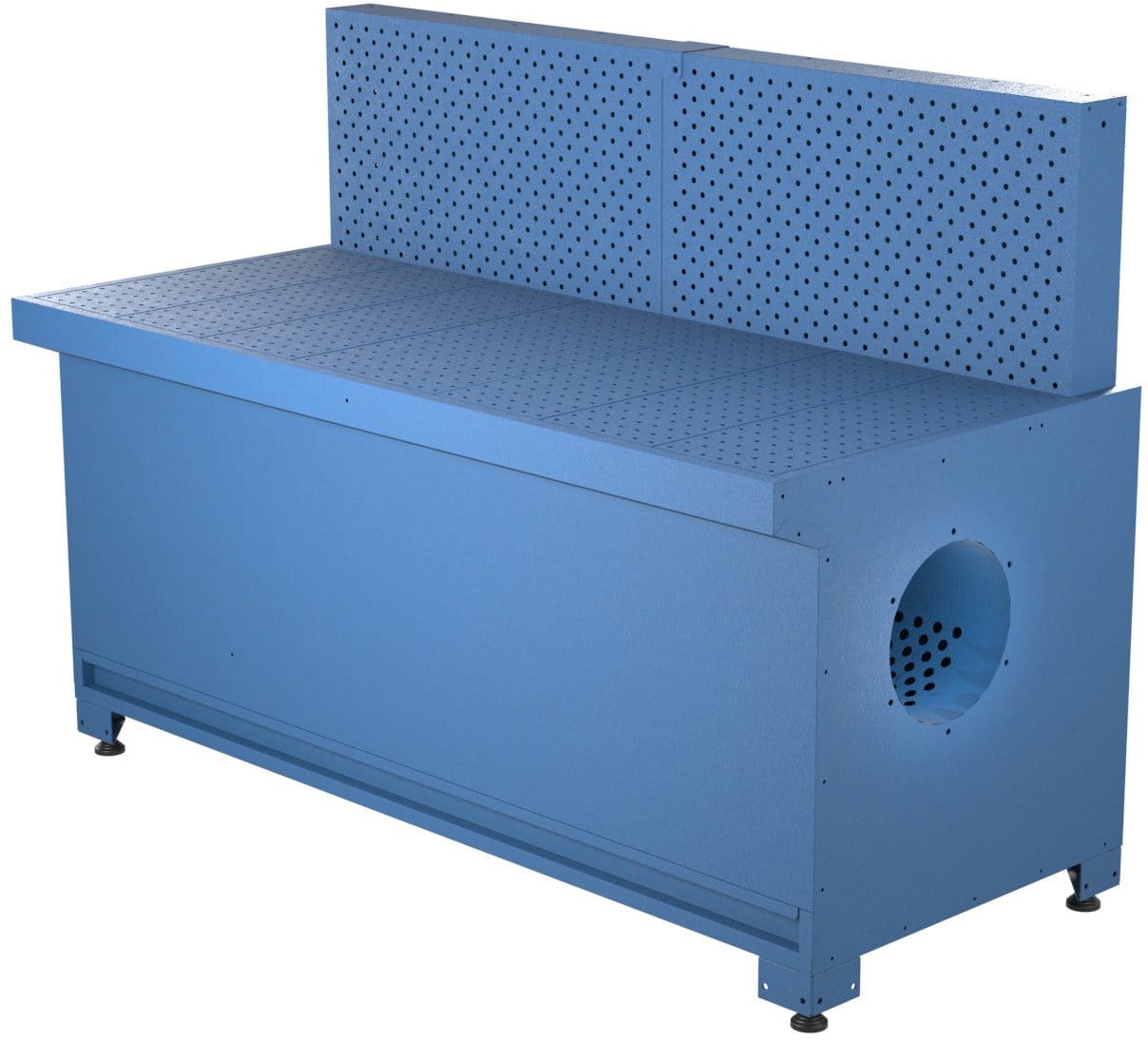

The GEB is a robust downdraft bench designed to connect to a centralised extraction system. Built for heavy industrial use, it captures dust and fumes directly at the source without internal filtration, ensuring reliable performance and easy integration into larger setups. Its simple, durable construction with adjustable feet and dust drawers makes it a practical solution for a wide range of grinding and welding tasks.
Standard Version Specifications
-
Lengths available: 1 – 3 m
-
Adjustable feet for operator height and floor leveling
-
Rear panel included
-
Maximum operating temperature: 150 °C
Accessories
-
Castors and side panels
-
Plasma working top
-
Rear panel with spark protection
-
Plastic strips on desk
-
Lighting and vice preparation
-
Enclosure option
Materials & Finish
-
Galvanised steel
-
Stainless steel
-
Painted finish

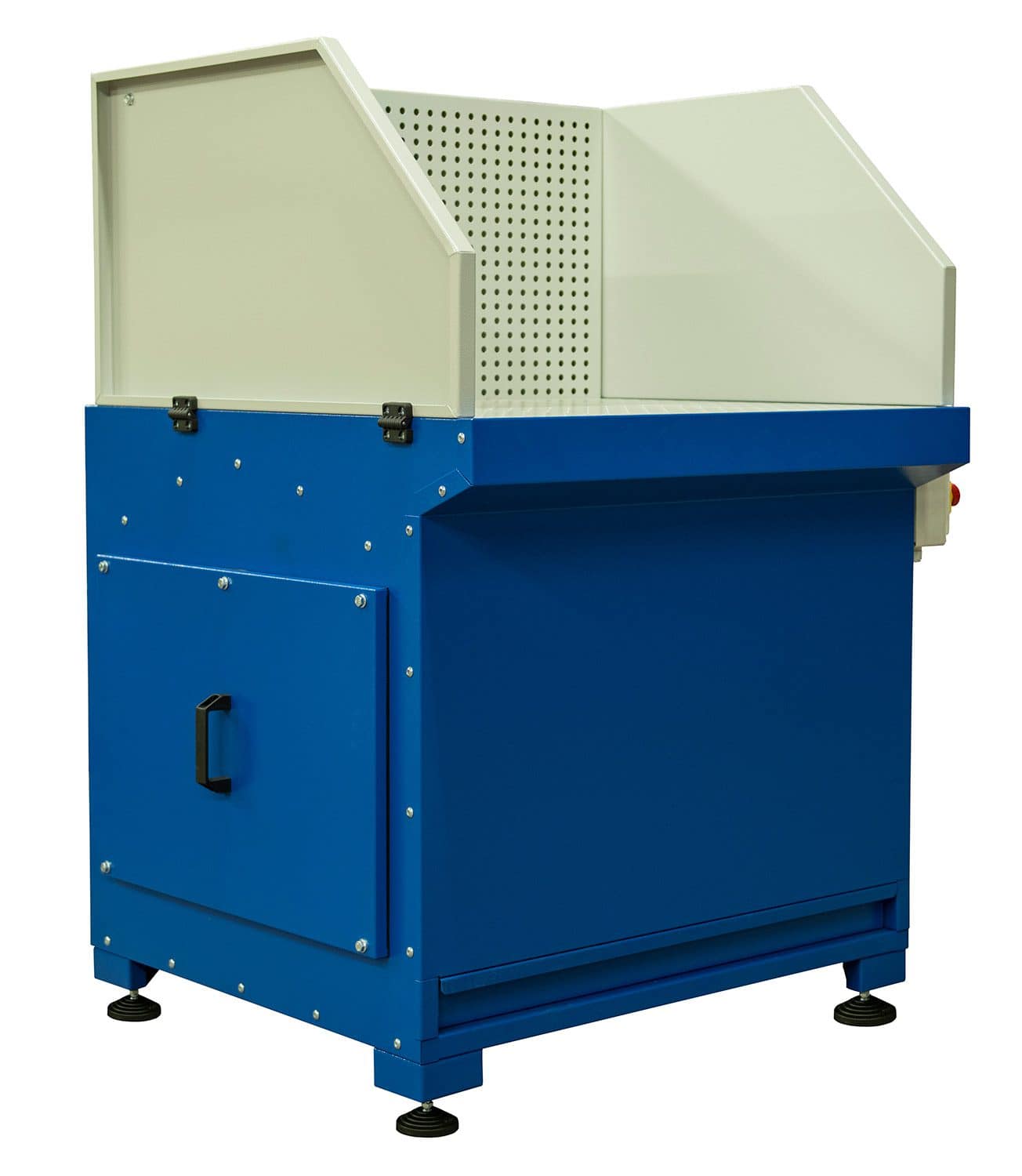

The GPB and GCB benches feature built in pocket filters and integrated fans for independent operation, delivering efficient extraction without the need for external systems. The GCB version includes activated carbon filtration for additional odor and fume control. Designed for everyday workshop use, both models combine compact design with strong airflow and minimal maintenance.
Standard Version Specifications
-
Lengths available: 1 – 3 m
-
Adjustable feet for operator height and floor leveling
-
Rear panel included
-
Maximum operating temperature: 150 °C
Accessories
-
Display for monitoring
-
Front filter replacement system
-
HEPA discharge filters
-
Castors and side panels
-
Silencer on outlet (–10 dBa)
-
Spark protected rear panel and desk strips
Materials & Finish
-
Galvanised steel
-
Stainless steel
-
Painted finish

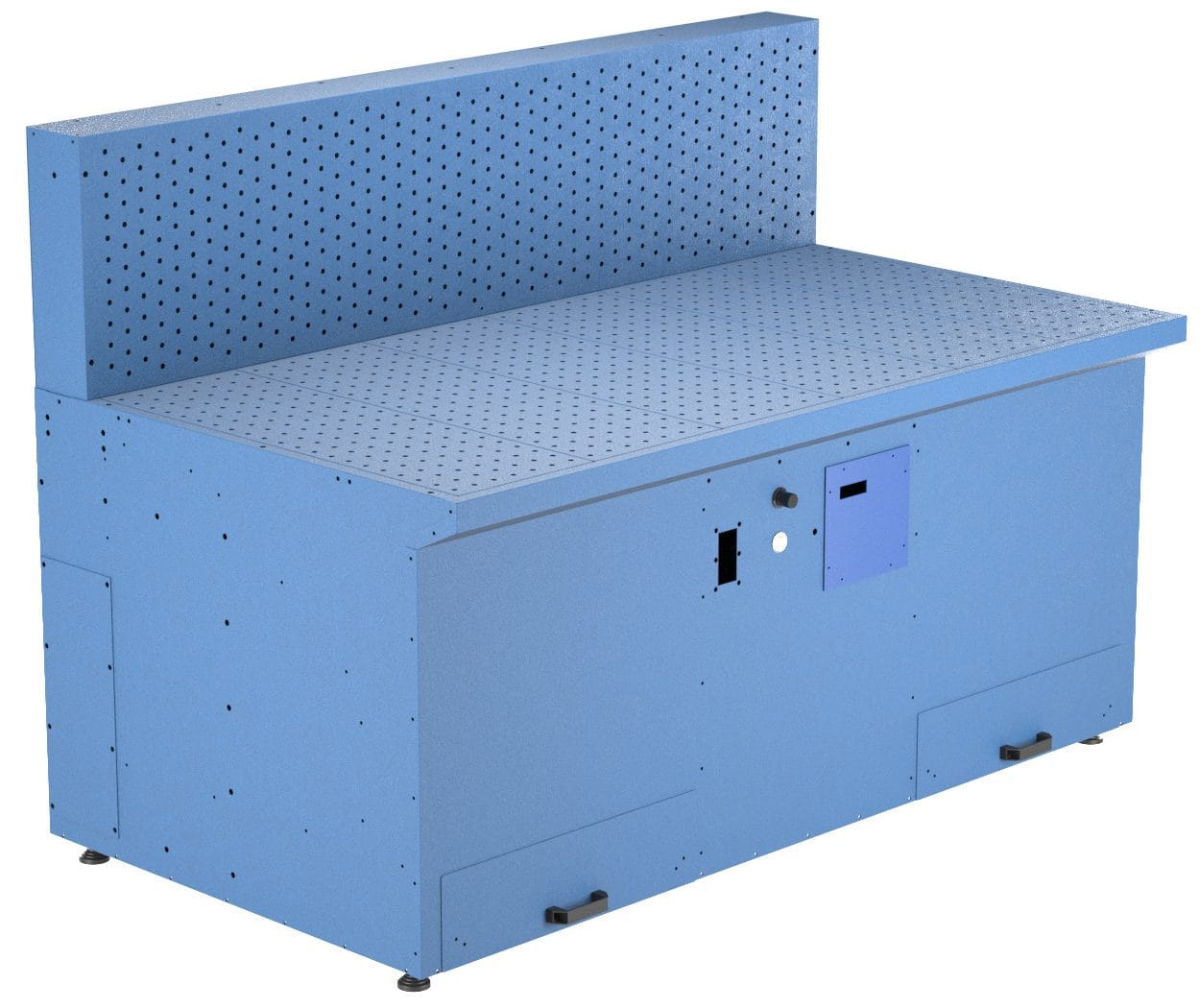

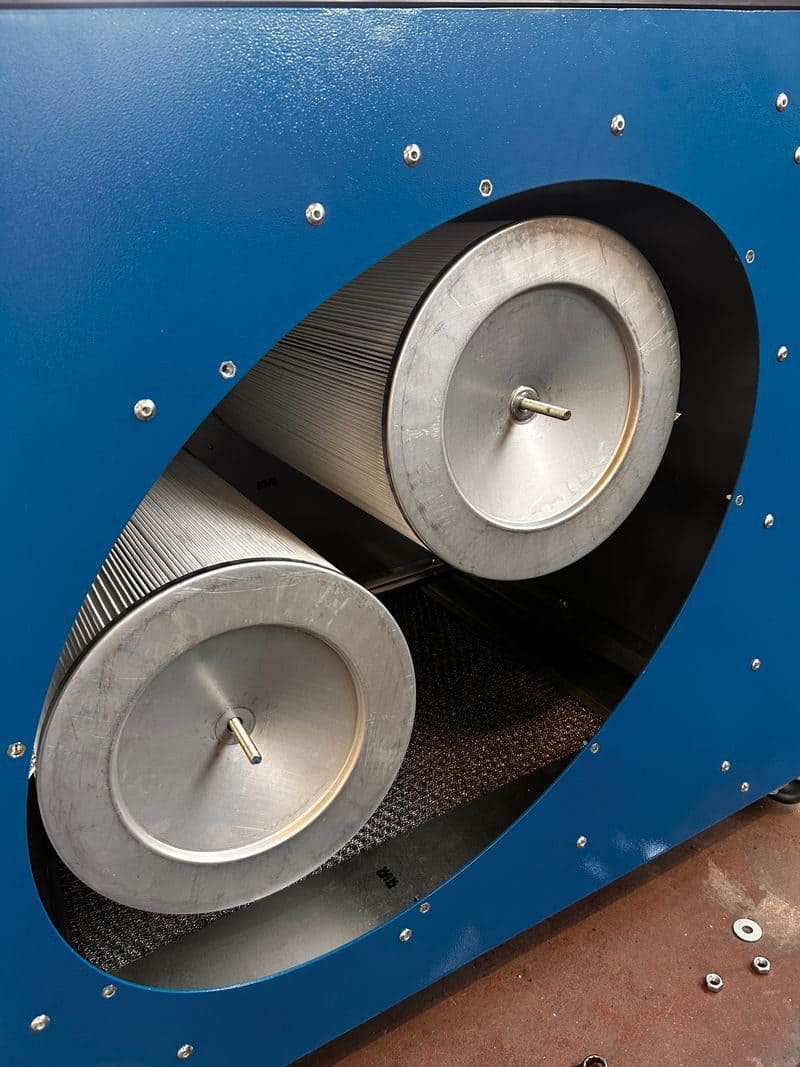

The BC range uses high efficiency cartridge filtration with metal mesh pre filters and automatic reverse jet cleaning, maintaining consistent suction performance even under continuous use. Each unit includes a multifunction display for monitoring system status and filter condition. Rugged and low maintenance, the BC series offers advanced filtration ideal for fine dust applications and heavy grinding environments.
Standard Version Specifications
-
Lengths available: 1 – 3 m
-
Metal mesh pre filtration
-
High efficiency fan and display
-
Automatic reverse jet cleaning
-
Adjustable feet and rear panel
-
Maximum operating temperature: 80 °C
Accessories
-
HEPA cartridges or HEPA discharge filters (H13 / H14)
-
Castors and spark trap on worktop
-
Silencer on outlet (–10 dBa)
-
Side and rear panels with spark protection
-
Lighting and plastic strips on desk
Materials & Finish
-
Galvanised metal sheet
-
Stainless steel
-
Painted finish

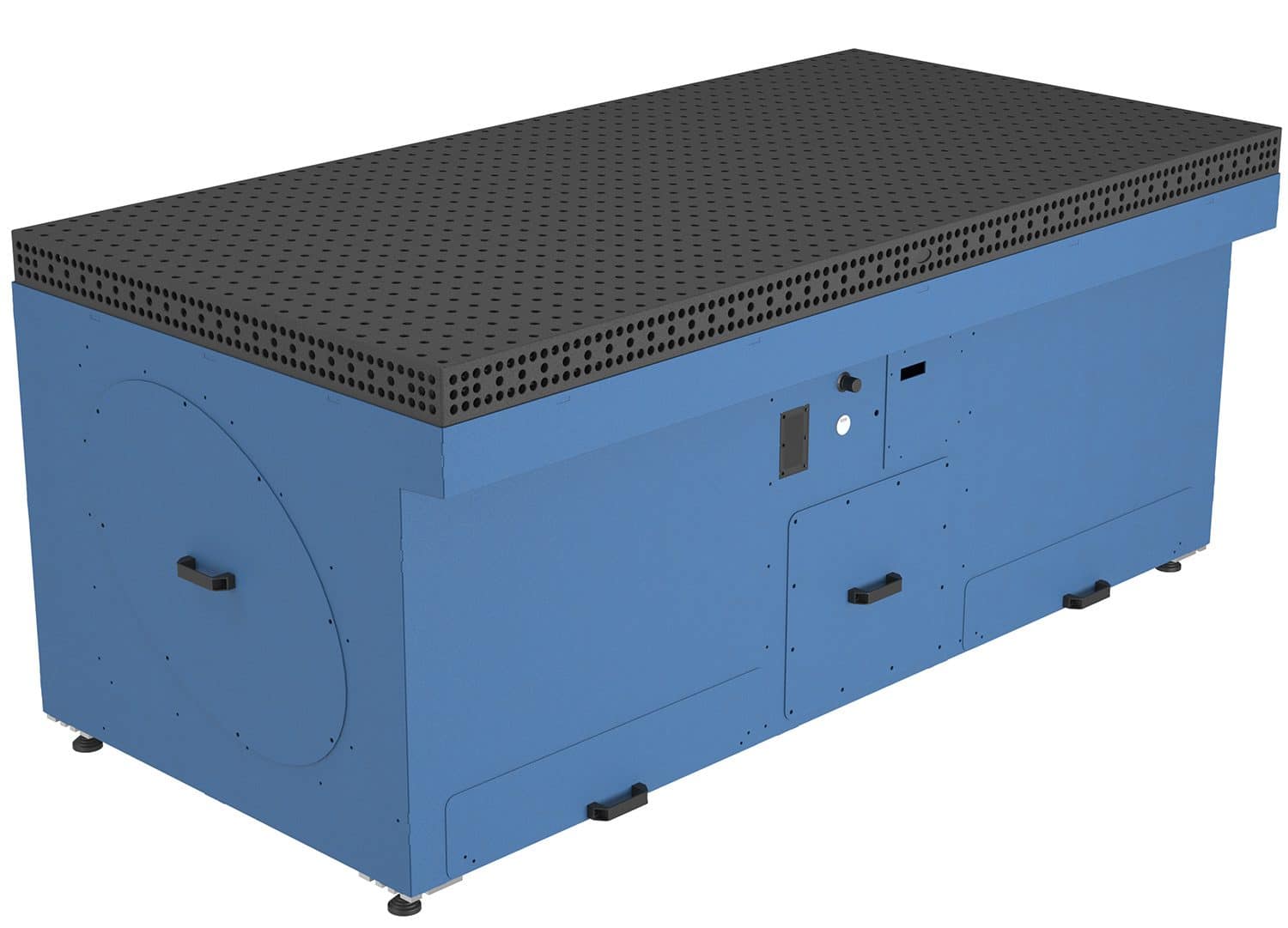

The GTW bench merges GEF’s extraction technology with the precision and versatility of Siegmund welding tables. This all in one workstation allows users to weld, grind and assemble while capturing fumes and dust directly from the work surface. Available in versions with or without automatic cleaning, it offers an ergonomic, space saving solution for professional fabrication workshops.
Versions
-
GTW – with glass H13 filtration (no automatic cleaning)
-
GTW P – with BIA “M” filtration cartridges and automatic air cleaning
Standard Features
-
-
High efficiency fan integrated in structure
-
Multifunction display with ON/OFF switch and maintenance monitoring
-
Adjustable feet for stable setup
-
Dust collection drawers for easy waste management
-
Spark arrestor to protect filters
-
Compatibility
-
Designed for Siegmund System 16 and 22 tables and accessories
