FLAIG LIFTING
Permanent Magnetic Trusses

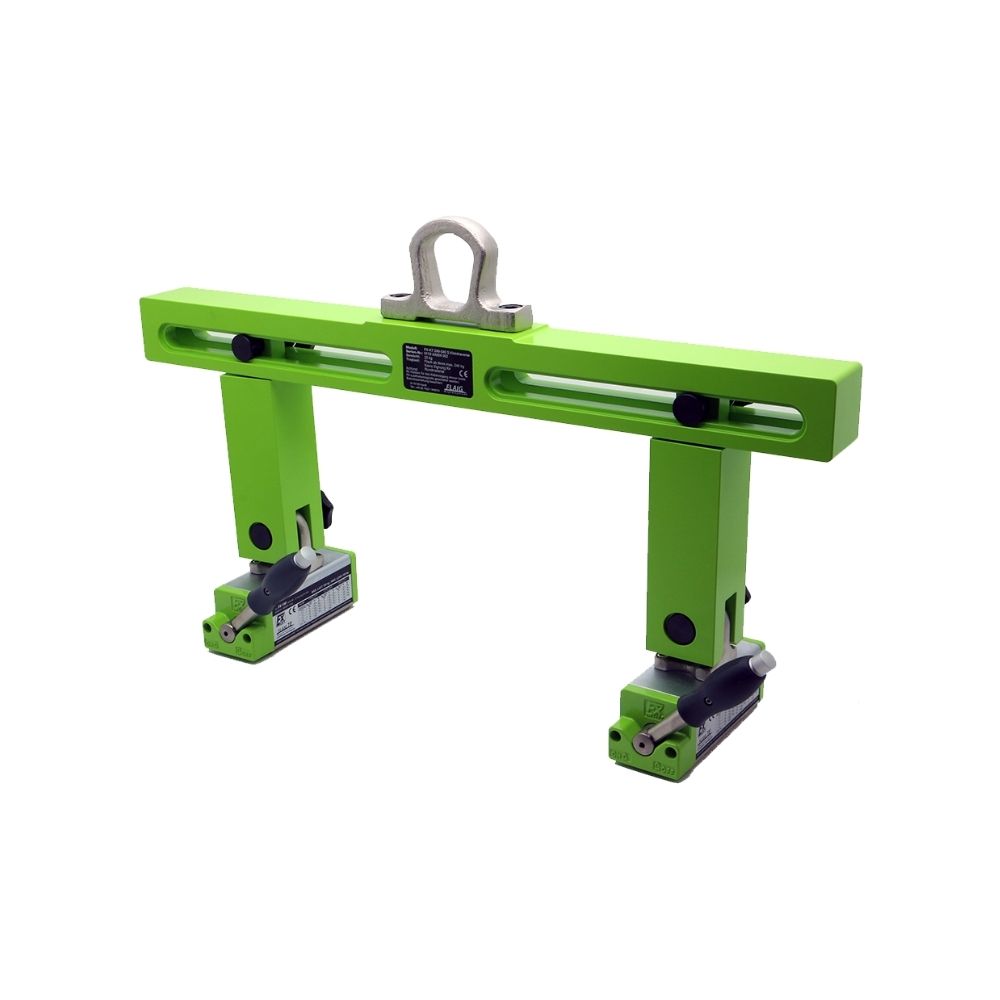

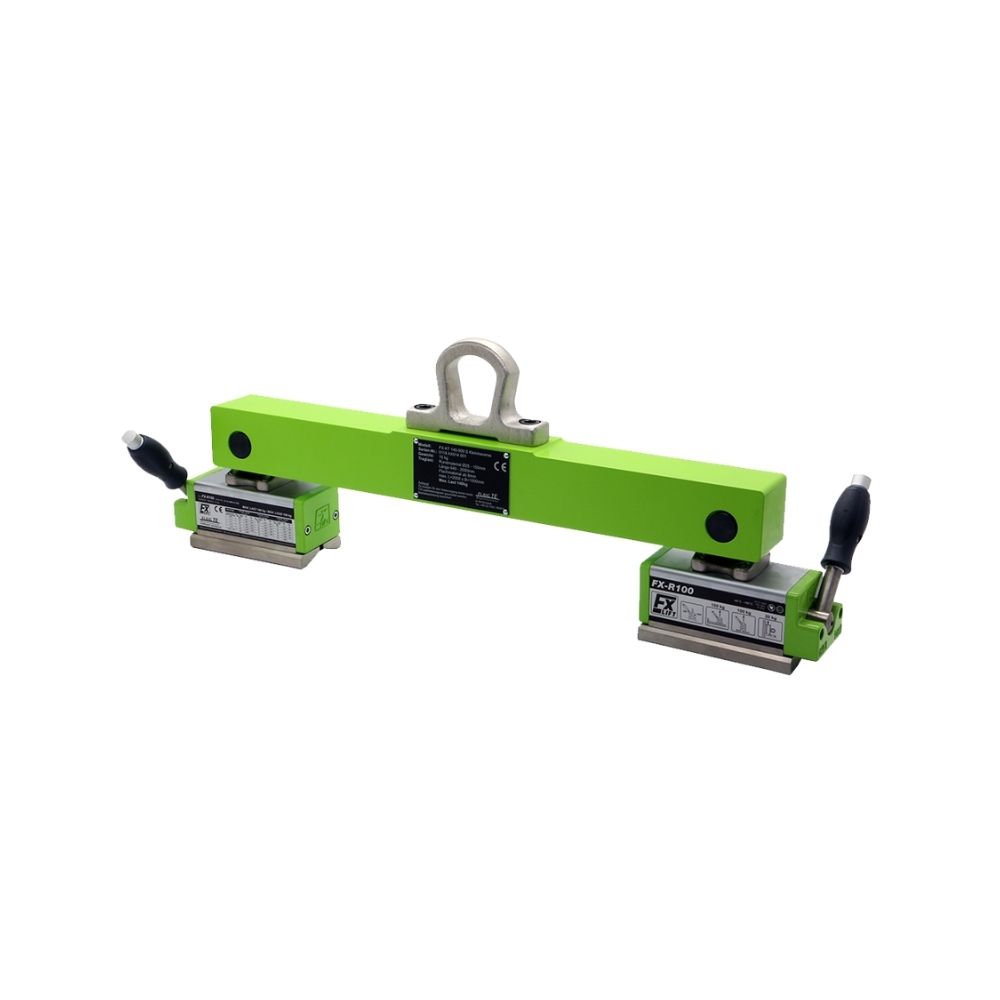

FX-LT
Light trusses 600-4800kg

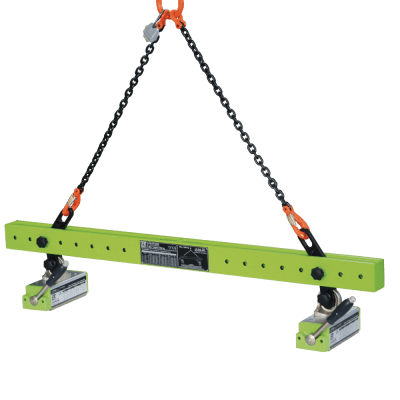

FX-LT magnetic trusses are made for sheet metal handling in laser and flame cutting. Two FX magnets on a light truss allow easy loading, even with central cut outs. Magnets can be used separately for small parts.
model | Product number | incl. 2x FX | Max. load capacity (kg) | Load capacity from (mm) | max. workpiece dimensions (mm) | Dimension length (mm) | Dimension height (mm) | Weight (kg) |
FX-LT 600 | 1104 0600 | FX-P330 | 600 | 10 | 4000 x 1500 | 1600 | 270 | 44 |
FX-LT 750 | 1104 0750 | FX-V400 | 750 | 15 | 5000 x 1500 | 1600 | 270 | 44 |
FX-LT 1000 | 1104 1000 | FX-600 | 1000 | 20 | 5000 x 1500 | 1600 | 291 | 58 |
FX-LT 1400 | 1104 1400 | FX-V800 | 1400 | 20 | 5000 x 2000 | 1600 | 360 | 86 |
FX-LT 2600 | 1104 2600 | FX-1500 | 2600 | 25 | 5000 x 2500 | 2052 | 391 | 165 |
FX-LT 3200 | 1104 3200 | FX-2000 | 3200 | 50 | 5000 x 2500 | 2000 | 480 | 305 |
FX-LT 4800 | 1104 4800 | FX-3000 | 4800 | 50 | 5000 x 2500 | 2000 | 600 | 410 |

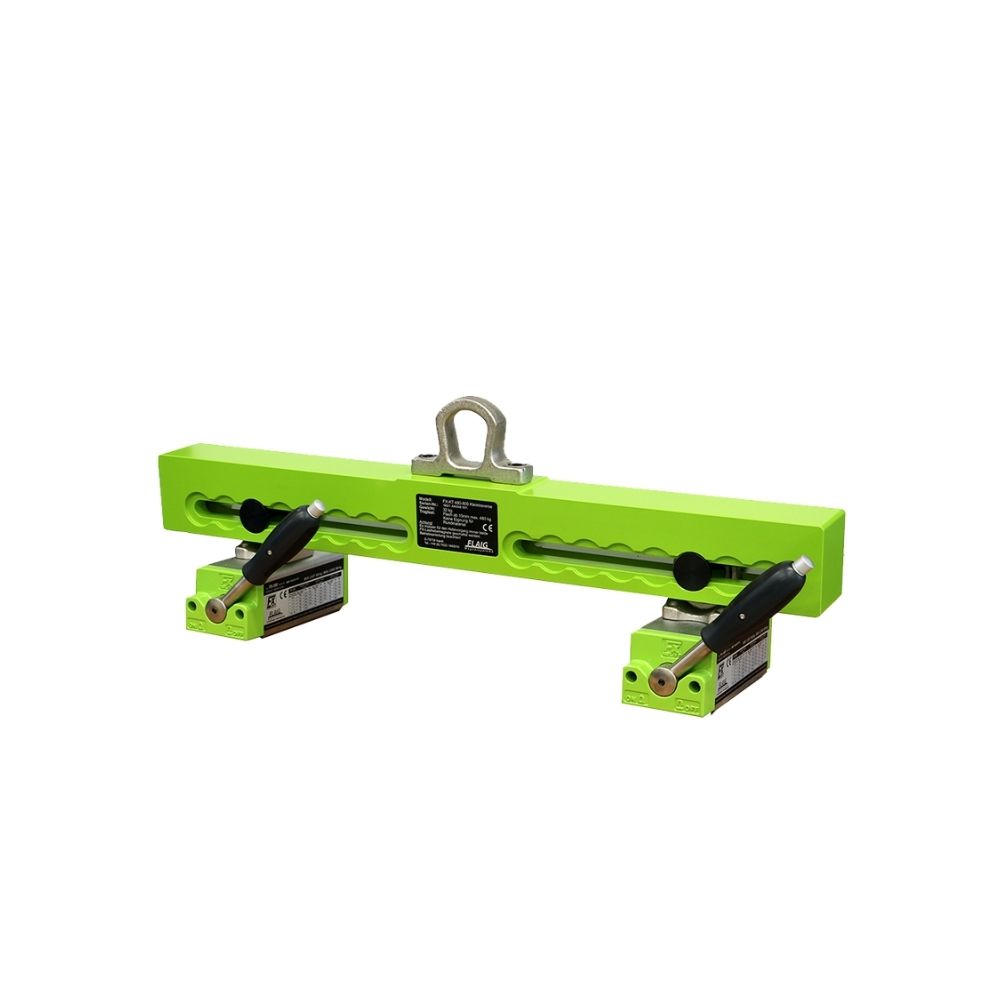

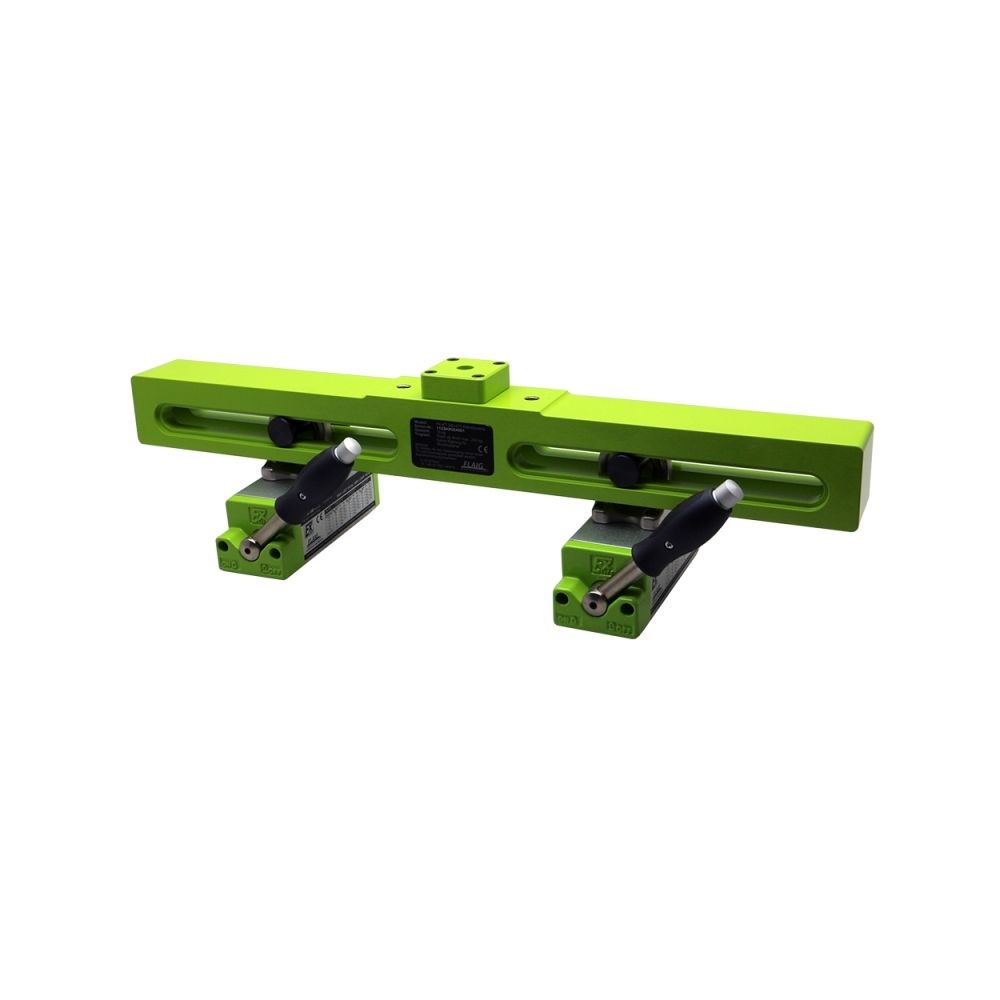

FX-KT

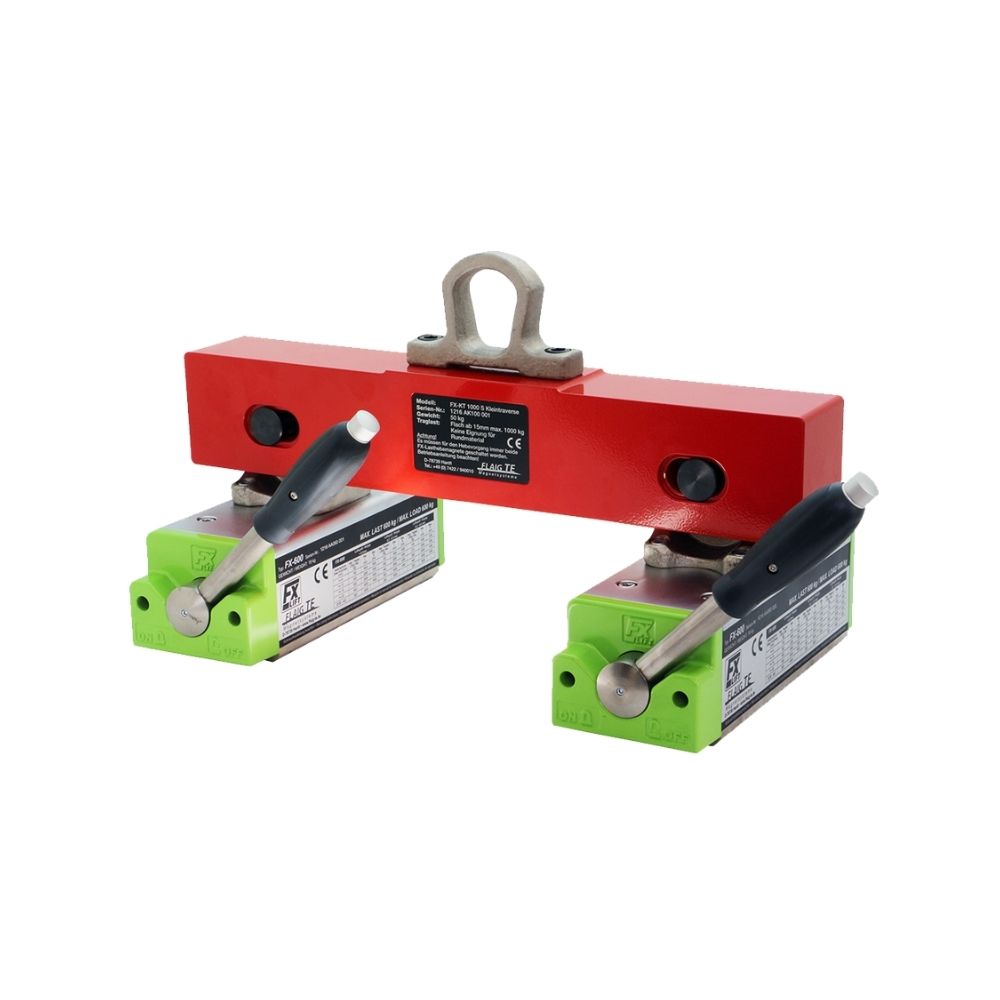

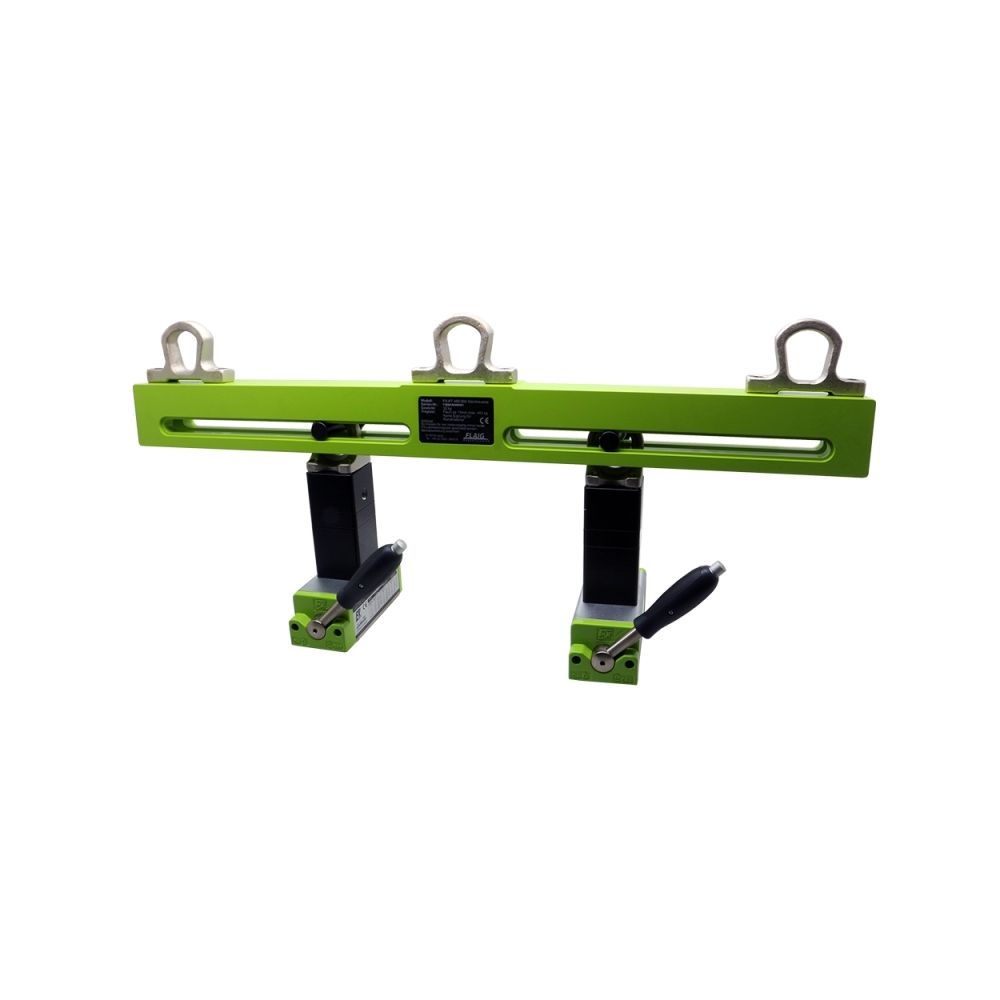

Small trusses 240-480kg
model | Product number | Load capacity from (mm) | Magnet adjustment (mm) | Dimension L1 (mm) | Dimension B (mm) | Weight (kg) | Dimension H (mm) | Max. load capacity (kg) |
FX-KT 240-260 | 1105 0240-260 | 8 | 58-260 | 400 | 64 | 15 | 233 | 240 |
FX-KT 240-420 | 1105 0240-420 | 8 | 58-420 | 560 | 64 | 15 | 233 | 240 |
FX-KT 240-470 | 1105 0240-470 | 8 | 58-470 | 607 | 64 | 20 | 233 | 240 |
FX-KT 240-540 | 1105 0240-540 | 8 | 58-540 | 680 | 64 | 22 | 233 | 240 |
FX-KT 480-440 | 1105 0480-440 | 15 | 65-440 | 650 | 87 | 26 | 269 | 480 |
FX-KT 480-600 | 1105 0480-600 | 15 | 65-600 | 800 | 87 | 30 | 269 | 480 |
FX-KT 480-800 | 1105 0480-800 | 15 | 65-800 | 1000 | 87 | 32 | 269 | 480 |

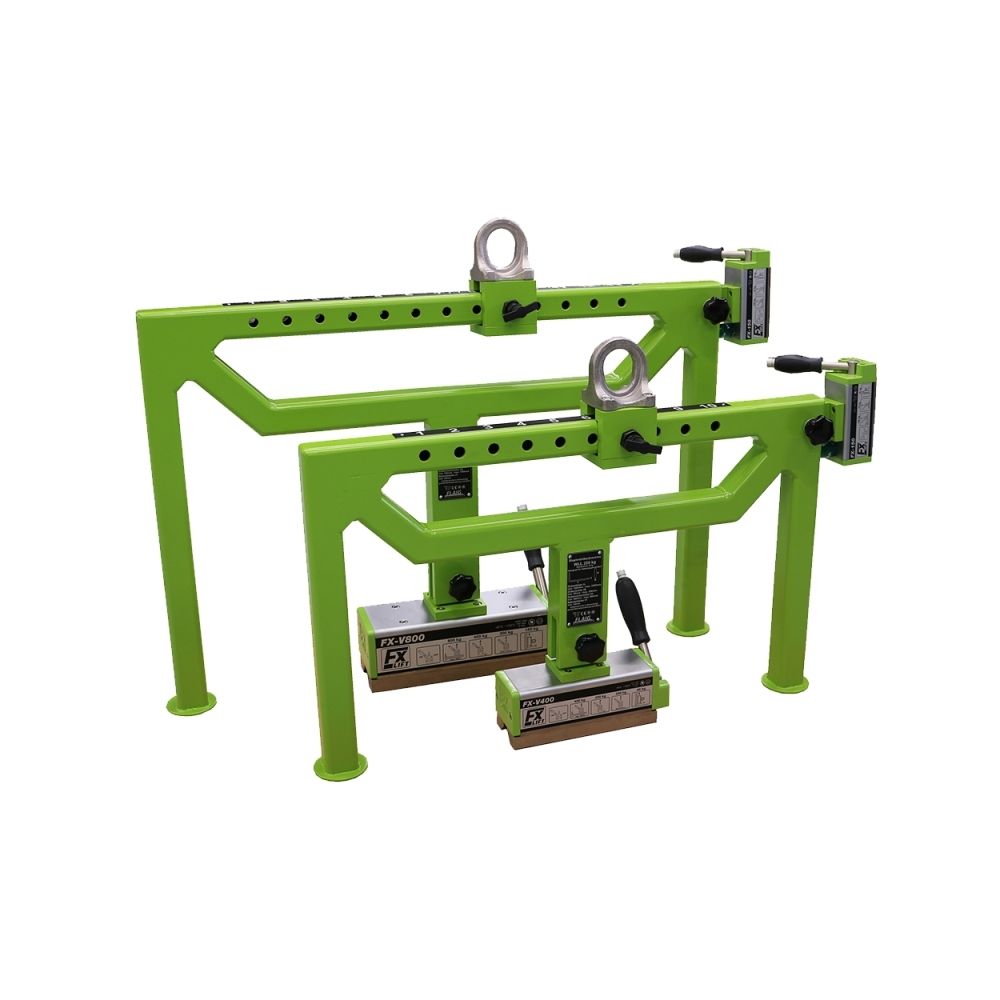

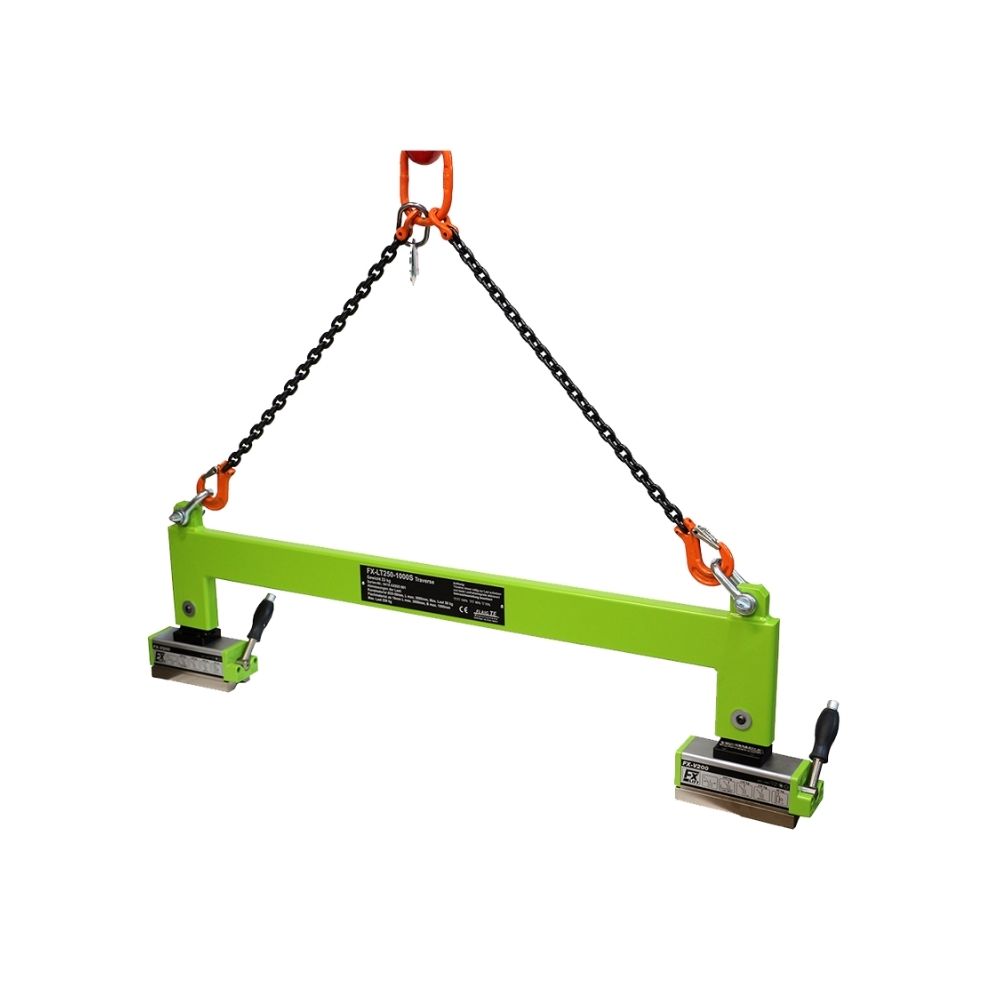

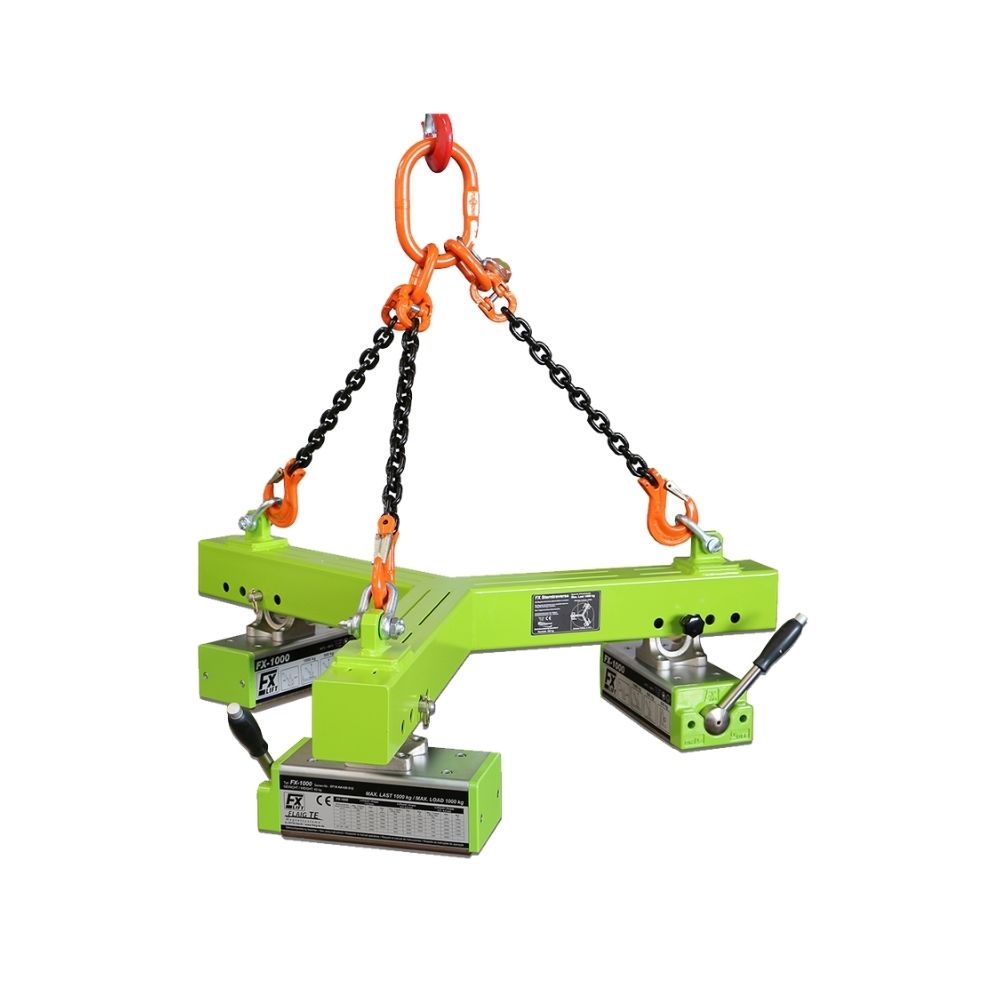

Individual Magnetic Trusses
Flaig manufactures lifting magnets with diverse pole shoe shapes and load crossbars for nearly any geometry, including spherical, long shoe, ring, sleeve and profile designs. All are EN 13155 and MRL 2006/42 EC compliant. They also engineer bespoke magnetic clamping solutions. Get in touch with us for specialised magnetic systems tailored to your needs.
