FLAIG LIFTING
Horizontal Vertical Systems

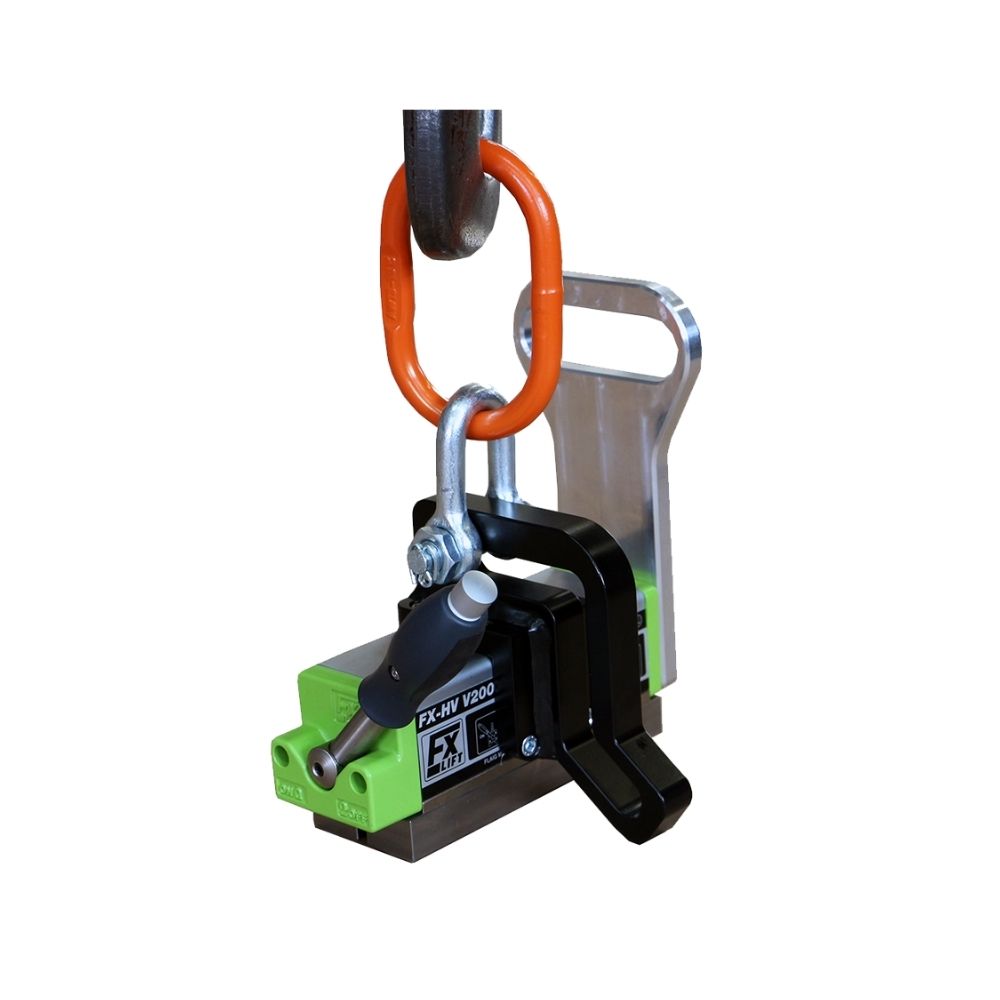

FX-HV
Horizontal vertical systems 150-3000kg
model | Product number | Max. load with stop (kg) | Max. load without stop (kg) | Flat material dimensions (mm) | Disc Ø (mm) | Dimension length retracted (mm) | Dimension width retracted (mm) | Dimension width extended (mm) | Weight (kg) |
FX-HV 150 | 1103 0152 | 150 | 30 | 1000 x 420 | 150 - 420 | 680 | 220 | 104 | 18 |
FX-HV 200 | 1103 0202 | 200 | 40 | 2000 x 750 | 250 - 750 | 715 | 390 | 400 | 24 |
FX-HV 400 | 1103 0402 | 400 | 80 | 2000 x 1000 | 400 - 1000 | 795 | 475 | 450 | 31 |
FX-HV 800 | 1103 0802 | 800 | 160 | 2500 x 1250 | 500 - 1200 | 1040 | 520 | 500 | 70 |
FX-HV 2000 | 1103 2002 | 2000 | 400 | 2500 x 1250 | 500 - 1200 | 1200 | 650 | 600 | 243 |
FX-HV 3000 | 1103 3002 | 3000 | 600 | 2500 x 1250 | 500 - 1200 | 1200 | 650 | 600 | 294 |
FX-HVS

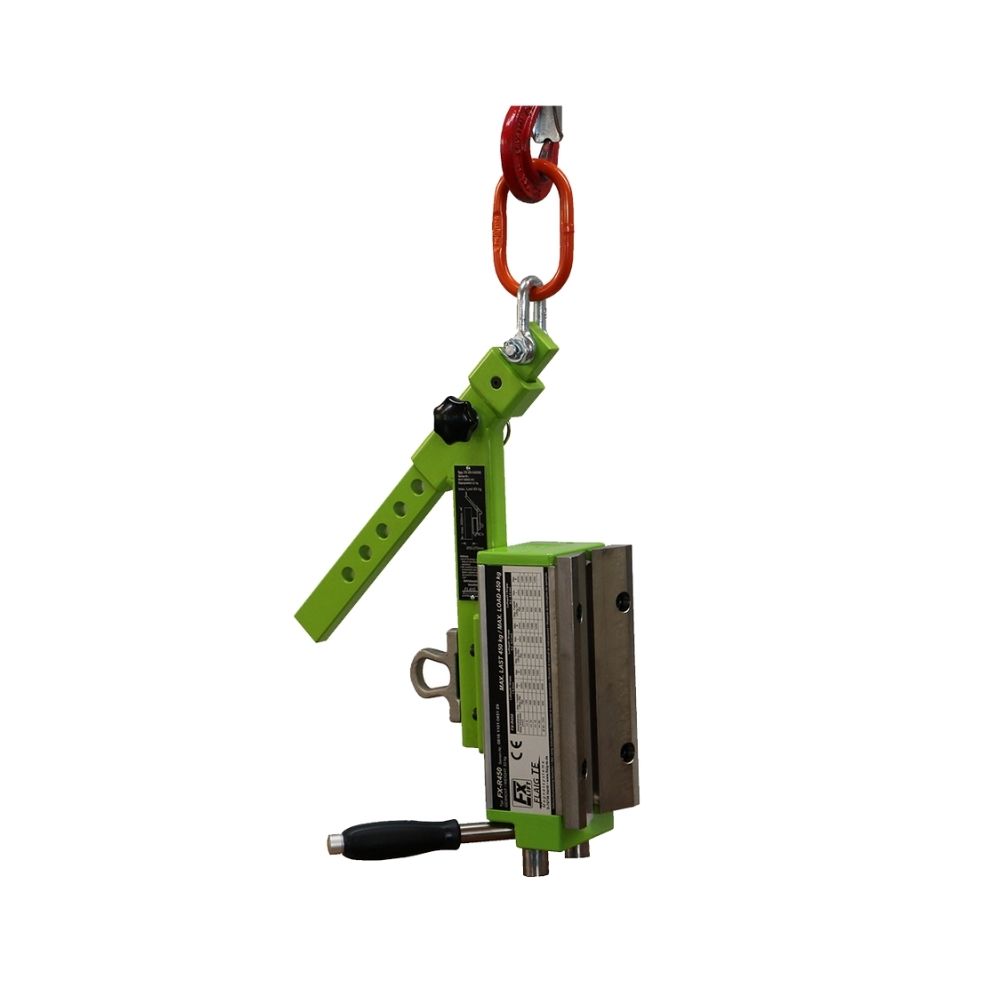

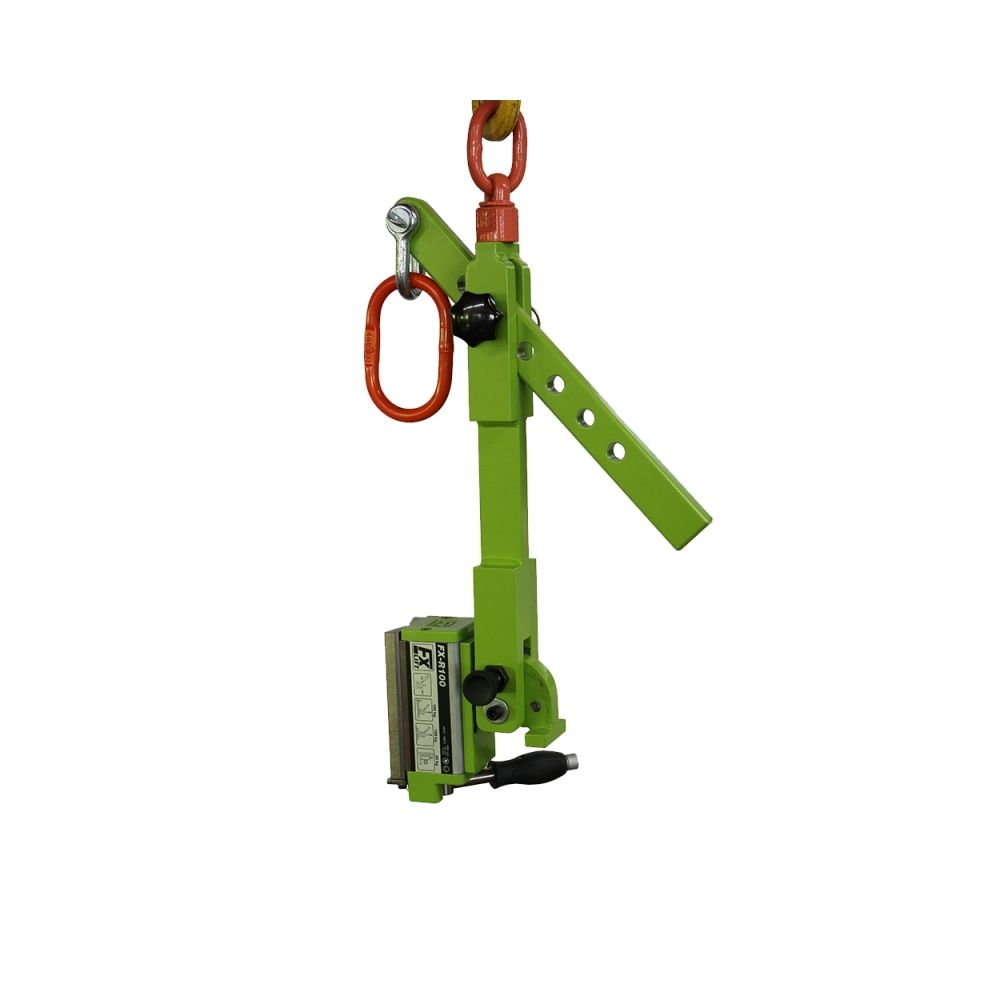

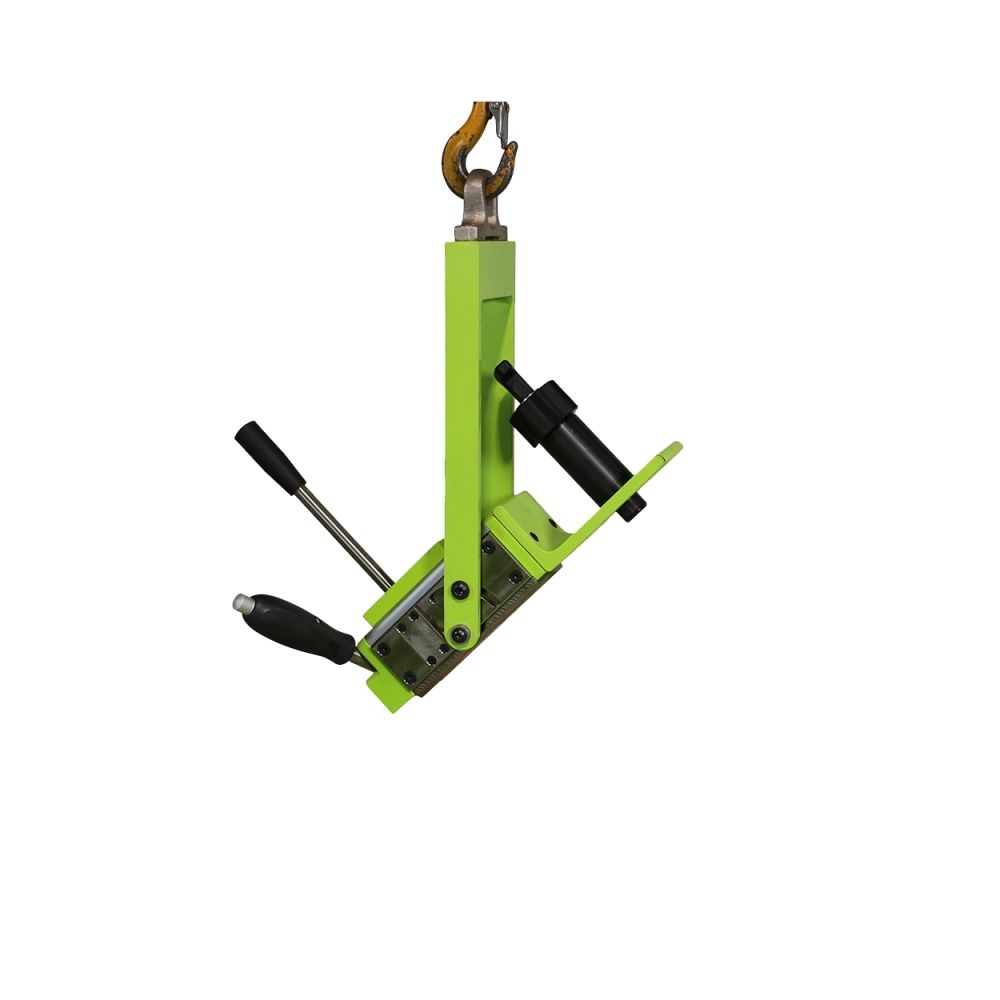

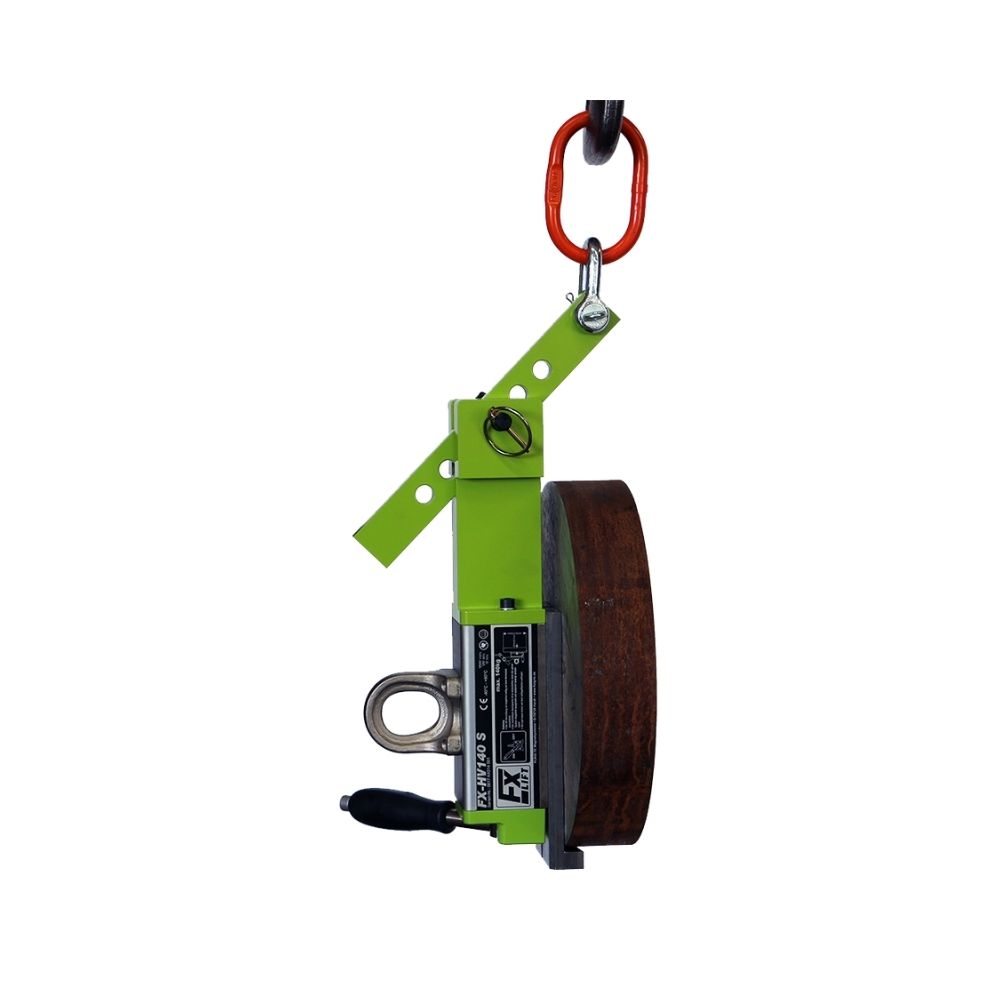

FX-HVS HV systems

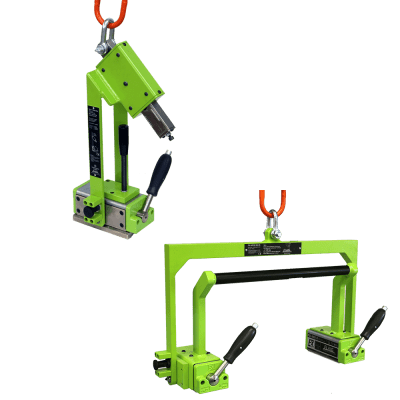

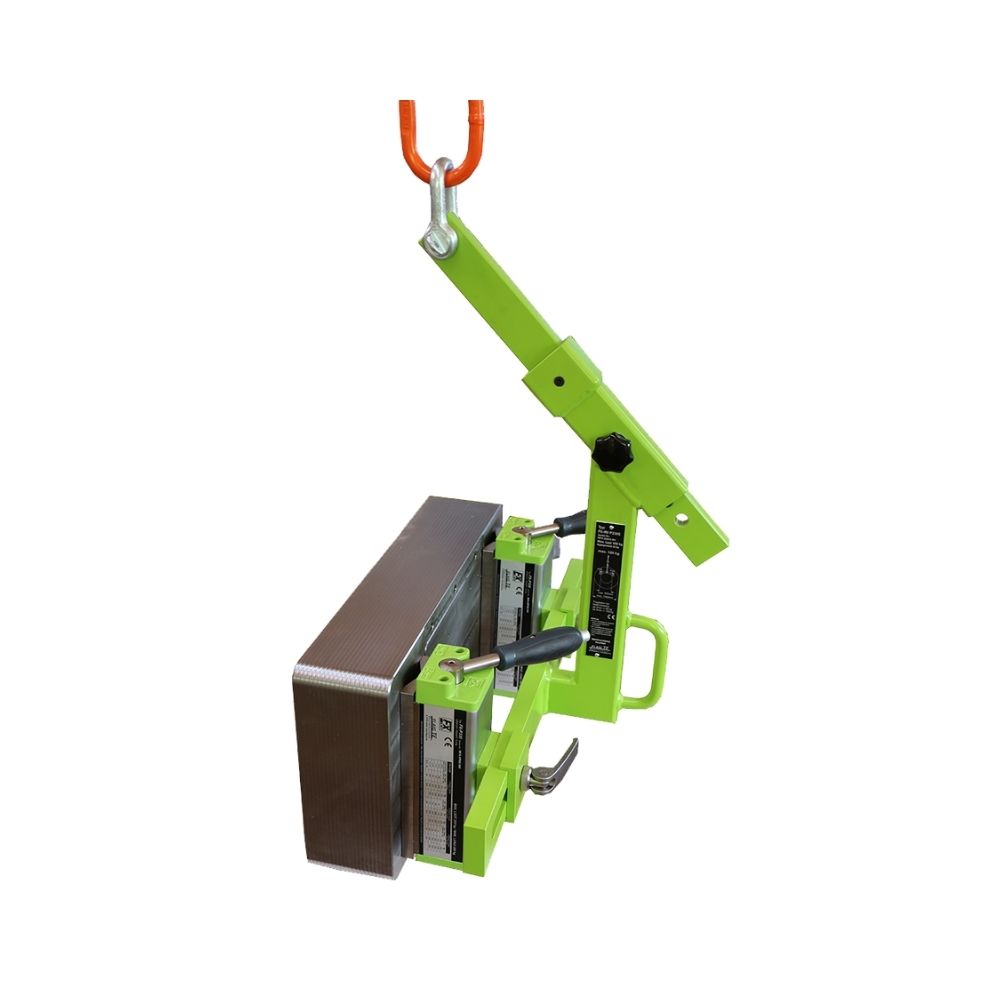

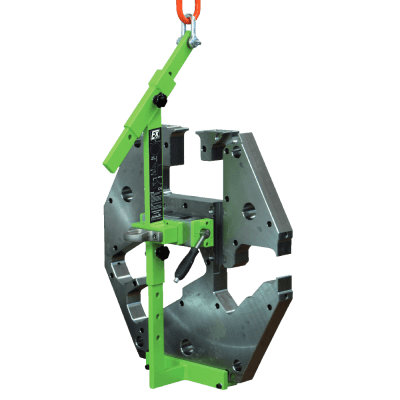

FX-HVS HV systems allow the user to swivel the load suspended on the crane by 90°. By simply locking it to the system, the load can change position from horizontal to vertical at any time.

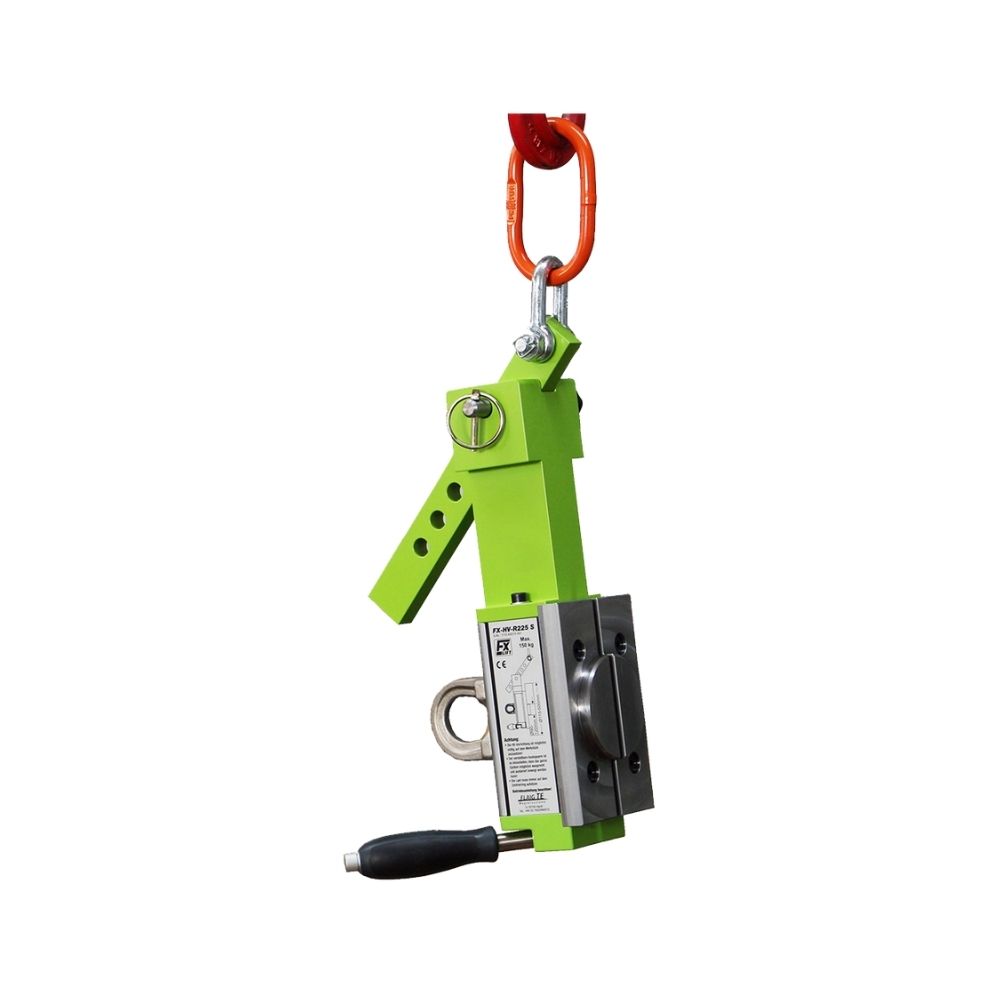

model | Product number | Max. load capacity on loads horizontally (kg) | Max. carrying capacity on loads vertically (kg) | Dimension length (mm) | Dimension width (mm) | Dimension height (mm) | Weight (kg) |
FX-HVS R225 | 1103 0221 | 135 | 45 | 207 | 160 | 557 | 30 |
FX-HVS 300 | 1103 0300 | 120 | 120 | 657 | 207 | 389 | 35 |
FX-HVS R450 | 1103 0451 | 270 | 90 | 292 | 212 | 624 | 43 |

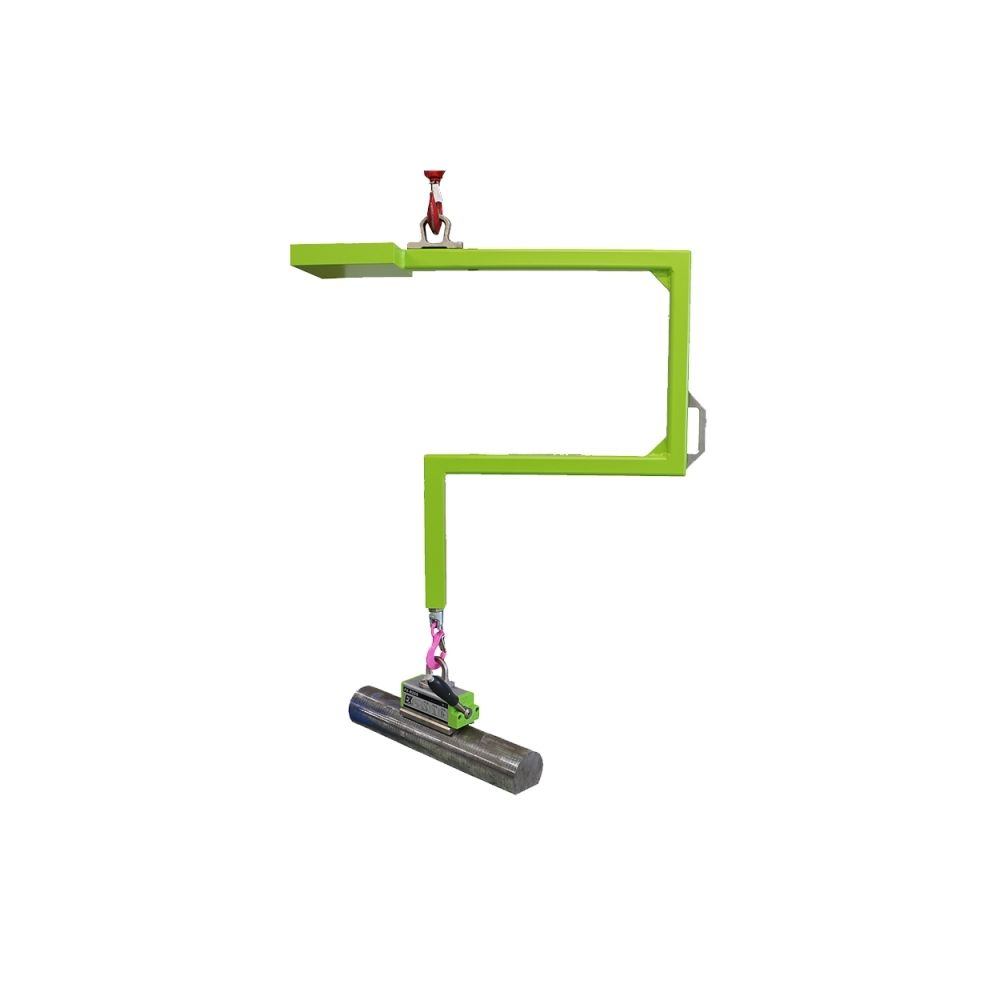

FX-HV Individual
Flaig manufactures lifting magnets with diverse pole shoe shapes and load crossbars for nearly any geometry, including spherical, long shoe, ring, sleeve and profile designs. All are EN 13155 and MRL 2006/42 EC compliant. They also engineer bespoke magnetic clamping solutions. Get in touch with us for specialised magnetic systems tailored to your needs.
