FLAIG LIFTING

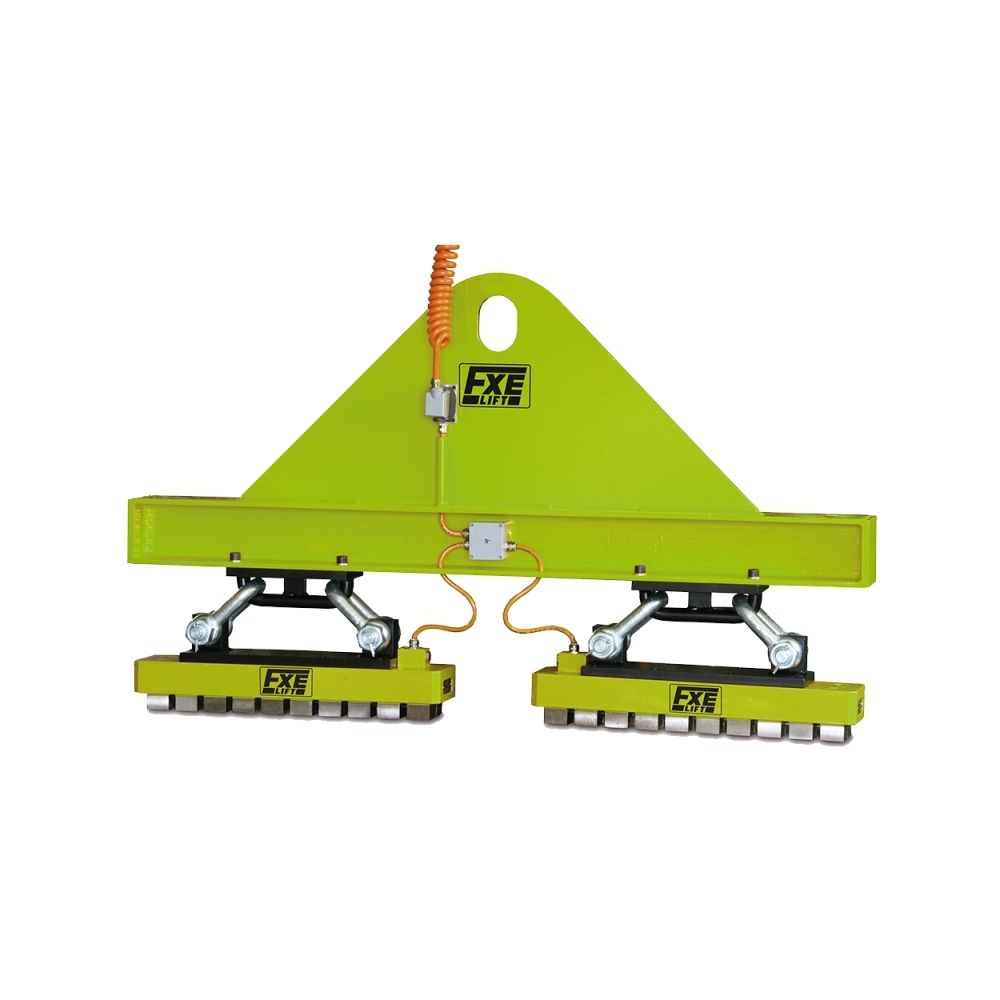

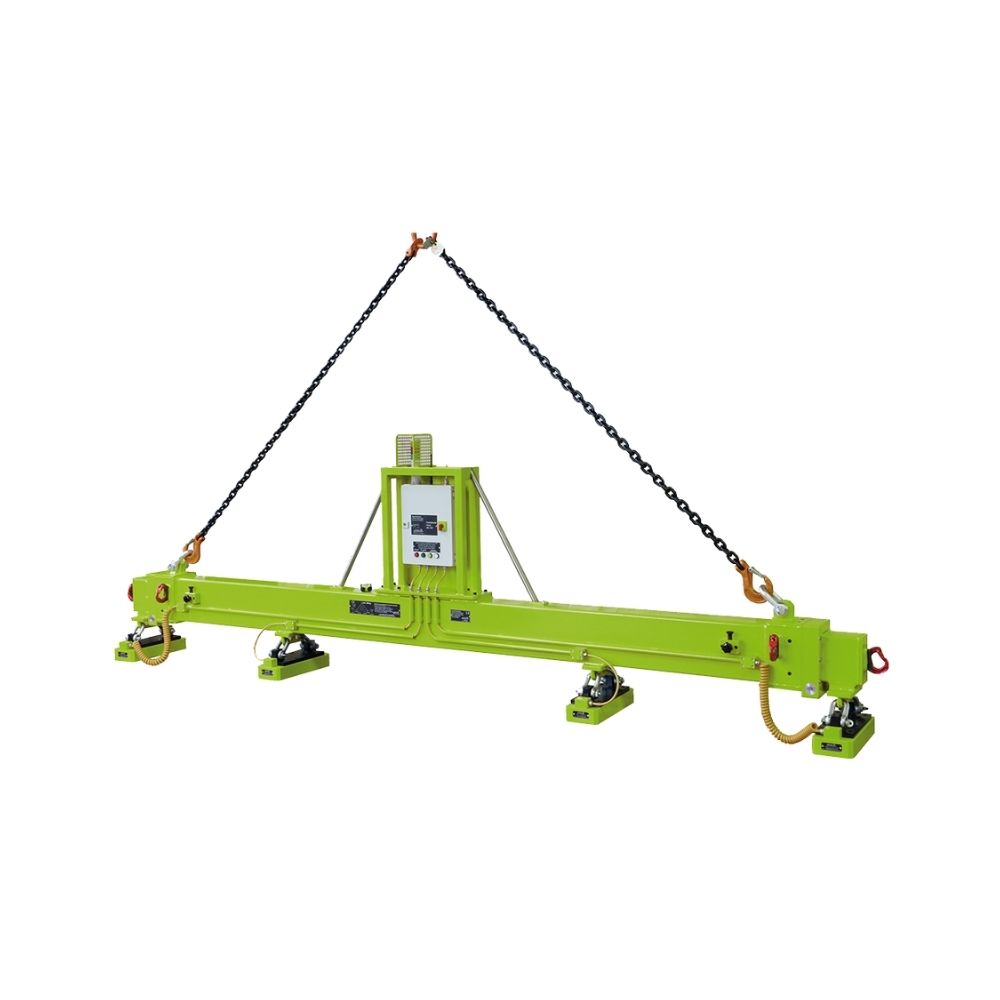

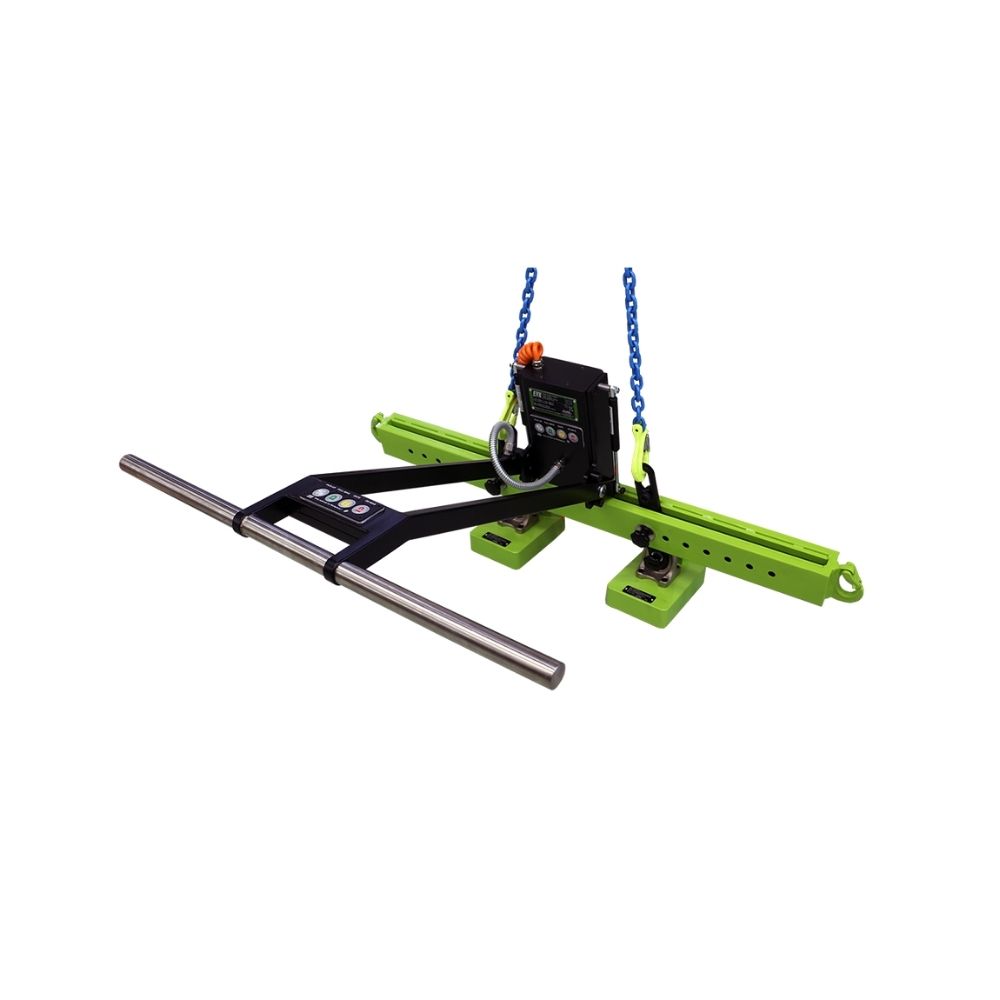

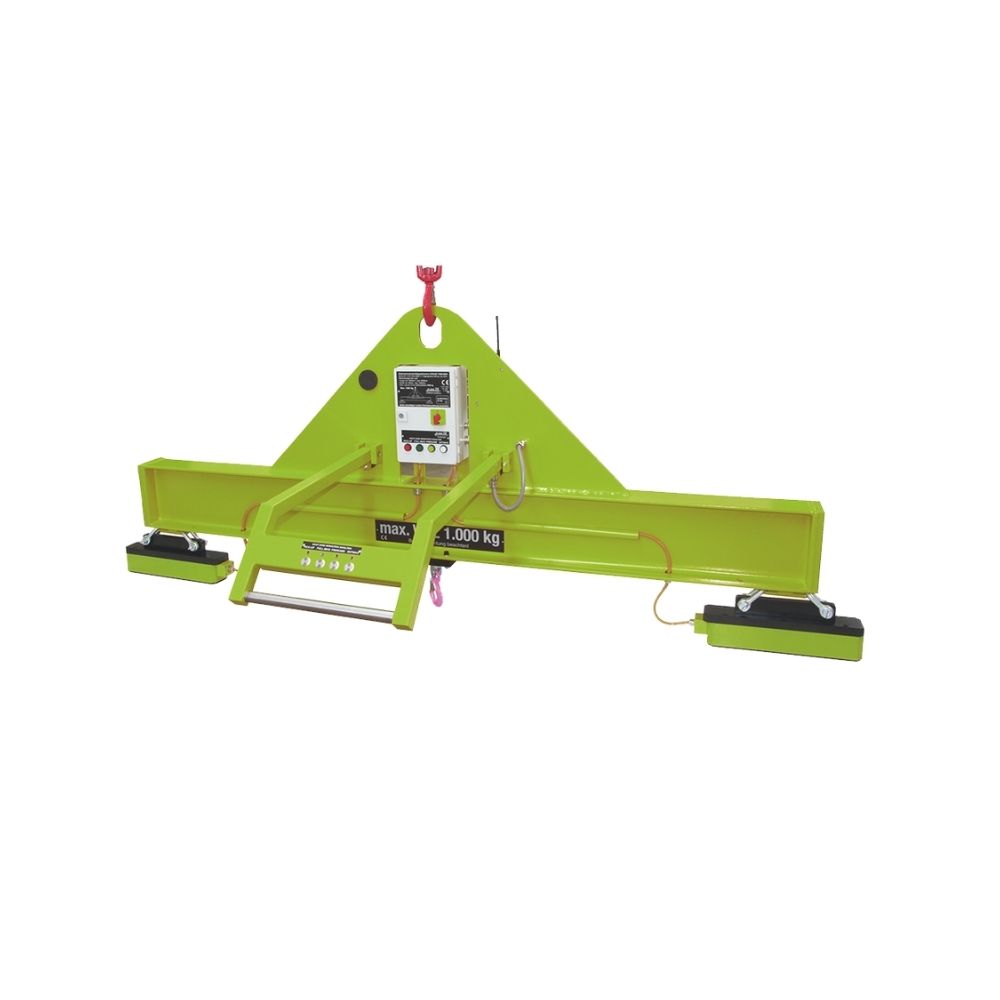

FXE-T Electro Permanent Magnetic Trusses
FXE-T
Model | Product number | Max. load capacity (kg) | Number of poles | Pole type | Dimension length (mm) | Dimension width (mm) | Dimension height (mm) | Weight (kg) |
FXE-T2500/50 | 1068 2501 | 2500 | 2x18 | 50 | 1000 | 630 | 380 | 138 |
FXE-T4000/80 | 1068 4002 | 4000 | 2x10 | 80 | 1200 | 500 | 380 | 175 |
FXE-T6400/80 | 1068 6402 | 6400 | 2x10 | 80 | 3150 | 780 | 1900 | 520 |
FXE-T9600/100 | 1068 9603 | 9600 | 2x12 | 100 | 2960 | 778 | 1460 | 700 |

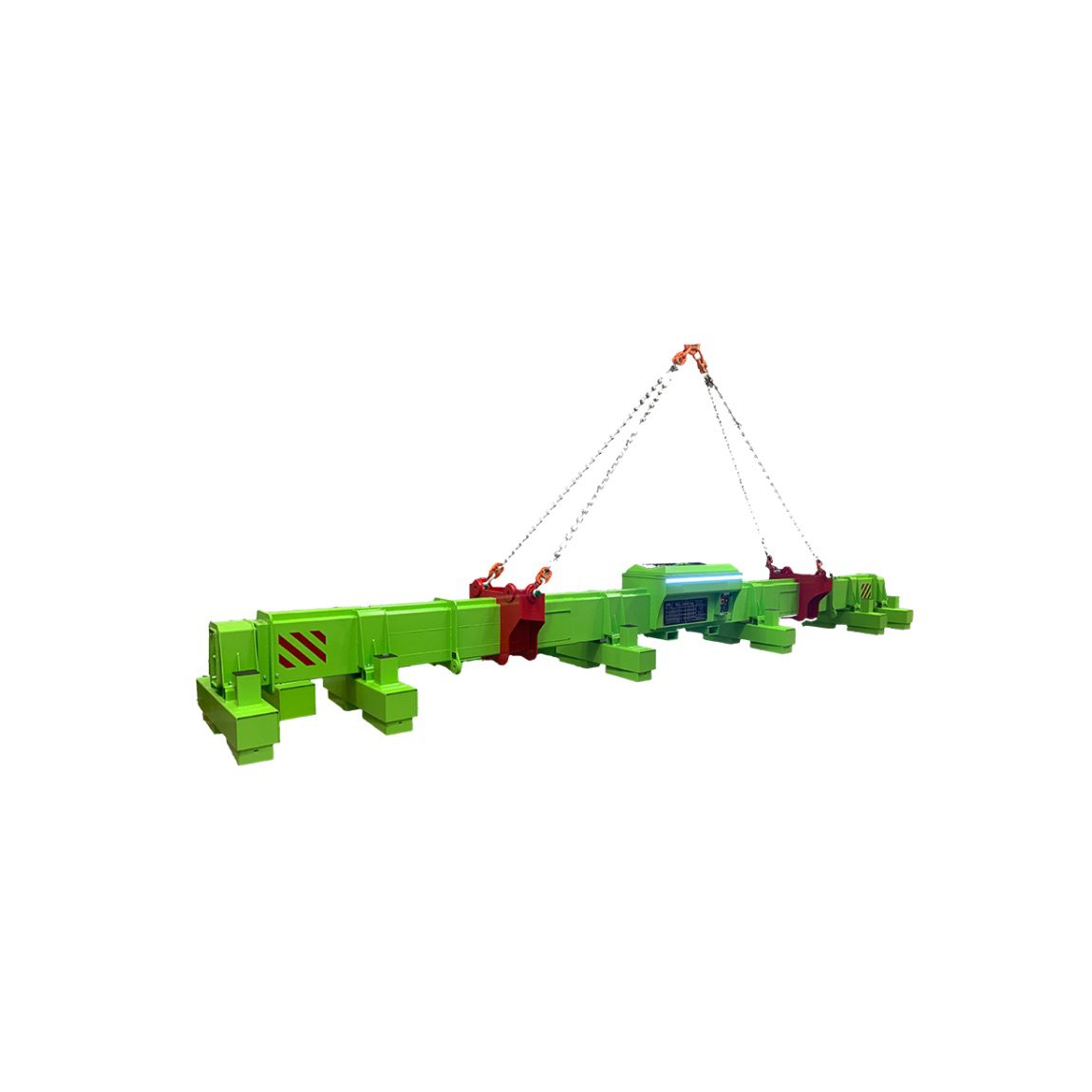

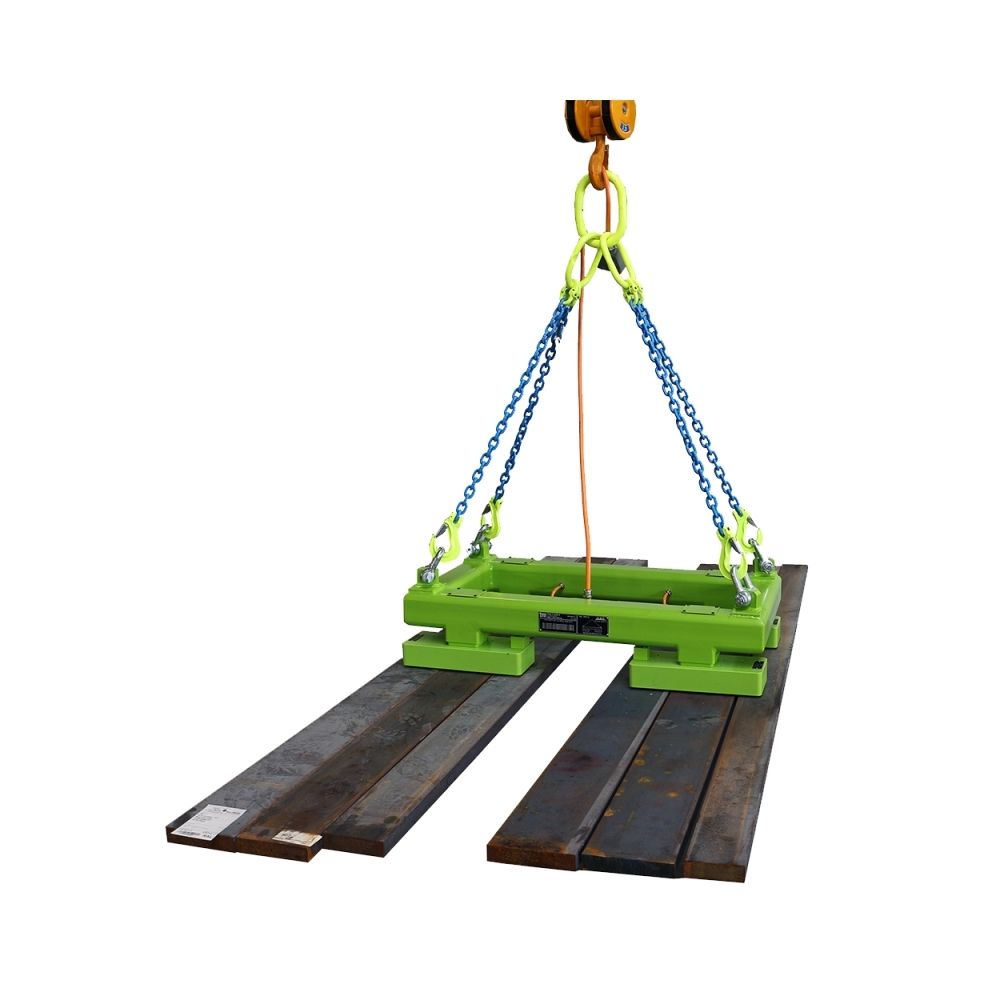

FXE-TT
Model | Product number | Max. load capacity (kg) | Load thickness min. (mm) | Load length min. (mm) | Load length max. (mm) | Load width min. (mm) | Load width max. (mm) | Weight (kg) |
FXE-TT 4-11000 | 1068 0410 | 11000 | 5 | 3000 | 12000 | 500 | 3500 | 2500 |
FXE-TT 4-14000 | 1068 0414 | 14000 | 5 | 3000 | 12000 | 500 | 3500 | 2500 |
FXE-TT 4-16500 | 1068 0416 | 16500 | 5 | 3000 | 12000 | 500 | 3500 | 2600 |
FXE-TT 4-20000 | 1068 0420 | 20000 | 8 | 3000 | 12000 | 500 | 3500 | 2600 |
FXE-TT 6-16000 | 1068 0616 | 16000 | 5 | 3000 | 16000 | 500 | 3500 | 4200 |
FXE-TT 6-20000 | 1068 0620 | 20000 | 5 | 3000 | 16000 | 500 | 3500 | 4200 |
FXE-TT 6-24000 | 1068 0624 | 24000 | 5 | 3000 | 16000 | 500 | 3500 | 4300 |
FXE-TT 6-30000 | 1068 0630 | 30000 | 8 | 3000 | 16000 | 500 | 3500 | 4500 |
FXE-TTP

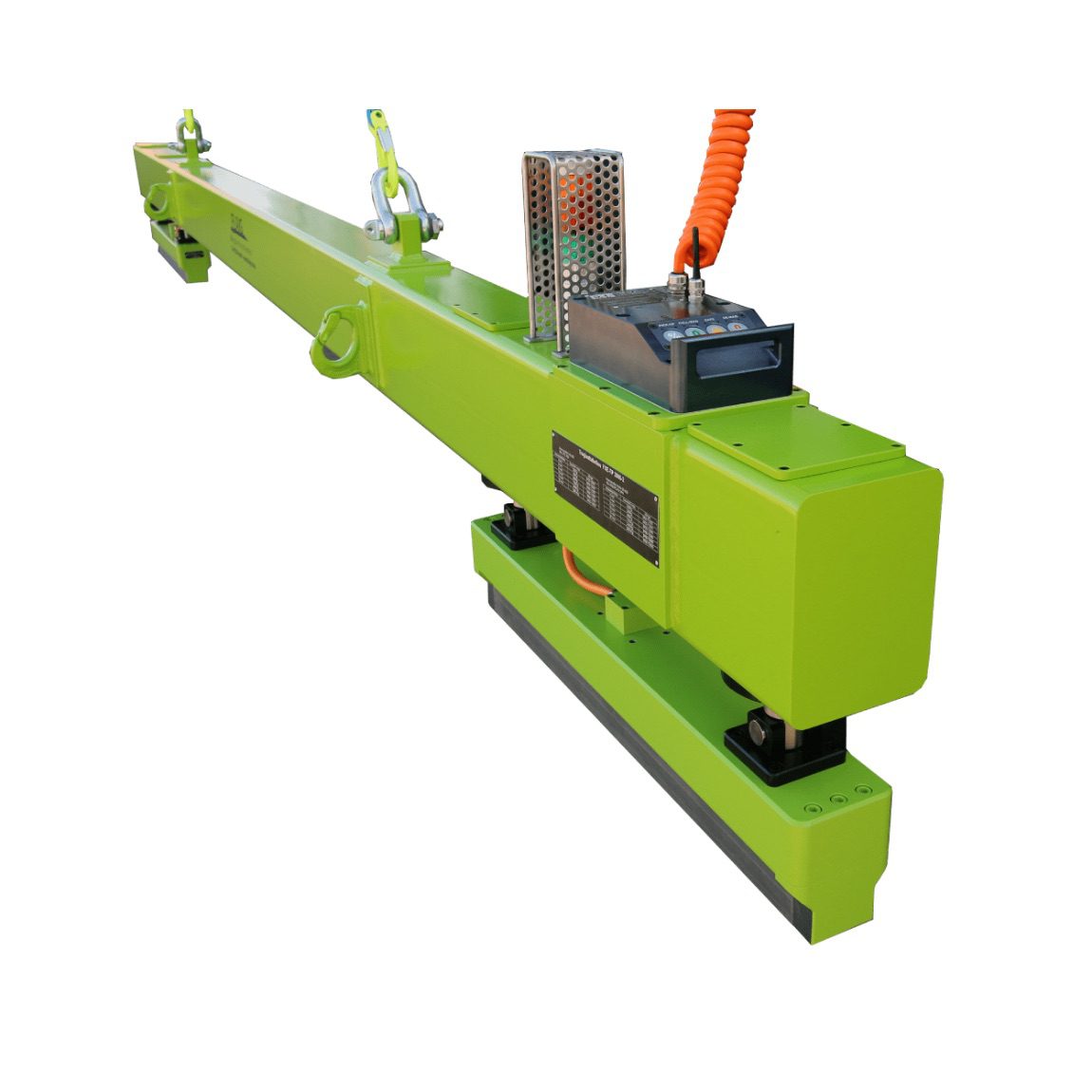

FXE-TTP electro permanent lifting trusses safely lift beams and profiles. Their special pole geometry allows side gripping for bundle release or 90° rotation of workpieces.
FXE-TTO

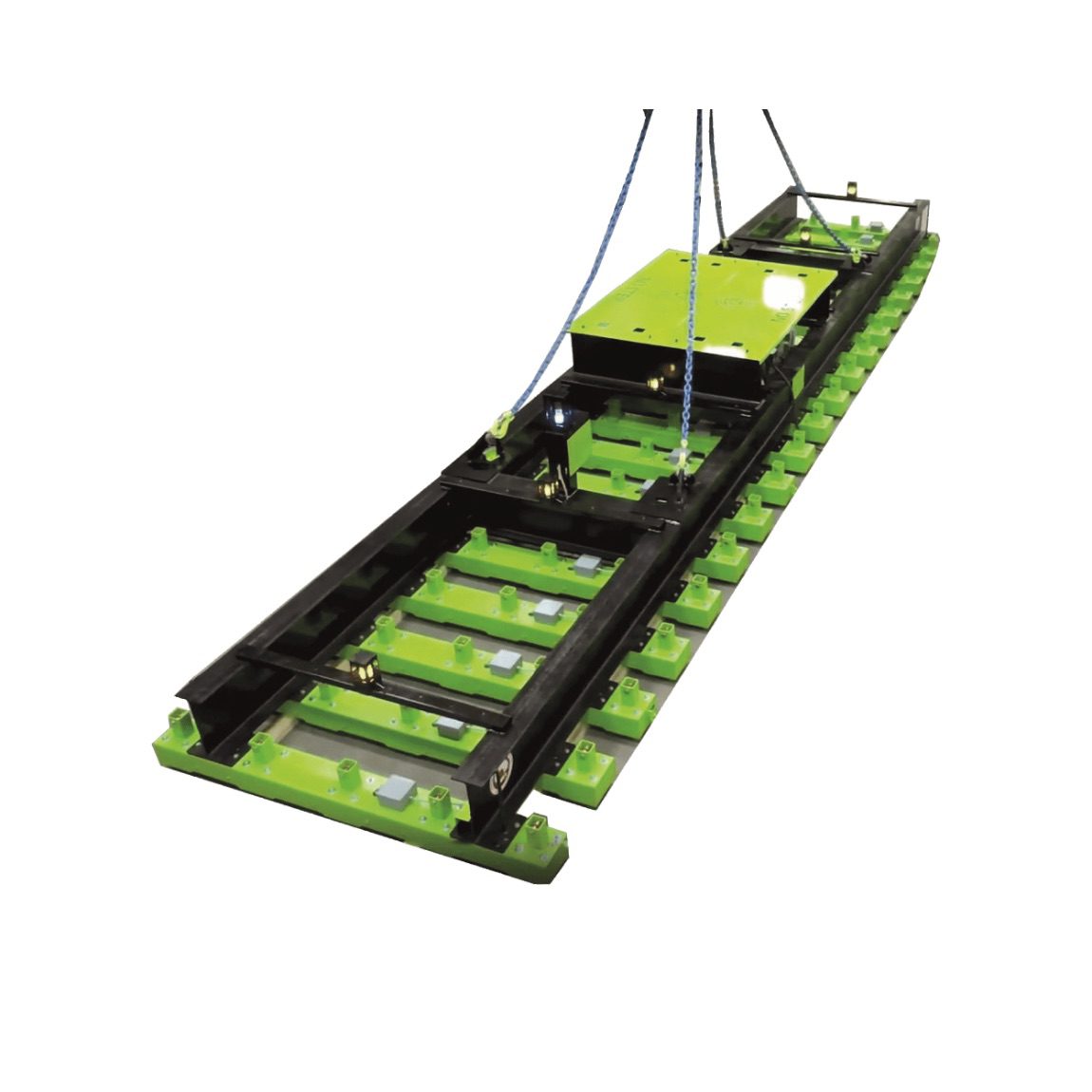

FXE-TTO lifting trusses remove large areas from cutting tables, handling parts from 100x100mm in full layers. System design depends on sheet size and smallest blank dimensions.

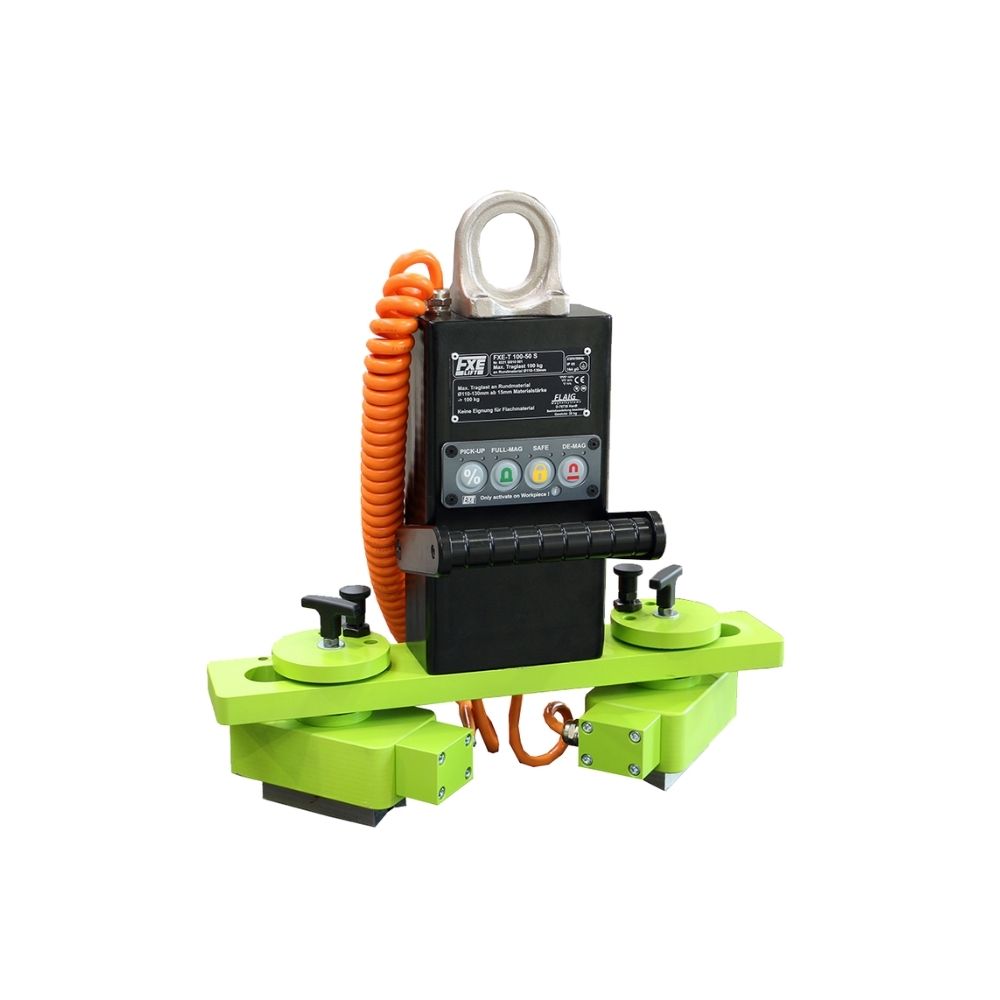

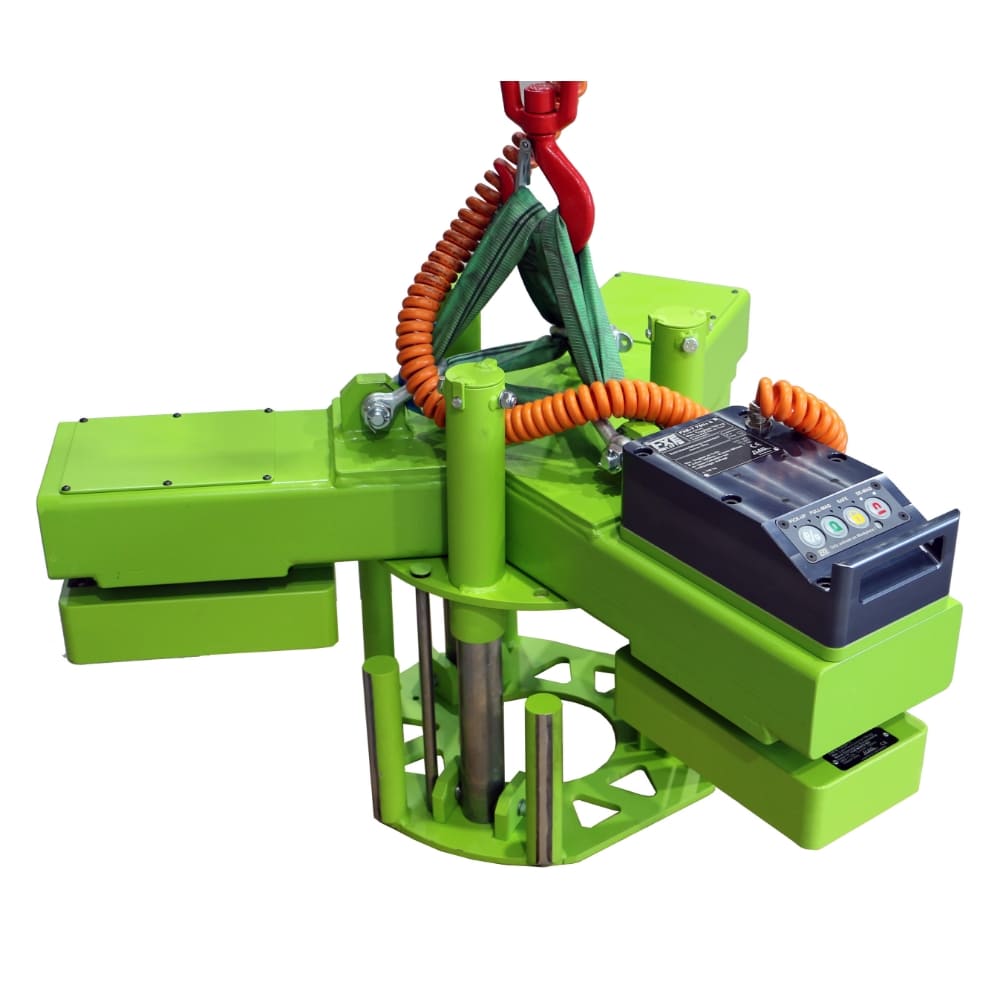

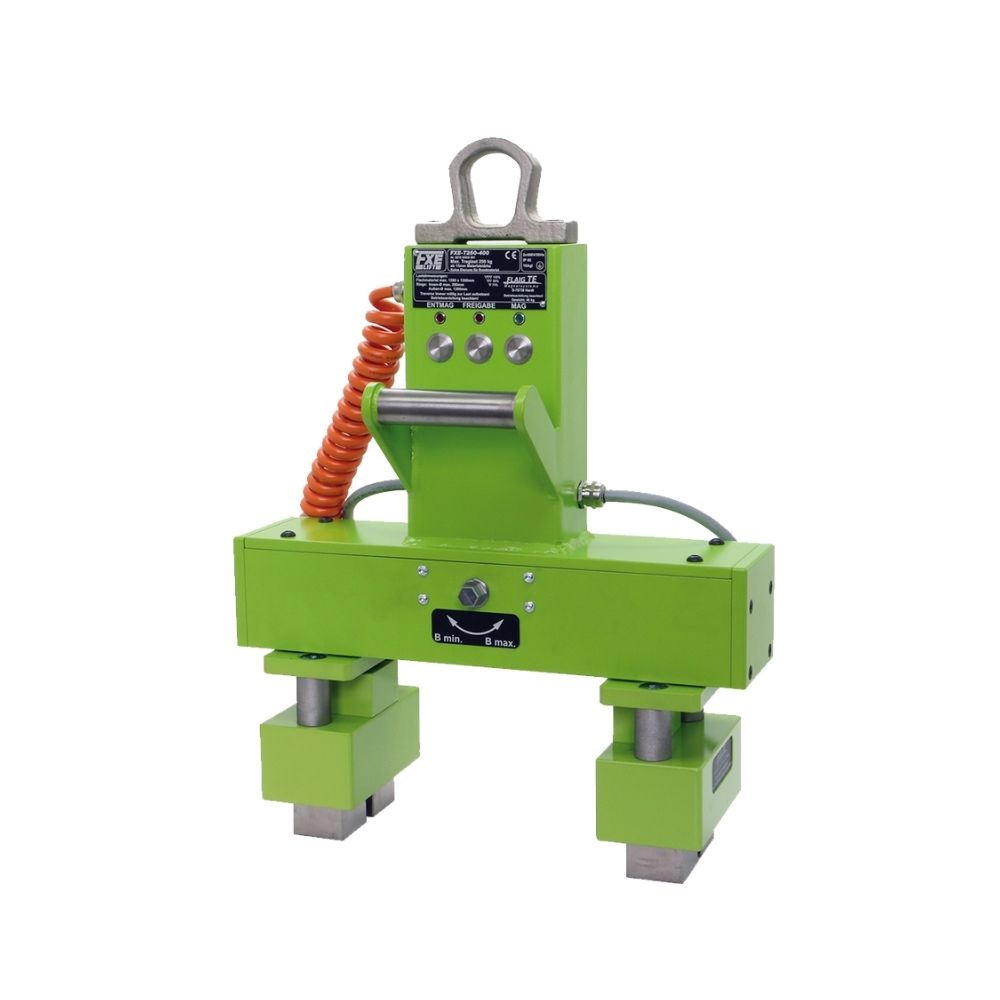

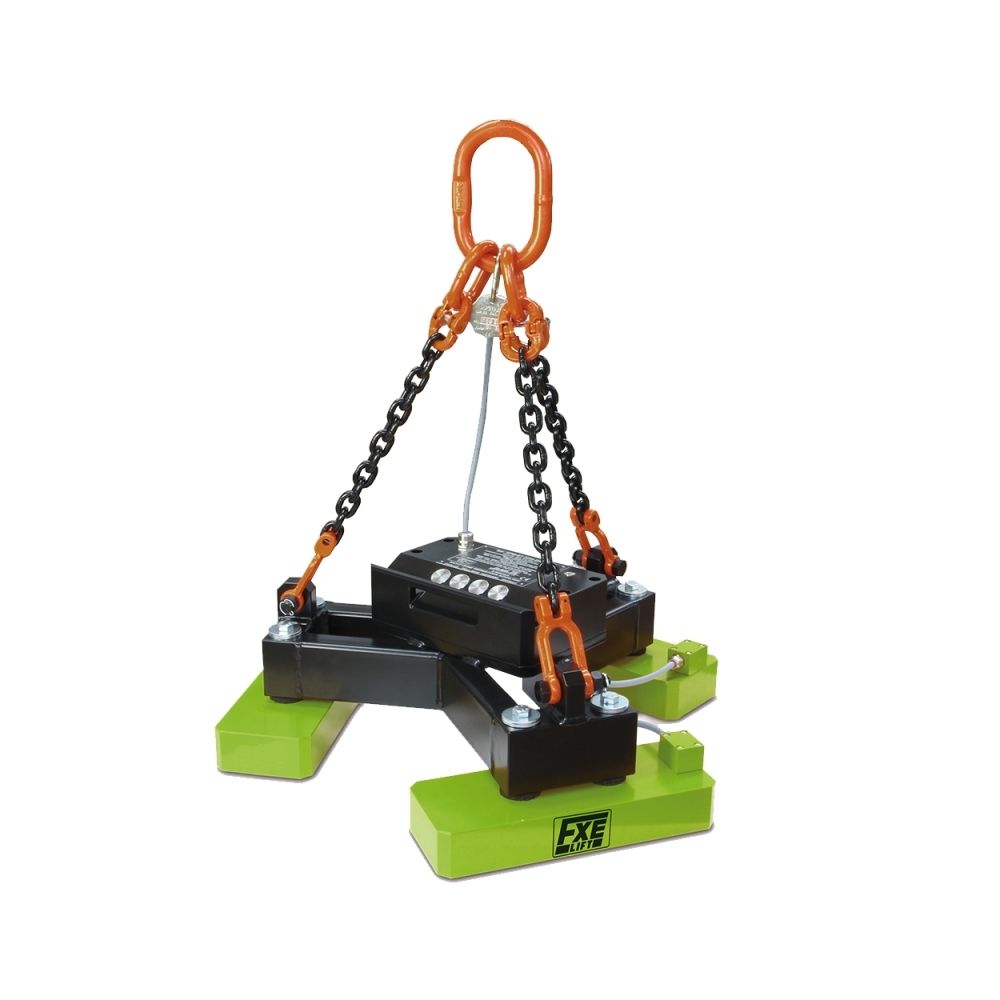

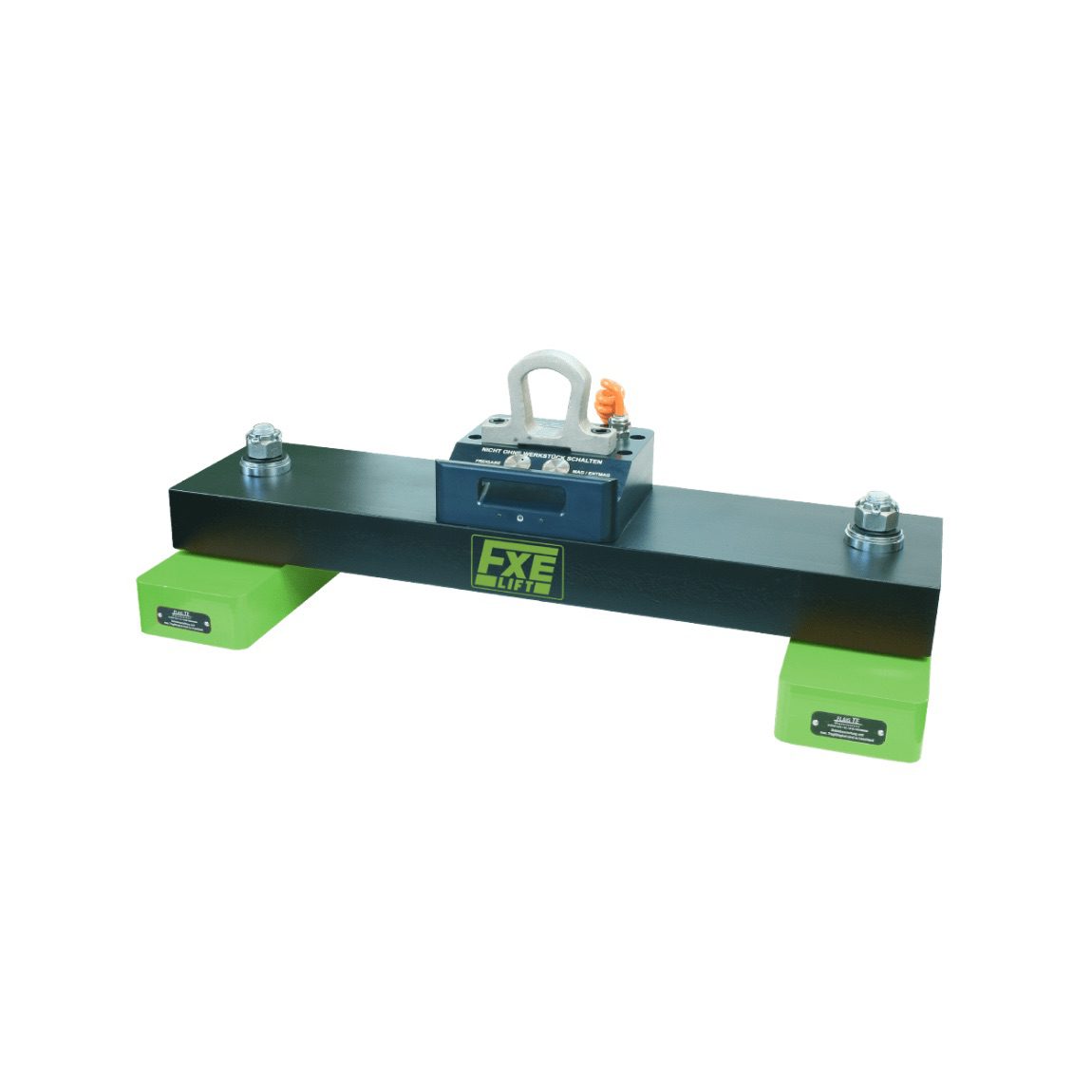

Individual FXE-T Electro Permanent Magnets
Flaig manufacture lifting magnets with a wide variety of shaped pole shoes and as trusses for almost all geometries. They manufacture magnets for spherical surfaces, with long pole shoes, for rings, sleeves and profiles. All lifting magnets are designed, tested and documented according to EN 13155 and MRL 2006/42 EWG and other applicable standards. Get in touch for workpieces, workpiece carriers and tools to suit your needs.
