FXE-M Electro Permanent Lifting Magnets
FXE-M

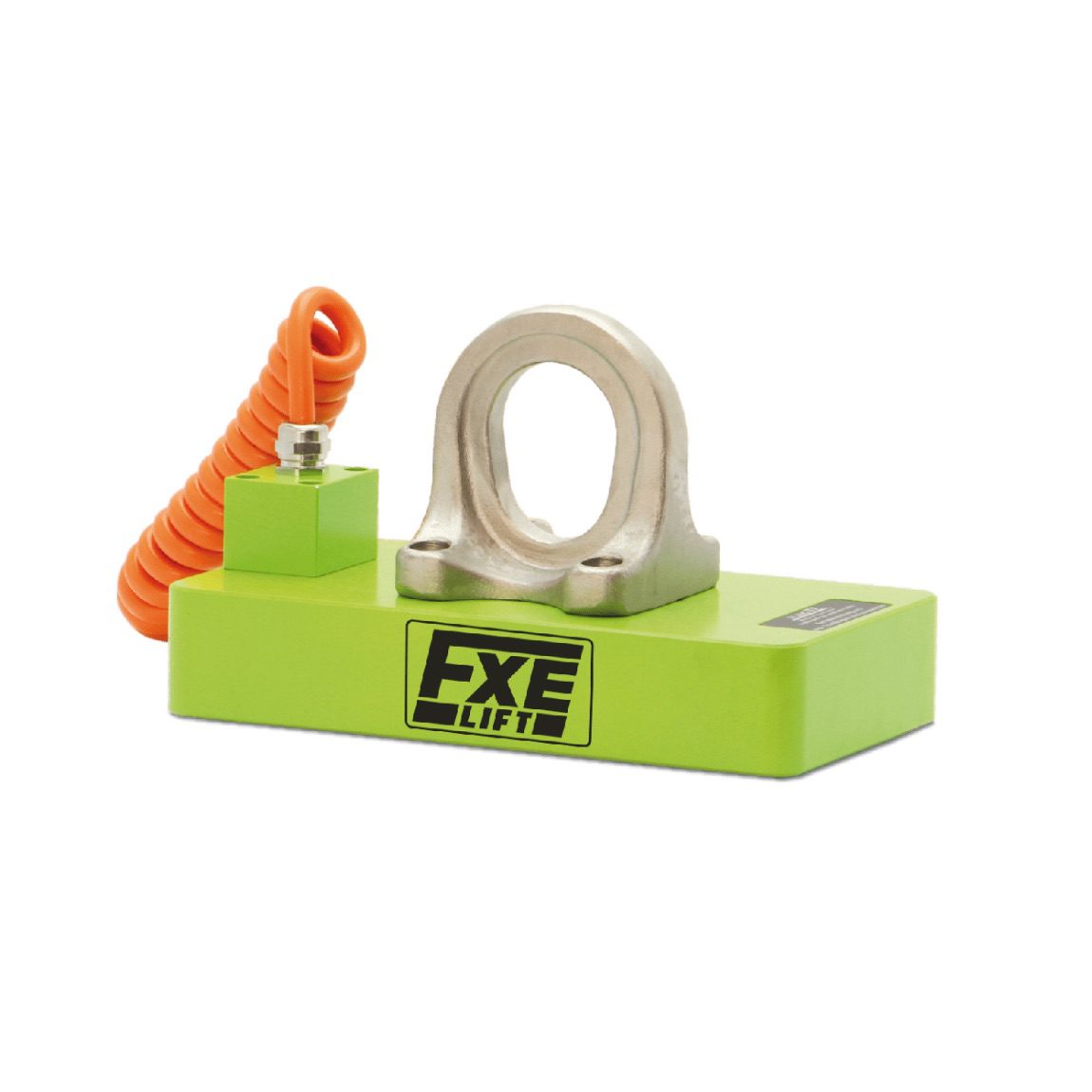

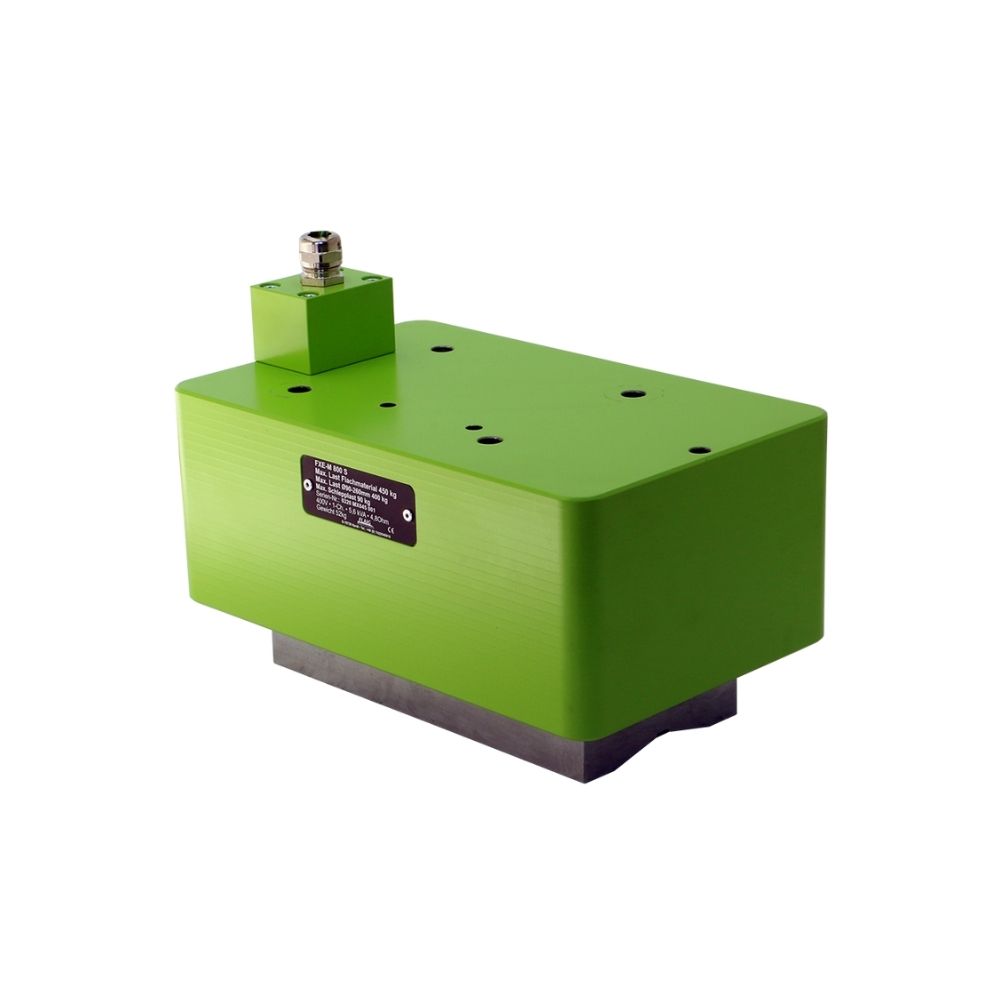

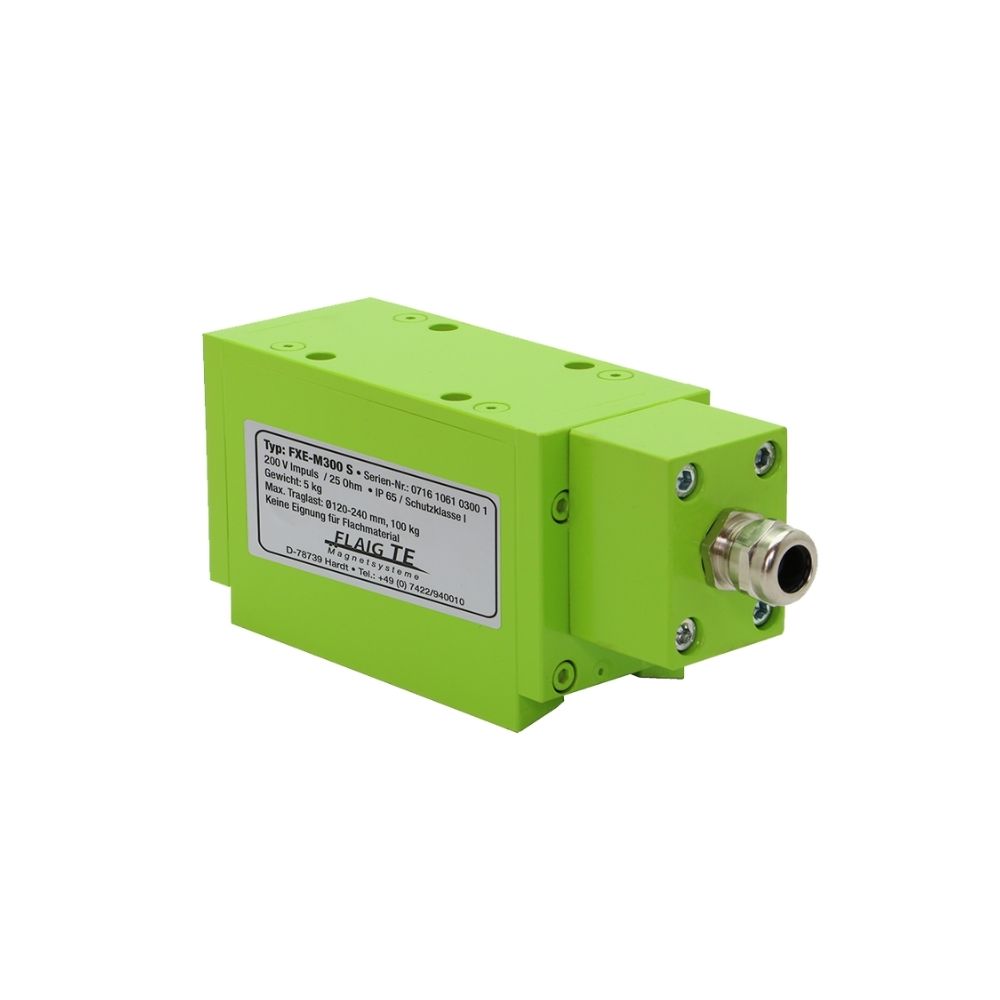

FXE-M electro permanent magnet modules, combined with MCF control units, form modular lifting systems for cranes, conveyors and robots with selectable pole types for various loads and surfaces.
Model | Product number | Maximum load (kg) | Flat material | Dimensions (mm) |
FXE-M 150/50 (230V) | 10610101 | 150 | 4mm | 164x95x64 |
FXE-M 300/50 | 10610301 | 300 | 4mm | 164x164x64 |
FXE-M 300/50+ | 10610302 | 300 | 4mm | 164x164x79 |
FXE-M 500/50 | 10610501 | 500 | 4mm | 234x164x64 |
FXE-M 500/80 | 10610502 | 500 | 6mm | 228x140x82 |
FXE-M 500/50+ | 10610511 | 500 | 4mm | 234x164x83 |
FXE-M 600/50 | 10610601 | 600 | 4mm | 420x95x64 |
FXE-M 750/50 | 10610701 | 750 | 4mm | 298x164x64 |
FXE-M 1000/50 | 10611001 | 1000 | 4mm | 680x95x64 |
FXE-M 1000/80 | 10611002 | 1000 | 6mm | 228x228x89 |
FXE-M 1000/50+ | 10611011 | 1000 | 4mm | 680x95x83 |
FXE-M 1100/50 | 10611101 | 1100 | 4mm | 420x164x64 |
FXE-M 1600/50 | 10611601 | 1600 | 4mm | 620x164x64 |
FXE-M 2400/100 | 10612403 | 2400 | 10mm | 415x296x125 |
FXE-M 2500/80 | 10612502 | 2500 | 6mm | 506x228x89 |
FXE-M 3200/100 | 10613203 | 3200 | 10mm | 536x296x125 |
FXE-M 4000/80 | 10614002 | 4000 | 6mm | 783x228x89 |
FXE-M 4800/100 | 10614803 | 4800 | 10mm | 778x296x125 |
FXE-M 7200/100 | 10617203 | 7200 | 10mm | 778x415x125 |
FXE-MP

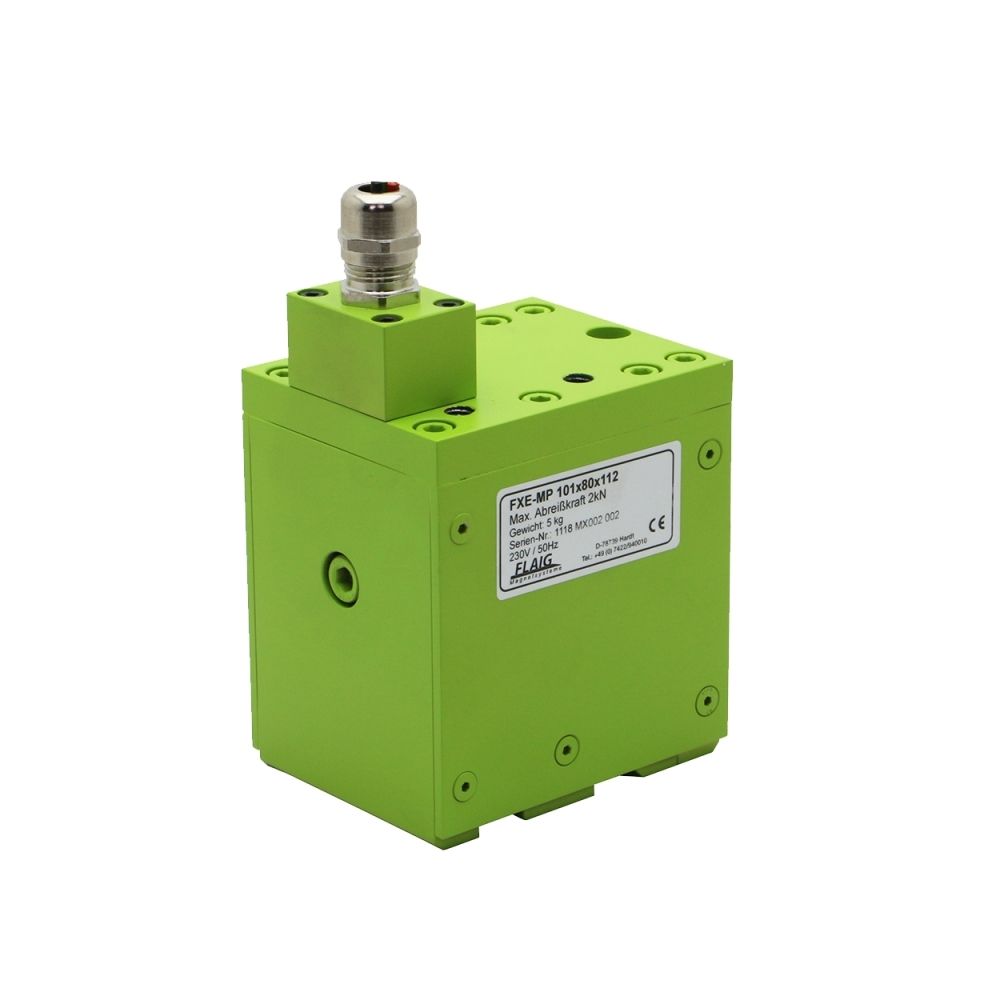

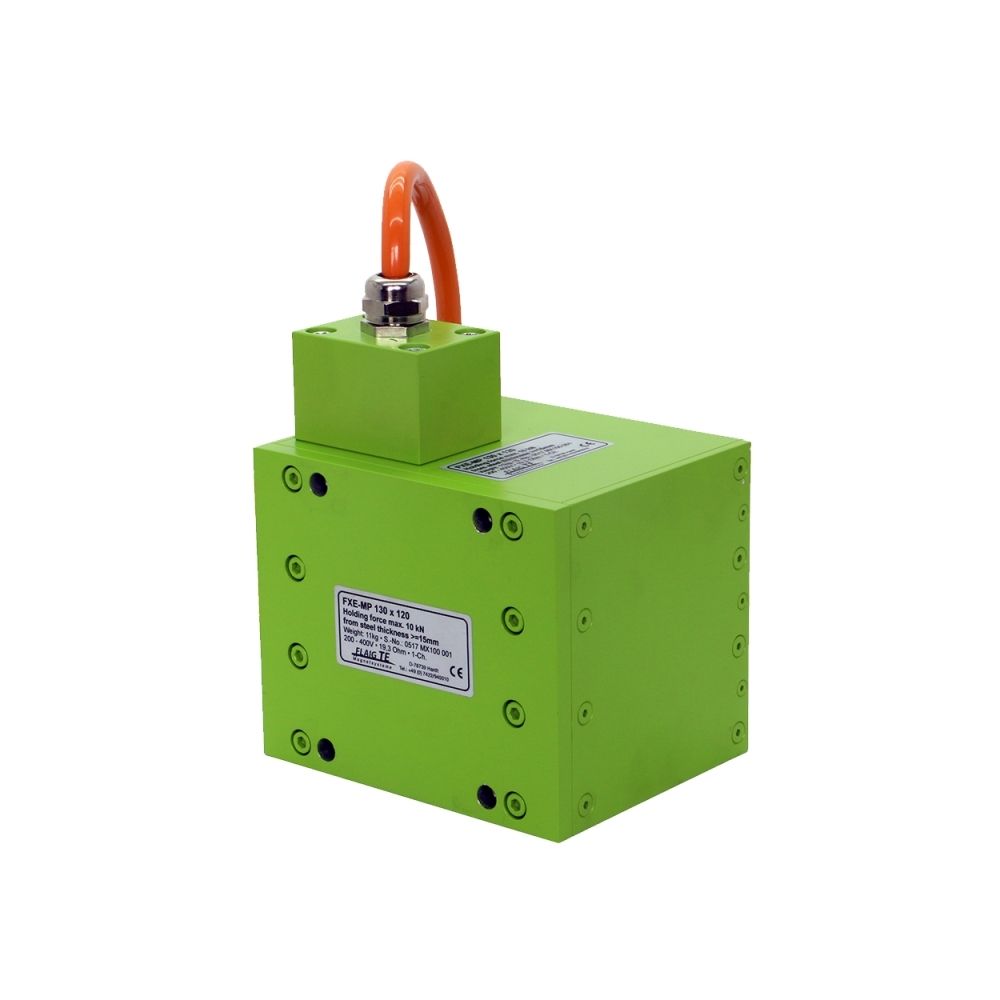

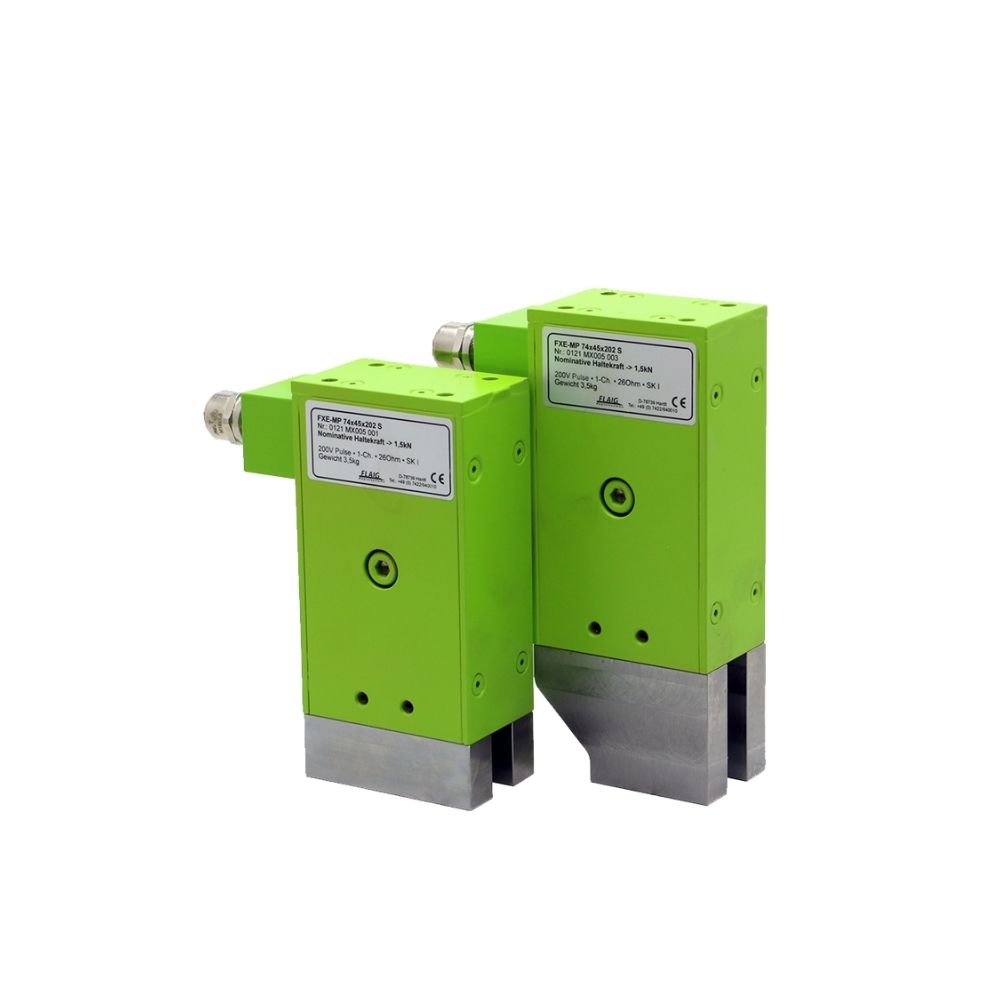

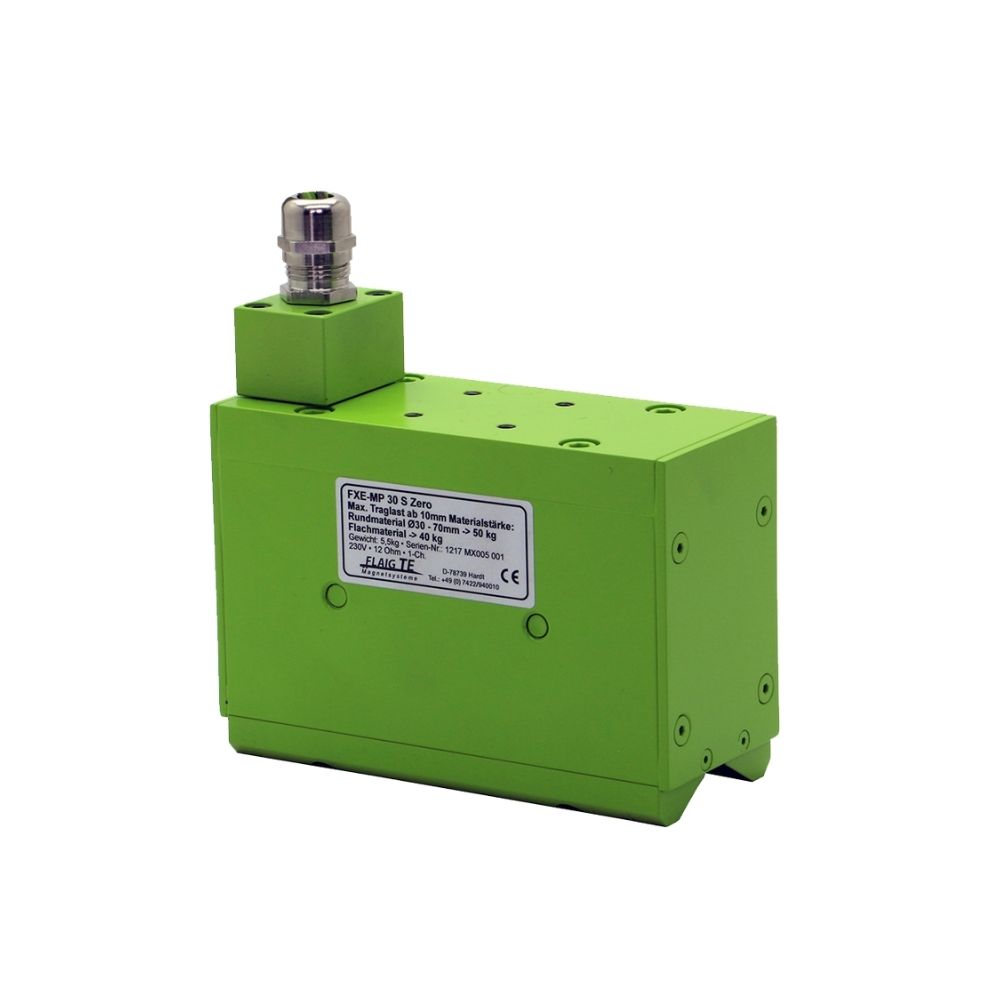

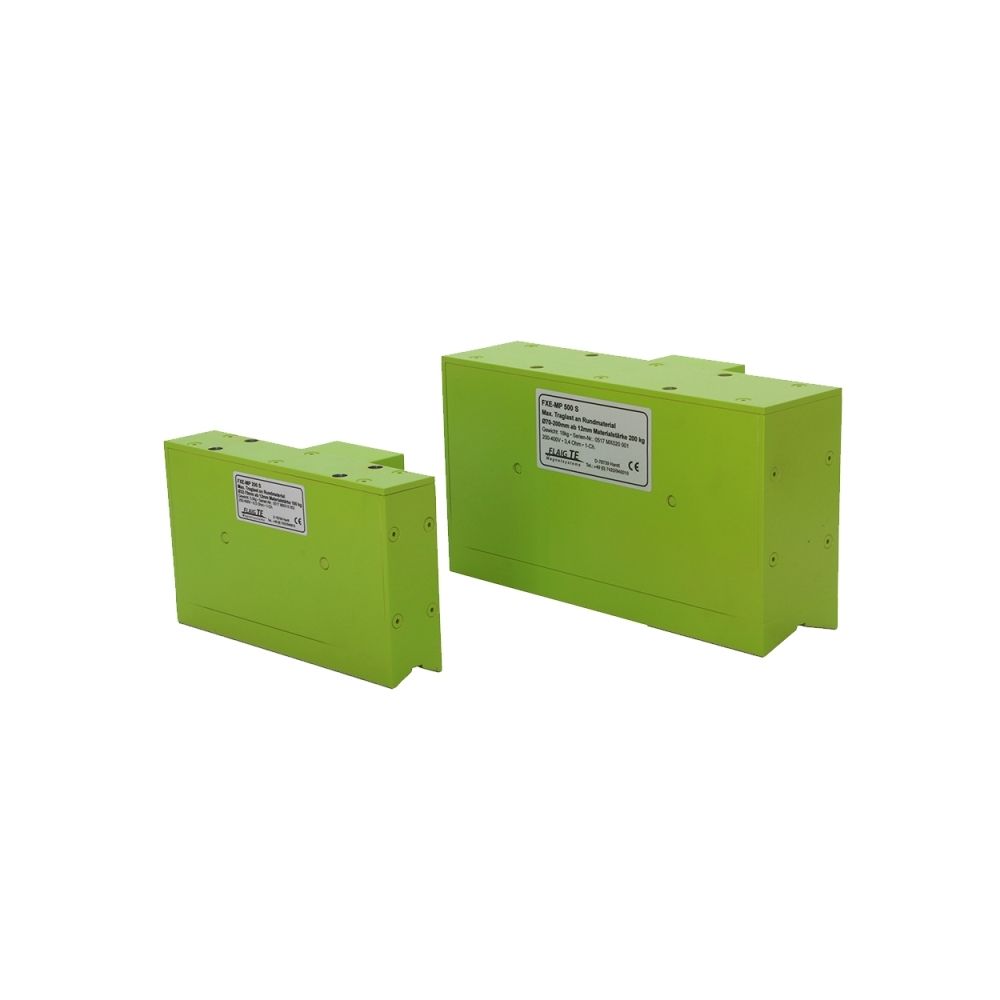

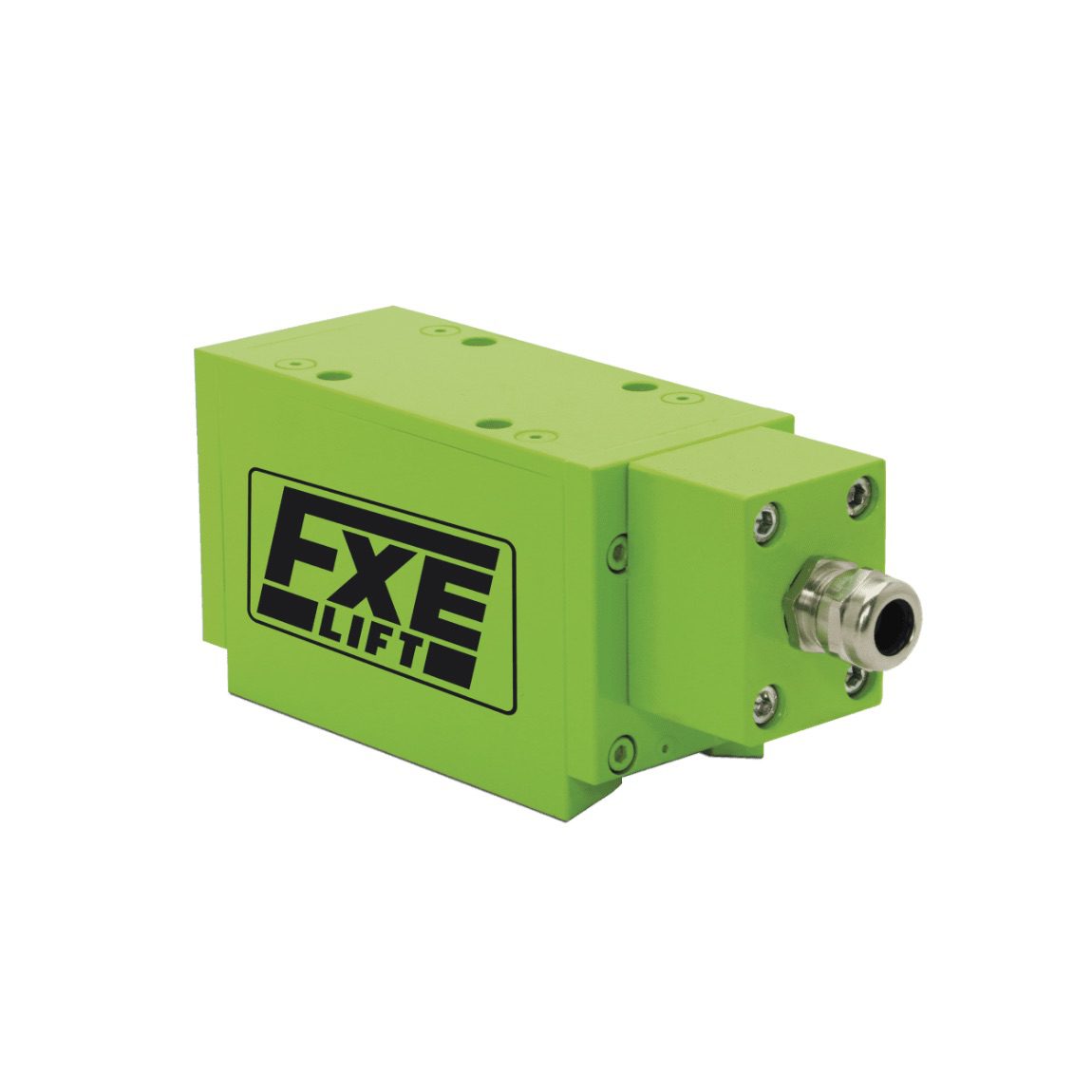

FXE-MP electro permanent magnets use sandwich construction for compact shapes, ideal for gripping small parts. Controlled by MCF units and proven in cranes, robots and conveyor systems.
FXE-MPT

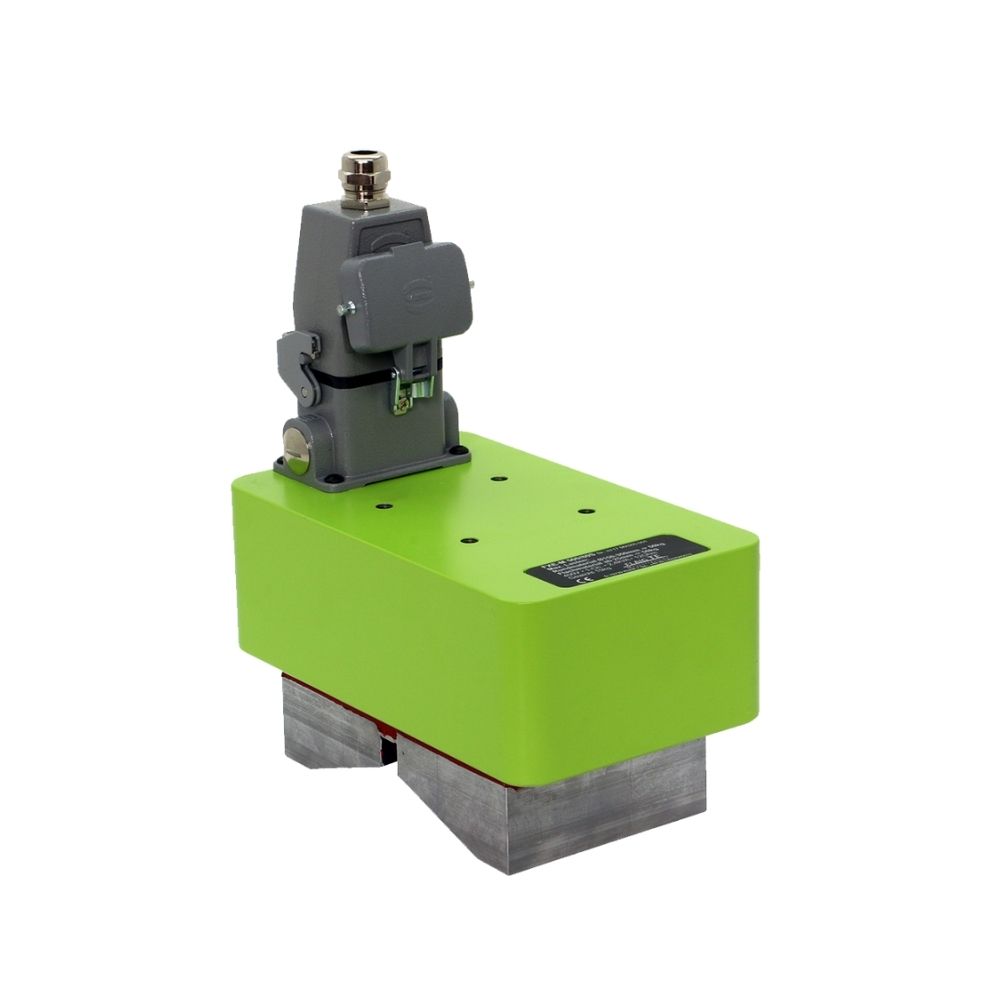

FXE-MTP electro permanent magnet modules handle beams and complex shapes with ease. Controlled by MCF units, they’re proven in cranes, manipulators, robots and conveyor systems.
MCF

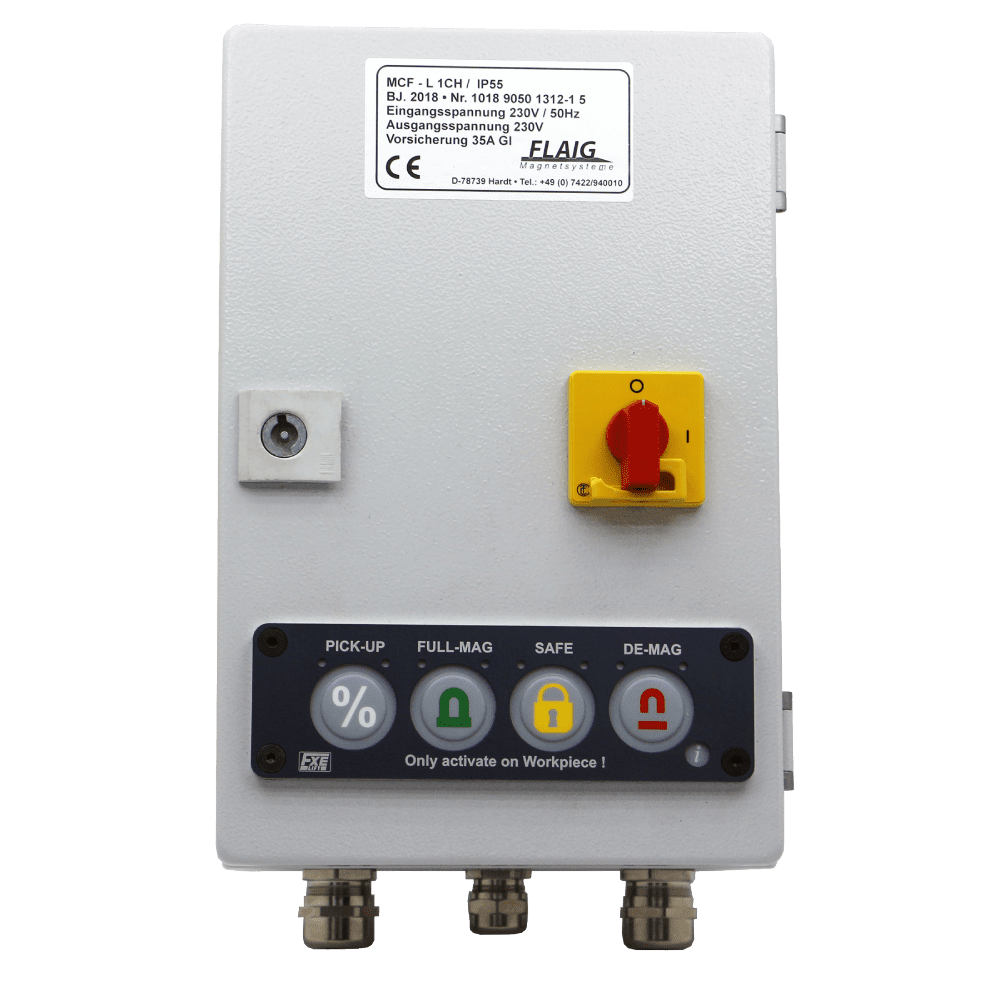

The MCF control units operate electro permanent magnets and come as a board or IP54 cabinet. They support various magnet types, are customisable and ensure high safety with status feedback.
Individual FXE-M Electro Permanent Magnets
Flaig manufacture lifting magnets with a wide variety of shaped pole shoes and as trusses for almost all geometries. They manufacture magnets for spherical surfaces, with long pole shoes, for rings, sleeves and profiles. All lifting magnets are designed, tested and documented according to EN 13155 and MRL 2006/42 EWG and other applicable standards. Get in touch for workpieces, workpiece carriers and tools to suit your needs.
