FLAIG LIFTING

FX Permanent Lifting Magnets

FX

Universal 150-3000kg

FX lifting magnets are compact, lightweight and versatile. They handle large air gaps, thin materials and heavy sheets with robust performance and great value.

Model	Product Number	Dimensions (mm)	Diameter Round	Max Load Round (kg)	Max Load Flat (kg)	Flat Material	Max Load from Flat Material
FX-150	11010150	161x64x60	Ø 50-200 mm	75	150	2mm	8mm
FX-300	11010300	205x87x78	Ø 50-300 mm	150	300	4mm	15mm
FX-400	11010400	263x87x158	Ø 50-300 mm	200	400	4mm	15mm
FX-600	11010600	288x112x94	Ø 80-400 mm	300	600	6mm	20mm
FX-800	11010800	348x112x94	Ø 80-400 mm	400	800	6mm	20mm
FX-1000	11011000	361x152x120	Ø 100-450 mm	500	1000	10mm	25mm
FX-1500	11011500	485x152x120	Ø 100-450 mm	750	1500	10mm	25mm
FX-2000	11012000	472x228x169	Ø 160-600 mm	1000	2000	15mm	50mm
FX-3000	11013000	648x228x169	Ø 250-600 mm	1500	3000	15mm	50mm

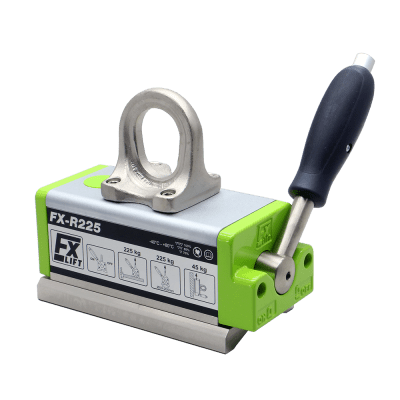

FX-R

Lifting magnet 100-1800kg

FX-R is designed for safe lifting of round and flat materials. Its deep prism guides the magnetic field securely, prevents twisting and protects the core from heat, ideal for shafts and bars.

Model	Product Number	Max Load Flat (kg)	Max Load Round (kg)	Flat Material Thickness (mm)	Max Load from Flat Material (kg)	Diameter Round (mm)	Dimensions (L x W x H in mm)
FX-R100	11010101	100	100	2	8	Ø 25–150	161 x 70 x 68
FX-R225	11010221	225	225	4	10	Ø 50–205	205 x 98 x 90
FX-R450	11010451	450	450	6	20	Ø 50–270	288 x 126 x 112
FX-R750	11010751	750	750	8	20	Ø 70–370	361 x 170 x 142
FX-R1200	11011201	1200	1200	15	40	Ø 120–560	472 x 248 x 190
FX-R1800	11011801	1800	1800	15	40	Ø 120–560	648 x 248 x 190

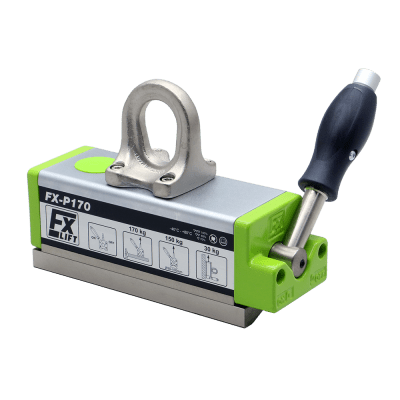

FX-P

Lifting magnet 170-650kg

FX-P is the professional solution for lifting thin sheets, tubes and bars. Its special magnet and prismatic pole shoe ensure strong hold even on thin material. Easy to position, ideal for round stock.

model	Product number	max. load flat (kg)	max. load round (kg)	Flat material	max. load from flat material	Diameter round	Dimensions (mm)
FX-P170	11010172	170	150	2mm	8mm	Ø 30-105 mm	195x64x70
FX-P330	11010332	330	300	4mm	10mm	Ø 40-160 mm	265x87x90
FX-P650	11010652	650	550	4mm	20mm	Ø 60-210 mm	352x112x108

FX-VV

Lifting magnet 150°C 200-800kg

FX-VV is built for lifting profiles and hot components. Its long, narrow shape and 90° double prism allow secure handling of beams, angles and thin sheets, ideal for steel fabrication work.

model	Product number	max. load flat (kg)	max. load round (kg)	Flat material	max. load from flat material	Diameter round	Dimensions (mm)	max. Traglast Profil 90° innen	max. Traglast Profil 90° außen
FX-VV200	11010204	200	100	4mm	10mm	Ø 20-50 mm	195x64x77	100 kg	120 kg
FX-VV400	11010404	400	200	4mm	15mm	Ø 25-60 mm	265x87x96	200 kg	250 kg
FX-VV800	11010804	800	300	6mm	20mm	Ø 35-75 mm	352x112x115	300 kg	400 kg

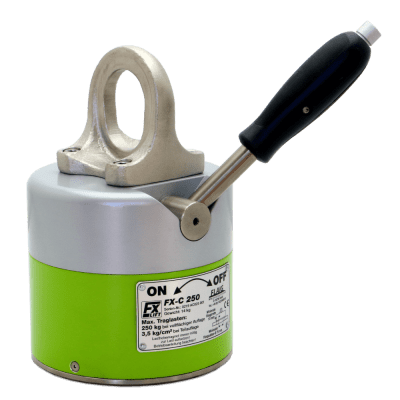

FX-C

Lifting magnet 175-450kg

FX-C magnets feature a round, multi pole surface ideal for lifting rings, sleeves, flanges and similar parts with centre openings. Designed for full surface contact, they reliably grip round workpieces.

model	Product number	max. load flat (kg)	Flat material	max. load from flat material	Dimensions (mm)
FX-C 175	11010177	175	4mm	10mm	Ø 120 H: 130
FX-C 250	11010257	250	6mm	12mm	Ø 160 H: 147
FX-C 450	11010457	450	8mm	15mm	Ø 250 H: 16

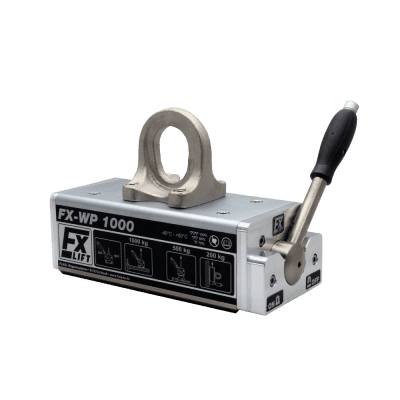

FX-WP

Lifting Magnet waterproof 300-1000kg

FX-WP lifting magnets are waterproof to 1.5m diving depth. The multi sealed, super strong permanent magnet system sits in a fully nickel plated magnet body.

model	Product number	max. load round (kg)	Diameter round	Weight (kg)	Dimensions (mm)	max. load flat (kg)
FX-WP Waterproof Permanent Lifting Magnets	6110100153	150	Ø 50-300 mm	9	205x87x78	300
FX-WP Waterproof Permanent Lifting Magnets	6110100172	500	Ø 100-450 mm	42	361x152x120	1000
FX-WP 600	6110100238	300	Ø 80-400 mm	19	288x112x94	60

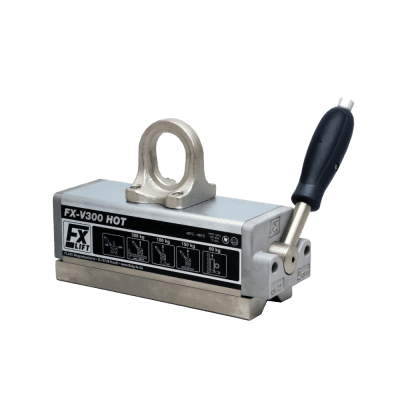

FX-VV HOT

Lifting magnet UP TO 250°C 150-600kg

A special permanent magnet system allows working temperatures of up to 300°C for a maximum of 4 minutes and of 250°C permanently. Ideal for moving heated tools and dies or heat treated workpieces.

model	Product number	max. load flat (kg)	max. load round (kg)	Flat material	max. load from flat material	Diameter round	Dimensions (mm)	Temperature (°C)
FX-VV 150 HOT	11010155	150	75	4mm	10mm	Ø 20-50 mm	195x64x77	250
FX-VV 300 HOT	11010305	300	150	4mm	15mm	Ø 25-60 mm	265x87x96	250
FX-VV 600 HOT	11010605	600	300	4mm	20mm	Ø 35-75 mm	352x112x115	250

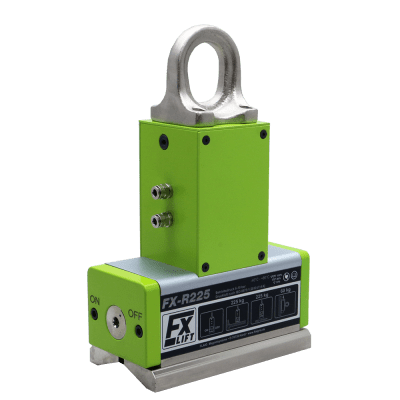

FX Pneumatic

Pneumatic Lifting magnet 100-450kg

FX Pneumatic is ideal for automation and use with pneumatic manipulators. With dual air inputs and a double acting cylinder, it ensures quick, reliable switching. Perfect for high volume handling.

model	Product number	max. load flat (kg)	Flat material	max. load from flat material	max. load round (kg)	Diameter round	Dimensions (mm)
FX-R 100 Pneumatic	11010109	80	2mm	8mm	80	Ø 25-150 mm	142x70x191
FX-R 225 Pneumatic	11010229	225	4mm	10mm	225	Ø 50-205 mm	189x98x215
FX-R 450 Pneumatic	11010459	450	6mm	20mm	450	Ø 50-270 mm	264x126x229

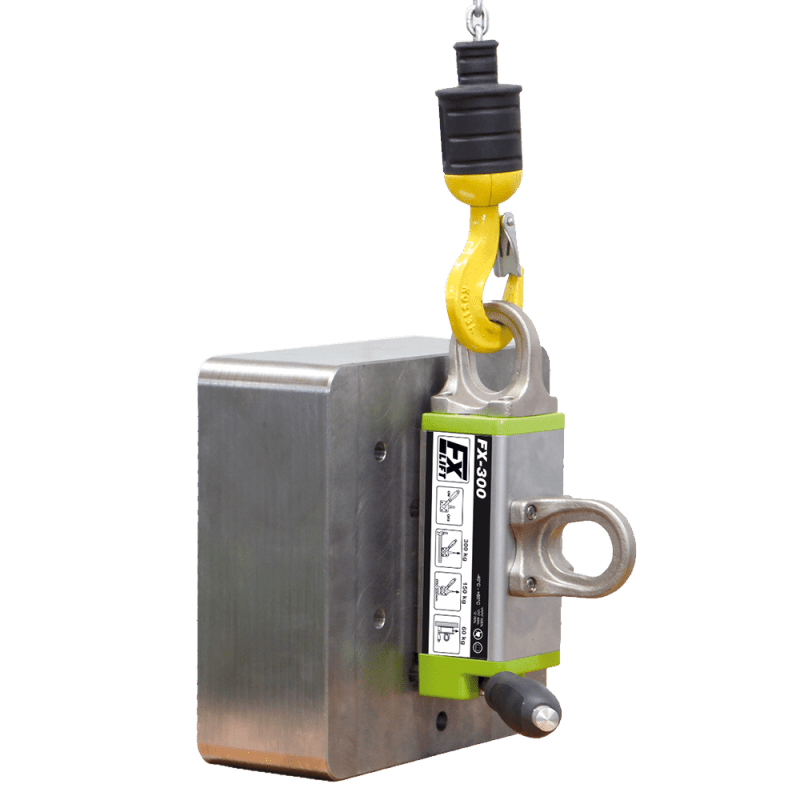

FX-Individual

Flaig manufactures lifting magnets featuring shaped pole shoes and load crossbars for almost any geometry, including spherical, long shoe, ring, sleeve and profile designs. All magnets are designed, tested and documented to EN 13155 and MRL 2006/42 EC standards. They also design magnetic clamping devices for workpieces, carriers and tools. Contact us for special solutions.

Contact

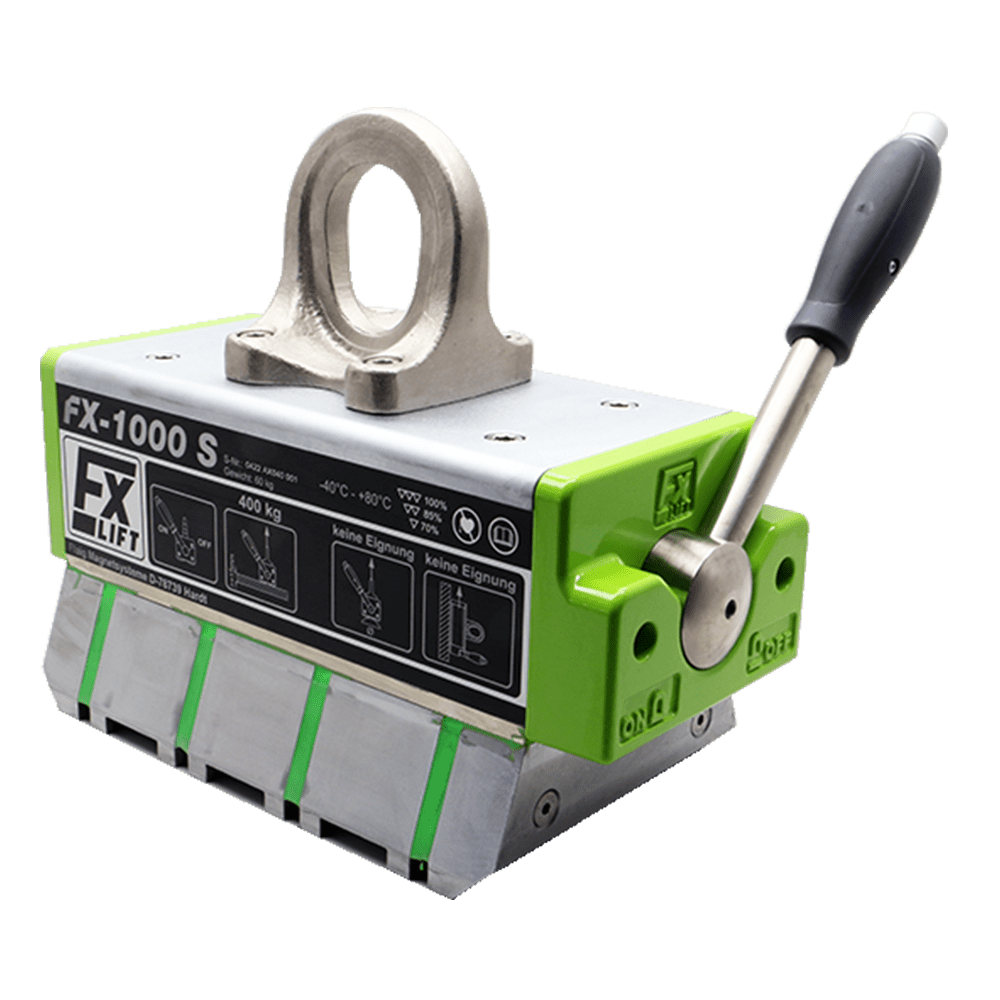

FX-1000 S with special pole

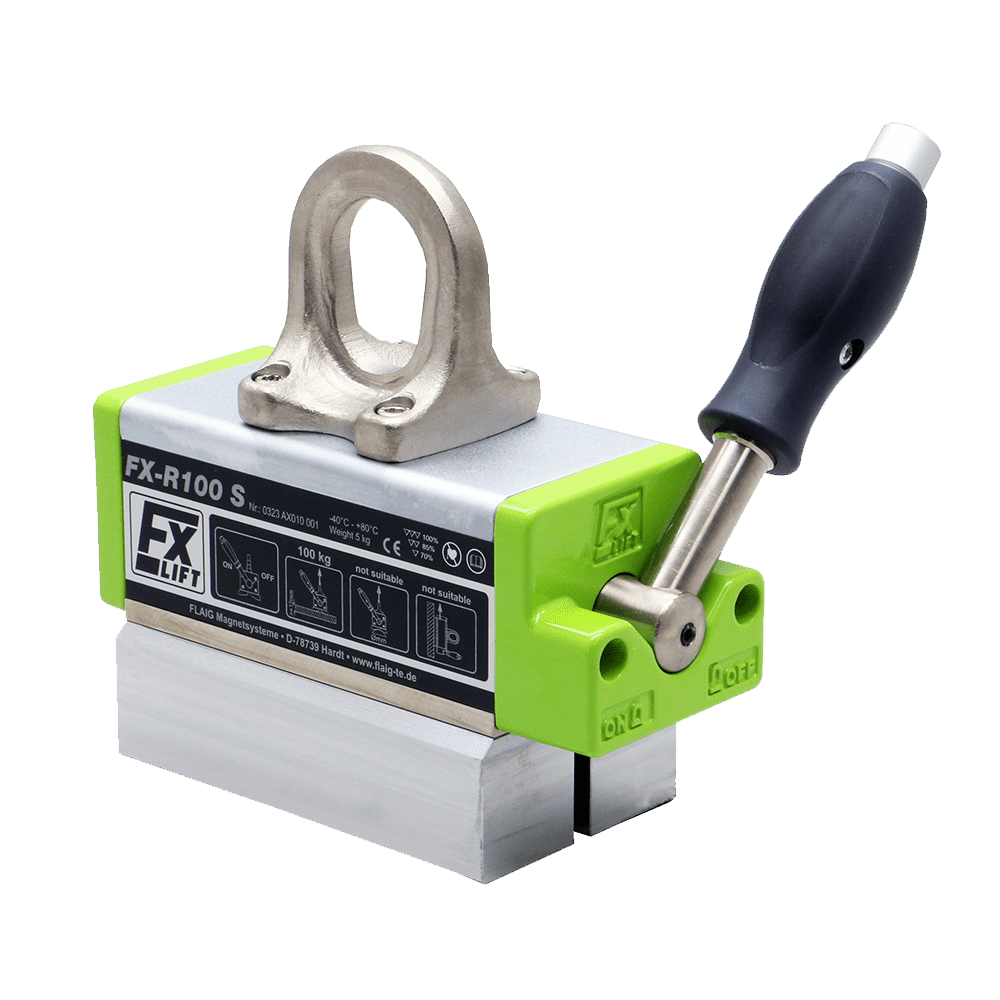

FX-R100 S with special pole

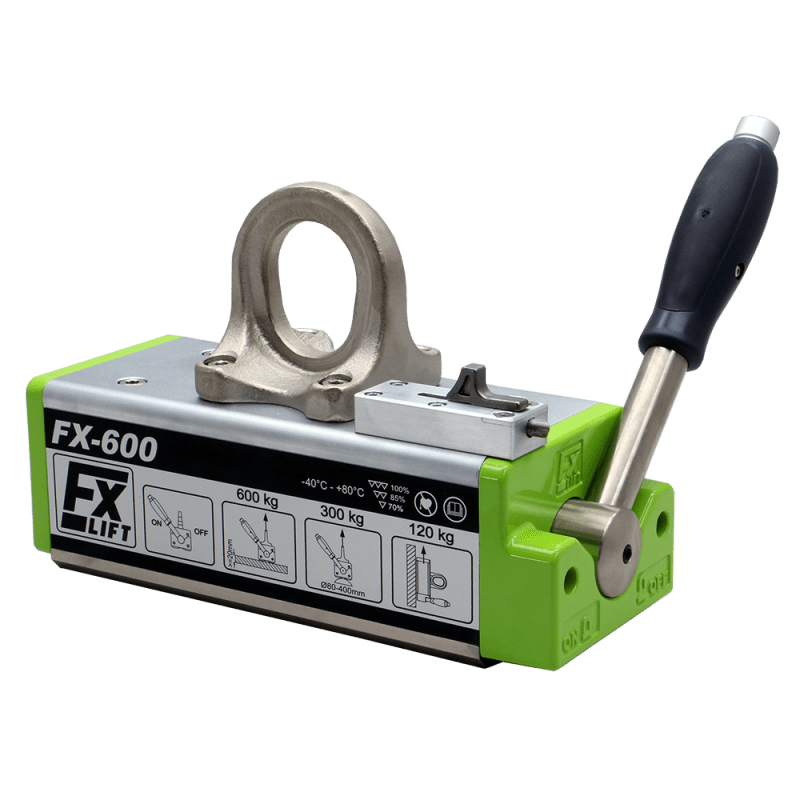

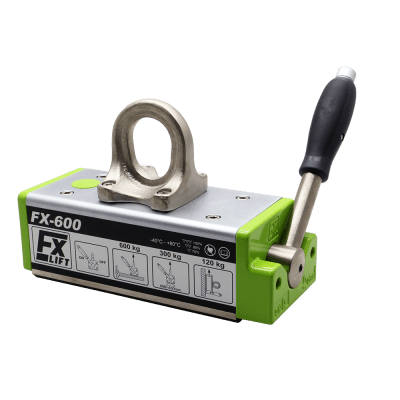

FX-600 with towing eye

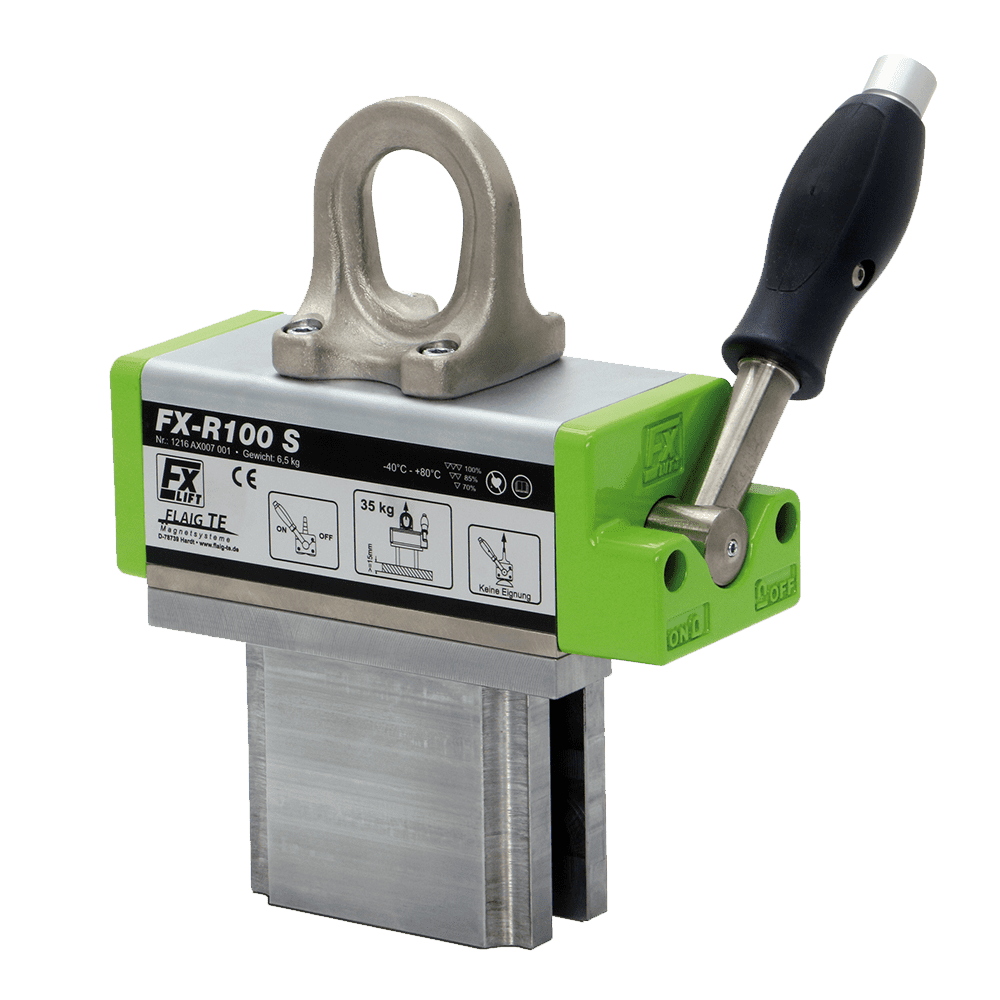

FX-R100 S with handle

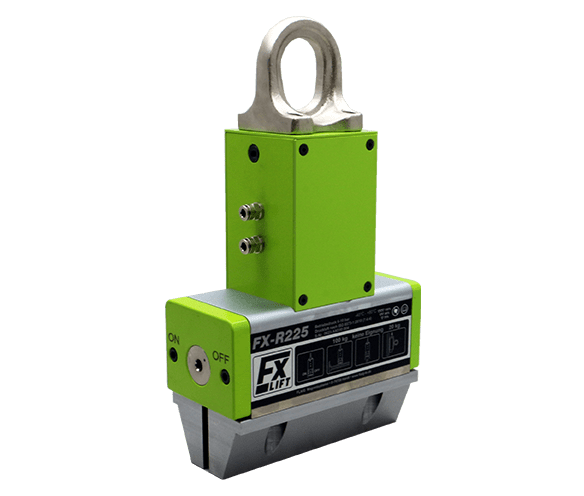

FX-R225 S Pneumatic

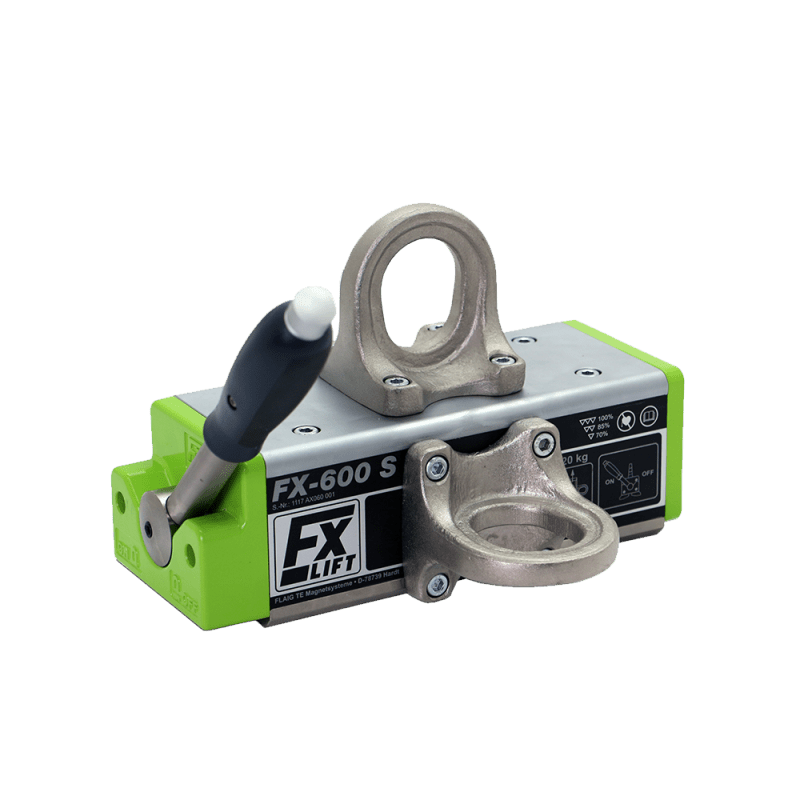

FX-600 with additional lock

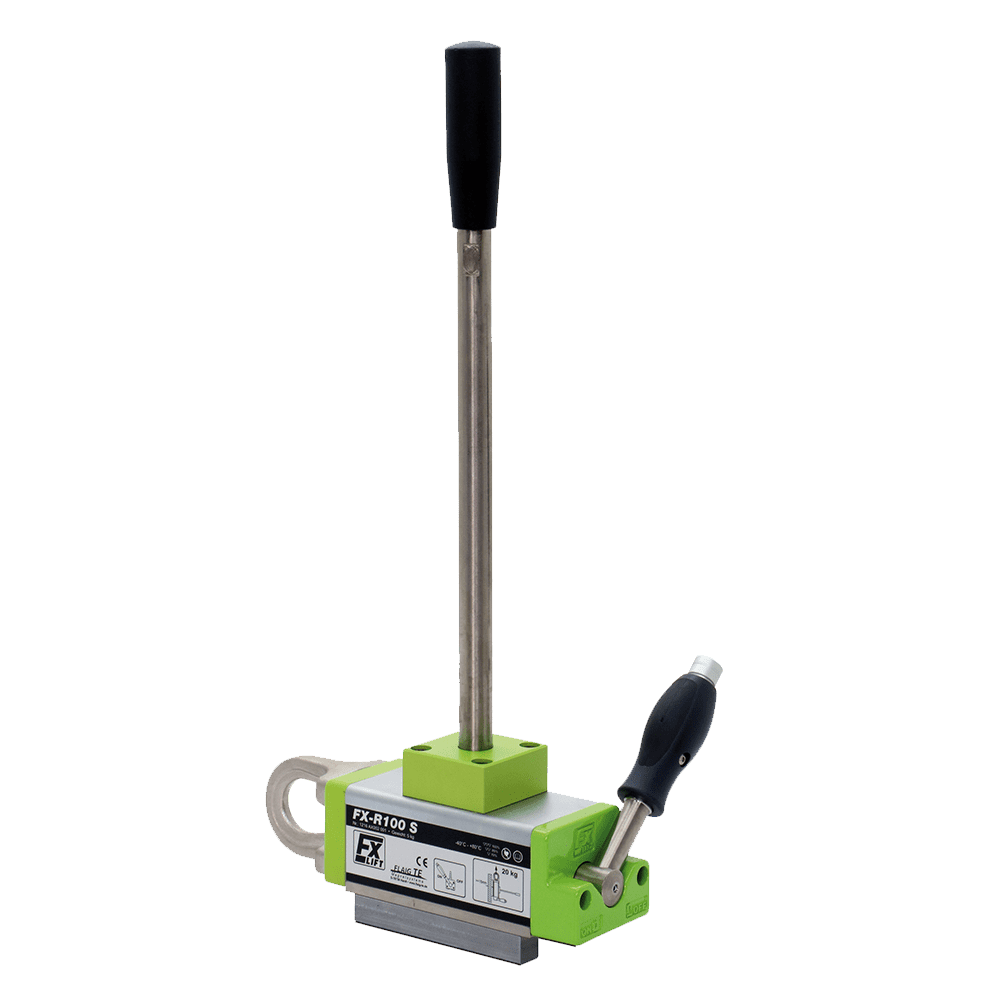

FX-R100 S with long pole

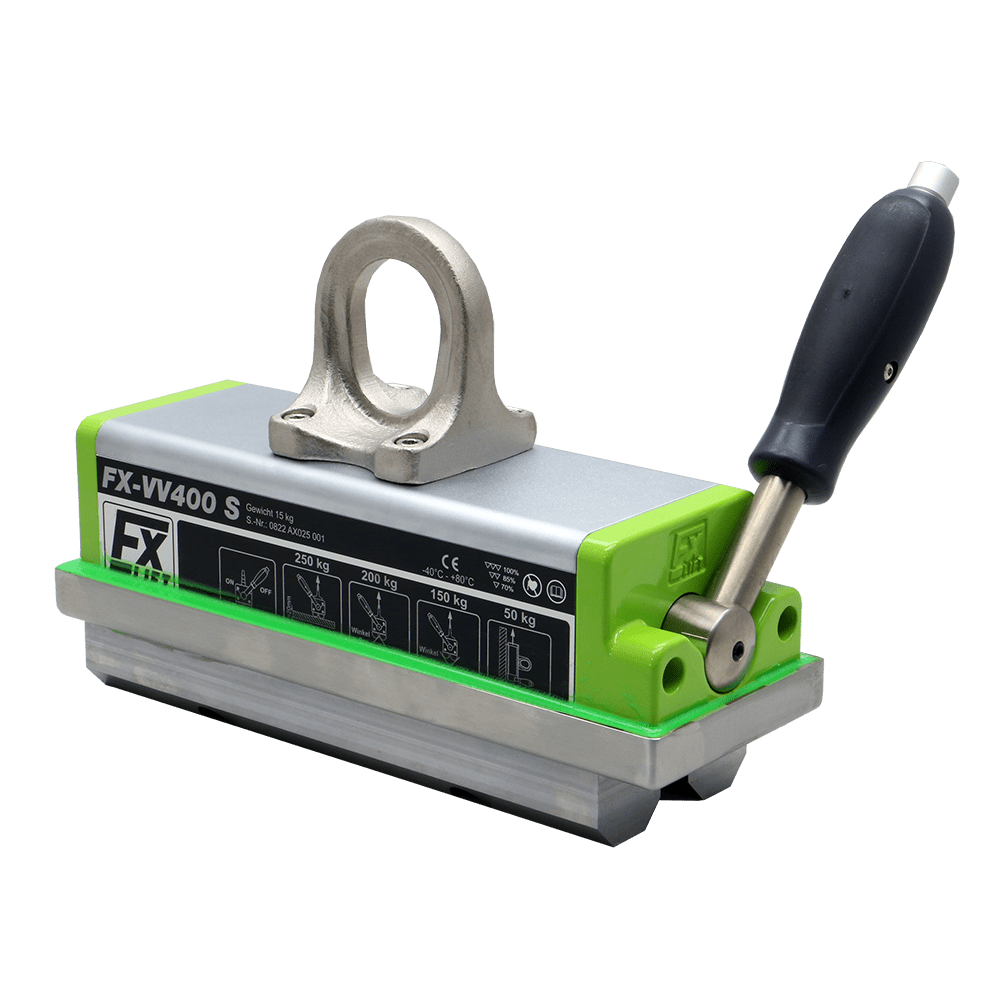

FX-VV400 S with acid protection pole

FX Lifting with optional towing eye

Explore Flaigs FX Refund & FX Green Dot

Learn how FX Refund makes your magnet recyclable with a money back value and how FX Green Dot gives you easy access to important info via your phone. Find out which feature suits you best.

FX-Refund

FX-Greendot
