FLAIG LIFTING

Electric Ejector Magnets

ERM-X

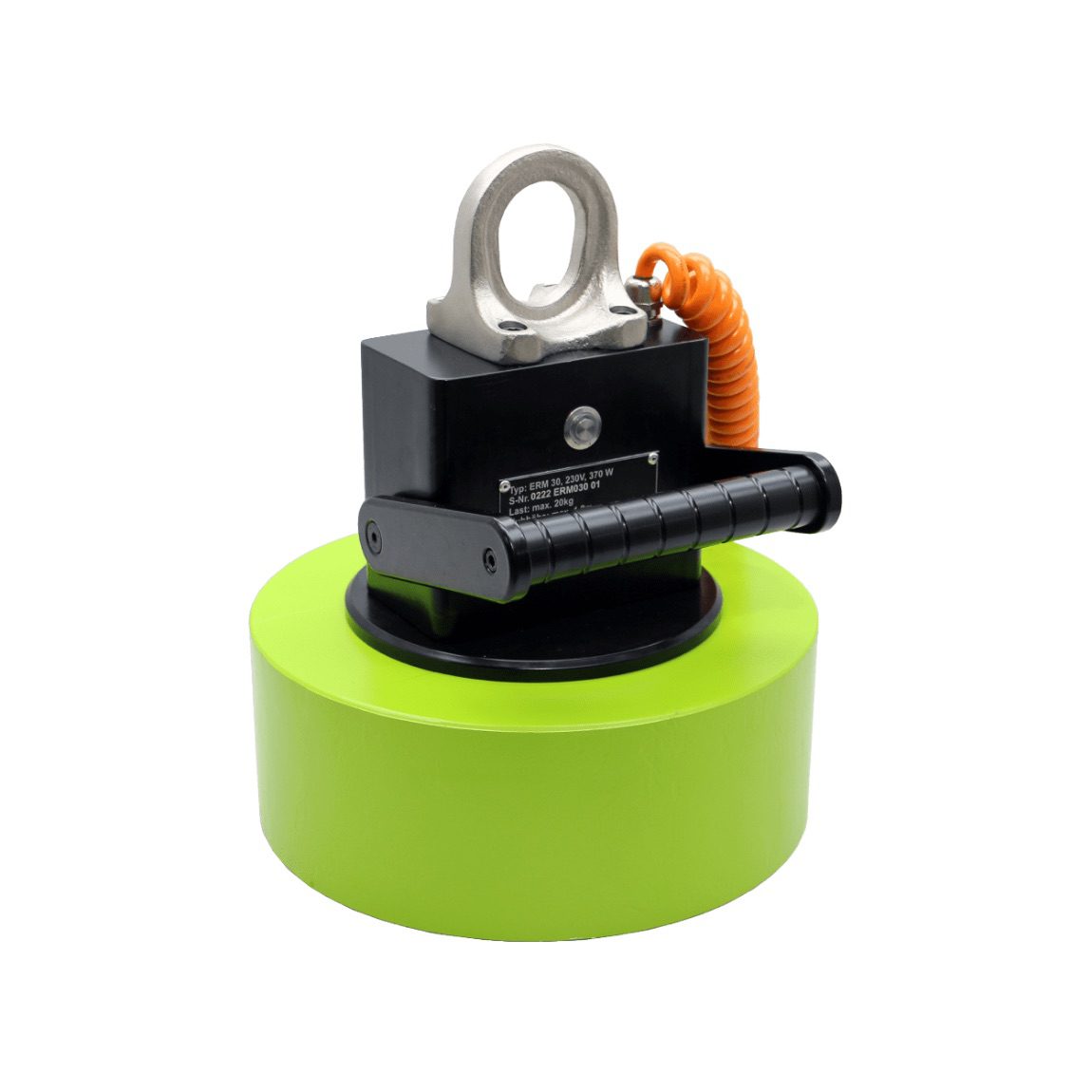

Electro Circular Magnets

For lifting ground parts, bulk material and occasional sorting of magnetisable parts. ERM features a mounted switch, integrated rectifier for 230 V connection with a field depth of 80–120 mm.

Model	Product number	Dimension diameter (mm)	Dimension height (mm)	Connection voltage (V)	Power (W)	ED
ERM-X 20	1010 200	200	320	230	130	100%
ERM-X 25	1010 250	250	340	230	220	100%
ERM-X 30	1010 300	300	360	230	370	100%
ERM-X 40	1010 400	400	360	230	600	100%

NER-X

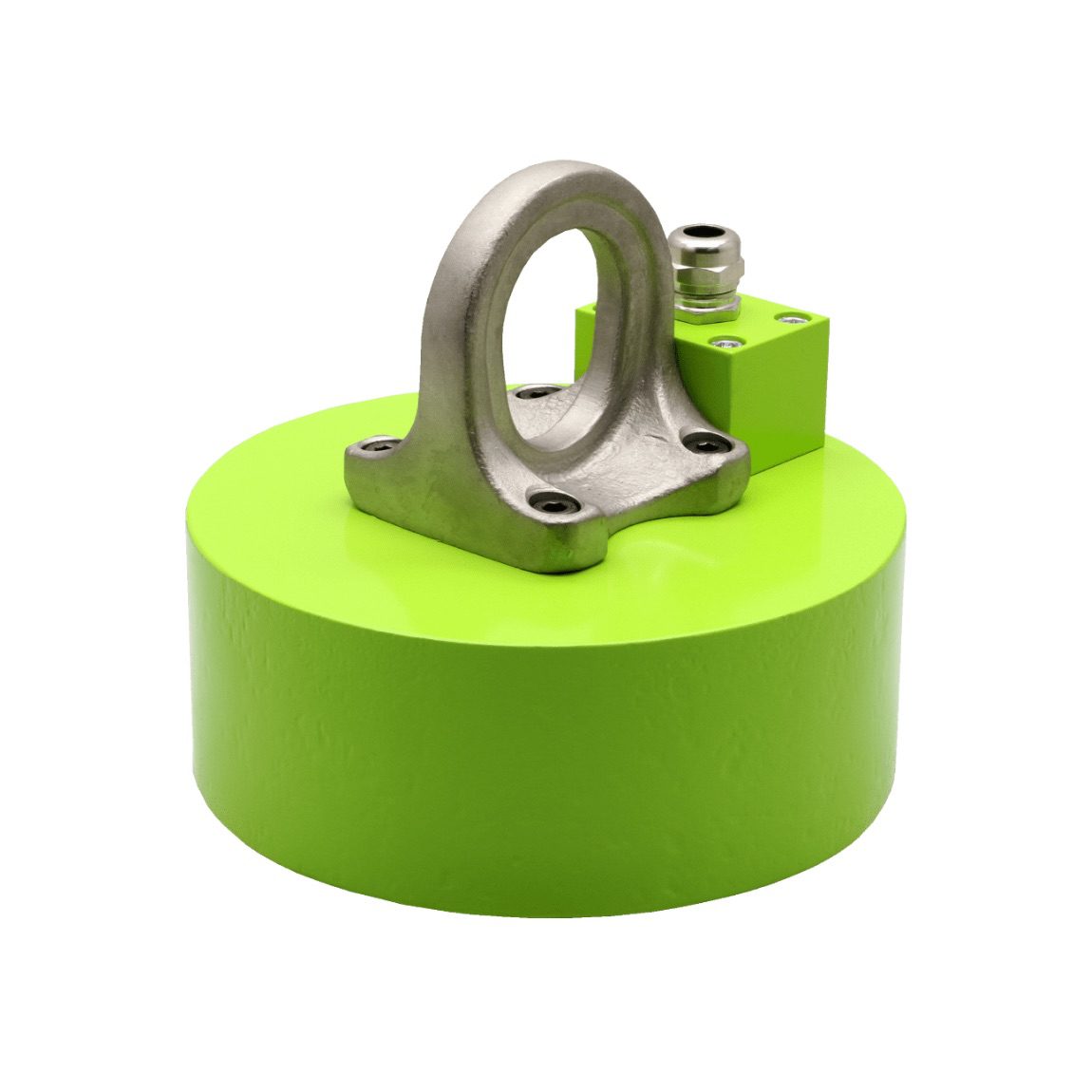

Electric Ejector magnets

For lifting ground parts, bulk material and sorting magnetisable parts. ERM has a switch and rectifier for 230 V connection. Field depth 80–120 mm. Not for solid workpieces in open areas.

Model	Product number	Tear-off force (kN)	Dimension diameter (mm)	Dimension height (mm)	Power (W)	ED
NER-X 20	1010 201	12	200	175	130	100%
NER-X 25	1010 251	22	250	195	220	100%
NER-X 30	1010 301	36	300	215	370	100%
NER-X 40	1010 401	50	400	215	600	100%

EHG

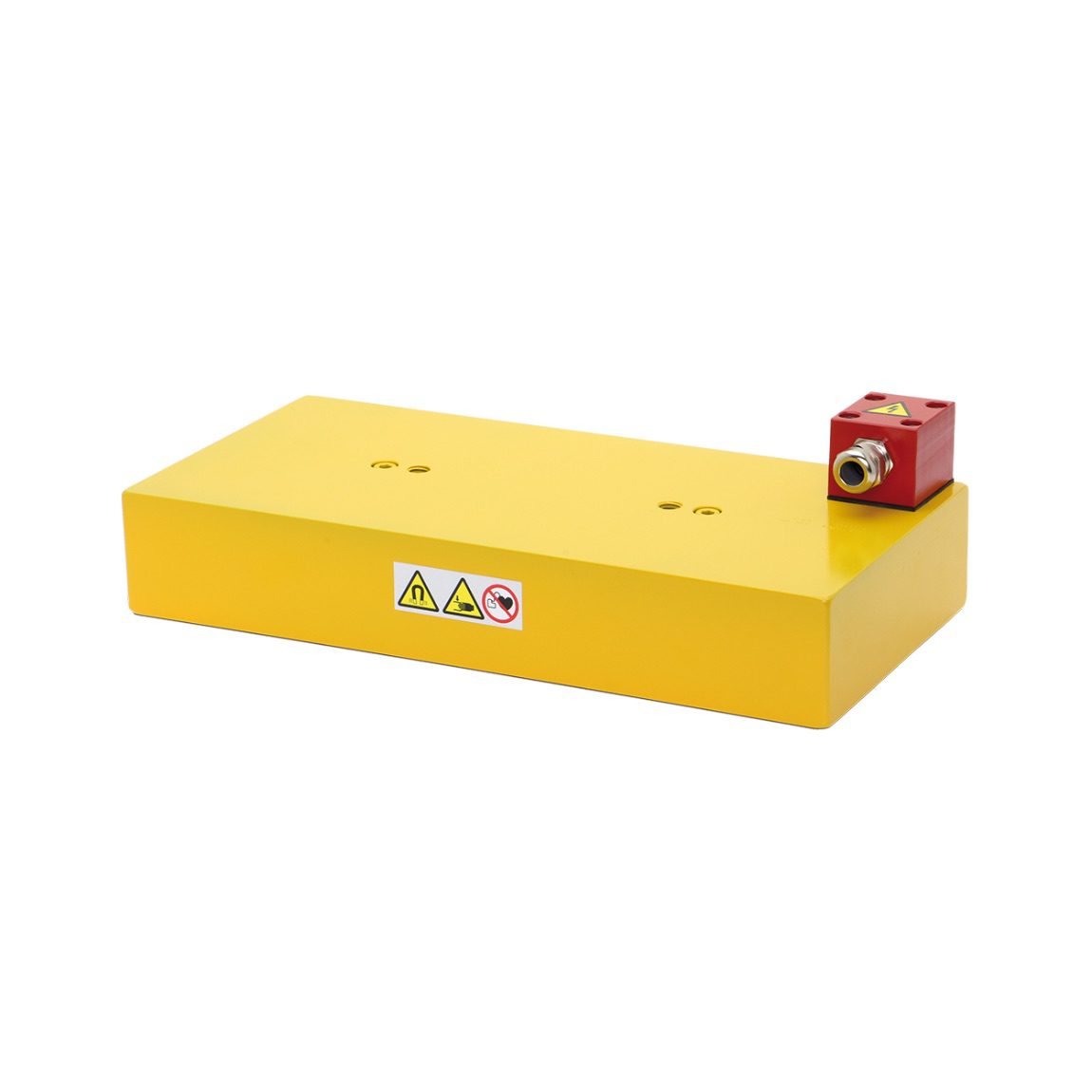

Electromagnetic rods

EHG electromagnetic holding rods, used in fixtures, gripper systems and mechanical engineering, feature a screwed two part design, double coating and IP65 sealing.

Model	Product number	Holding force (N)	Holding force from (mm)	Power (W)	ED	Dimension length (mm)	Dimension width (mm)	Borehole	Dimension hole spacing (mm)	Degree of protection
EHG 1158	4010 1158	36000	35	240	100%	1000	150	3x M12	300	IP53
EHG 2085	4010 2085	4400	12	28	100%	200	80	2 x M12	100	IP53
EHG 4085	4010 4085	10500	12	51	100%	400	80	2 x M12	200	IP53
EHG 4088	4010 4088	10000	12	79	100%	400	80	2 x M12	200	IP53
EHG 5017	4010 5017	15000	25	70	100%	500	100	2 x M12	300	IP53
EHG 5085	4010 5085	14000	12	64	100%	500	80	2 x M12	300	IP53
EHG 8017	4010 8017	24000	25	123	100%	800	100	2 x M12	500	IP53

USG

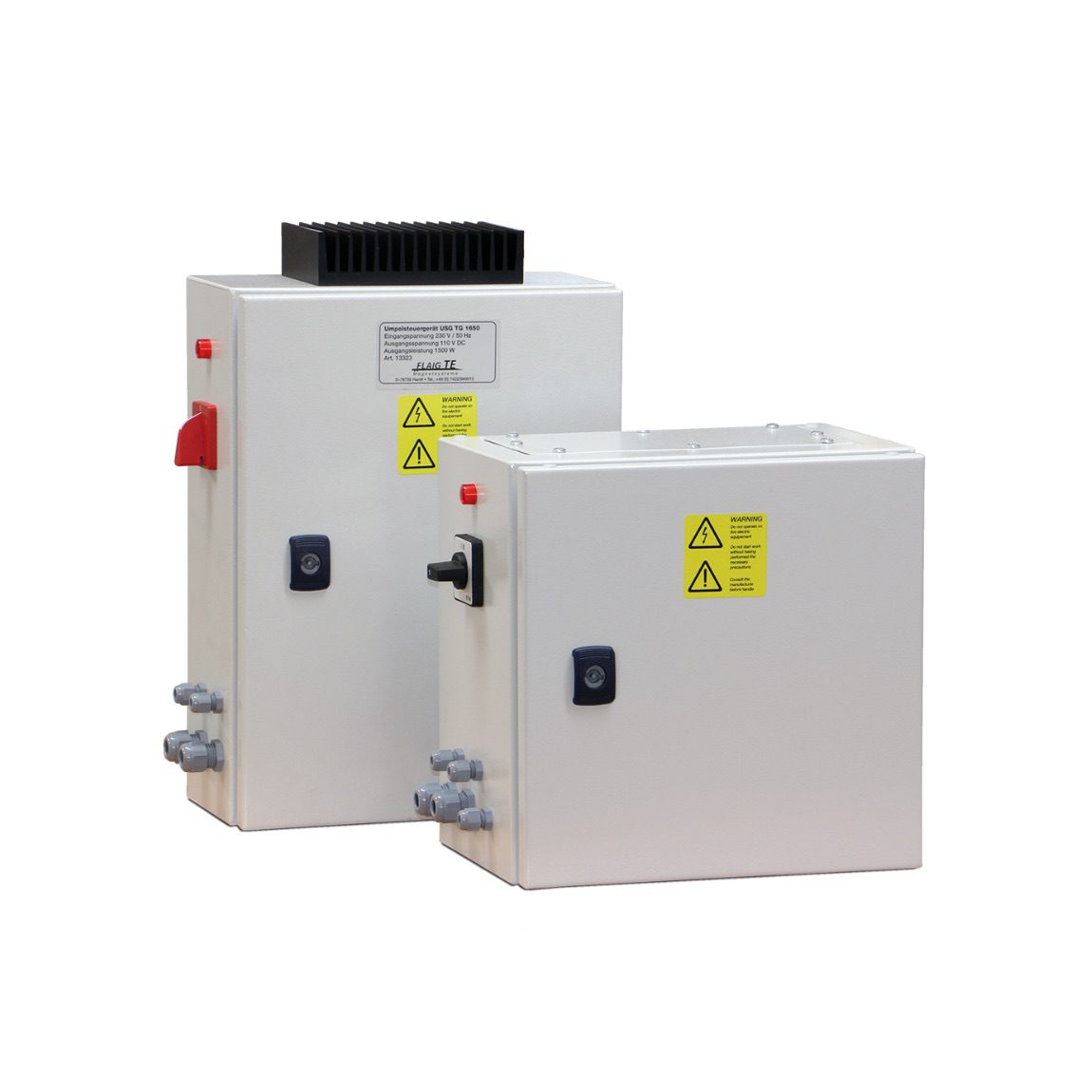

pole reversal control devices

USG pole reversal units precisely adjust lifting magnets’ force, perform demagnetising cycles, can be controlled via machine contacts and offer optional manual controls and signal lamps.

Model	Product number	Max. output power (W)	Connection (V / Hz)	Output voltage (VDC)	Dimension length (mm)	Dimension width (mm)	Dimension height (mm)
USG 1650	USG 1650	1650	230 / 50	0-110	460	300	160
USG 440	USG 440	440	230 / 50	0-110	300	300	200

Pneumatic

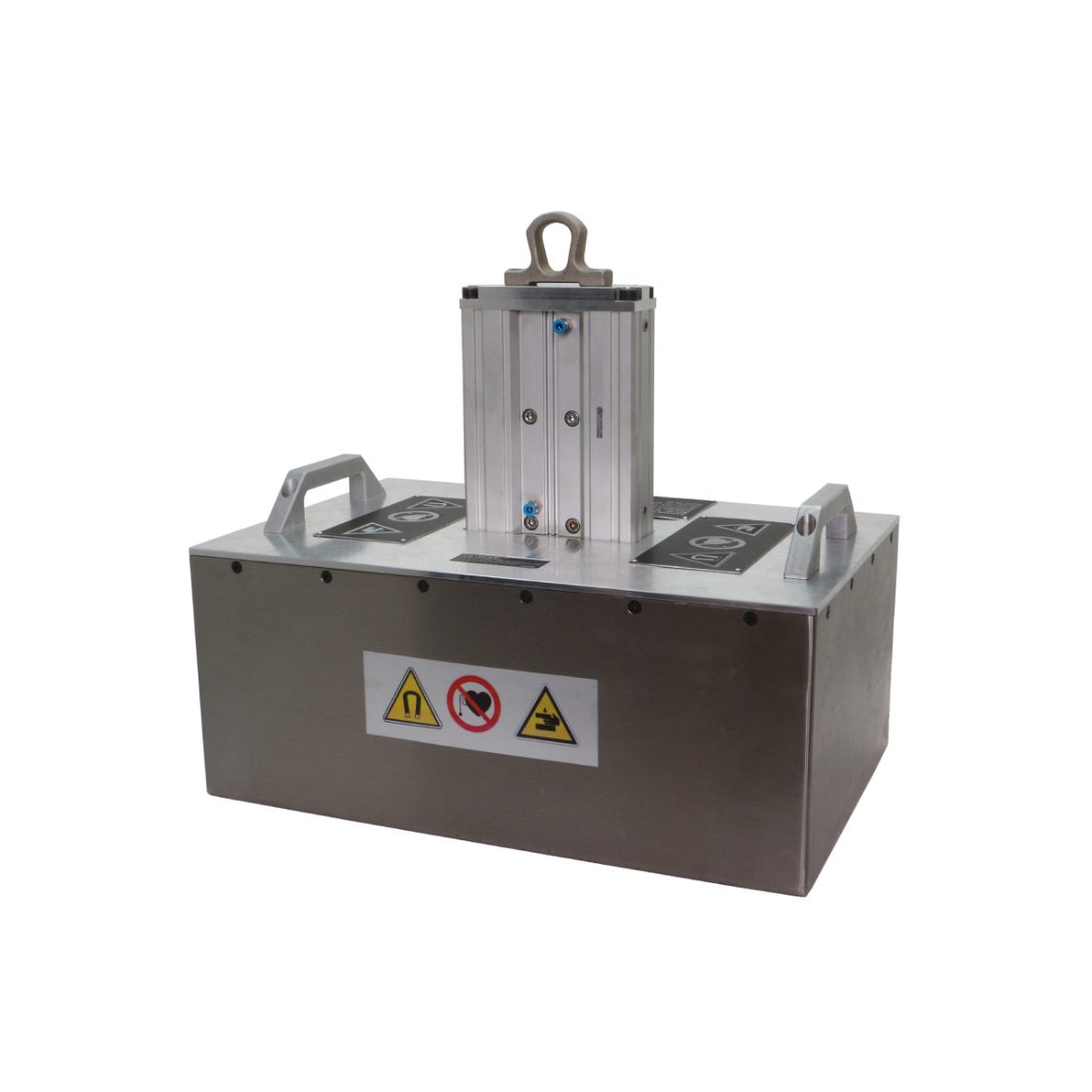

Pneumatic ejector magnets

Pneumatic ejector magnets are ideal when electric or electro permanent magnets are too heavy or unsuitable, perfect for lifting thin sheet metal and delicate materials.
