Flaig Holding Magnets

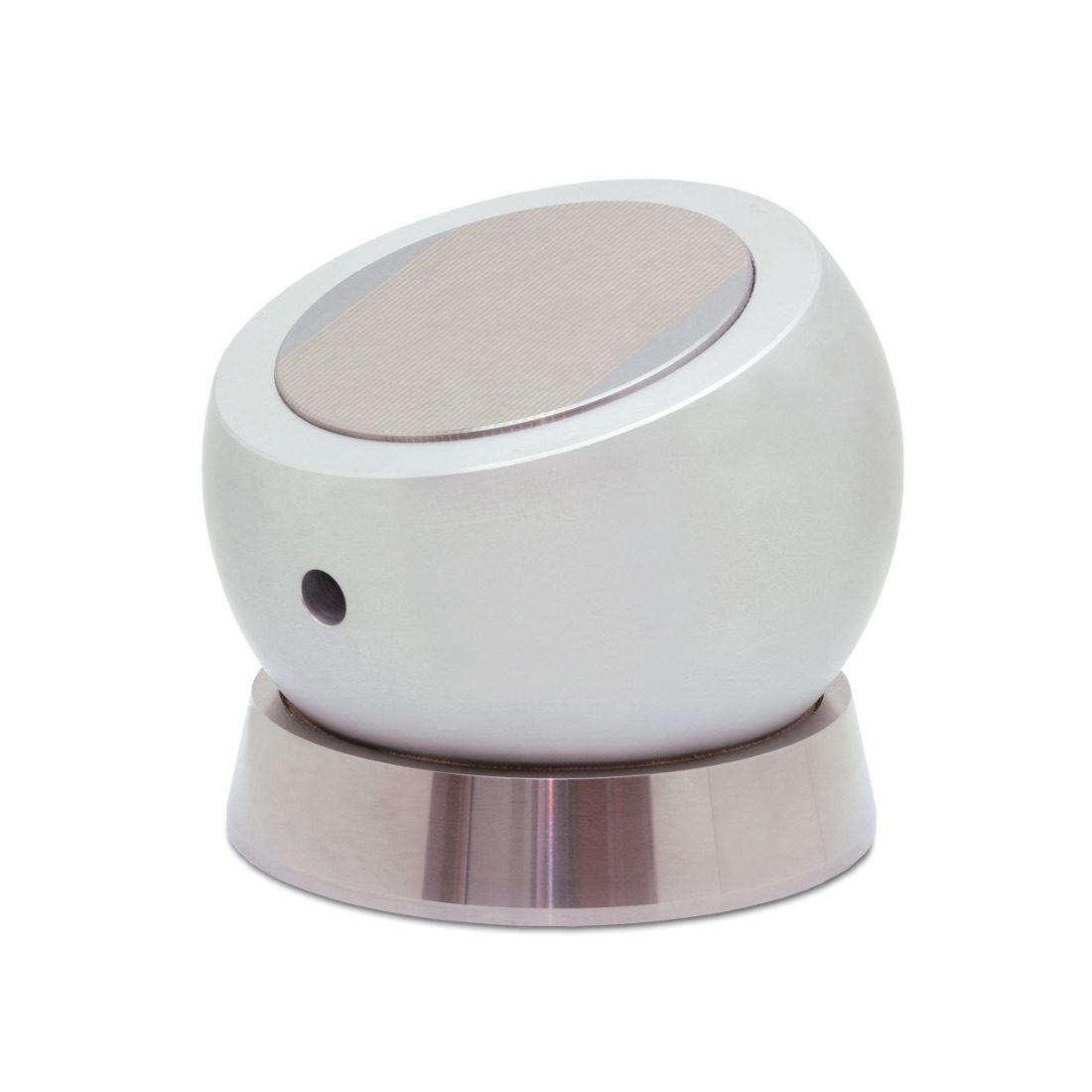

ERGO BALL

MAGNETIC CLAMPING BALLS
ERGO BALL magnetic clamping balls hold parts securely for laser welding, polishing and assembly, with up to 90° swivel and strong RNF chuck activated by T-handle wrench.

Model

Product number

Dimension outer diameter round chuck (mm)

Dimensions of the outer diameter of the ball (mm)

Weight receiving ring (kg)

Ball weight (kg)

Colour

Pole pitch (mm)

Dimension height (mm)

Ergo-Ball 80 (silver)

3001 008-1

80

128

1

4

silber

1,5+0,5

104

Ergo-Ball 80 (blue)

3001 008-3

80

128

1

4

blau

1,5+0,5

104

Ergo-Ball 100 (silver)

3001 010-1

100

158

2

7

silber

1,5+0,5

129

Ergo-Ball 100 (blue)

3001 010-3

100

158

2

7

blau

1,5+0,5

129

Ergo-Ball 130 (silver)

3001 013-1

130

188

4

11

silber

1,5+0,5

145

Ergo-Ball 130 (blue)

3001 013-3

130

188

4

11

blau

1,5+0,5

145

Ergo-Ball 130 (silver)

3001 016-1

160

218

5

17

silber

1,5+0,5

164

Ergo-Ball 160 (blue)

3001 016-3

160

218

5

17

blau

1,5+0,5

164

Flaig Holding Magnets

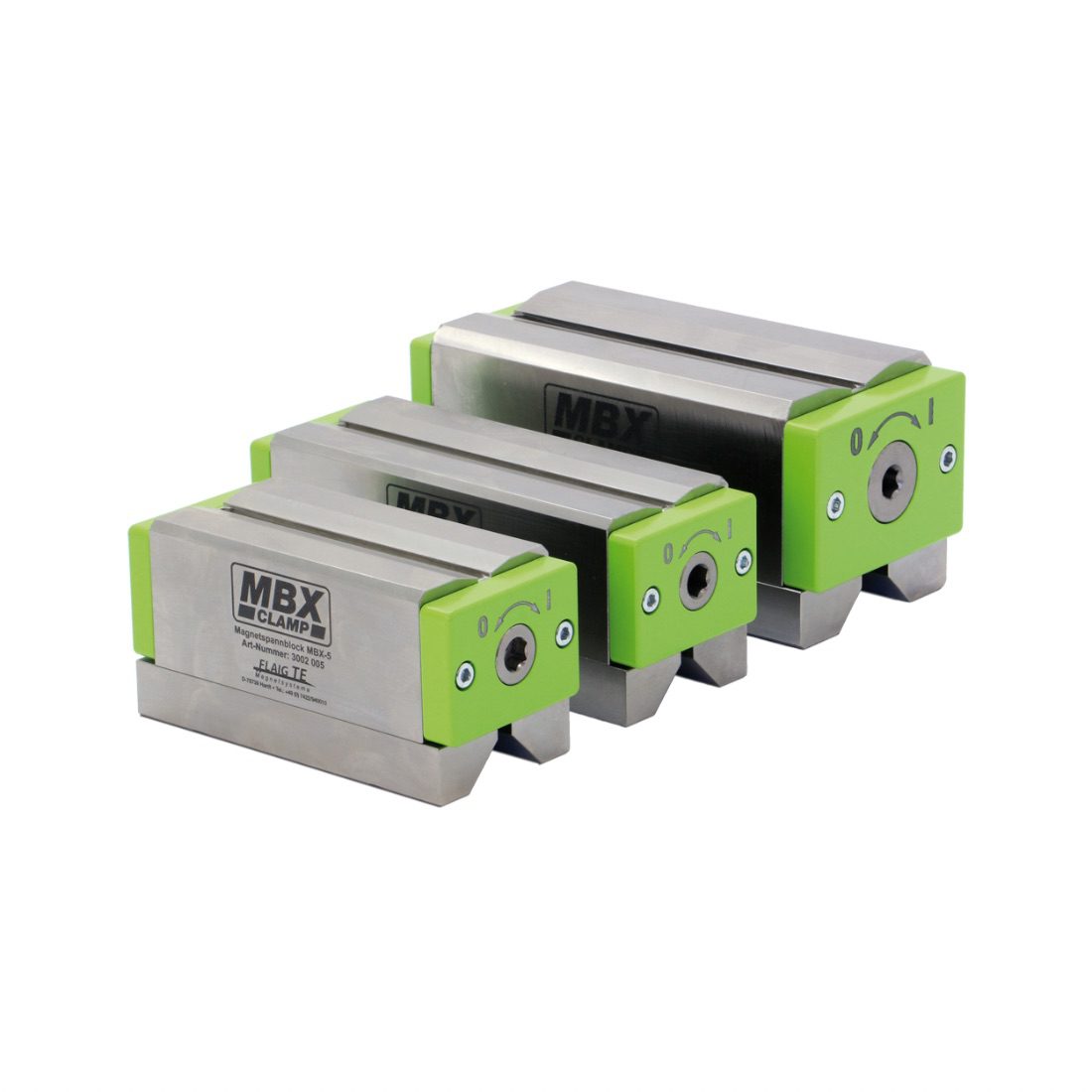

MBX

MAGNETIC CLAMPING BLOCKS
MBX magnetic clamping blocks feature opposing clamping sides for securing parts on steel surfaces. Multiple units can connect to hold larger workpieces with ease.

Model

Product number

Clamping surface (for flat and 90° profiles) (mm)

Clamping surface (for flat and round material) (mm)

System holding force (kN)

Dimension length (mm)

Dimension width (mm)

Dimension height (mm)

Weight (kg)

MBX 5 pair

3002 005-1

136 x 64

120 x 57

5

143

64

71

2x3.9

MBX 7 pair

3002 007-1

172 x 64

156 x 57

7

178

64

71

2x4.9

MBX 10 pair

3002 010-1

178 x 87

162 x 76

10

184

87

88

2x8.8
