FLAIG HOLDING

Demagnetising and Testing

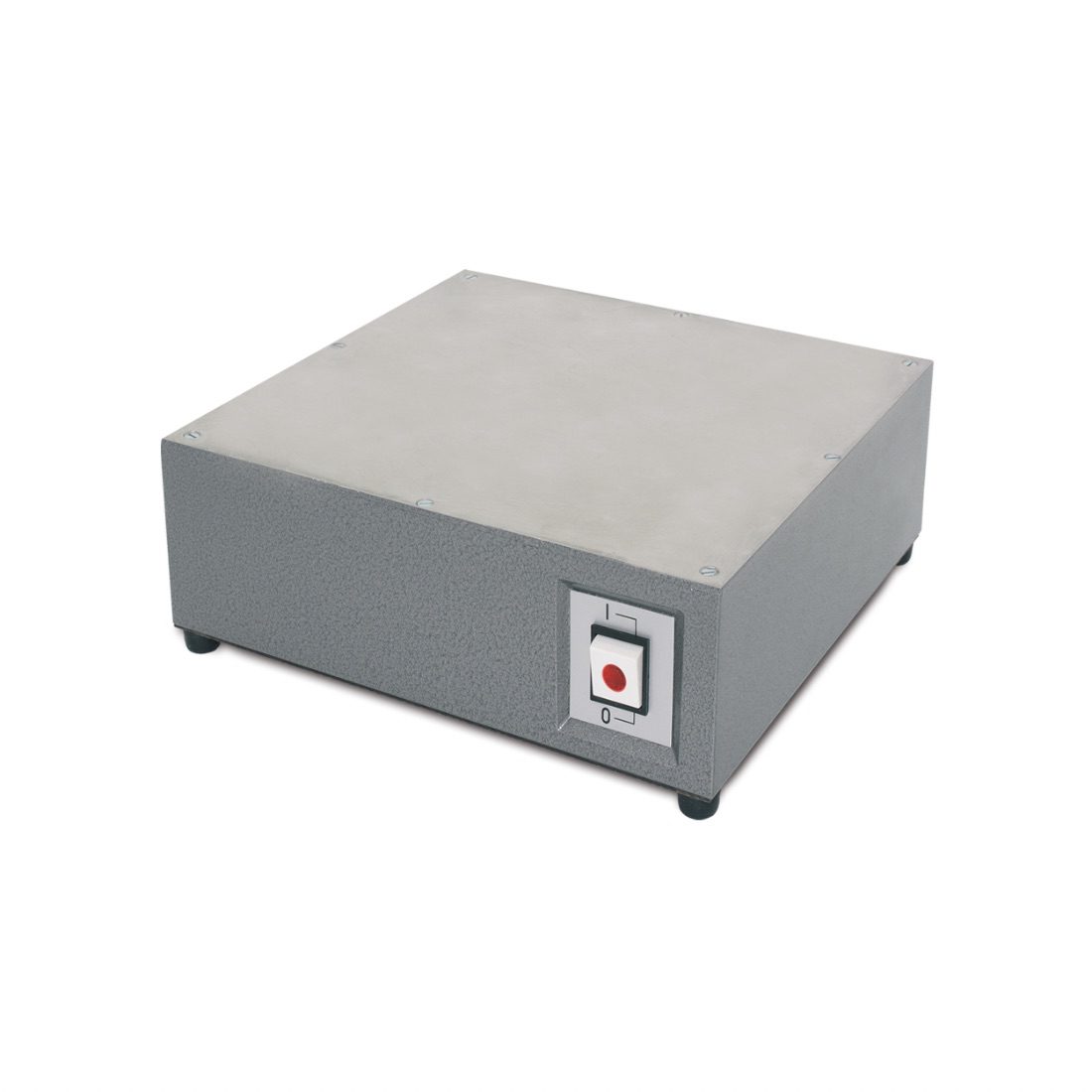

DM

PLATE DEMAGNETISER

DM plate demagnetisers are used to effectively remove residual magnetism from metal parts, ensuring proper function and preventing interference in machining and assembly processes.

Model	Product number	Power (W)	Pole face	ED	Dimension height (mm)	Weight (kg)
DM 3	3010 2518	350	250 x 180	20%	86	11
DM 4	3010 2827	350	281 x 266	20%	86	14
DM 5	3010 4030	350	401 x 306	20%	86	19

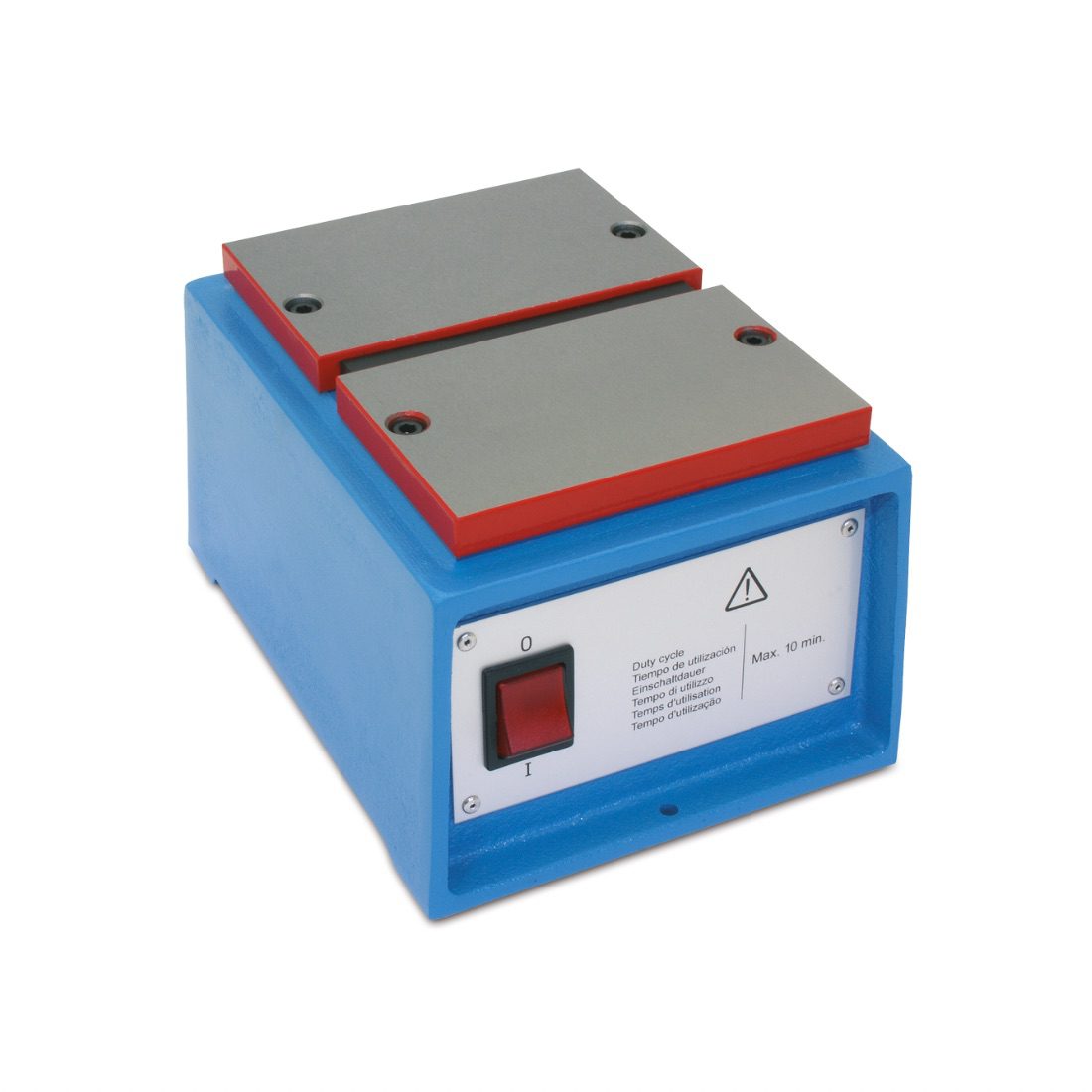

DMS

PLATE DEMAGNETISER

DMS plate demagnetisers offer a cost effective solution for occasional use, efficiently removing residual magnetism from metal parts when needed.

Model	Product number	Power (W)	Pole face	ED	Dimension height (mm)	Weight (kg)
DMS 1612	9010 1612	300	160 x 120	10 Min. / 50%	115	5.5
DMS 2217	9010 2217	660	220 x 170	10 Min. / 50%	122	12

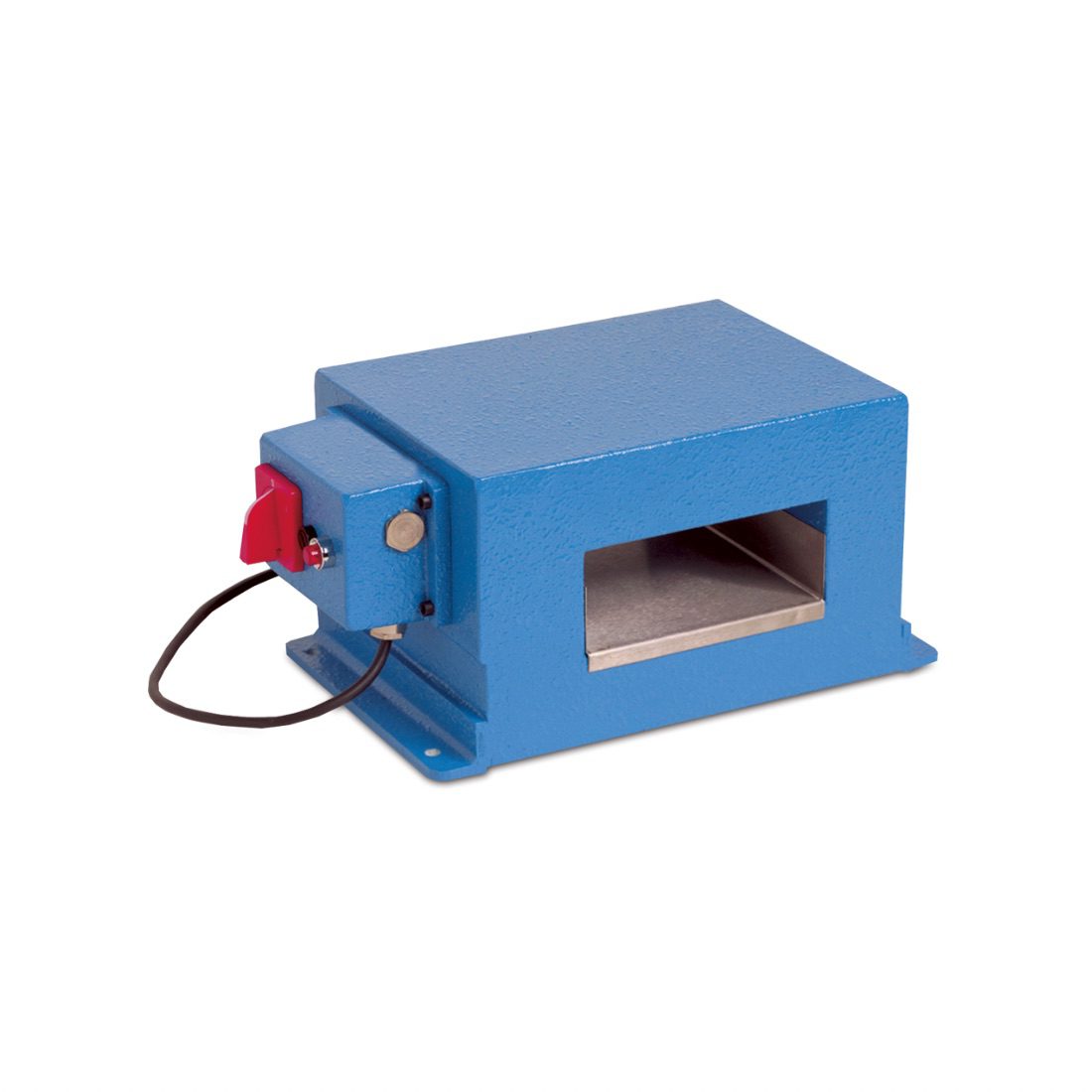

TUNNEL

TUNNEL DEMAGNETISER

Tunnel demagnetisers are designed for demagnetising pipes, bars and similar long metal parts, ensuring they are free from residual magnetism.

Model	Product number	Power (W)	Tunnel opening (mm)	ED	Dimension length (mm)	Dimension width (mm)	Dimension height (mm)	Weight (kg)
TUNNEL Demagnetizer 1560	9011 1560	870	150 x 60	100%	200	250	160	27
TUNNEL Demagnetizer 2010	9011 2010	2300	200 x 100	100%	200	330	230	45
TUNNEL Demagnetizer 4020	9011 4020	3500	400 x 200	100%	570	370	350	115

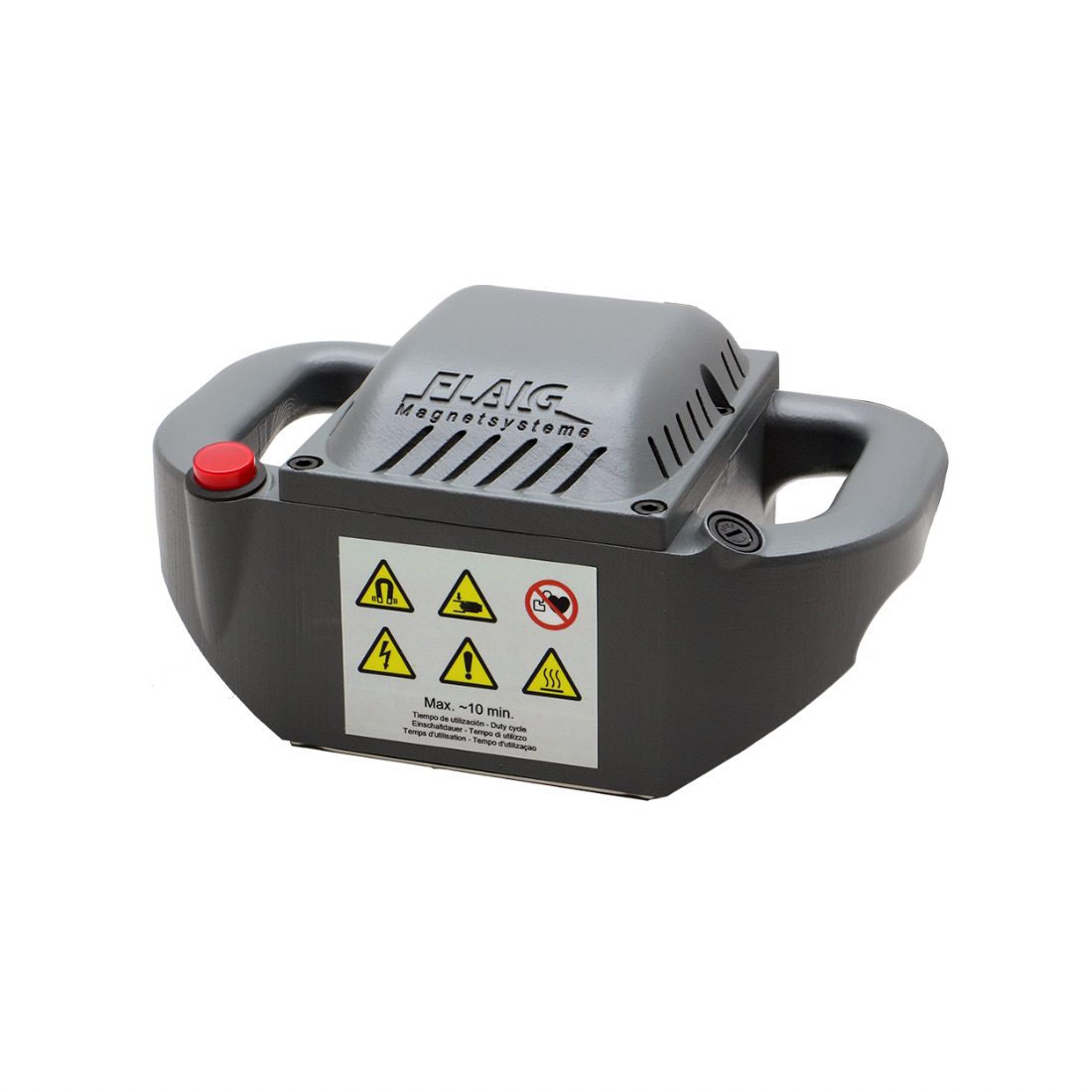

HAND

HAND DEMAGNETISER

Hand demagnetisers are ideal for demagnetising large parts and unwieldy workpieces, providing flexible and effective magnetic removal for various industrial needs.

Model	Product number
HAND Demagnetizer 1210	9012 1560

Testing

Handheld Teslameter

The HGF handheld gaussmeter measures magnetic flux with precision using a 1mm probe. It detects DC/AC fields, shows N/S polarity and includes accessories for industrial use.
