FLAIG CLAMPING

Magnetic Clamping Systems

Flaig Clamping Magnets

efs

Electro magnetic chucks
EFS magnetic chucks clamp small parts (from 7x5x2mm) with fine poles. They offer adjustable force, demagnetisation, uniform grip, high rigidity and low heat, even during long use.

Model

Product Number

Power (W)

Nominal Holding Force (N/cm²)

Pole Pitch (mm)

Dimension Length (mm)

Dimension Width (mm)

Dimension Height (mm)

EFS 4020

2204 4020

90

120

Querpol 1+3

400

200

85

EFS 4515

2204 4515

90

120

Querpol 1+3

450

150

85

EFS 5020

2204 5020

100

120

Querpol 1+3

500

200

85

EFS 6020

2204 6020

140

120

Querpol 1+3

600

200

85

EFS 6030

2204 6030

150

100

Querpol 1+3

600

300

85

EFS 8040

2204 8040

280

100

Querpol 1+3

800

400

90

Flaig Clamping Magnets

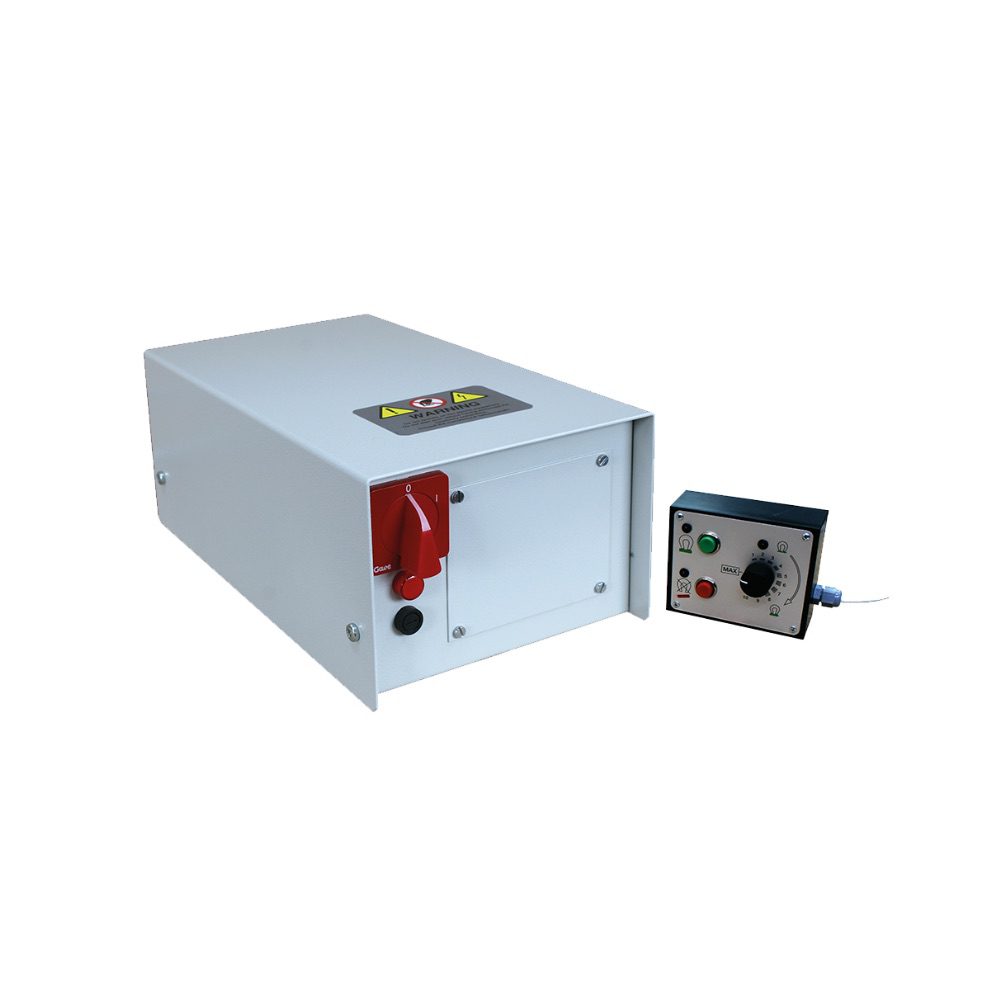

CONTROL DEVICES

Pole Reversal Control Technology
Electro magnetic chucks use pole reversal control to adjust holding force and demagnetise workpieces. USG units plug into 230V, come with manual control and are easy to retrofit.

Model

Product Number

Power (W)

Dimension Length (mm)

Dimension Width (mm)

Dimension Height (mm)

Weight (kg)

USG-TG 125

9040 0126

125

330

180

140

6

USG-TG 250

9040 0220

220

330

180

140

8

USG-TG 400

9040 0440

440

330

180

140

10

USG-770

9040 0770

770

300

300

120

12

USG-1650

9040 1650

1650

300

300

120

12
