FLAIG CLAMPING

Magnetic Circular Chucks

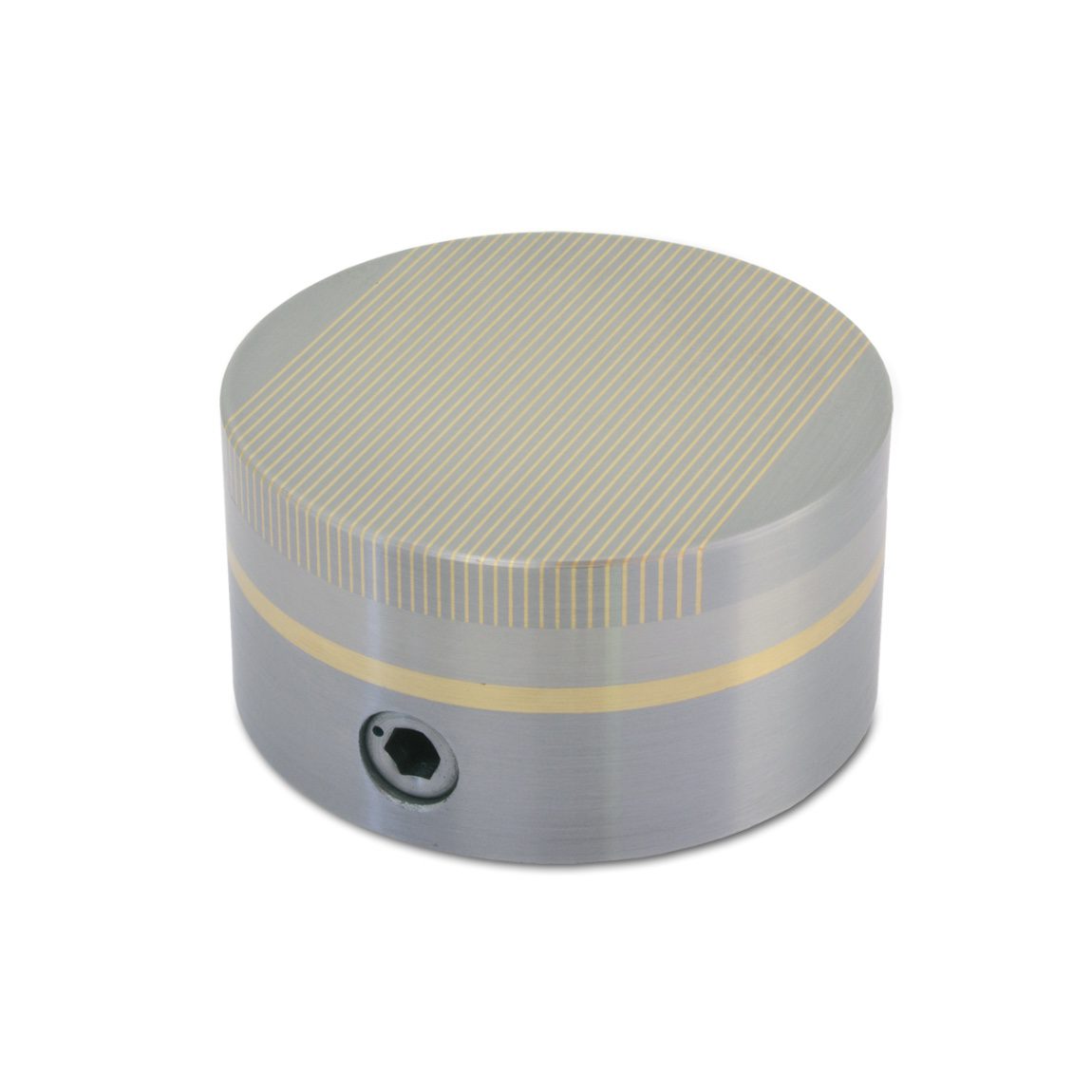

Flaig Clamping Magnets

RNF

Magnetic Circular Chucks
Permanent magnetic circular chucks type RNF with neodymium magnet system and low overall height are used for clamping small and thin workpieces.

Model

Product Number

Dimension D (mm)

Dimension E (mm)

Nominal Holding Force (N/cm²)

Pole Pitch (mm)

Max. Speed (RPM)

Outer Diameter (mm)

Height (mm)

Borehole

Weight (kg)

RNF 8

2106 08

3

70

80

1.5+0.5

1500

80

50

3 x M5

1.8

RNF 10

2106 10

4

85

80

1.5+0.5

1500

100

50

4 x M8

3

RNF 13

2106 13

4

115

80

1.5+0.5

1500

130

50

4 x M8

5

RNF 16

2106 16

4

140

80

1.5+0.5

1500

160

52

4 x M10

9

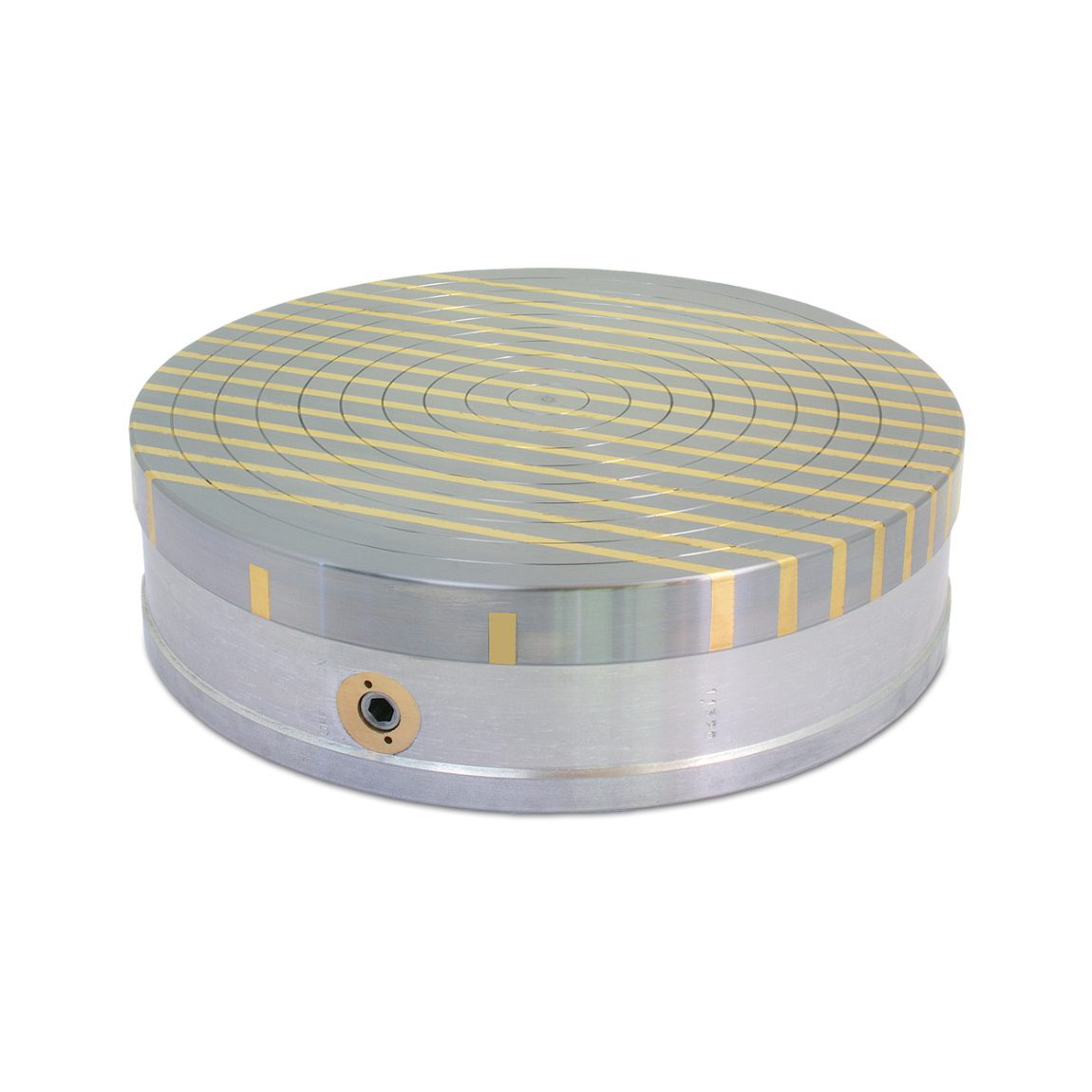

Flaig Clamping Magnets

RM

Magnetic Circular Chucks
RM type permanent magnetic circular chucks with reinforced ceramic magnets securely clamp large, heavy workpieces. Features include infinitely adjustable magnetic force and centering grooves.

Model

Product Number

Dimension C (mm)

Dimension D (mm)

Dimension E (mm)

Nominal Holding Force (N/cm²)

Pole Pitch (mm)

Max. Speed (RPM)

Outer Diameter (mm)

Height (mm)

Borehole

Weight (kg)

RM 20

2101 20

150

4.5

182

140

8+5

800

200

80

4 x M8

13

RM 25

2101 25

200

4.5

232

140

8+5

700

250

180

4 x M8

20

RM 30

2101 30

250

4.5

285

140

8+5

700

300

85

4 x M8

27

RM 40

2101 40

300

5

350

140

8+5

500

400

100

6 x M10

56

RM 45

2101 45

350

5

400

140

8+5

450

450

100

6 x M10

70

RM 50

2101 50

400

5

450

140

8+5

400

500

100

6 x M10

90

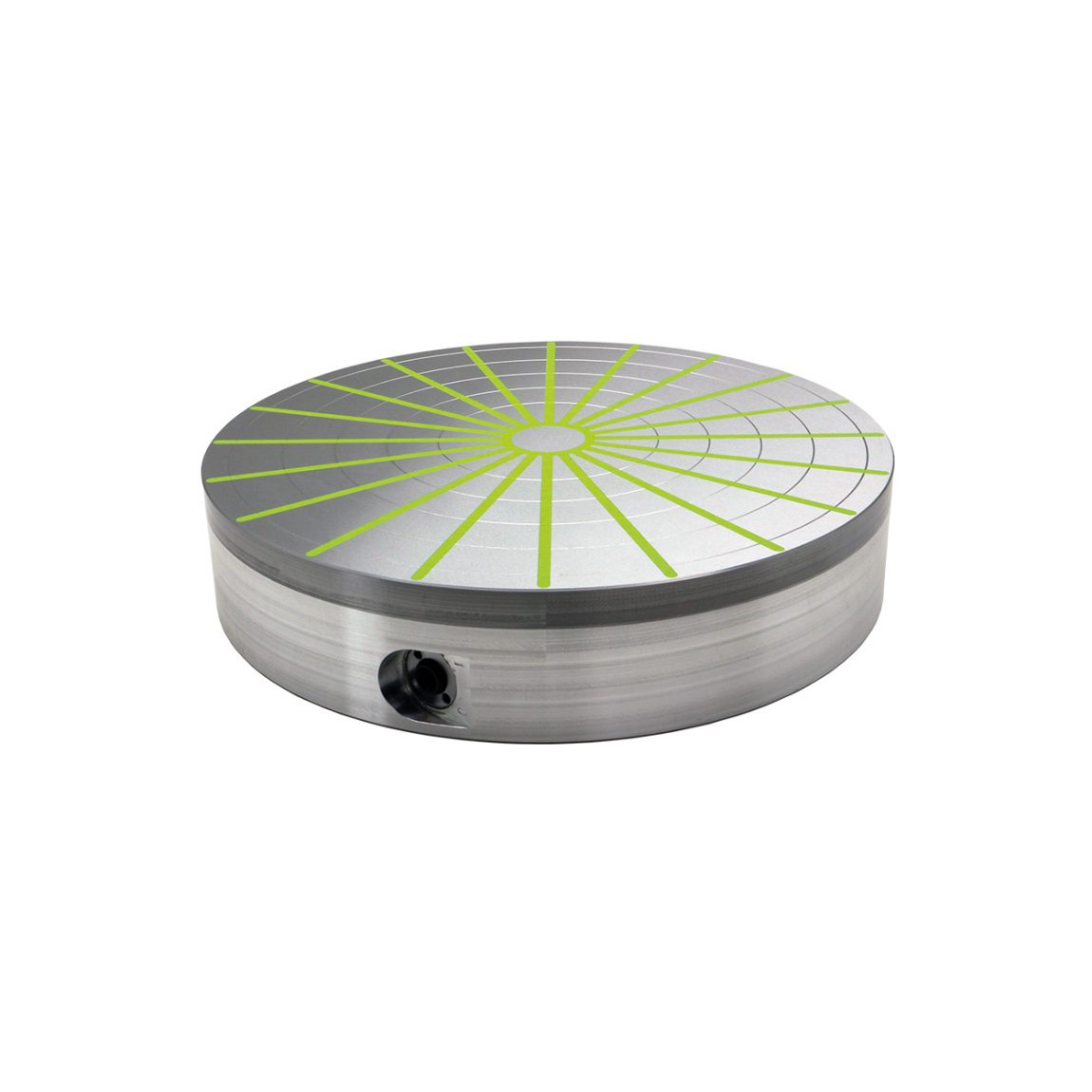

Flaig Clamping Magnets

RS

CIRCULAR CHUCK
RS type permanent magnetic circular chucks with neodymium magnets and radial pole pitch securely clamp rings and discs. Features include adjustable magnetic force, centering grooves and optional central through hole.

Model

Product Number

Dimension Height (mm)

Dimension Outer Diameter (mm)

Number of Poles

Weight (kg)

Max. Speed (RPM)

RS 13

2103 13

57

130

10

5.5

1000

RS 15

2103 15

57

150

10

7.5

1000

RS 20

2103 20

57

200

12

13

800

RS 25

2103 25

70

250

16

24

700

RS 30

2103 30

73

300

16

37

700

RS 35

2103 35

73

350

20

48

600

RS 40

2103 40

75

400

20

67

500

RS 50

2103 50

88

500

24

120

400

RS 60

2103 60

88

600

30

175

400

RS 70

2103 70

88

700

30

243

400

RS 80

2103 80

110

800

30

436

300

Flaig Clamping Magnets

RSA

CIRCULAR CHUCK
RSA chucks feature an aluminium body, radial pole pitch and a self locking spindle drive with double neodymium magnets, offering precise control and enhanced performance in machining.

Model

Product Number

Dimension C (mm)

Dimension D (mm)

Dimension E (mm)

Dimension G (mm)

Dimension T (mm)

Max. Speed (RPM)

Outer Diameter (mm)

Dimension Height (mm)

Borehole

Weight (kg)

RSA 20

2105 20

25

60

110

5

20

800

200

79

M6

12

RSA 25

2105 25

30

80

166

5

20

700

250

79

M6

18

RSA 30

2105 30

38

150

180

6

20

700

300

82

M8

27

RSA 35

2105 35

40

170

220

6

20

600

350

84

M8

36

RSA 40

2105 40

40

200

260

8

20

500

400

84

M8

47

RSA 50

2105 50

50

200

330

8

29.5

400

500

109

M8

98

RSA 60

2105 60

90

250

350

8

29.5

400

600

109

M10

142

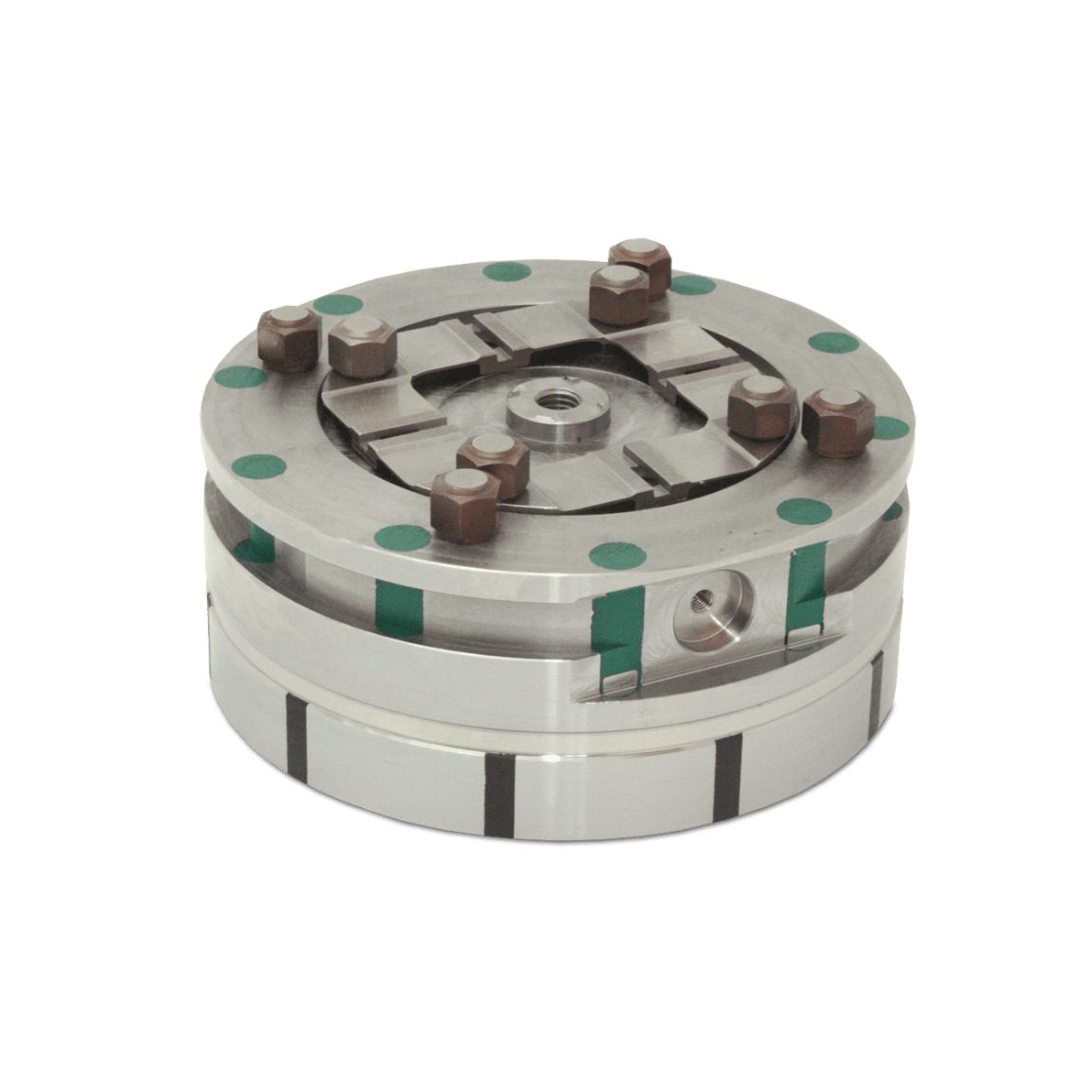

Flaig Permanent Magnetic Circular Chuck

Individual

Permenant magnetic circular chuck

Permanent magnetic round chucks with T-slots, keyways, flush holes, forcing holes and/or through holes we manufacture for you with experience.
