FLAIG CLAMPING

FXL Square Pole Technology

FXL-50

magnetic chucks

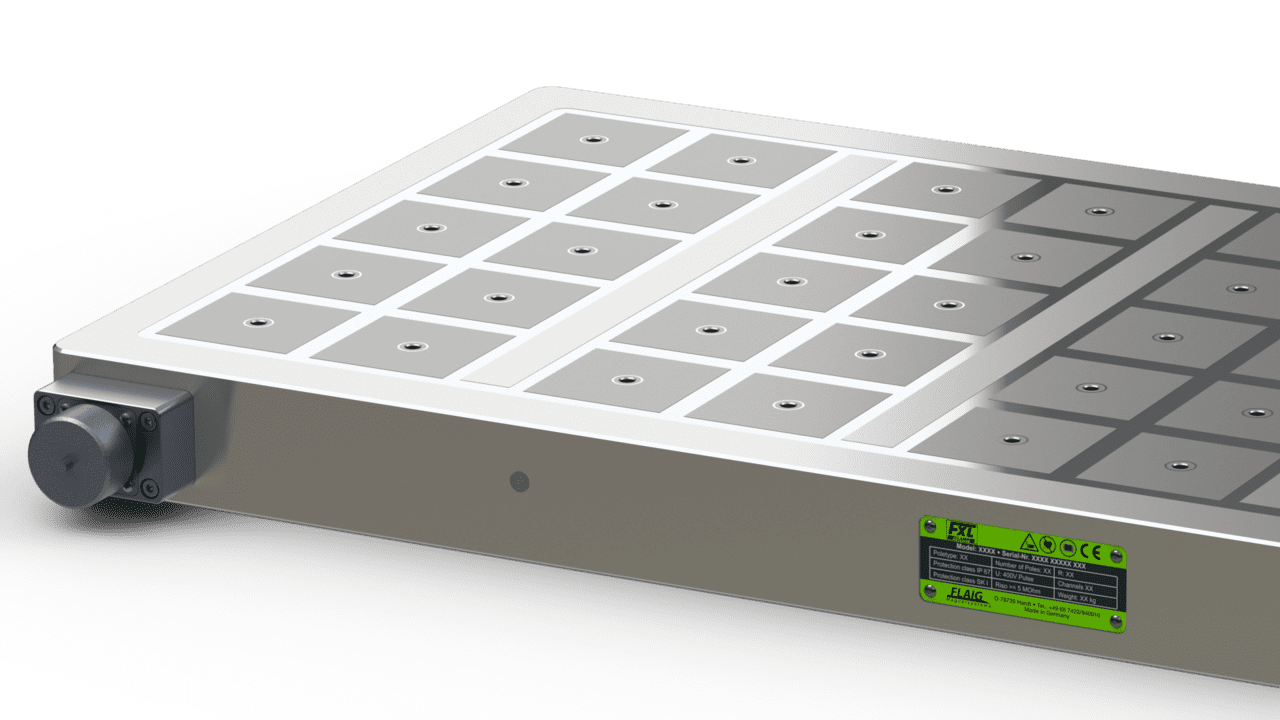

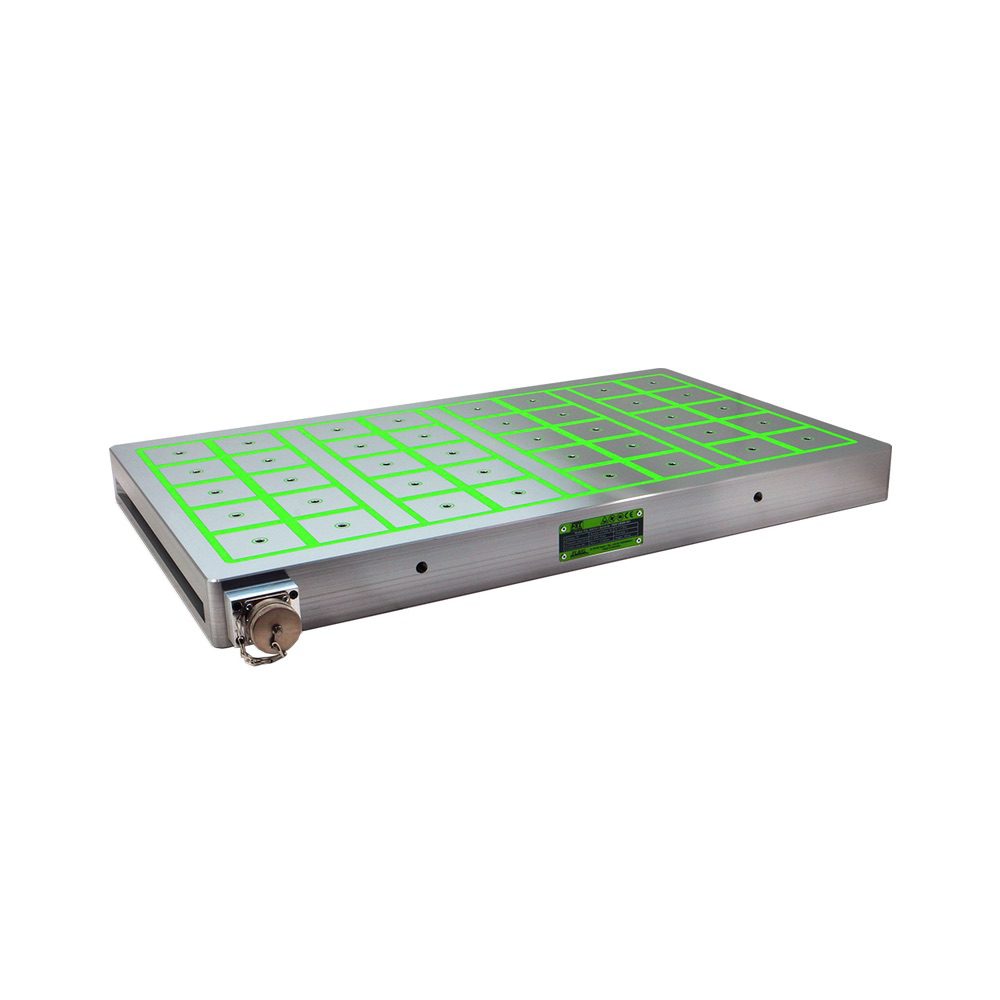

FXL magnetic chucks with 50x50mm poles clamp small, thin workpieces from 100x100mm. They create a 12mm deep magnetic field with a strong holding force of 4kN per pole.

model	Product number	Dimension pole spacing (mm)	Number of poles	Nominal holding force (N / cm²)	Dimension length (mm)	Dimension width (mm)	Dimension height (mm)	Weight (kg)
FXL 203/50	2950 0203	64.2	8	160	320	198	66	30
FXL 204/50	2950 0204	64.2	12	160	440	198	66	42
FXL 206/50	2950 0206	64.2	18	160	650	198	66	62
FXL 303/50	2950 0303	64.2	16	160	320	320	66	48
FXL 304/50	2950 0304	64.2	24	160	430	320	66	60
FXL 305/50	2950 0305	64.2	24	160	500	320	66	75
FXL 306/50	2950 0306	64.2	32	160	630	320	66	96
FXL 308/50	2950 0308	64.2	40	160	800	320	66	121
FXL 404/50	2950 0404	64.2	25	160	392	392	66	73
FXL 406/50	2950 0406	64.2	40	160	620	392	66	115
FXL 408/50	2950 0408	64.2	50	160	810	392	66	150
FXL 410/50	2950 0410	64.2	70	160	1120	392	66	210
FXL 505/50	2950 0505	64.2	36	160	500	460	66	110
FXL 506/50	2950 0506	64.2	48	160	650	460	66	150
FXL 508/50	2950 0508	64.2	60	160	810	460	66	176
FXL 510/50	2950 0510	64.2	84	160	1120	460	66	250
FXL 606/50	2950 0606	64.2	64	160	650	580	66	175
FXL 608/50	2950 0608	64.2	80	160	800	580	66	220
FXL 610/50	2950 0610	64.2	112	160	1120	580	66	310
FXL 612/50	2950 0612	64.2	128	160	1258	580	66	350

FXL-70

MAGNETIC CHUCKS

FXL magnetic chucks with 70x70mm poles clamp workpieces from 150x150mm, 15mm thick. The 18mm deep magnetic field suits larger parts with uneven surfaces. Holding force: 7.8kN/pole.

model	Product number	Dimension pole spacing (mm)	Number of poles	Nominal holding force (N / cm²)	Dimension length (mm)	Dimension width (mm)	Dimension height (mm)	Weight (kg)
FXL 306/70	2971 0306	82.2	18	160	610	310	66	90
FXL 308/70	2971 0308	82.2	24	160	800	310	66	120
FXL 310/70	2971 0310	82.2	30	160	1000	310	66	100
FXL 404/70	2971 0404	82.2	20	160	470	390	66	40
FXL 406/70	2971 0406	82.2	24	160	610	390	66	110
FXL 408/70	2971 0408	82.2	32	160	800	390	66	150
FXL 410/70	2971 0410	82.2	40	160	1000	390	66	185
FXL 506/70	2971 0506	82.2	30	160	610	480	66	140
FXL 508/70	2971 0508	82.2	40	160	800	480	66	185
FXL 510/70	2971 0510	82.2	50	160	1000	480	66	230
FXL 512/70	2971 0512	82.2	60	160	1200	480	66	275
FXL 606/70	2971 0606	82.2	36	160	610	580	66	170
FXL 608/70	2971 0608	82.2	48	160	800	580	66	222
FXL 610/70	2971 0610	82.2	60	160	1000	580	66	275
FXL 612/70	2971 0612	82.2	72	160	1200	580	66	335
FXL 808/70	2971 0808	82.2	64	160	820	770	66	305

FXL-R

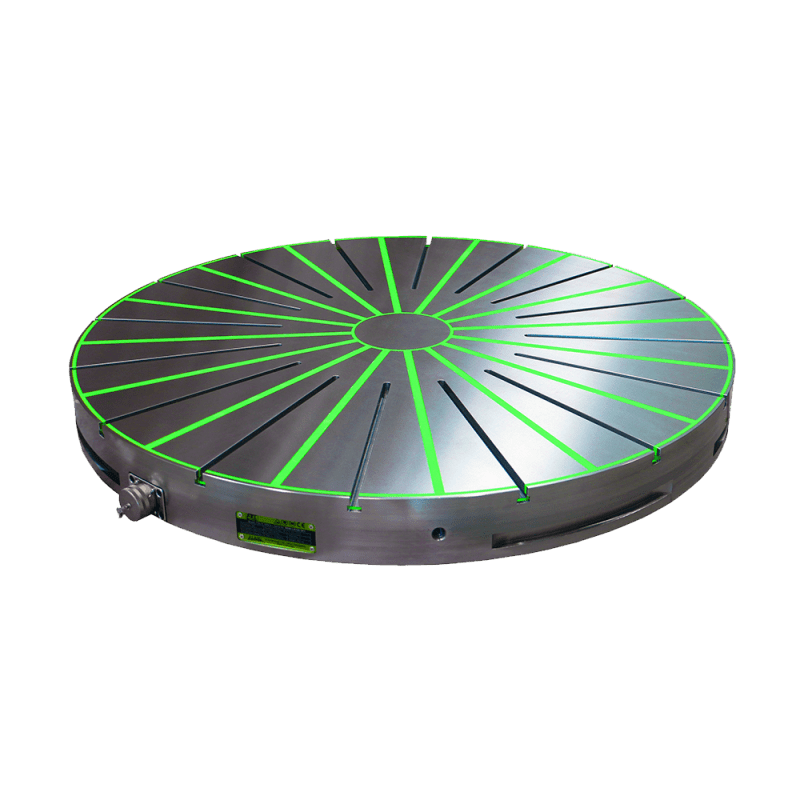

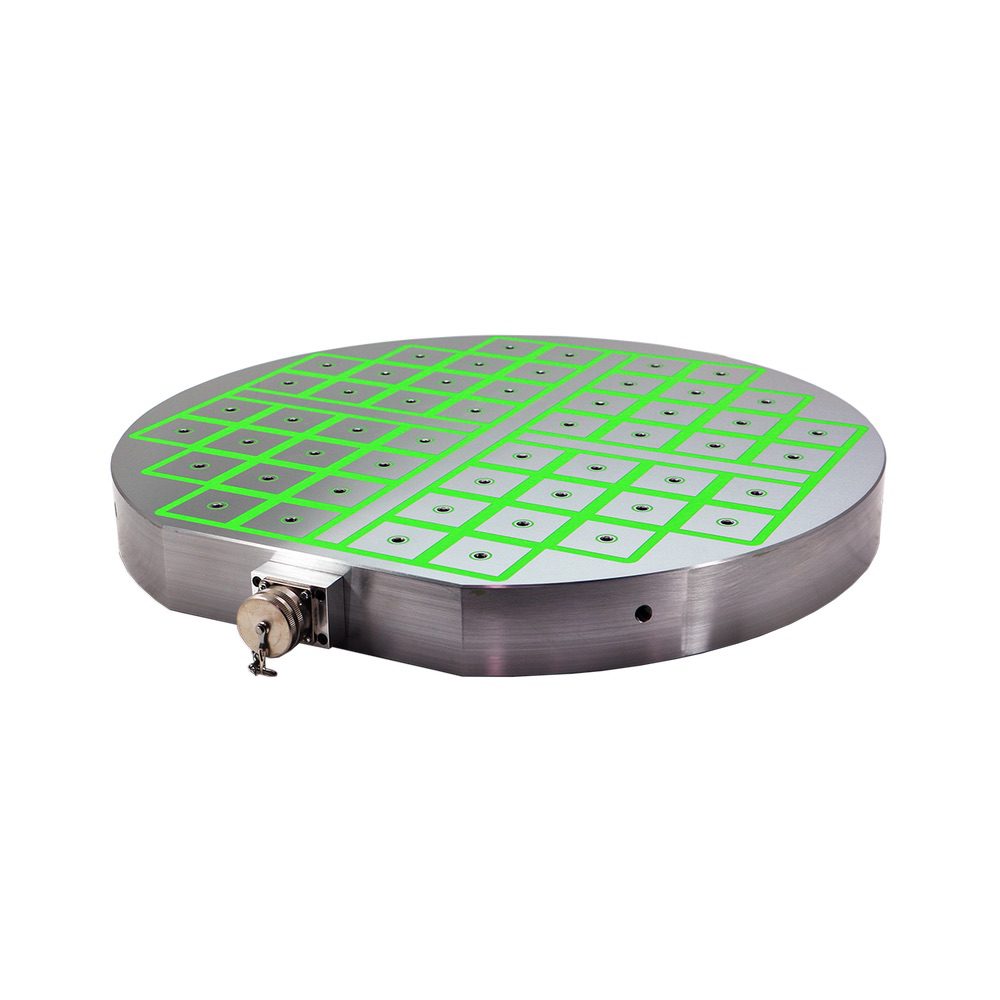

ROUND MAGNETIC CHUCKS

FXL-R round magnetic chucks with square pole tech are ideal for lathes and rotary tables. Their frame can include centering elements on both clamping and rear sides.

model	Product number	Number of poles	Dimension diameter (mm)	Dimension height (mm)	Weight (kg)
FXL-R 420/50	2915 0420	24	420	66	65
FXL-R 600/50	2915 0600	52	600	66	135
FXL-R 750/50	2915 0750	68	750	66	210
FXL-R 900/50	2915 0900	108	900	66	300
FXL-R 1000/70	2917 1000	72	1000	66	390
FXL-R 1250/70	2917 1250	120	1250	80	550

FXL BLOCKS

MAGNETIC CLAMPING BLOCKS

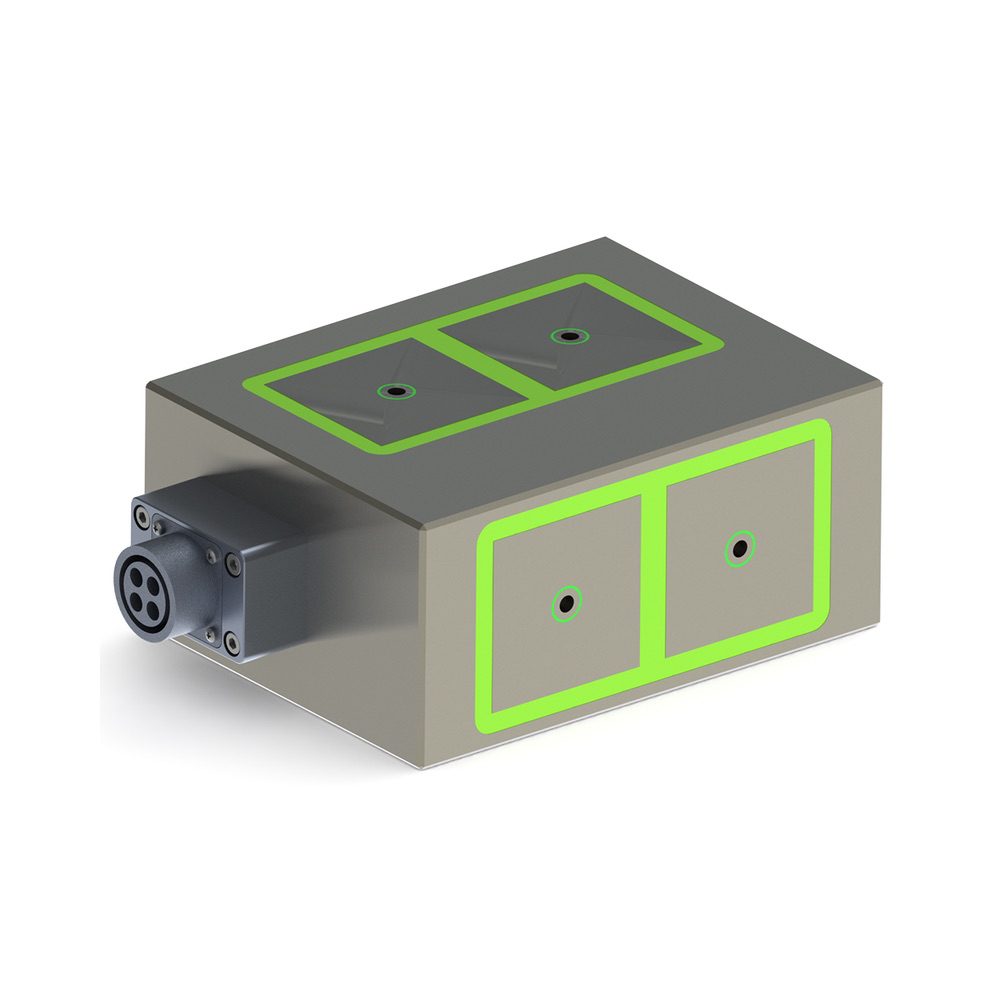

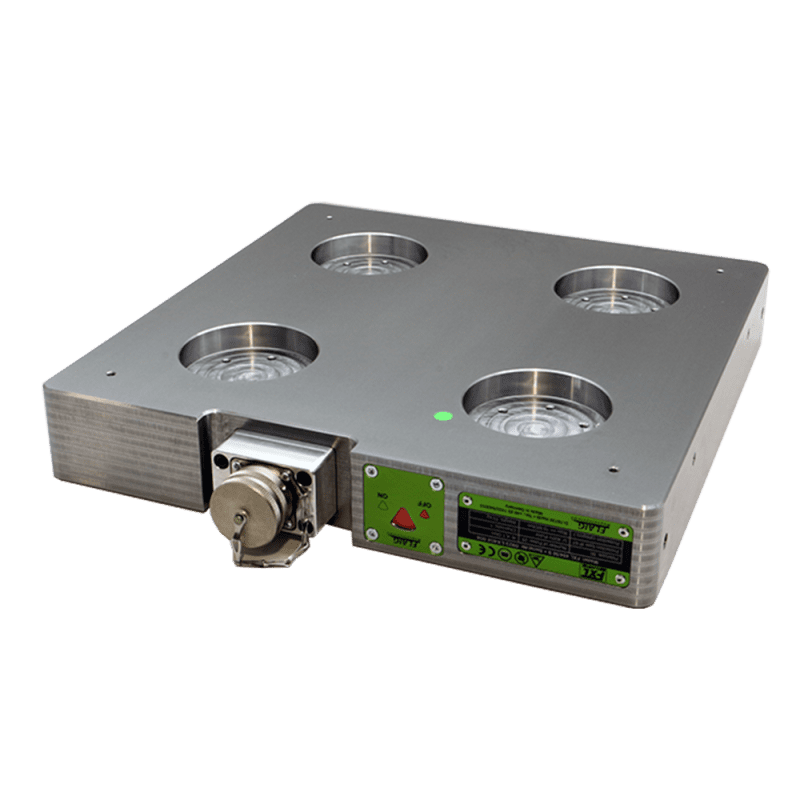

FXL magnetic clamping blocks come in various sizes and designs, with multiple clamping surfaces and pole sizes. Controlled by FXL-C units, single or multi channel for separate surface control.

model	Product number	Number of poles	Clamping surfaces	Dimension length (mm)	Dimension width (mm)	Dimension height (mm)	Weight (kg)
FXL-B 1x8/50	2952 0108	8	1	310	230	95	48
FXL-B 1x2/70	2972 0102	2	1	200	100	66	9
FXL-B 1x12/70	2972 0112	12	1	420	298	115	98
FXL-B 1x24/70	2972 0124	24	1	750	298	115	170
FXL-B 2x2/70	2972 0202	4	2	200	100	130	18

FXL-Custom

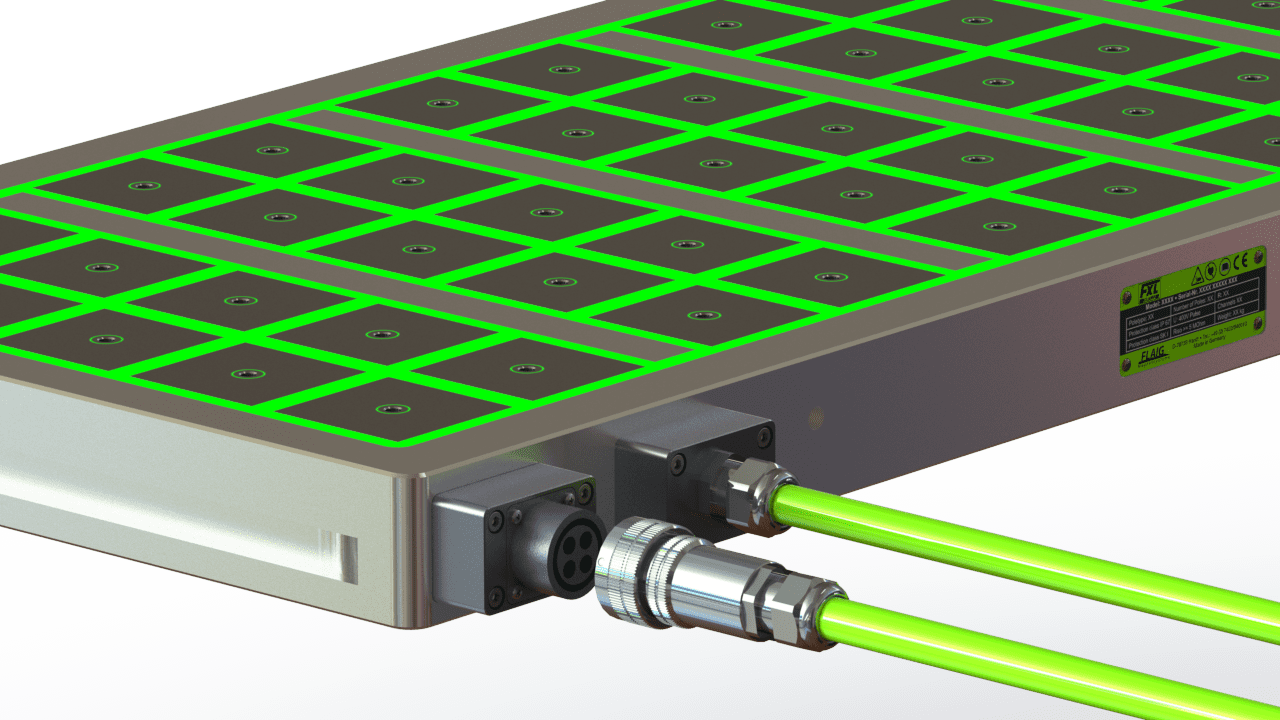

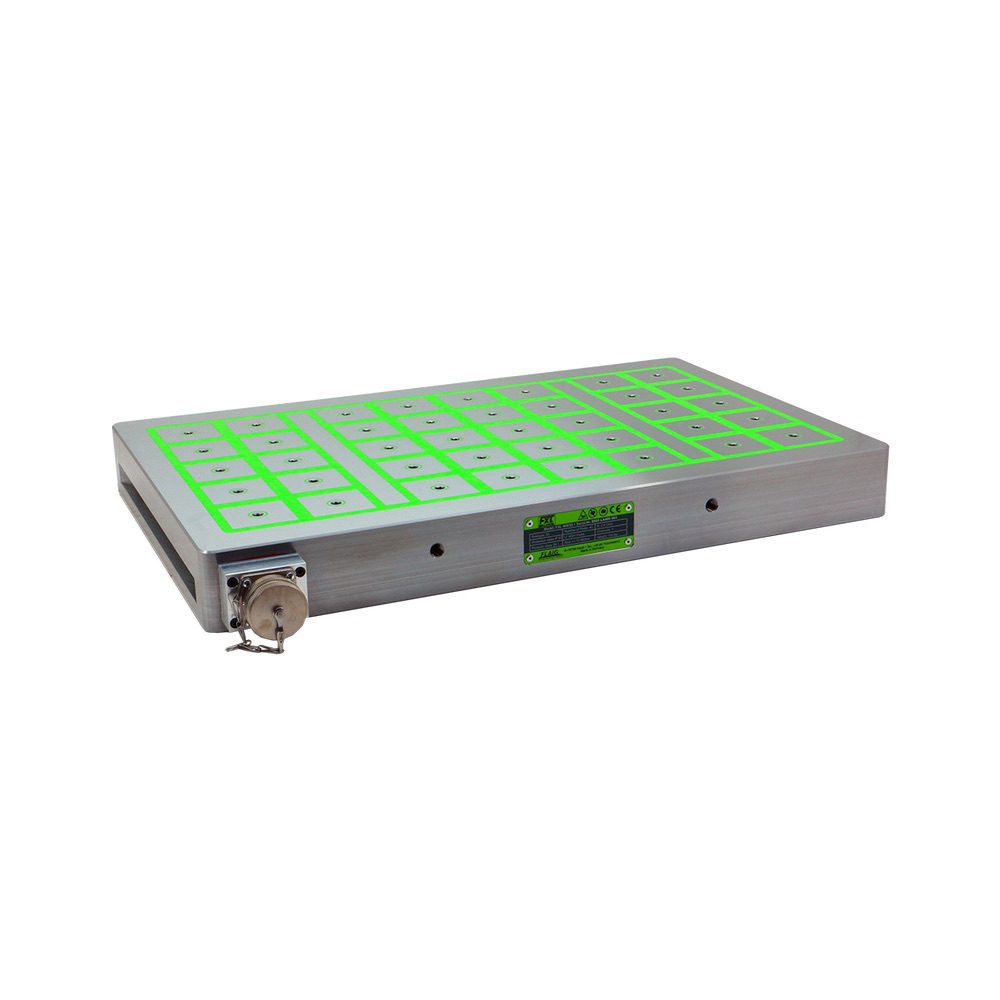

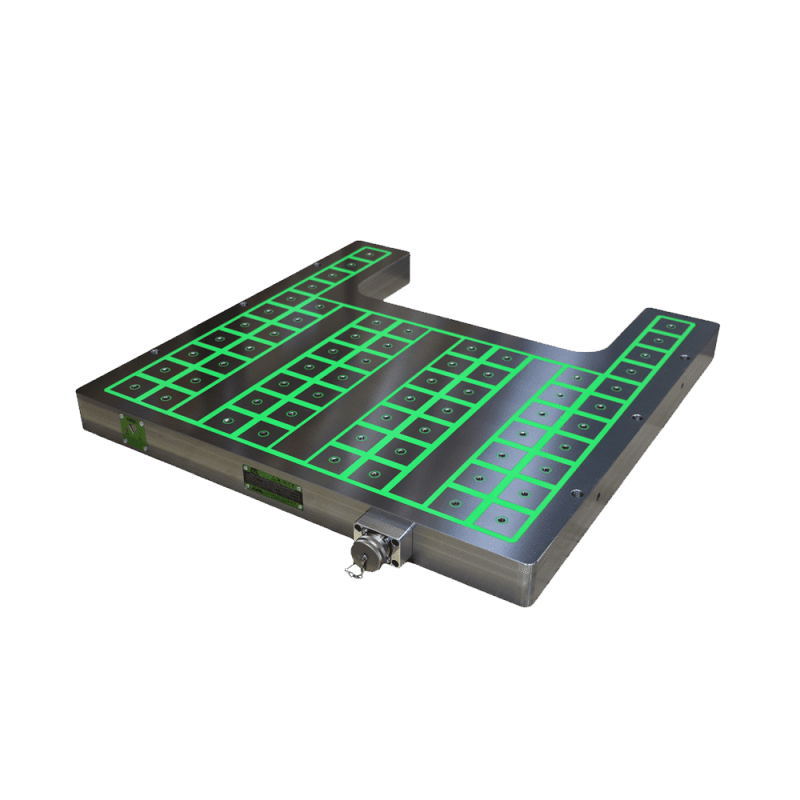

FXL magnetic clamping plates are also available in special or custom built versions, designed and manufactured to meet unique specifications and specialised application needs, ensuring optimal performance.

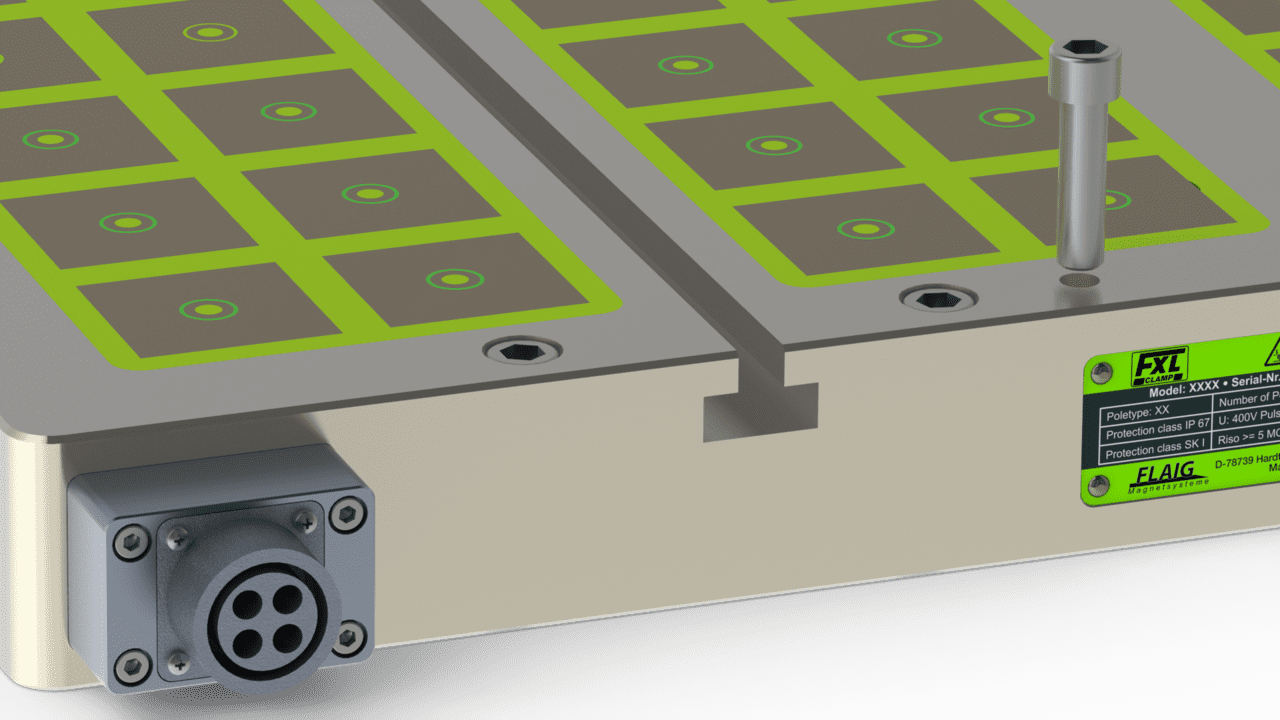

Plug in or fixed connection sockets can be implemented at almost any position on the clamping plate

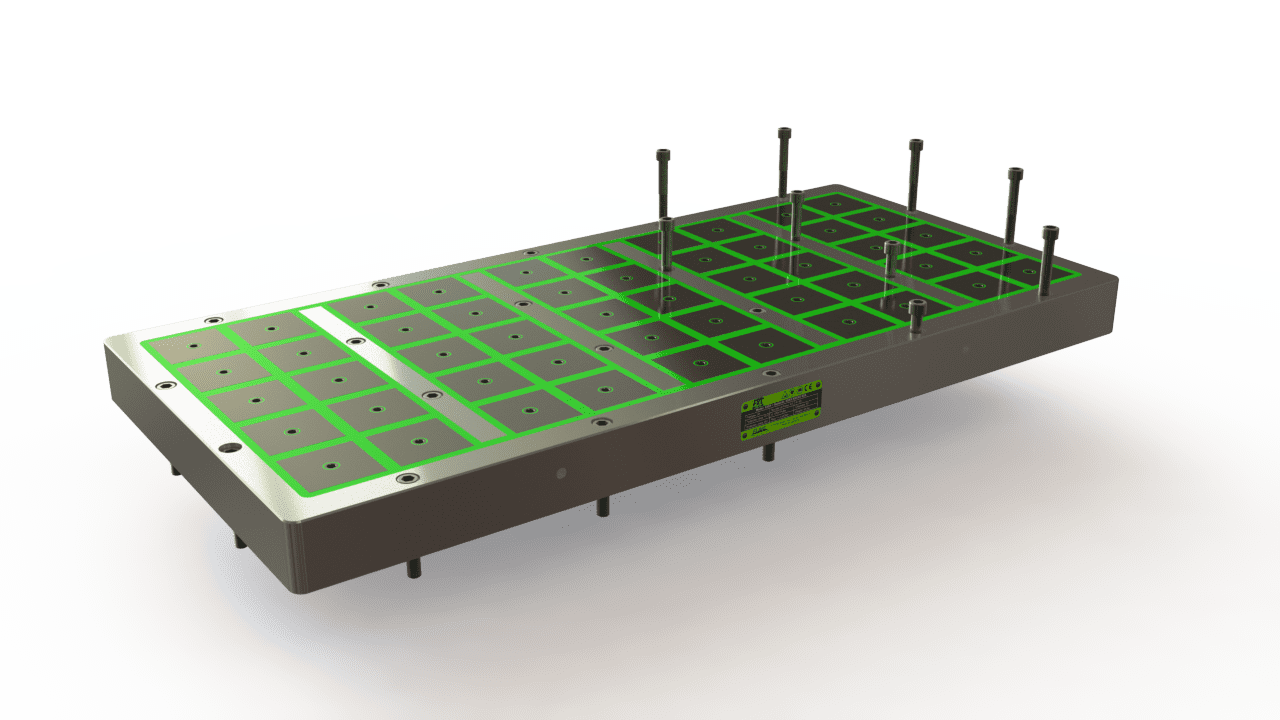

Mounting holes can be through holes or tapped holes from behind

Incorporation for zero point clamping systems possible anywhere on the reverse side

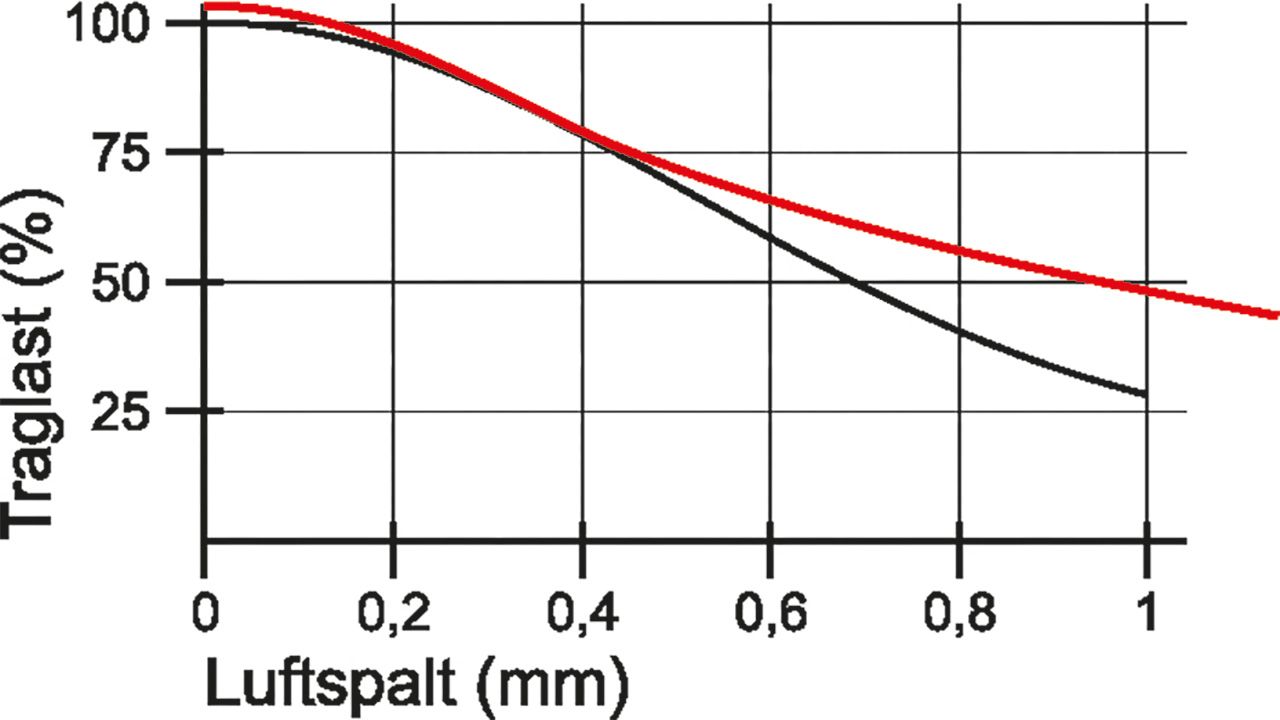

Reinforced magnet system for poorer surfaces or poorly magnetisable materials we design according to your requirements if necessary

T-slots and bores, adapted clamping surface geometry combined with mechanical clamping and positioning options we design for you

All metal surfaces, also corrosion resistant, for maximum wear resistance, heat dissipation, workability

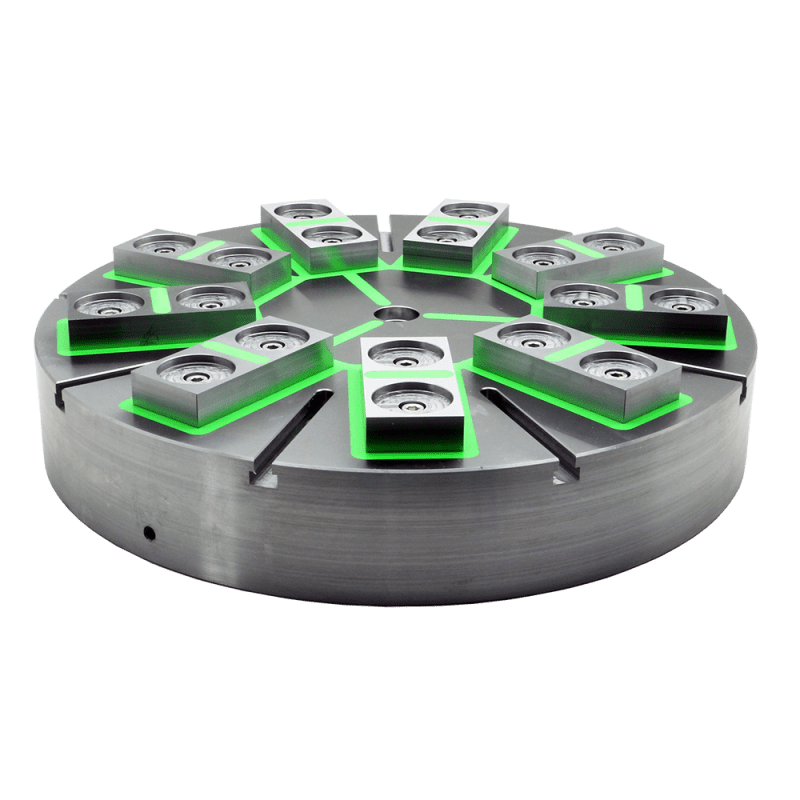

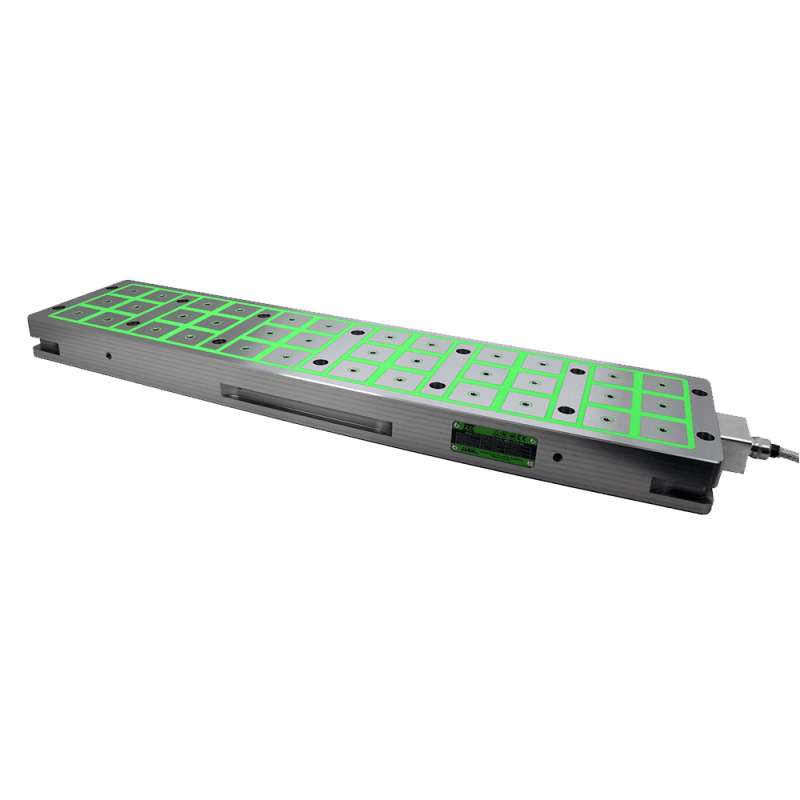

FXL-Individual

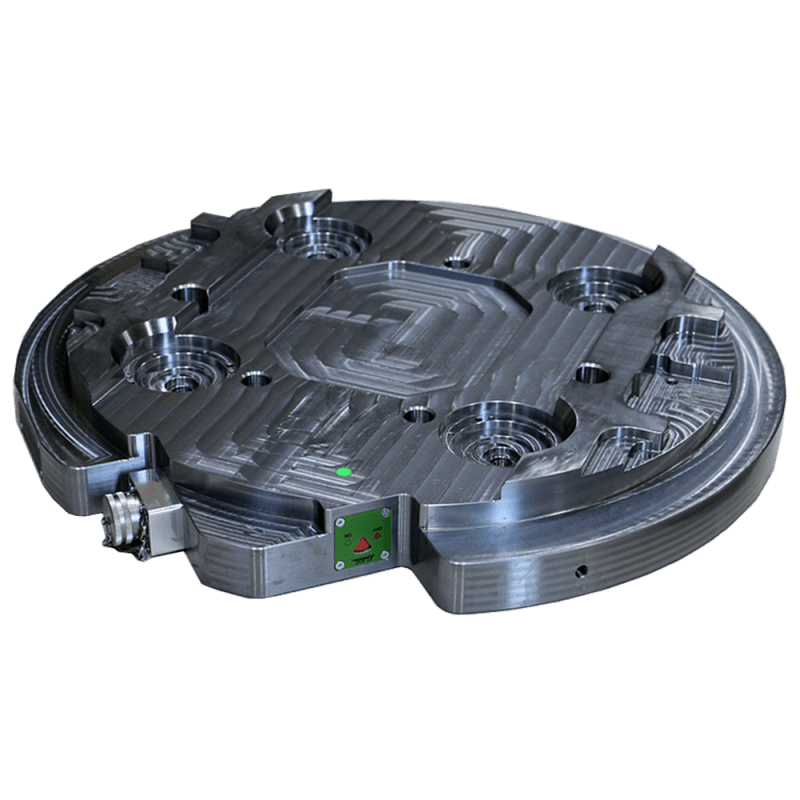

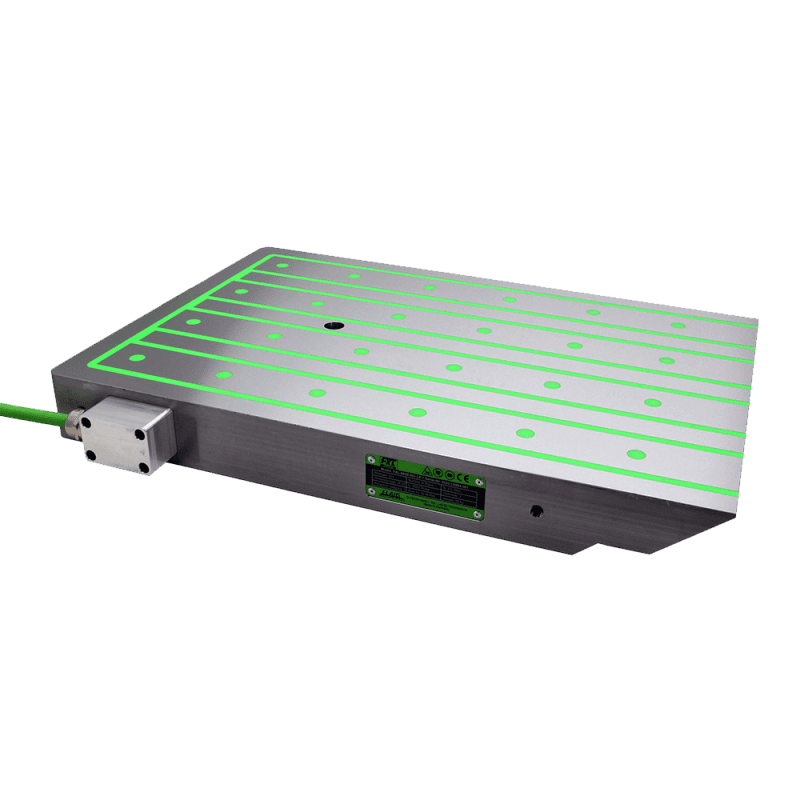

FXL electro permanent magnetic clamping plates are tailored to your specific application. Designed for reliable performance, they adapt to demanding tasks and unique workpiece requirements.
