FXL-RR

MAGNETIC CHUCKS

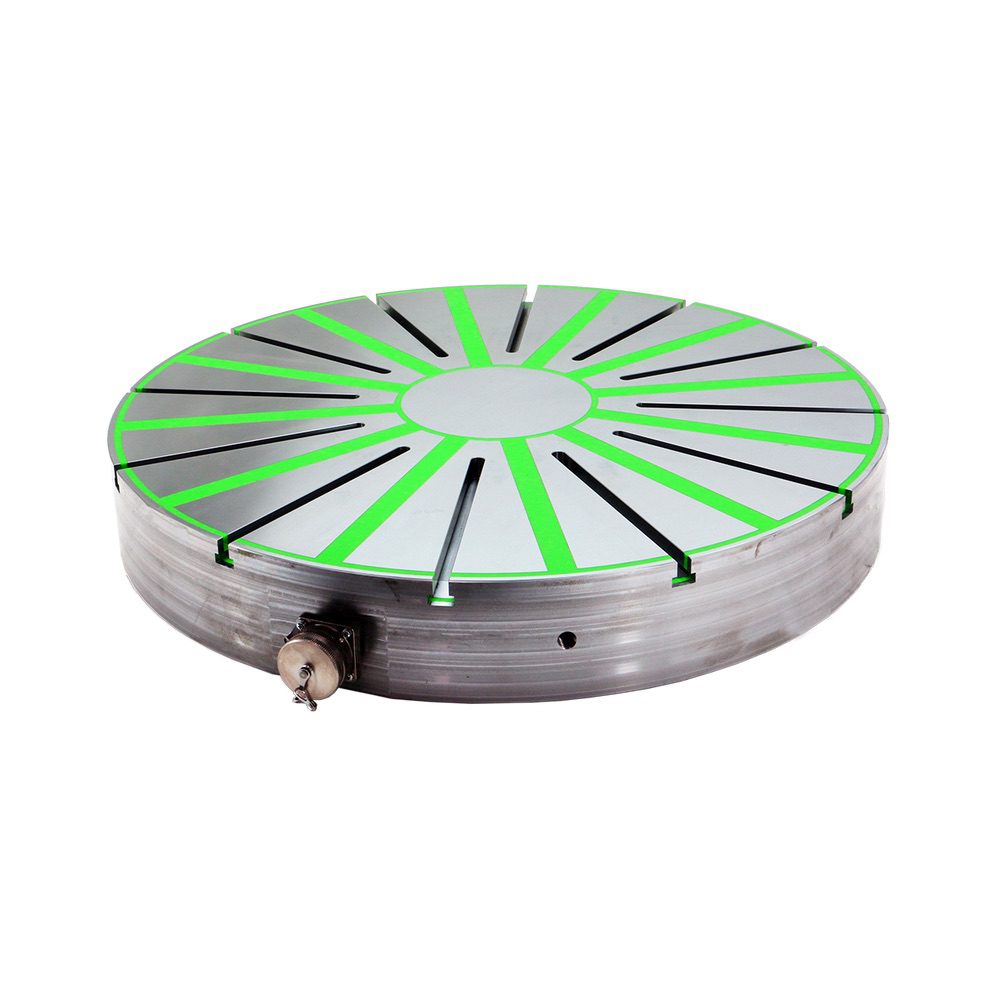

FXL-RR magnetic chucks are ideal for machining rings, sleeves and flanges. Radial poles ensure uniform clamping, with T-slots for mechanical aids and pole extensions.

model

Product number

Number of poles

Nominal holding force (N / cm²)

Dimension diameter (mm)

Dimension height (mm)

Weight (kg)

FXL-RR 600

2925 0600

12

160

600

90

190

FXL-RR 750

2925 0750

12

160

750

90

250

FXL-RR 1000

2925 1000

20

160

1000

90

490

FXL-RR 1250

2925 1250

20

160

125

90

780

Flaig Clamping Magnets

SUPPLIES

MOBILE & FIXED POLE EXTENSIONS

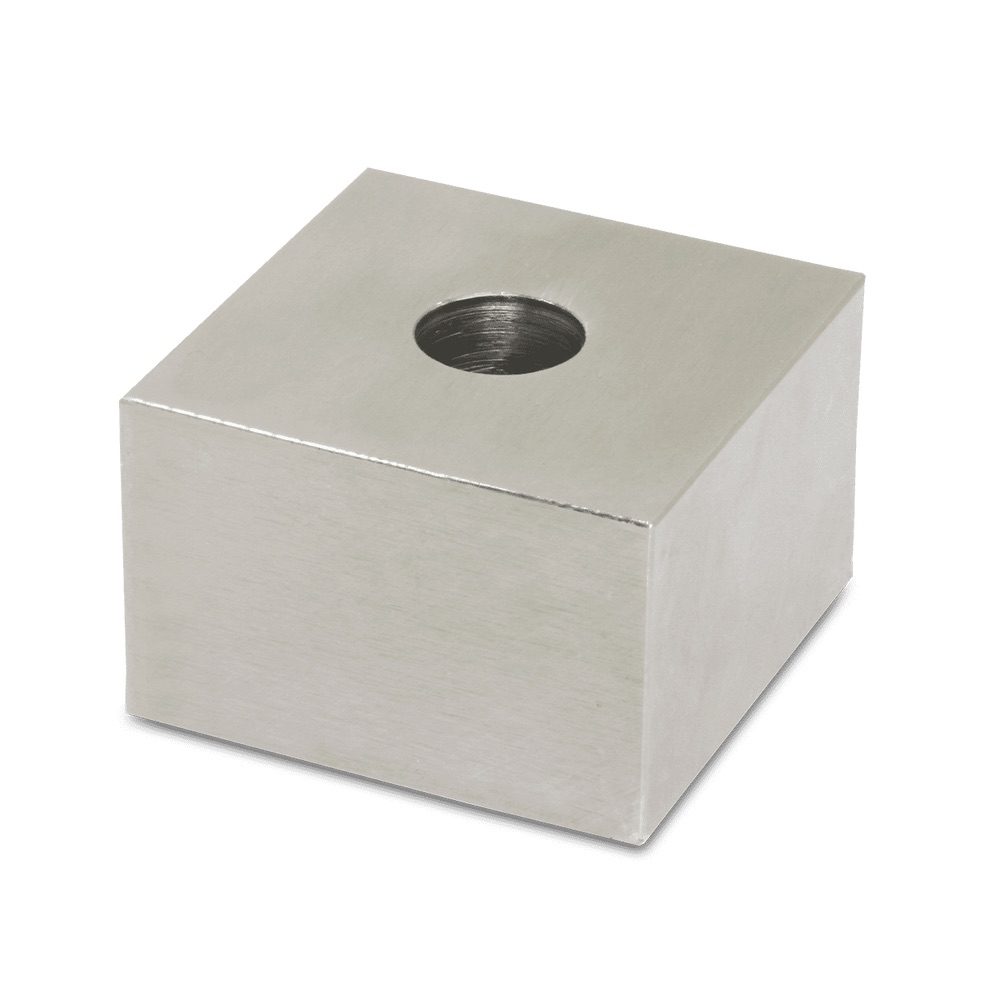

FXL mobile and fixed pole extensions adapt to wavy or distorted parts for secure clamping. They allow edge machining, quick setup and custom fits. Made from high quality steel for strong hold, low vibration and easy release, even on hardened materials.

model

Product number

Type

Dimension length (mm)

Dimension width (mm)

Dimension height (mm)

PVQ 50 H32

2410 15032-1

Einpolig

50

50

32

PVQ 50 H15

2410 15032-15

Einpolig

50

50

15

PVQ 50 H54

2410 15032-54

Einpolig

50

50

54

PVQ 70 H20

2410 17020-1

Einpolig

70

70

20

PVQ 70 H70

2410 17020-2

Einpolig

70

70

70

PVQ 70 H45

2410 17045-1

Einpolig

70

70

45

MP 50 H32

2410 35032-1

Mobil , Quadratisch

50

50

29-35

MP 50 H54

2410 35054

Mobil , Quadratisch

50

50

44-59

MP 70 H45

2410 37045

Mobil , Quadratisch

70

70

40,5-50,5

MP 70 H70

2410 37070

Mobil , Quadratisch

70

70

60-75

RMP 57

2420 057

Mobil , Rund

-

-

29,5-34,5

RMP 78

2420 078

Mobil , Rund

-

-

40-47,5
