FLAIG CLAMPING

Blocks, Prisms & Accessories

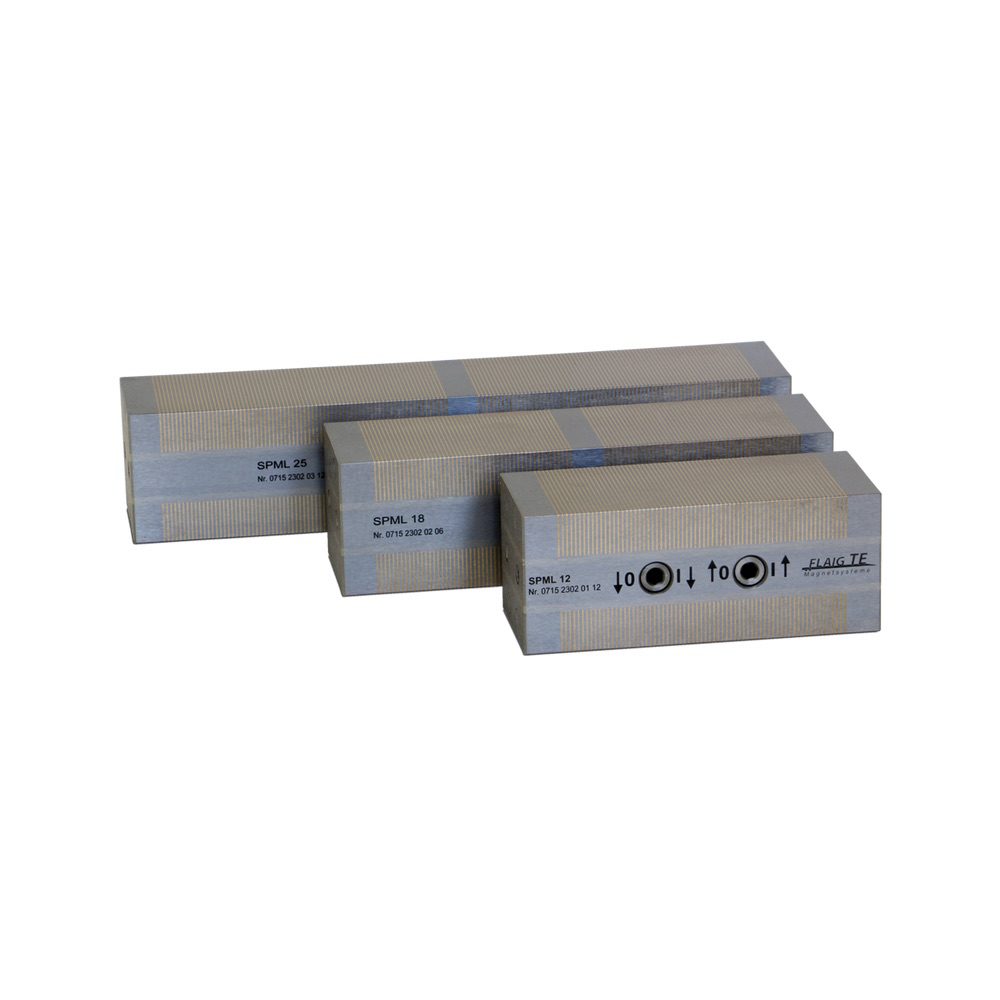

SPML

magnetic clamping blocks

SPML magnetic blocks have 2 independently switchable sides. With fine pole pitch (1.5+0.5 mm) and 5 mm depth, they clamp small/medium parts and work upright.

Model	Product Number	Nominal Holding Force (N/cm²)	Pole Pitch (mm)	Clamping Surfaces	Length (mm)	Width (mm)	Height (mm)	Weight (kg)
SPML 12 pair	2302 01-1	80	1.5+0.5	2	125	52	50	2x2.5
SPML 18 pair	2302 02-1	80	1.5+0.5	2	180	52	50	2x3.6
SPML 25 pair	2302 03-1	80	1.5+0.5	2	250	52	50	2x5

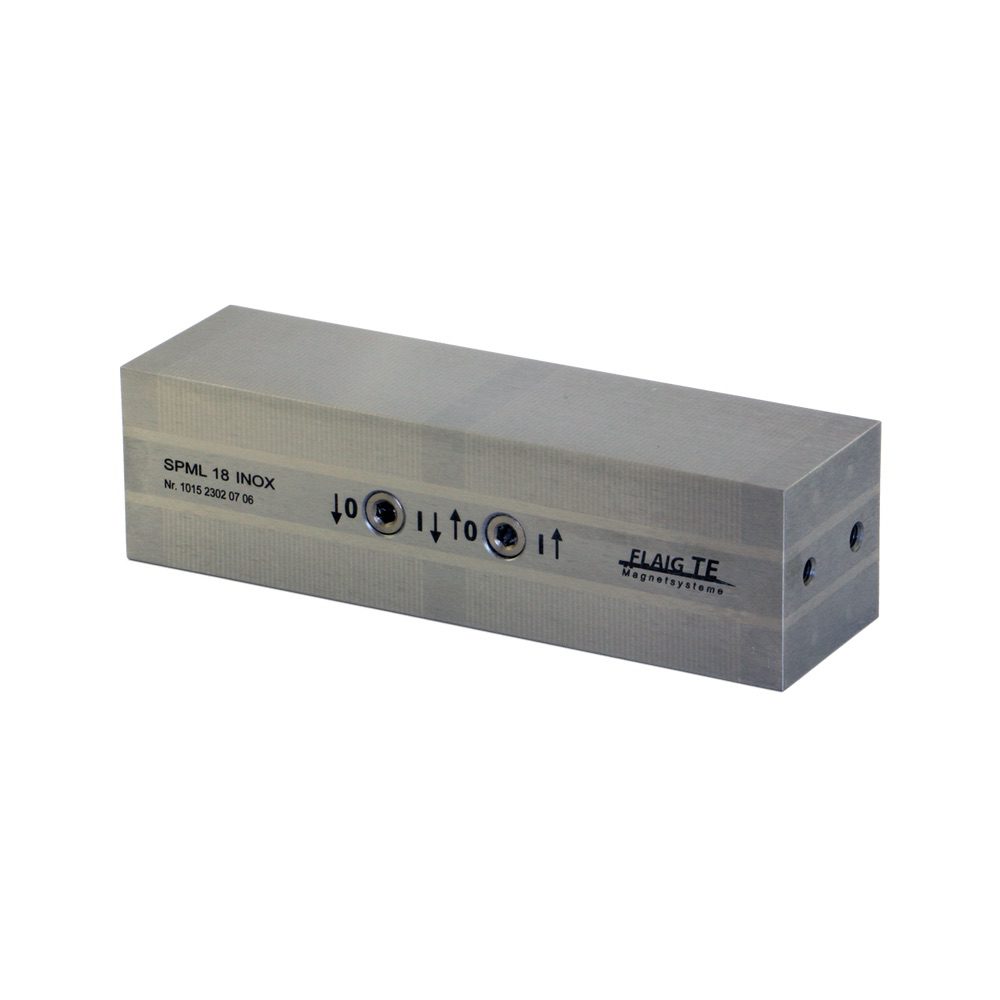

spml inox

MAGNETIC CLAMPING BLOCKS

SPML magnetic blocks have 2 opposite, independently switchable sides. Fine pole (1.5+0.5 mm), 5 mm deep. Dual side switch allows upright use. Ideal for small/medium parts.

Model	Product Number	Pole Pitch (mm)	Clamping Surfaces	Length (mm)	Width (mm)	Height (mm)	Weight (kg)
SPML 12 INOX pair	2302 06-1	1.5+0.5	2	125	52	50	2x2.5
SPML 18 INOX pair	2302 07-1	1.5+0.5	2	180	52	50	2x3.6
SPML 25 INOX pair	2302 08-1	1.5+0.5	2	250	52	50	2x5

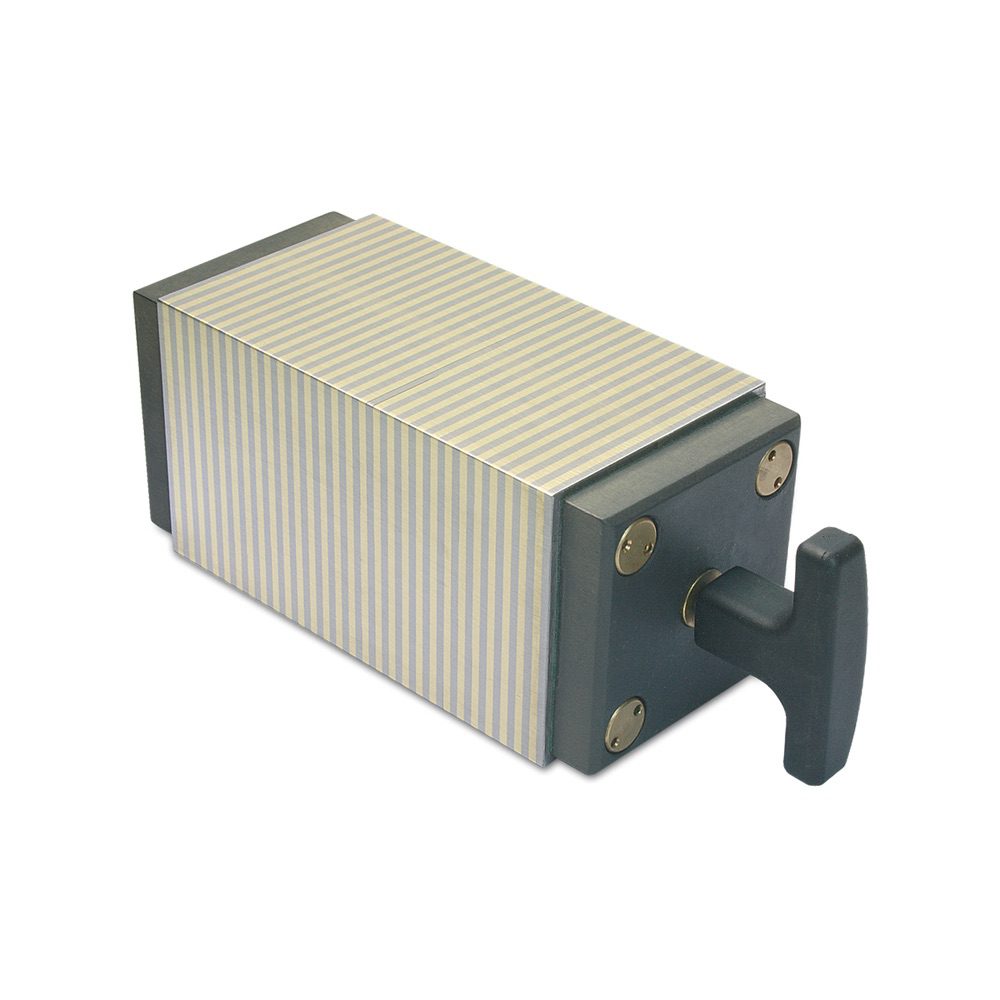

SPM

MAGNETIC CLAMPING BLOCKS

SPM magnetic blocks have 4 clamping sides, switched via front toggle. Fine 2+2 mm poles clamp parts from 0.5 mm. Ideal for grinding, eroding, measuring and more.

Model	Product Number	Nominal Holding Force (N/cm²)	Pole Pitch (mm)	Clamping Surfaces	Length (mm)	Width (mm)	Height (mm)	Weight (kg)
SPM	2301 01	80	2 + 2	4	175	64	64	3.2
SPM-L	2301 02	80	2 + 2	4	195	64	64	3.8
SPM-X	2301 03	50	2 + 2	4	175	64	64	3.2
SPML-X	2301 04	50	2 + 2	4	195	64	64	3.8

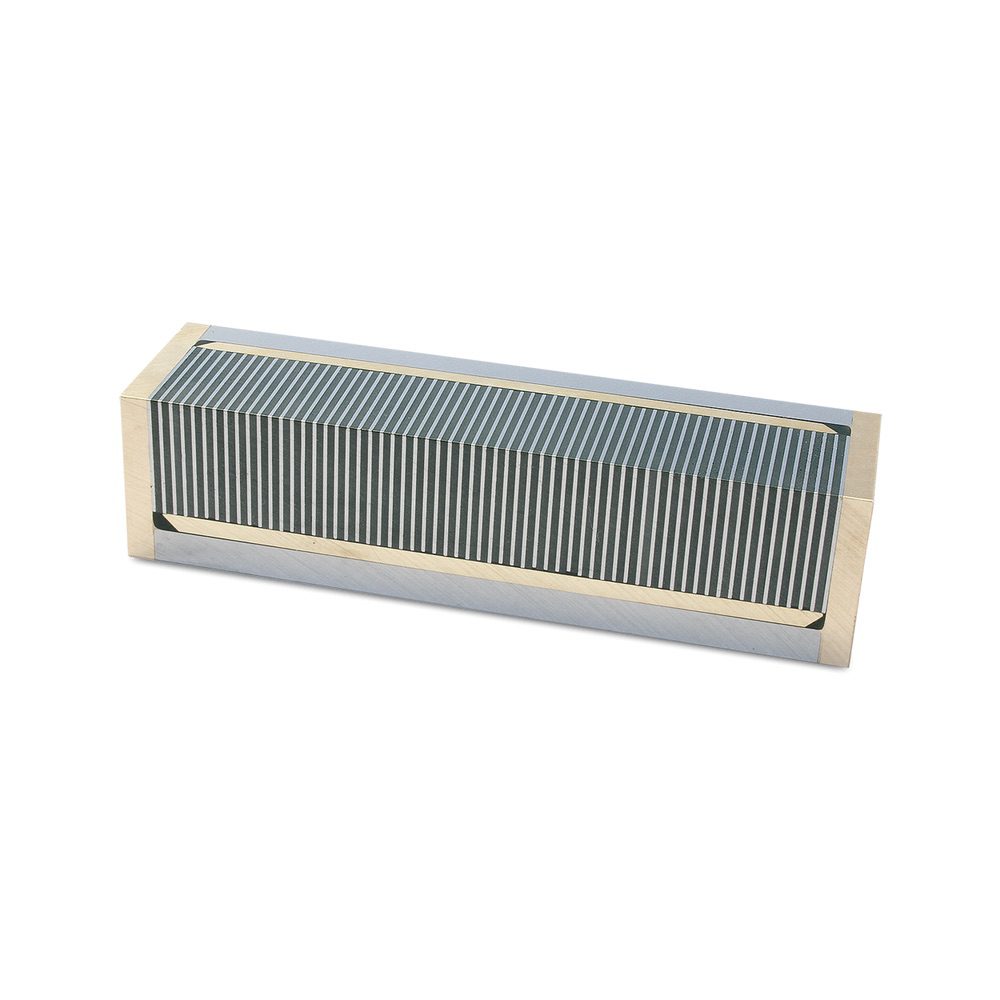

MH

MAGNETIC CLAMPING BLOCKS

MH magnetic blocks have 2 or 3 fixed clamping surfaces for fine or hard to magnetise parts like chrome steel or carbide. Used in grinding, measuring and wire cutting.

Model	Product Number	Nominal Holding Force (N/cm²)	Pole Pitch (mm)	Clamping Surfaces	Length (mm)	Width (mm)	Height (mm)	Weight (kg)
MH 1	2306 01	100	4	3	100	100	50	3.2
MH 2	2306 02	100	4	3	100	50	50	1.6
MH 3	2306 03	100	4	2	100	25	25	0.4
MH 4	2306 04	100	1.3	2	100	25	25	0.4
MHS 1	2306 11	180	4	3	100	100	50	3.2
MHS 2	2306 12	180	4	3	100	50	50	1.6
MHS 3	2306 13	180	4	2	100	25	25	0.4

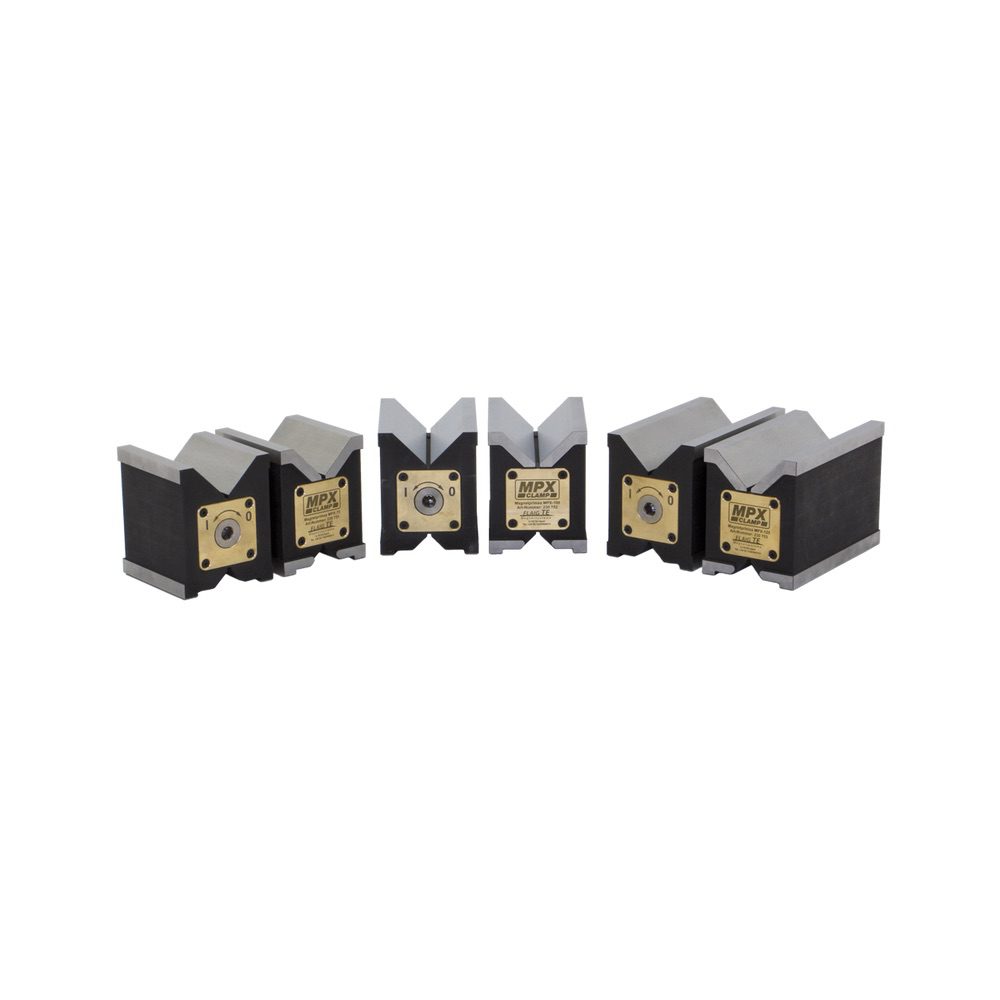

MPX

MPX MAGNETIC PRISMS

MPX magnetic prisms have 3 active surfaces and a strong neodymium magnet. They clamp workpieces horizontally or vertically and activate with a 90° turn of an 8mm Allen key. Ideal for grinding and measuring.

Model	Product Number	Clamping Diameter Prism Bottom (mm)	Clamping Diameter Prism Top (mm)	Clamping Surfaces	Length (mm)	Width (mm)	Height (mm)	Weight (kg)
MPX 75	230 751	4–28	4–65	3	75	69	88	2.9
MPX 75 pair	230 751-1	4–28	4–65	3	75	69	88	2x2.9
MPX 100	230 752	4–28	4–65	3	100	69	88	3.9
MPX 100 pair	230 752-1	4–28	4–65	3	100	69	88	2x3.9
MPX 125	230 753	4–28	4–65	3	125	69	88	4.8
MPX 125 pair	230 753-1	4–28	4–65	3	125	69	88	2x4.8

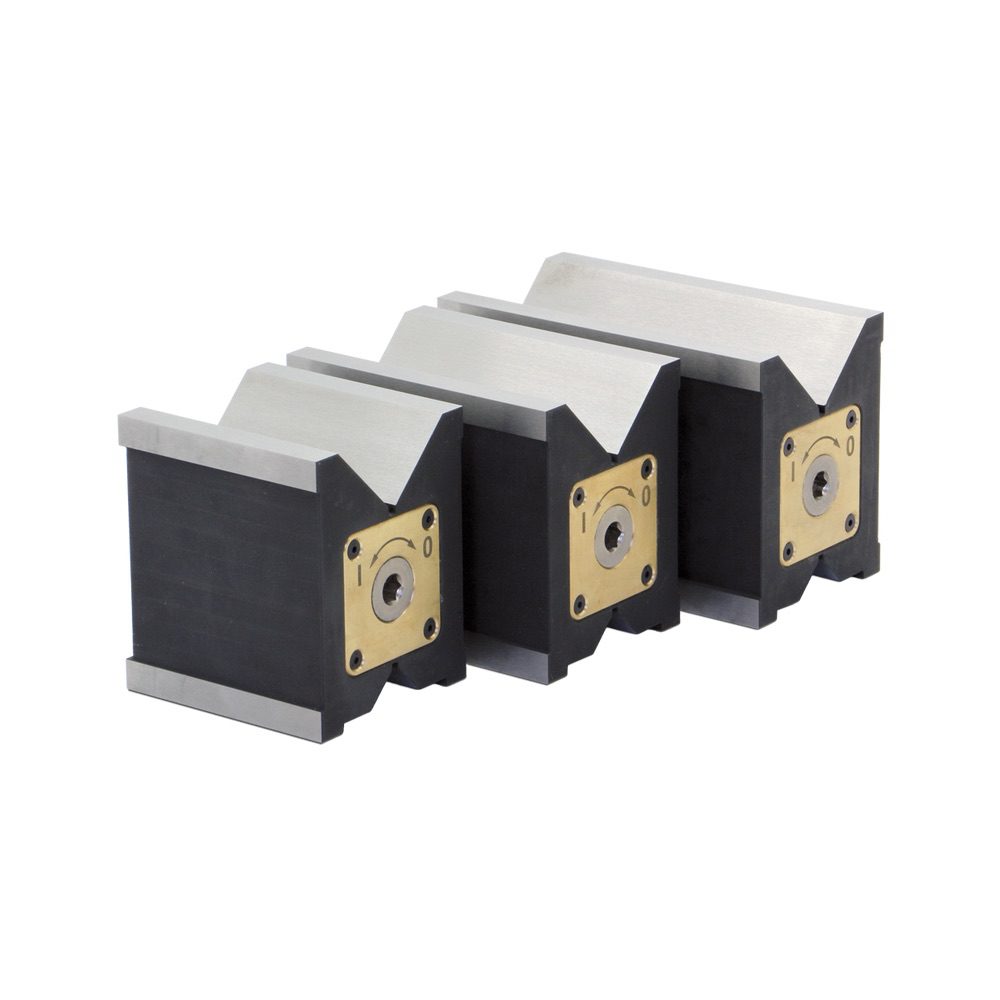

MPX INOX

MPX INOX MAGNETIC PRISMS

MPX-INOX magnetic prisms, made of corrosion resistant tool steel, have 3 active clamping surfaces. They clamp workpieces horizontally or vertically and activate with a 90° turn of an 8mm Allen key.

Model	Product Number	Clamping Diameter Prism Top (mm)	Clamping Diameter Prism Bottom (mm)	Clamping Surfaces	Dimension Length (mm)	Dimension Width (mm)	Dimension Height (mm)	Weight (kg)
MPX 75 INOX	230 754	4–65	4–28	3	75	69	88	2.9
MPX 75 Pair INOX	230 754-1	4–65	4–28	3	75	69	88	2×2.9
MPX 100 INOX	230 755	4–65	4–28	3	100	69	88	3.9
MPX 100 Pair INOX	230 755-1	4–65	4–28	3	100	69	88	2×3.9
MPX 125 INOX	230 756	4–65	4–28	3	125	69	88	4.8
MPX 125 Pair INOX	230 756-1	4–65	4–28	3	125	69	88	2×4.8

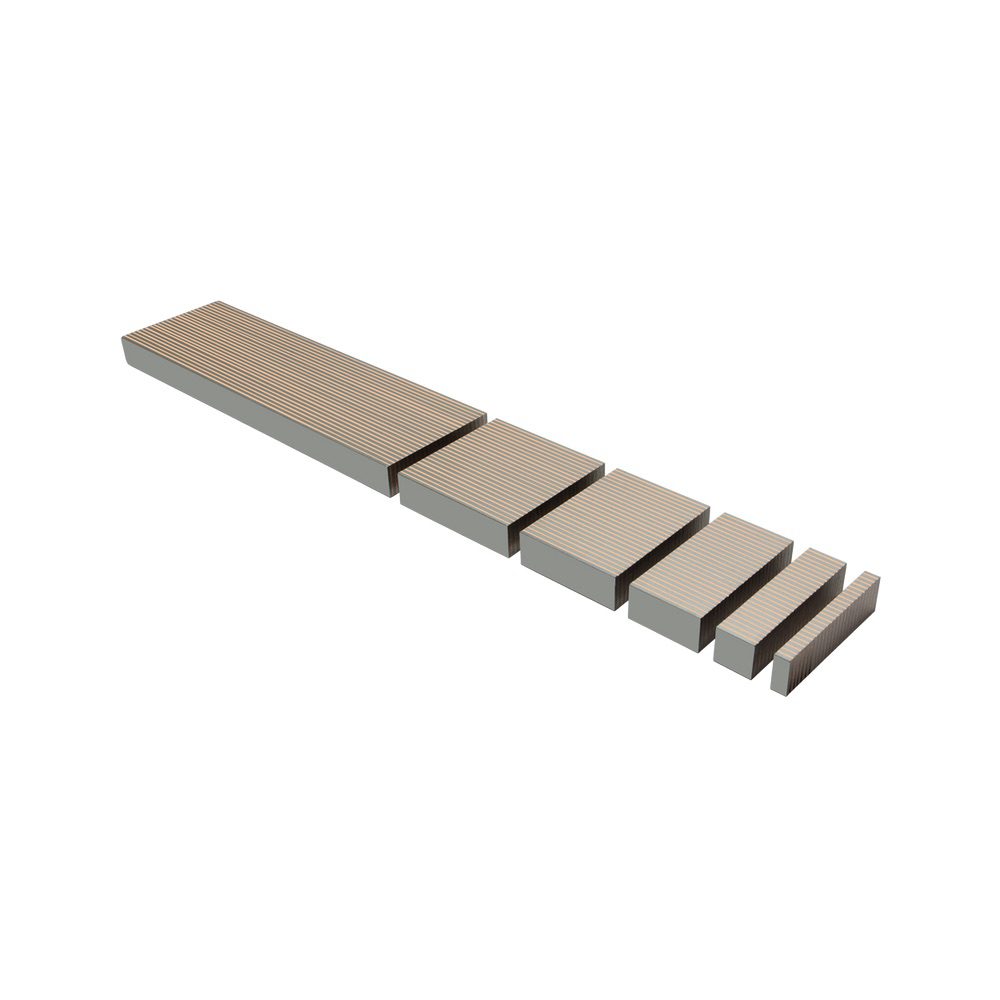

LAMELLA PLATE

RECTANGULAR LAMELLA POLE PLATES

Our pole plates, manufactured in the special Thermo Brazing process are mechanically extremely stable and can be cut and machined individually according to requirements.

Model	Product Number	Dimension Length (mm)	Dimension Width (mm)	Dimension Height (mm)	Weight (kg)
Rectangular lamella plates	2304 075 050	50	75	25	1
Rectangular lamella plates	2304 075 075	75	75	25	1
Rectangular lamella plates	2304 075 320	320	75	25	5
Rectangular lamella plates	2304 075 400	400	75	25	10
Rectangular lamella plates	2304 100 050	50	100	25	-
Rectangular lamella plates	2304 100 100	100	100	25	2
Rectangular lamella plates	2304 100 200	200	100	25	5
Rectangular lamella plates	2304 100 320	320	100	25	6
Rectangular lamella plates	2304 100 400	400	100	25	13
Rectangular lamella plates	2304 200 075	75	200	25	2
Rectangular lamella plates	2304 200 100	100	200	25	4
Rectangular lamella plates	2304 200 200	200	200	25	8
Rectangular lamella plates	2304 200 320	320	200	25	13
Rectangular lamella plates	2304 200 400	400	200	25	26
Rectangular lamella plates	2304 300 100	100	300	25	-
Rectangular lamella plates	2304 300 150	150	300	25	9
Rectangular lamella plates	2304 300 320	320	300	25	19
Rectangular lamella plates	2304 300 400	400	300	25	38
Rectangular lamella plates	2304 400 075	75	400	25	5
Rectangular lamella plates	2304 400 100	100	400	25	8
Rectangular lamella plates	2304 400 200	200	400	25	16
Rectangular lamella plates	2304 400 320	320	400	25	25
Rectangular lamella plates	2304 400 400	400	400	25	51

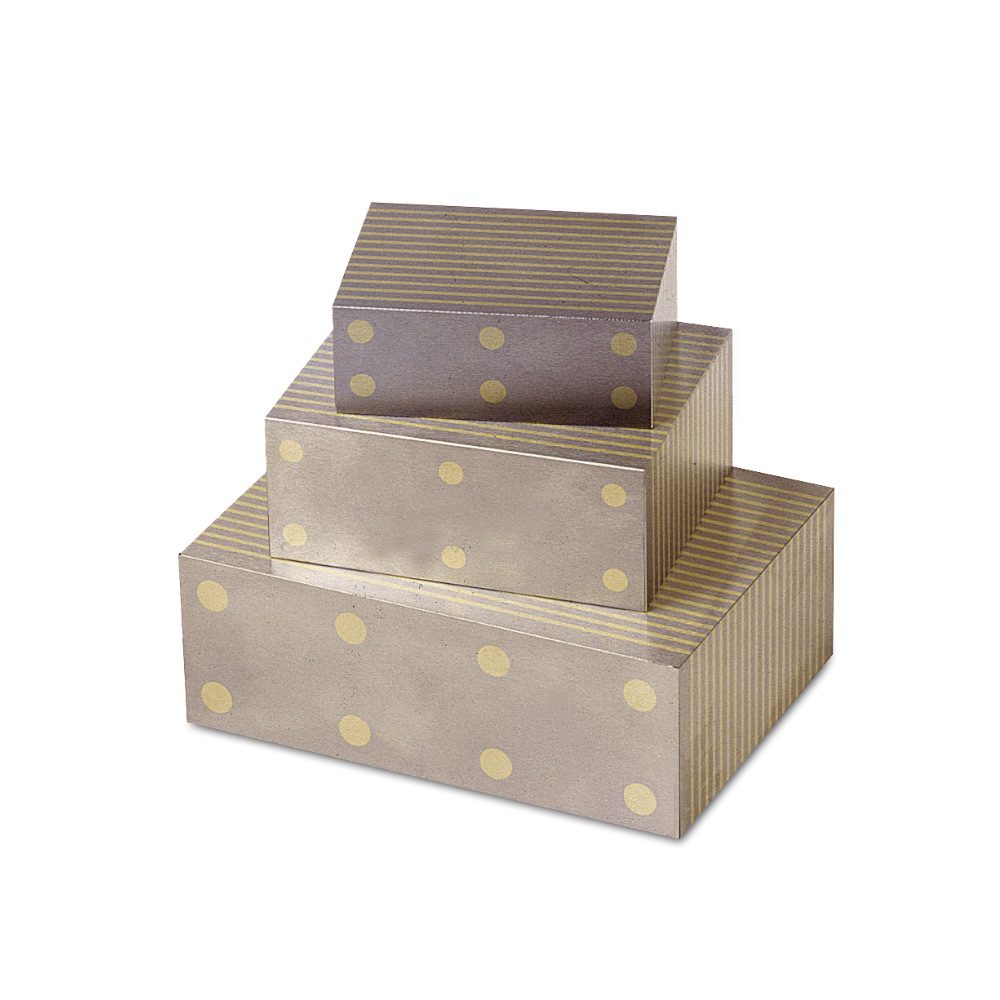

LAMELLA BLOCK

LAMELLA SUPPORT BLOCKS IN POLE PITCH

Support blocks designed with a pole pitch of 1.5 + 3 mm. They come pre assembled for secure attachment and cannot be modified in length, ensuring consistent performance and durability during use.

Model	Product Number	Pole Pitch (mm)	Dimension Length (mm)	Dimension Width (mm)	Dimension Height (mm)
Lamella blocks	2304 101	1.5 + 3	60	80	30
Lamella blocks	2304 102	1.5 + 3	80	100	40
Lamella blocks	2304 103	1.5 + 3	100	140	50
