SIEGMUND
Zero Point Clamping System

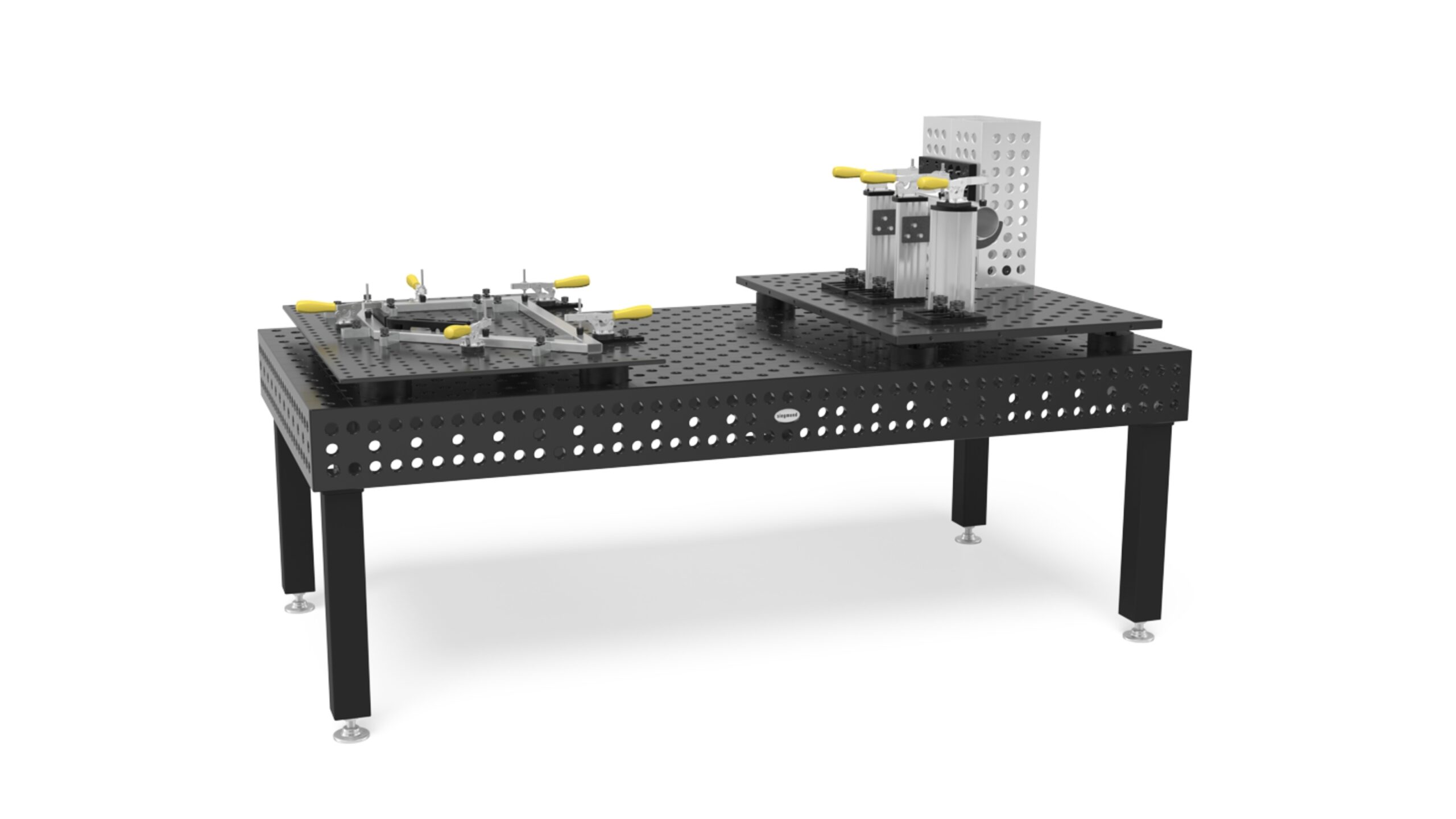

Easily swap welding fixtures with the Siegmund Zero Point Clamping System, available at MPAC. Designed for quick, flexible changes, it’s ideal for both manual and robotic workstations. With high repeat accuracy, precise zeroing and mechanical or pneumatic actuation, it boosts efficiency and ensures consistent quality. The system offers fast setup, simple operation and smooth integration into existing workflows.
Flexibility
Quick fixture swap
Pneumatic option
Fits all tables
PRECISION
High accuracy
Easy zeroing
Fast set-up
USABILITY
Simple operation
Tool-free change
Robotic ready
DURABILITY
Long lasting
Strong clamping
Reliable system
Advantages

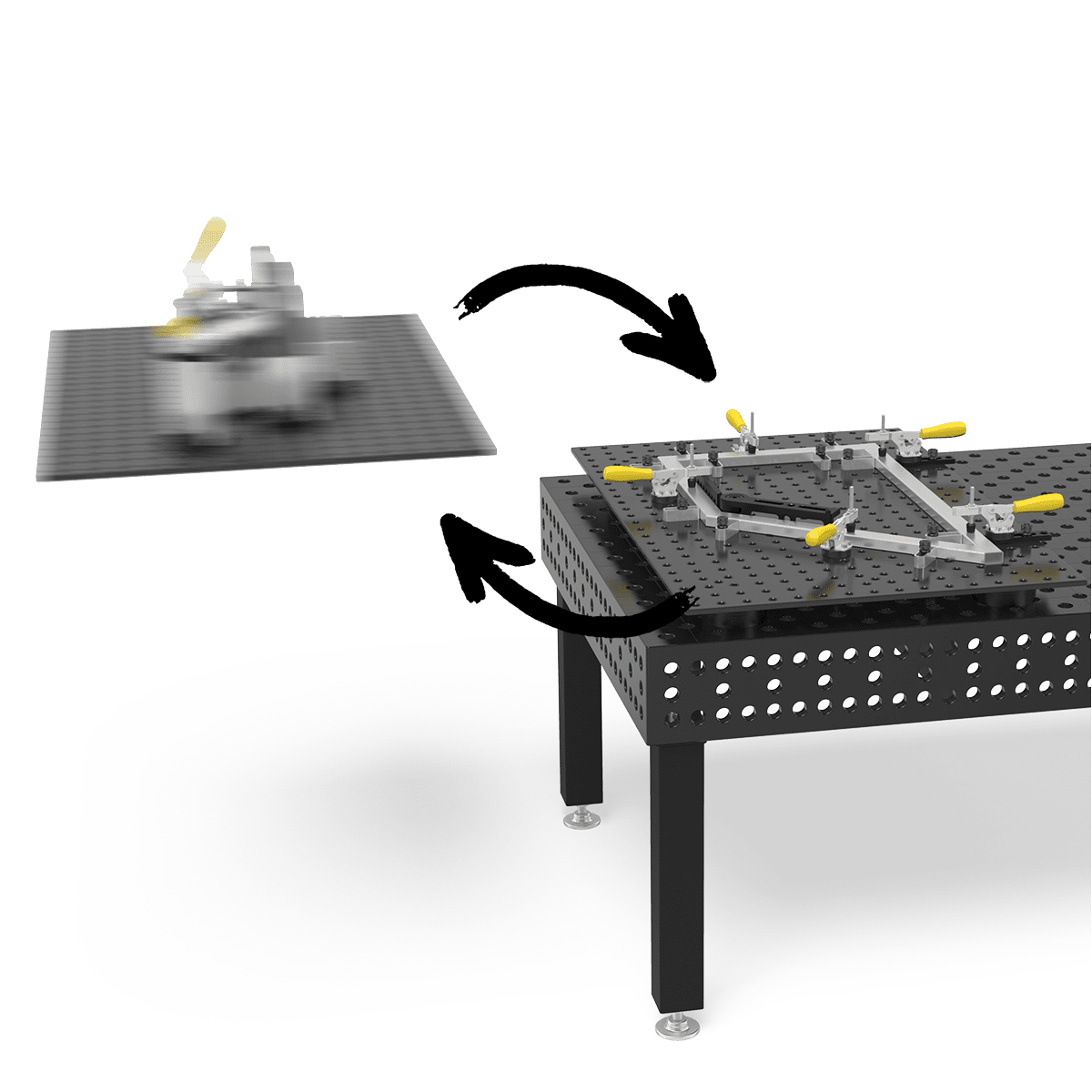

Quick Fixture Change
Simply remove and replace the complete perforated plate and fixture assembly and replace with another.

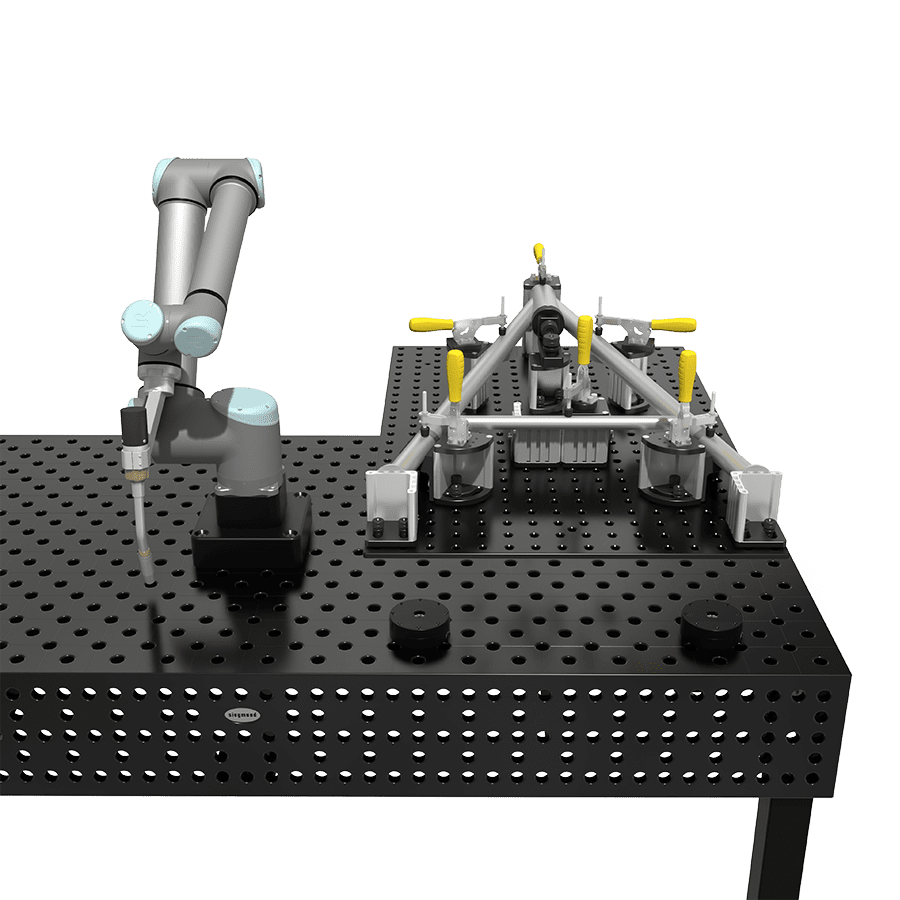

Produce In Series
Automate your workplace now with Siegmund’s zero point clamping system and upgrade your welding table to increase the robot working load and ensure consistent quality.
Simple Usage

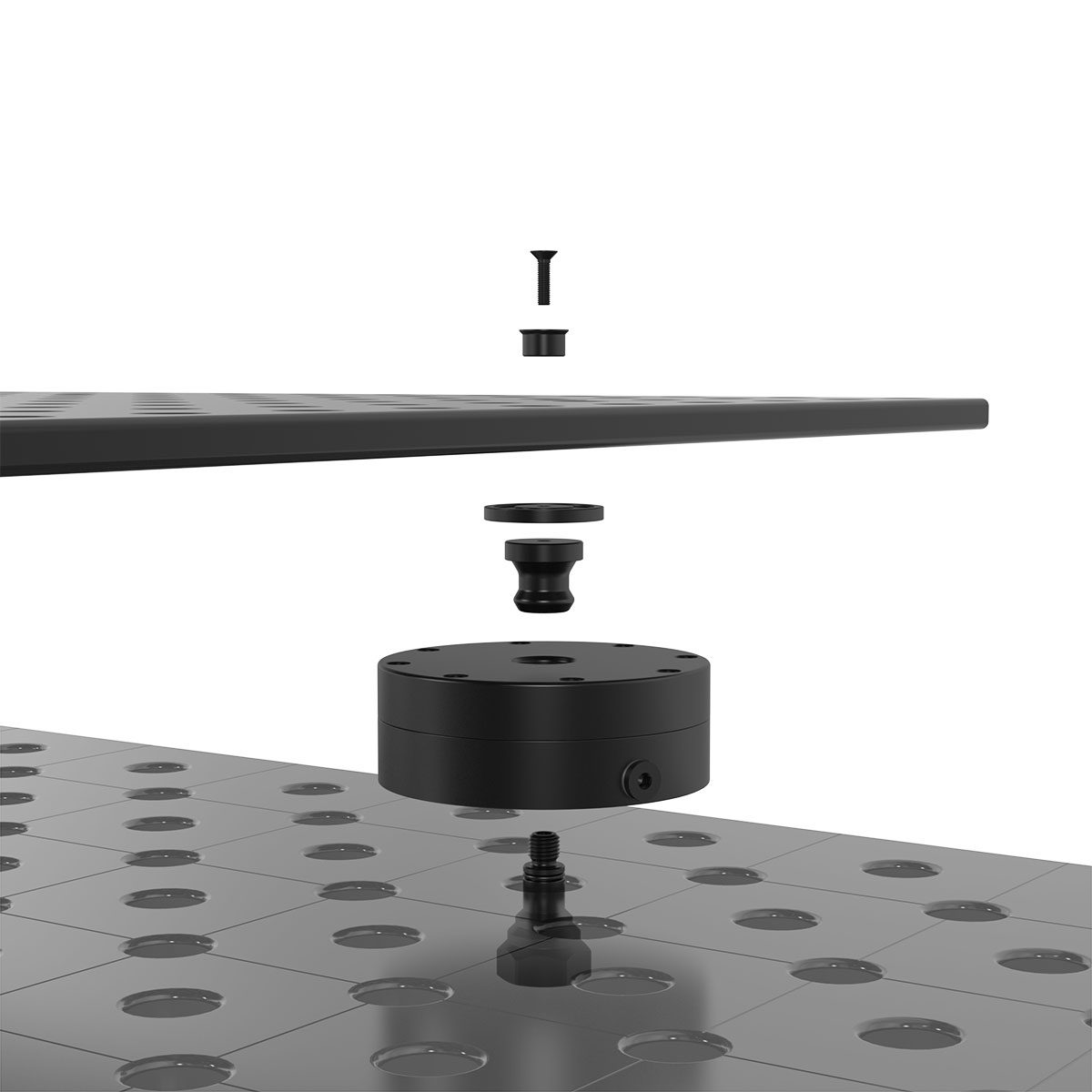

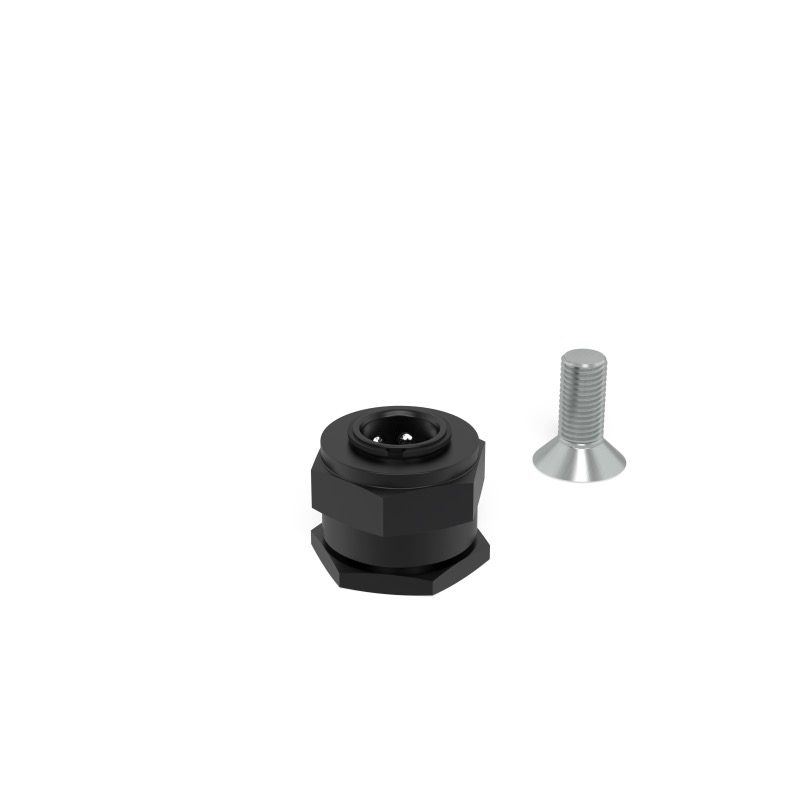

The zero point clamping modules are centered and secured in the welding table boreholes, fastening the perforated plate with clamping bolts.
Precise Zeroing

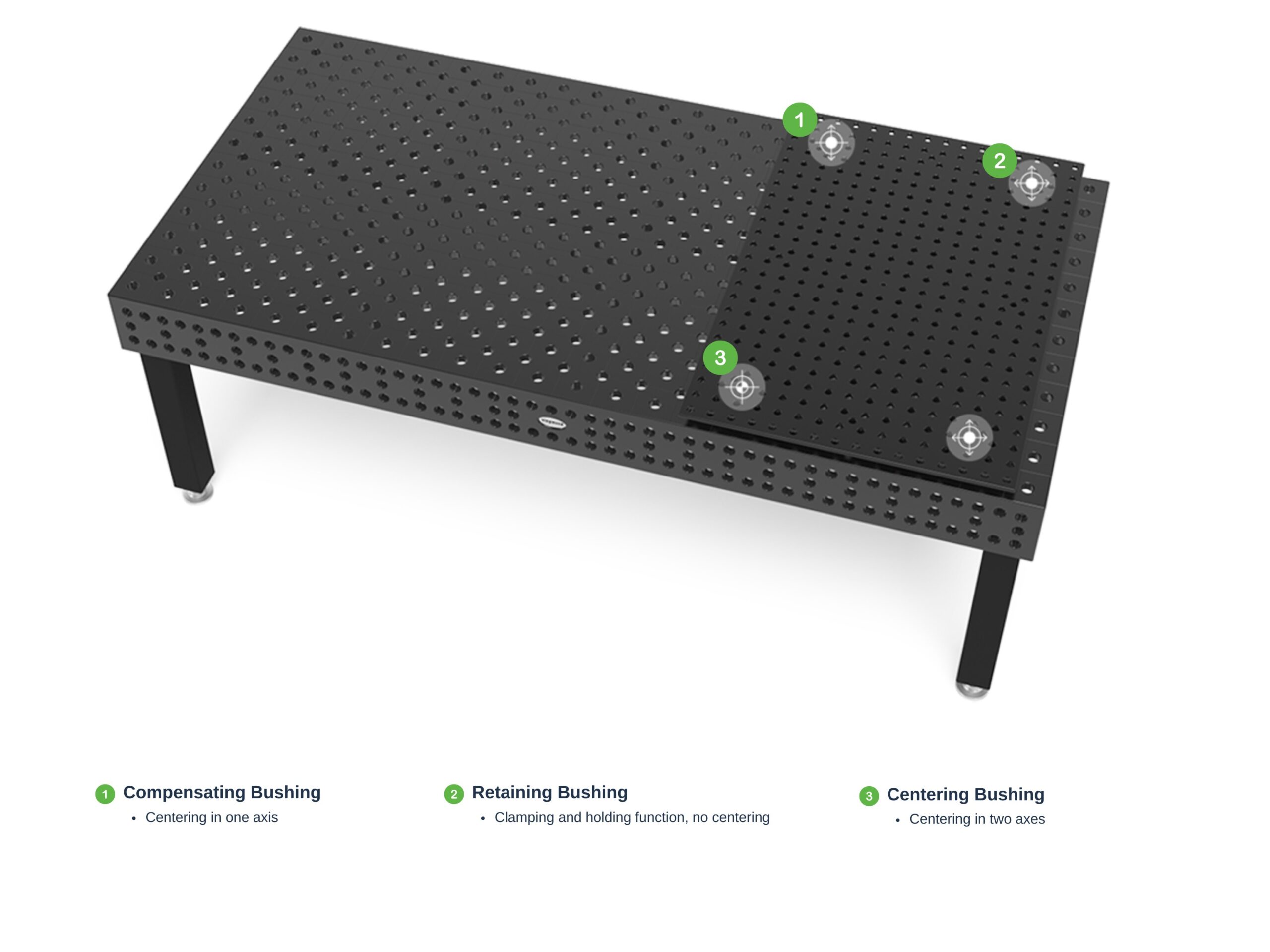

The perforated plate can be aligned on the welding table with the zero point clamping system. The centering is done via the sockets.

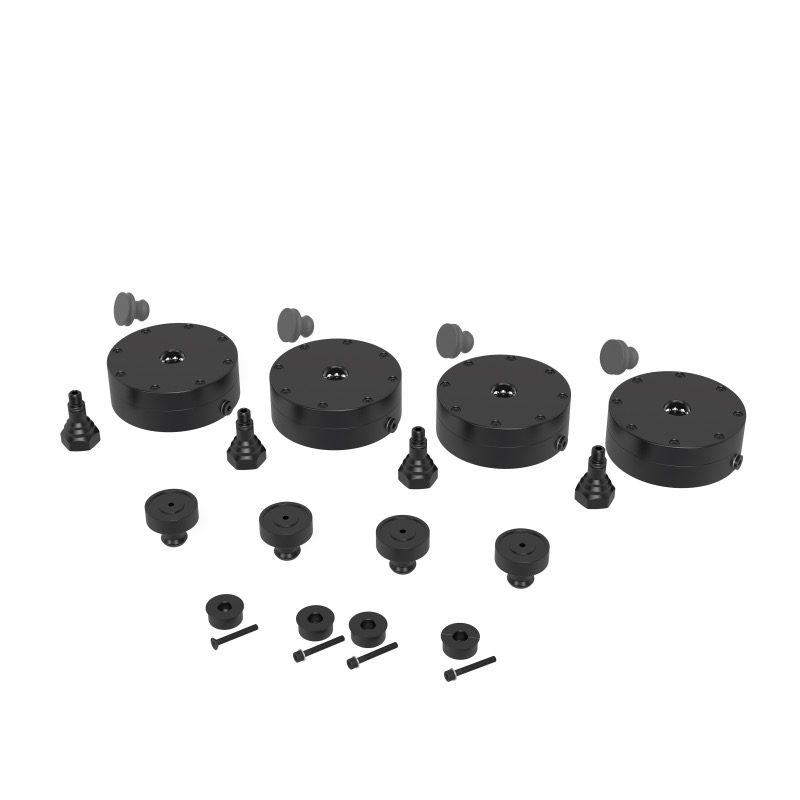

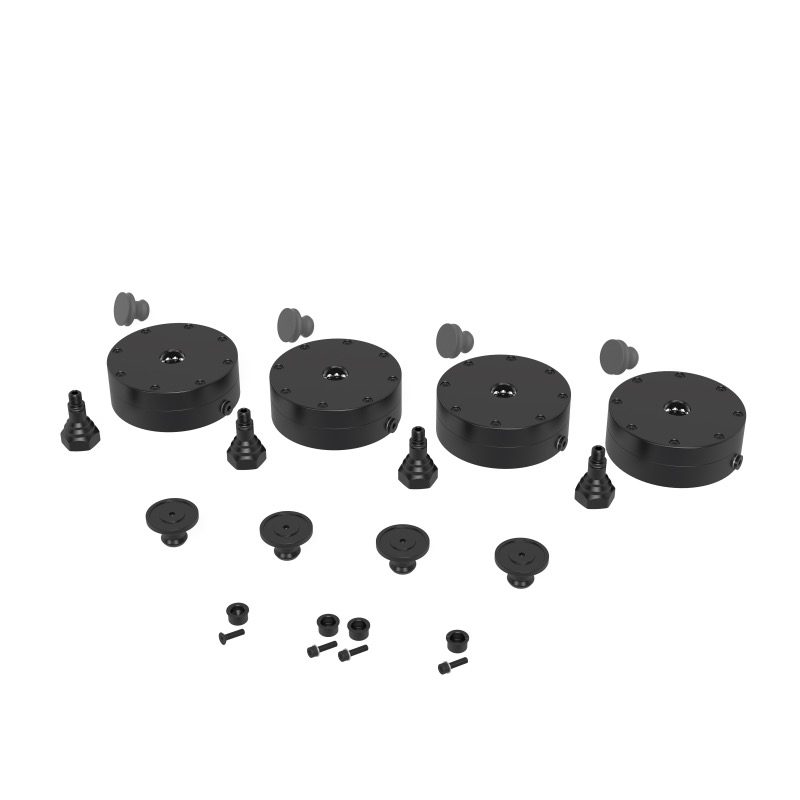

Versions
Mechanic

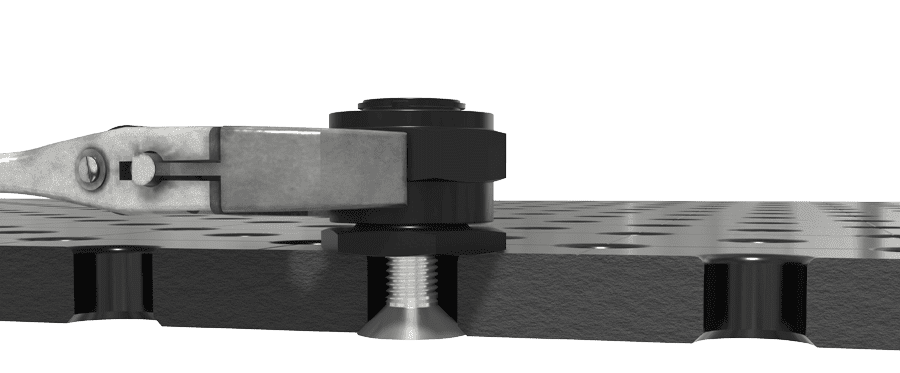

The mechanical version clamps and releases manually using an open jaw wrench.
Pneumatic

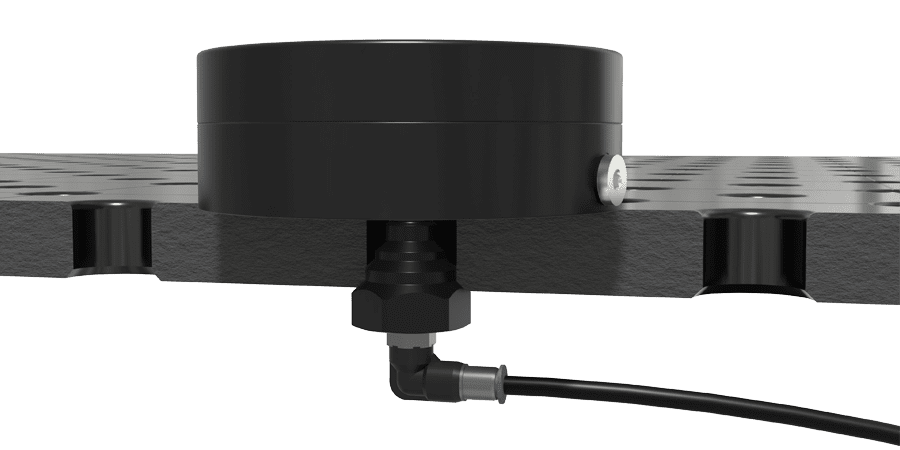

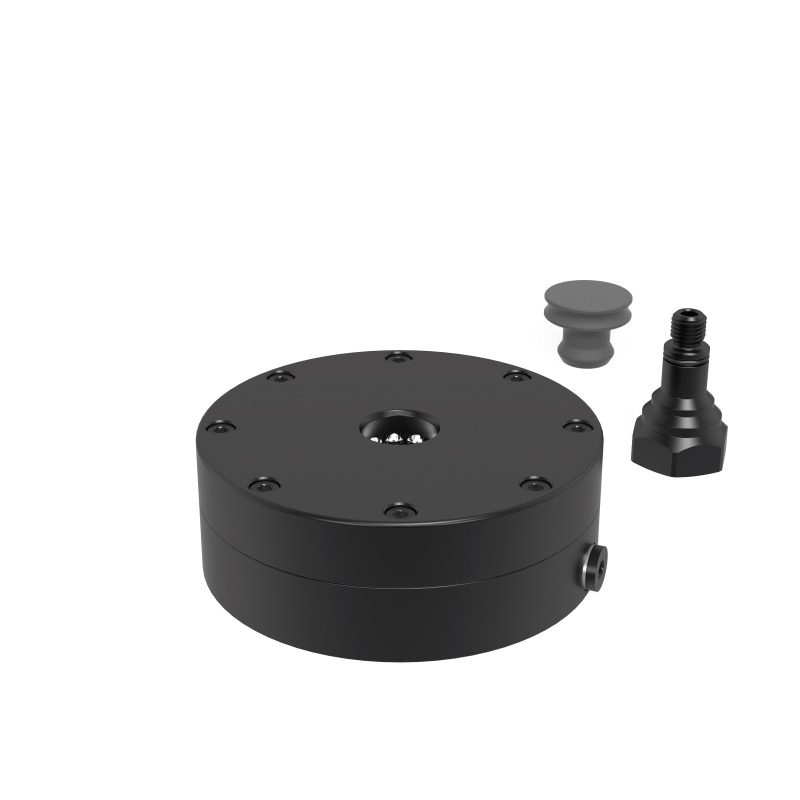

The pneumatic version clamps automatically and releases with compressed air.
Suitable Products

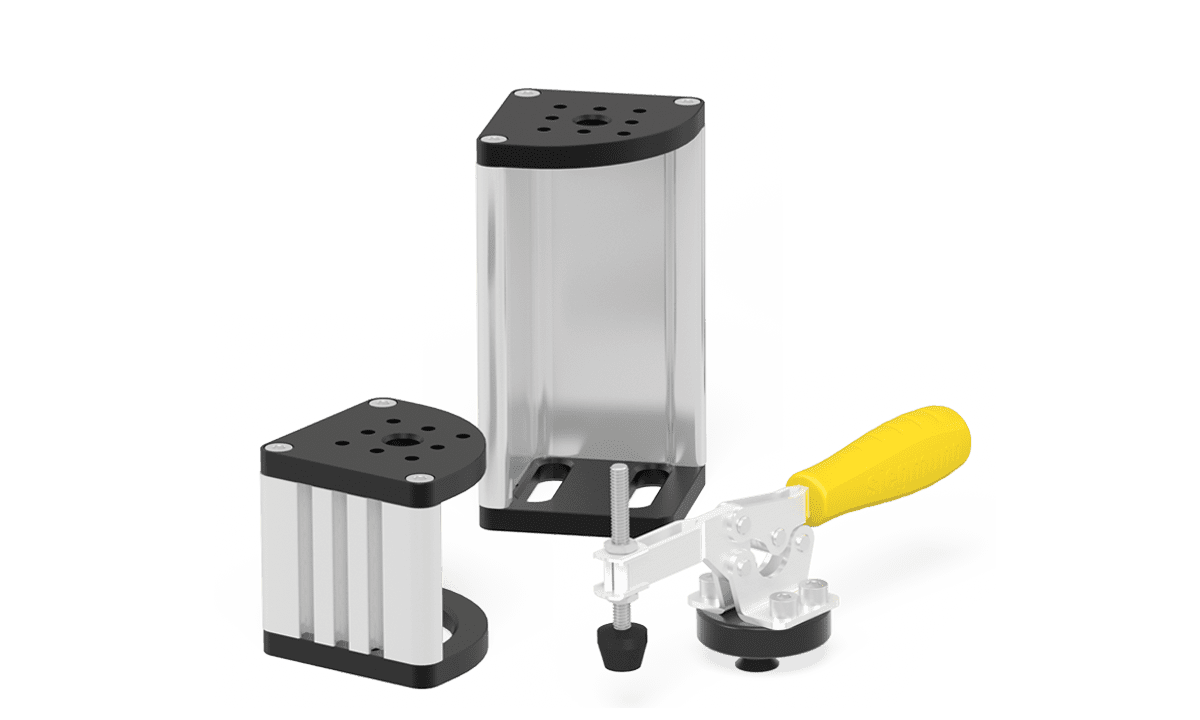

Clamping System
In combination with the new clamping system, recurring welding devices can be manufactured with high accuracy and low down times. If a robot program already exists, you benefit from a minimal set up time of your device.
Preforated Plates
Plasma nitrided perforated plates are available with various system boreholes, 16 mm, 22 mm and 28 mm in diameter and in a range of materials. The surface boreholes allow for easy fastening of components using Siegmund tooling.
