SIEGMUND

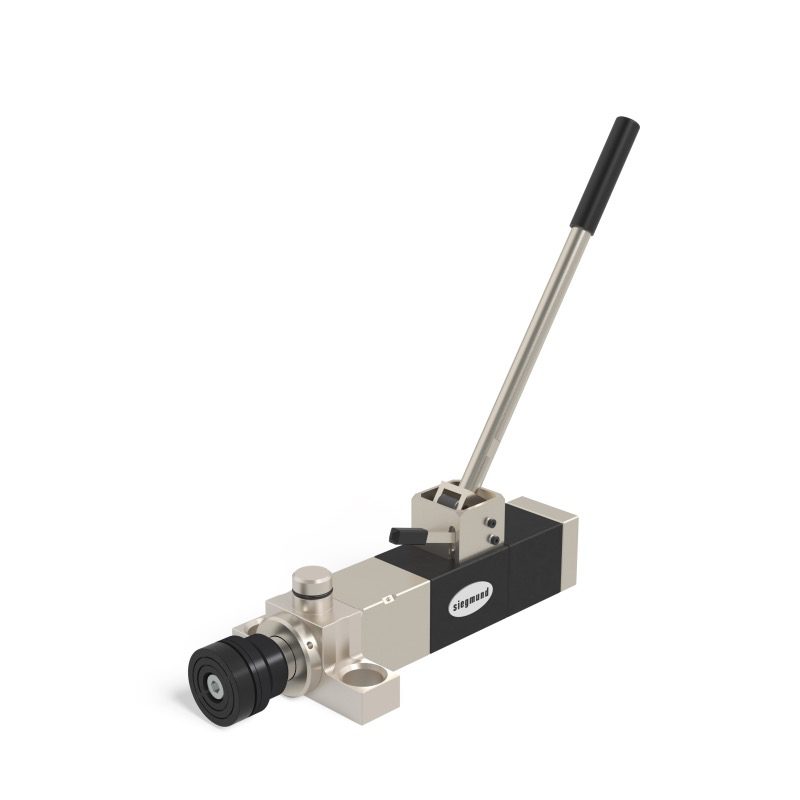

Table Press
The Siegmund Table Press efficiently straightens deformed steel with 2.5 tons of force, removing tension and unevenness. It also bends pipes up to 42 mm in diameter and works with a variety of accessories. With vertical operation options and secure attachments, it’s a versatile tool for your workshop.
POWERFUL
2.5-ton force
Straighten steel
Pipe bending
FLEXIBLE
Multiple uses
Accessories included
System compatibility
ACCURATE
Clean, precise
Minimal distortion
Simple operation
Safe
Overflow valve
Vertical operation
Secure attachment
Advantages

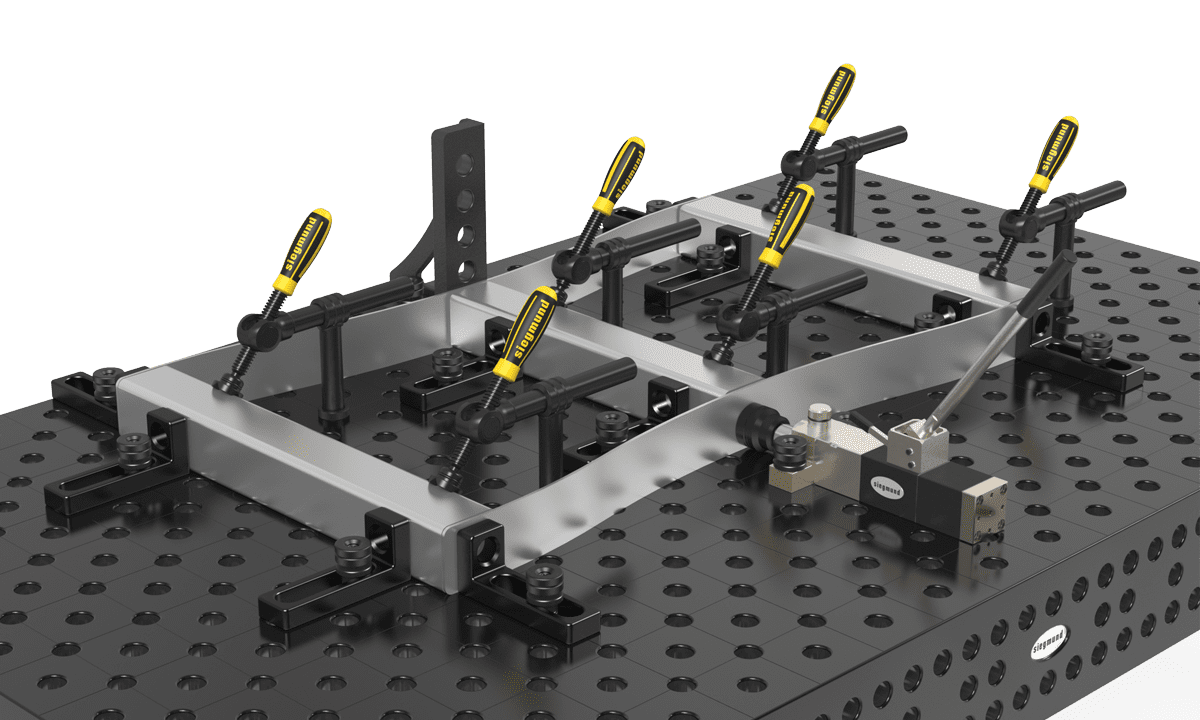

The table press is used for straightening deformed steel products. With a compressive force of 2,5 tons, parts that have unwanted unevenness or tension in the material, can be straightened. With the additionally available pipe bending stamp, pipes with a diameter of up to 42 mm can be bent flexibly.
The total stroke is 60 mm, which can be achieved with 13 pump strokes with an operating force of approx. 330 N (stroke per pump stroke 4,6 mm). An overflow valve prevents additional pressure build up when the piston rod is fully extended.
For a secure attachment on the table, the table press can be fixed through the turret head by using fast clamping bolts or by the attached bolt.

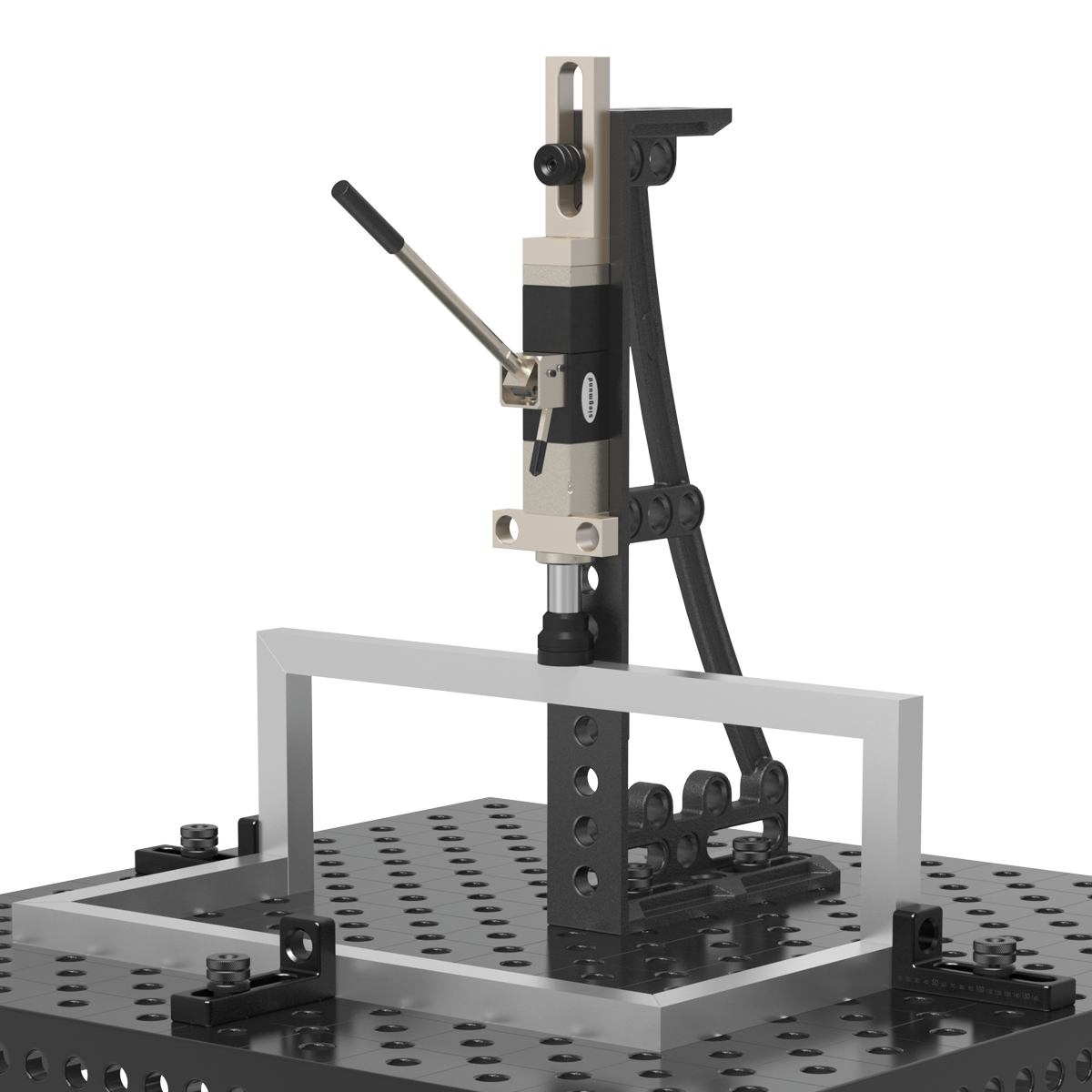

Working In Vertical Position
Safe vertical operation is possible when the press is fixed in two places using the incorporated turret head bolt.

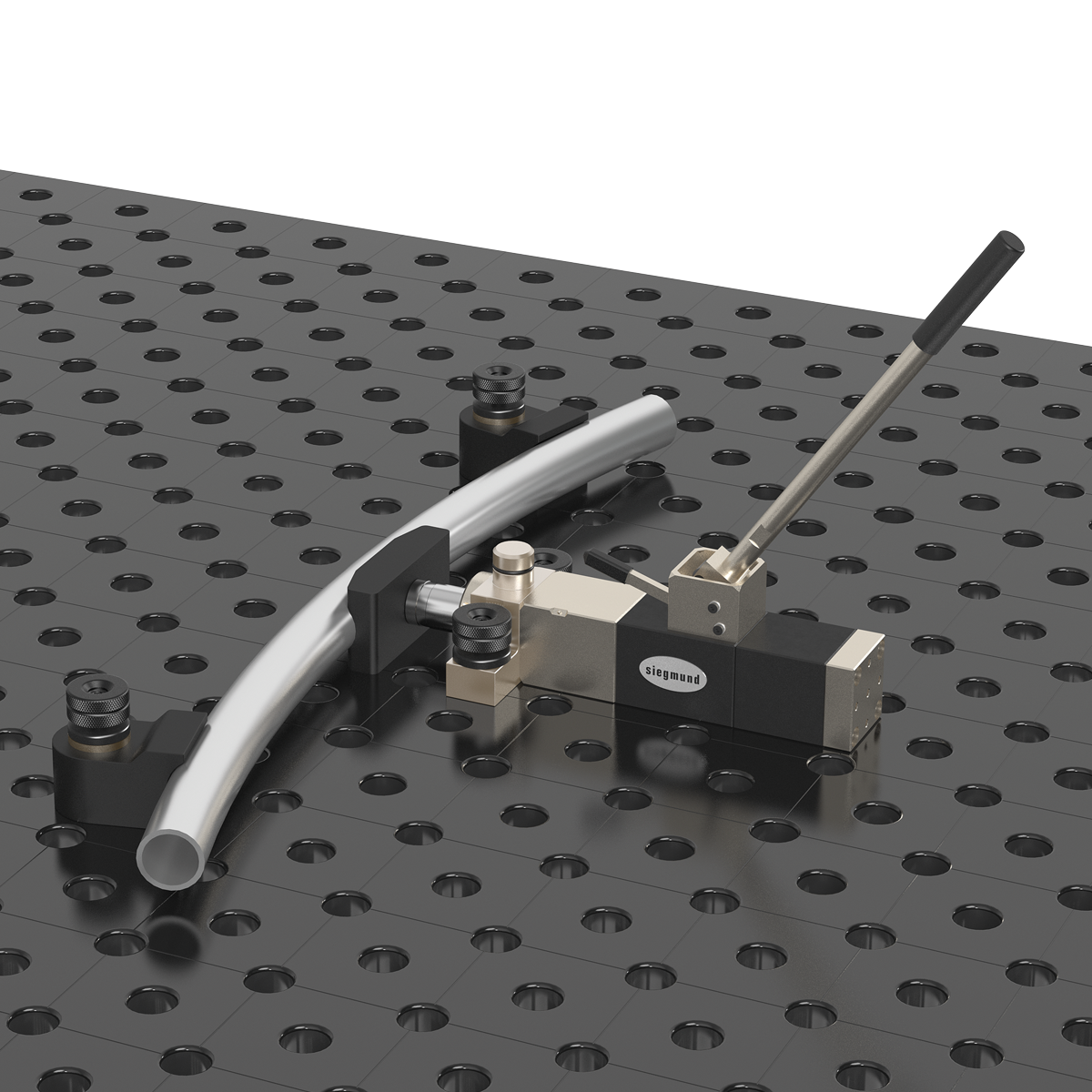

Bending Pipes

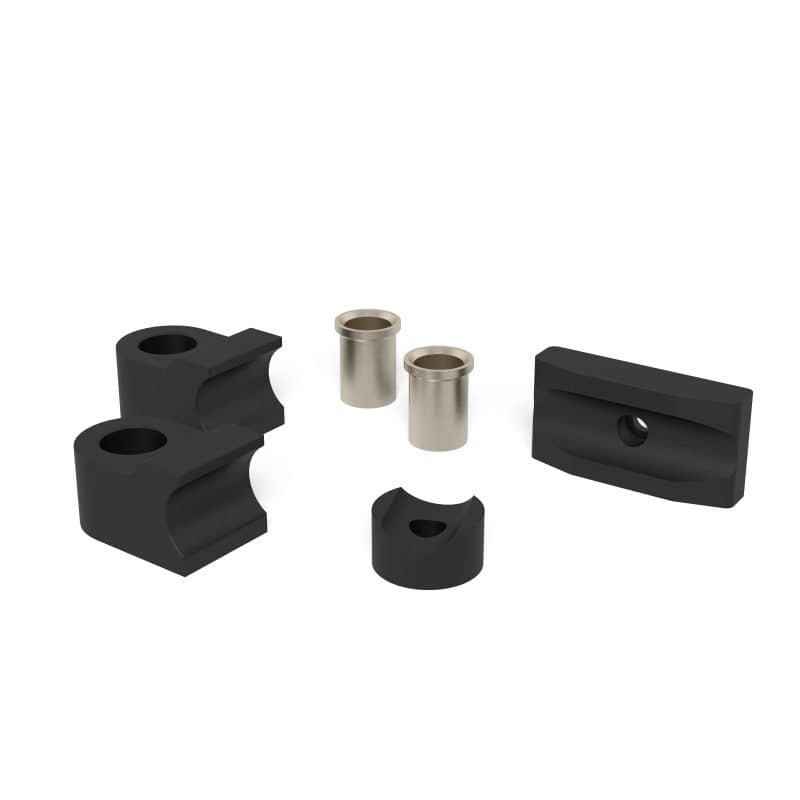

The shaped pipe former can bend or straighten pipes up to 42 mm diameter. The correct sequential process will provide a clean mark free result.

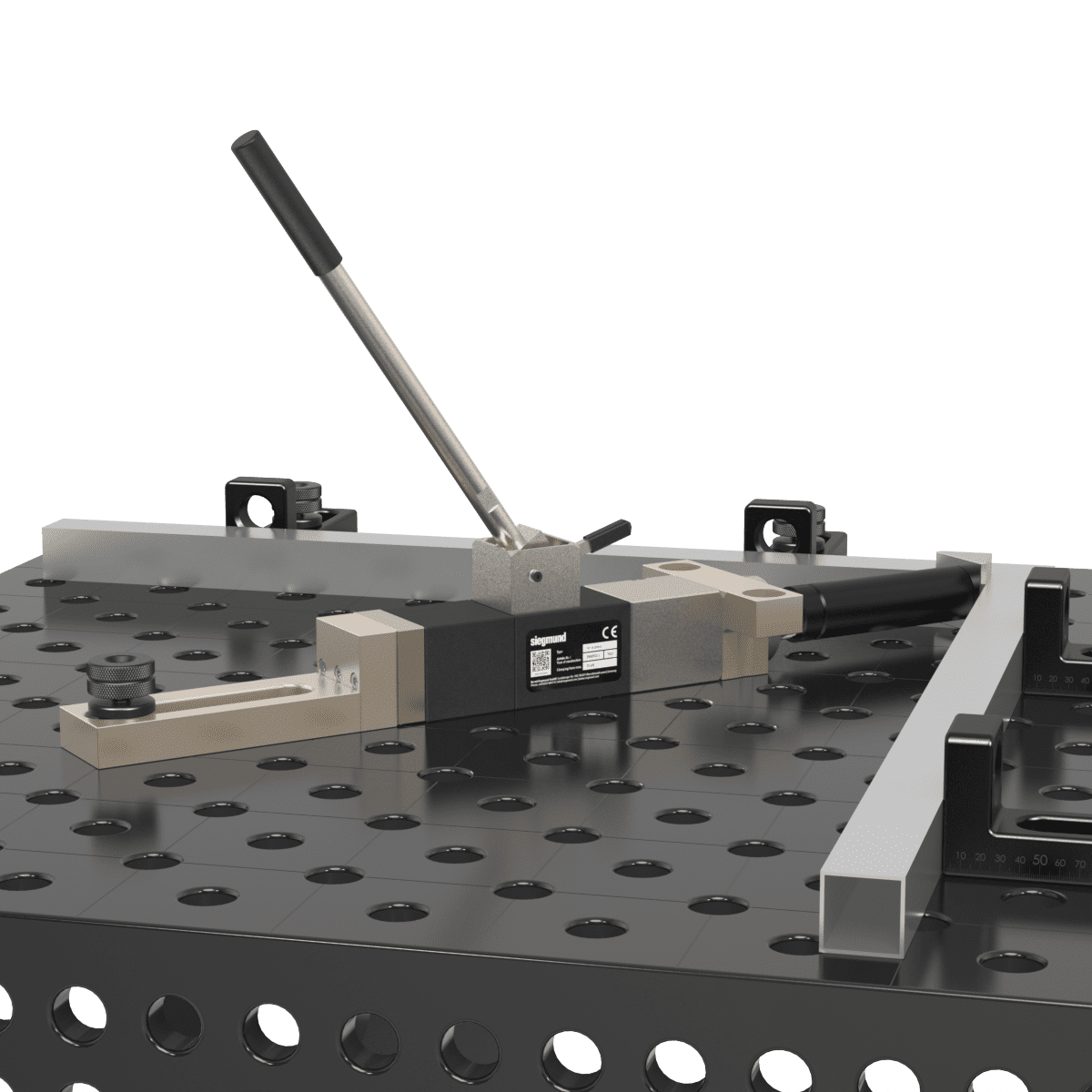

Working In Corners
Corners can be pressed using a pre shaped aluminium former to avoid damage to the weld seam.

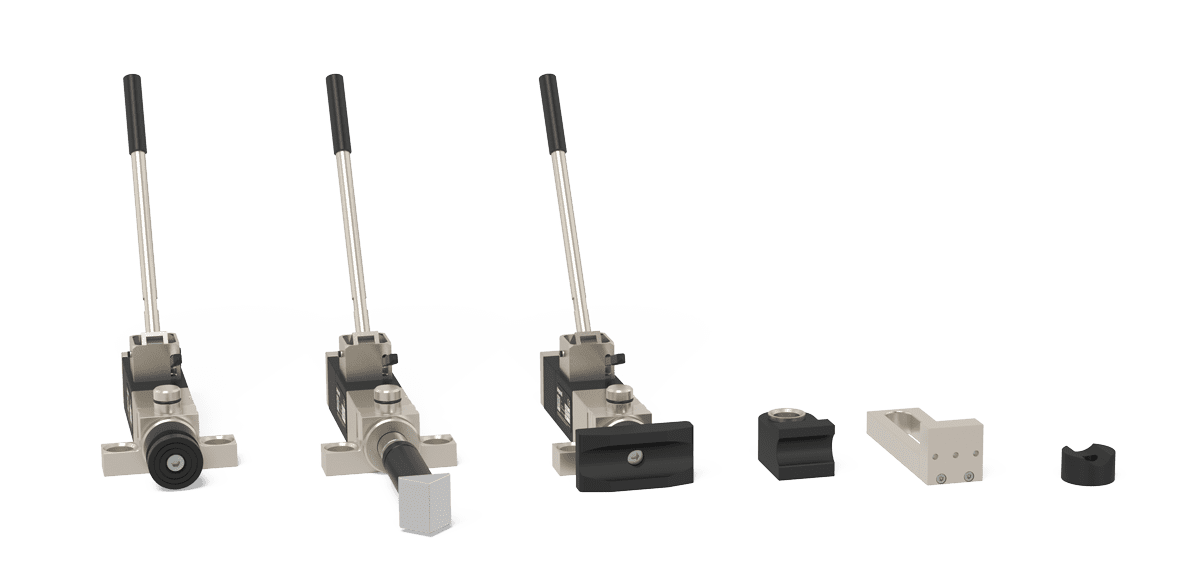

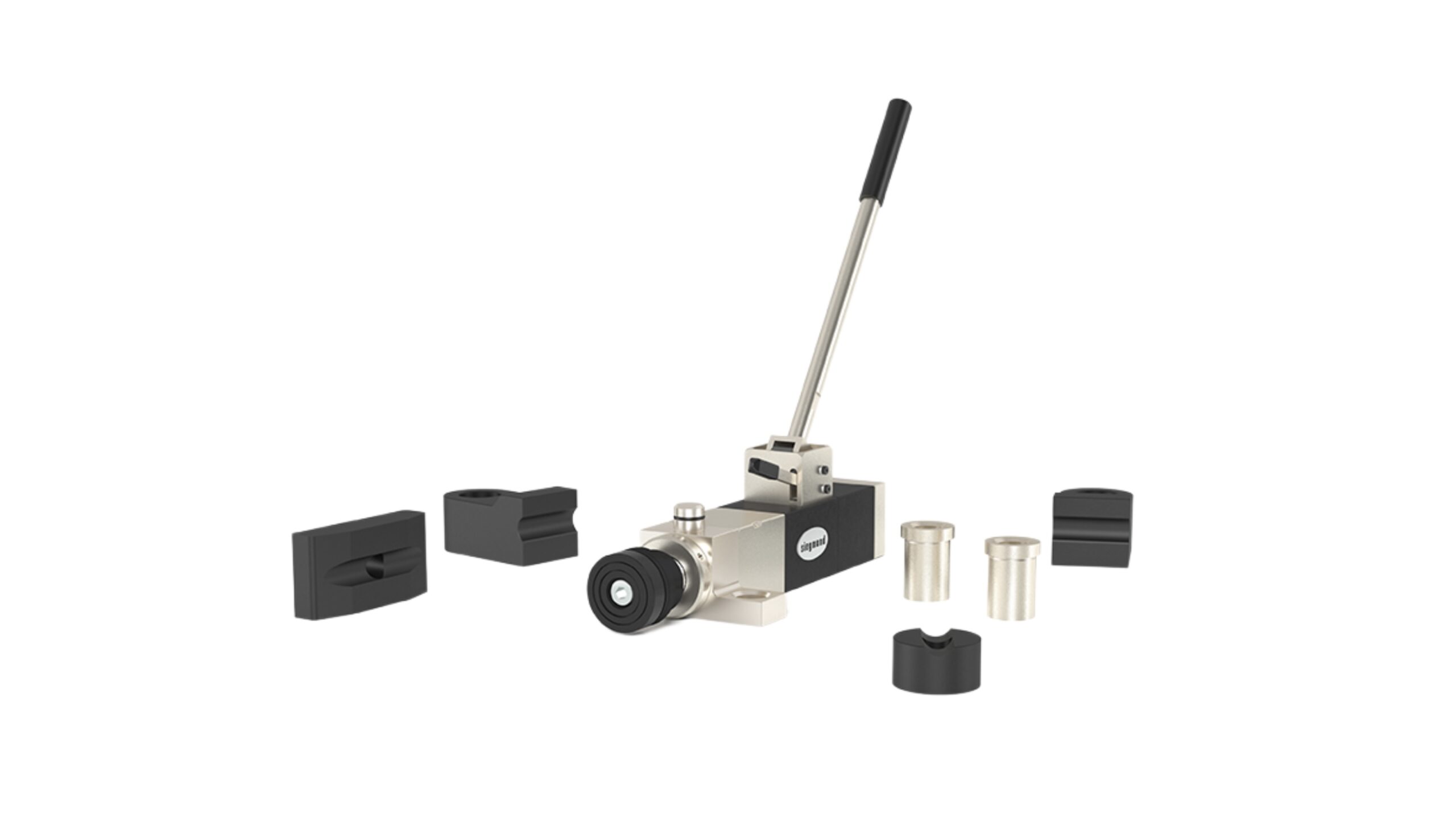

Variety Of Accessories
The Siegmund table press is available with suitable accessories for System 16, 22 and 28.
