SIEGMUND

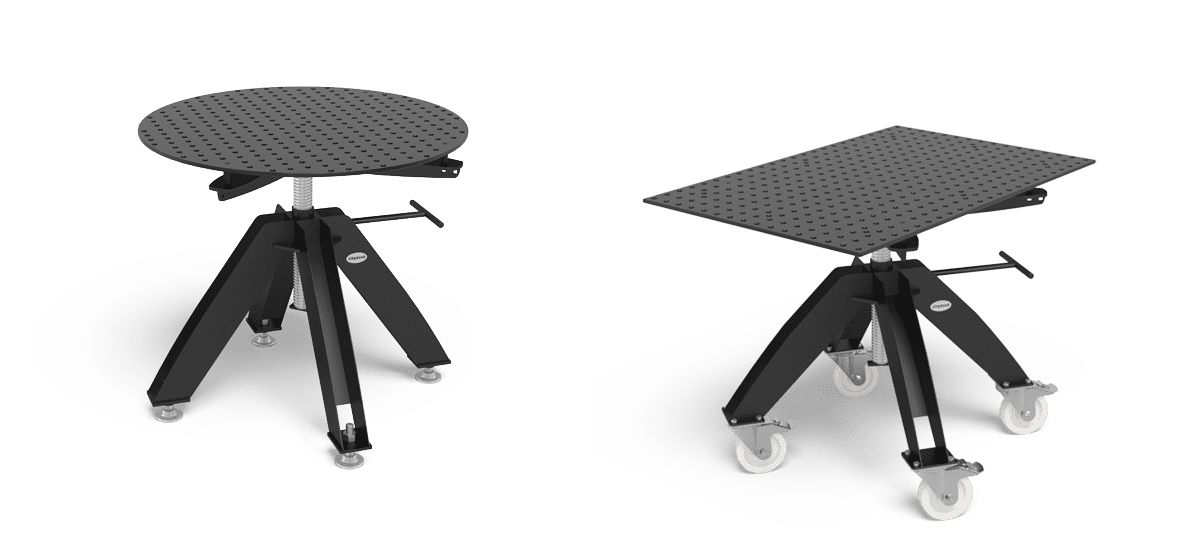

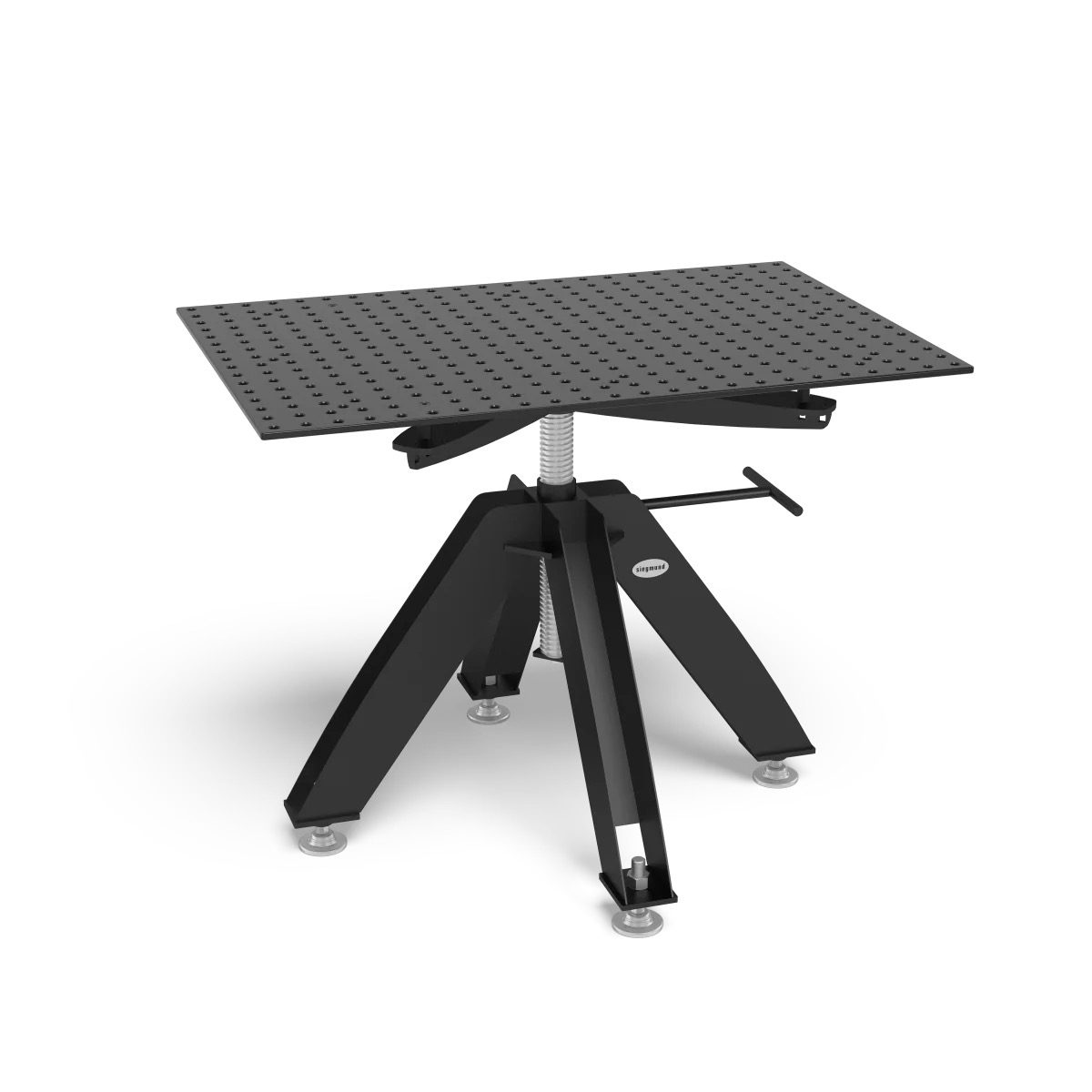

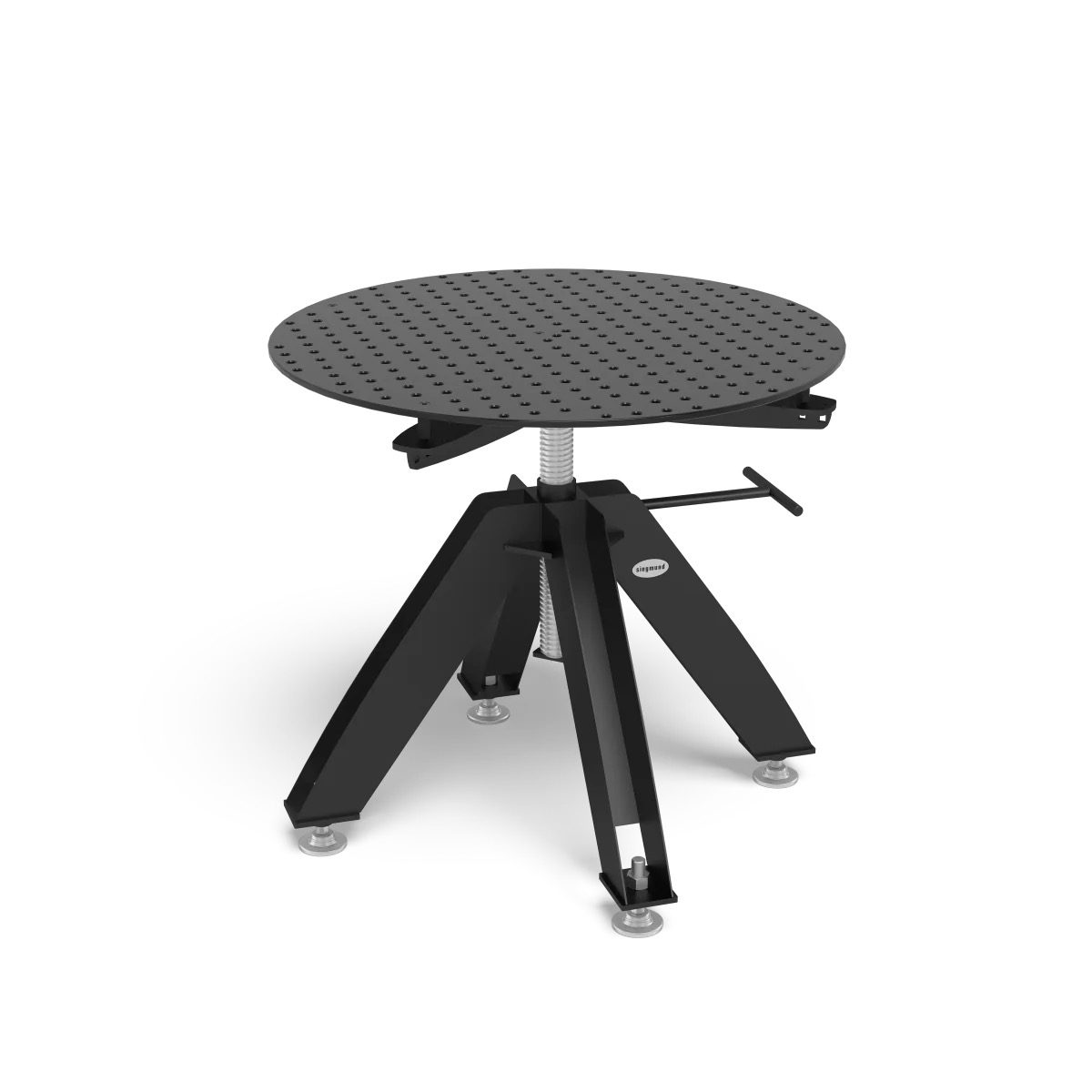

Rotating Table
The Siegmund Height Adjustable Rotating Table offers a space saving, ergonomic solution for efficient, flexible work. With stepless height adjustment between 780 mm and 1100 mm and a side locking lever for secure positioning, this table ensures ease of use and perfect levelness. The 360° rotation provides complete access around the workpiece, while its high load capacity and magnetic grounding make it ideal for demanding tasks.
Flexibility
360° rotation
Adjustable height
Multiple task use
Efficiency
Quick height adjustments
Easy locking mechanism
Streamlined handling
Customisation
Height adjustable

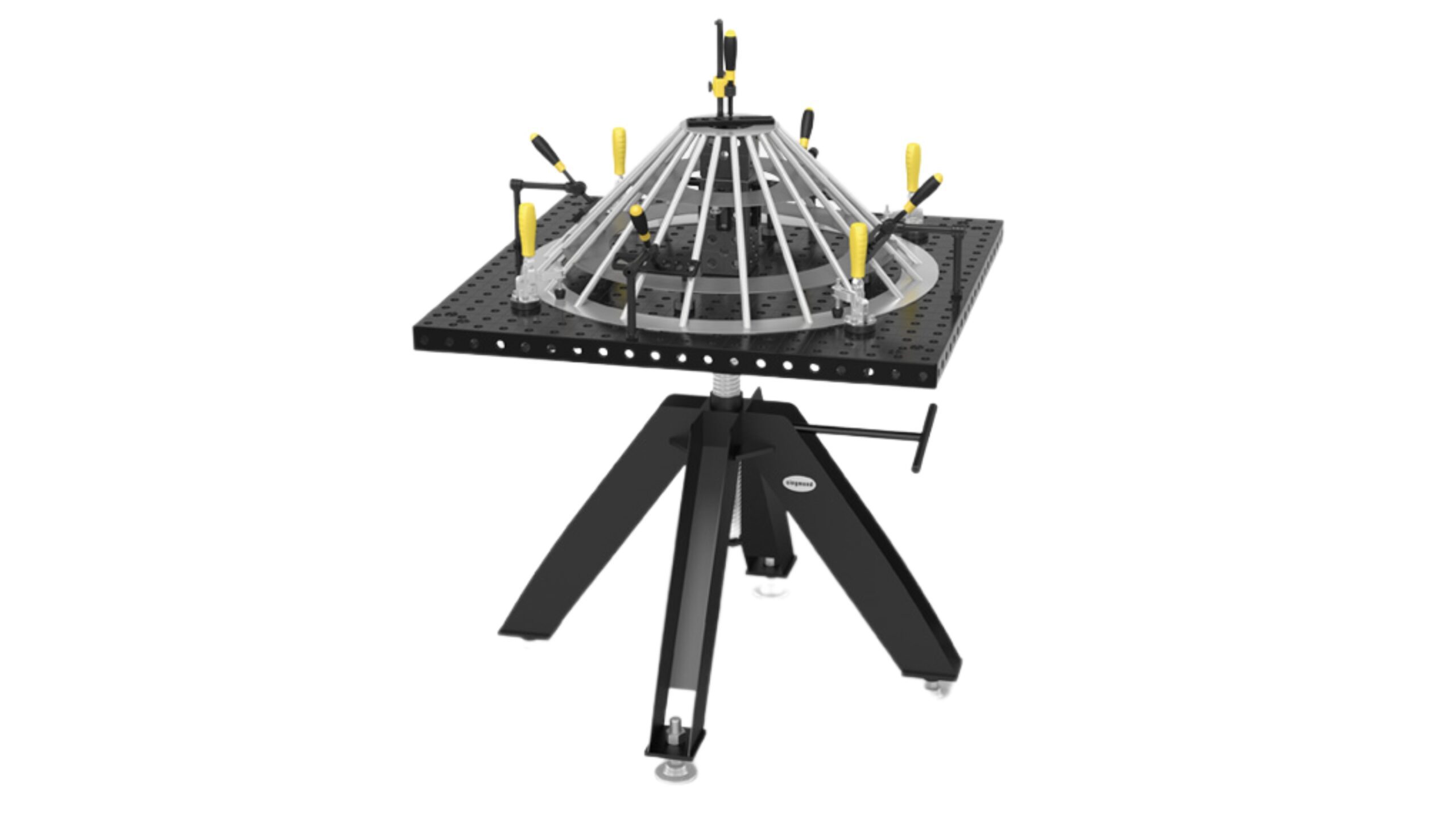

Accessory-ready design
Static or portable frame
Control
Secure locking lever
Fine leveling screws
Vibration-free surface
Table Features in Detail

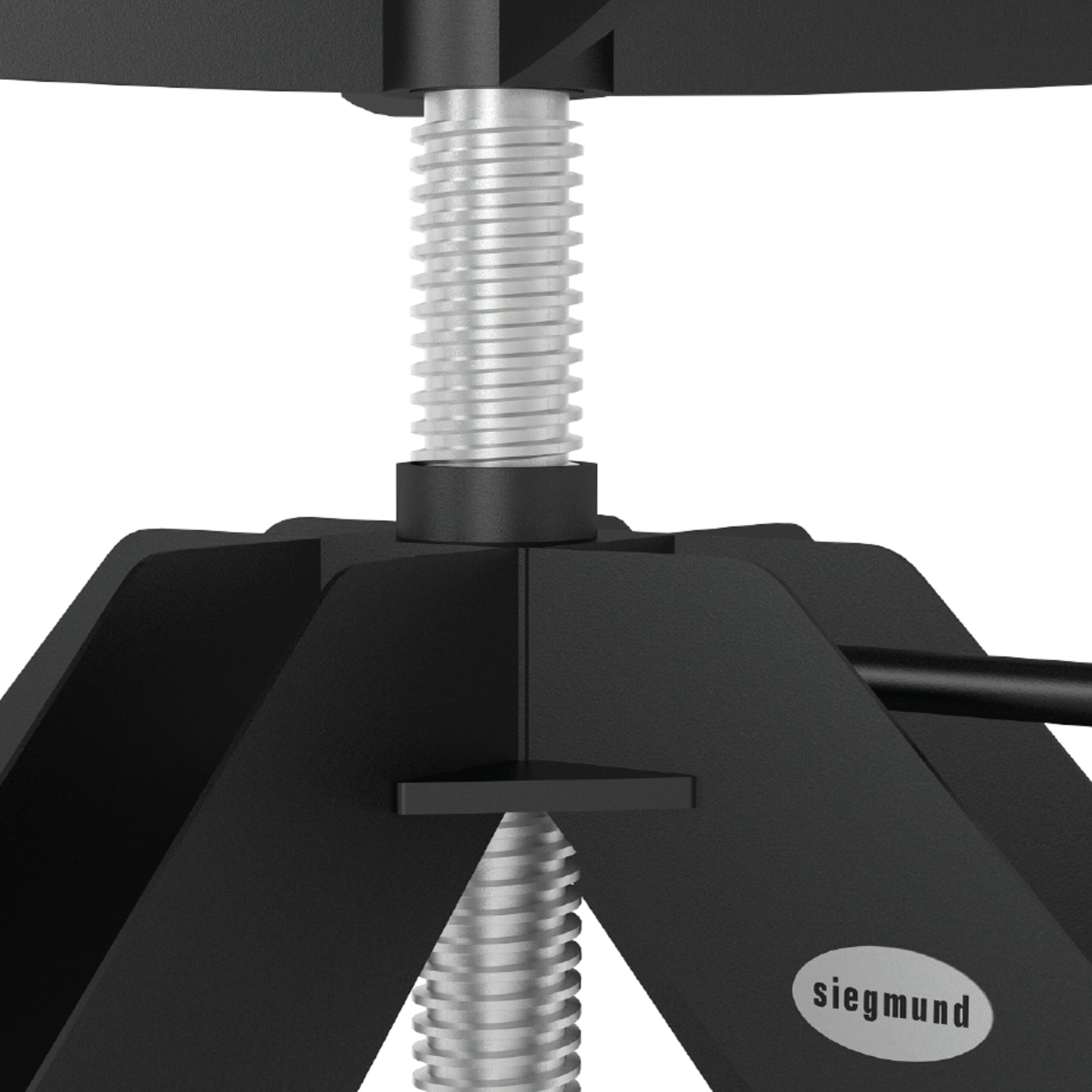

Stepless Height Adjustment
Threaded rod control
780–1100 mm range
Quick, precise setup
Locking lever for stability

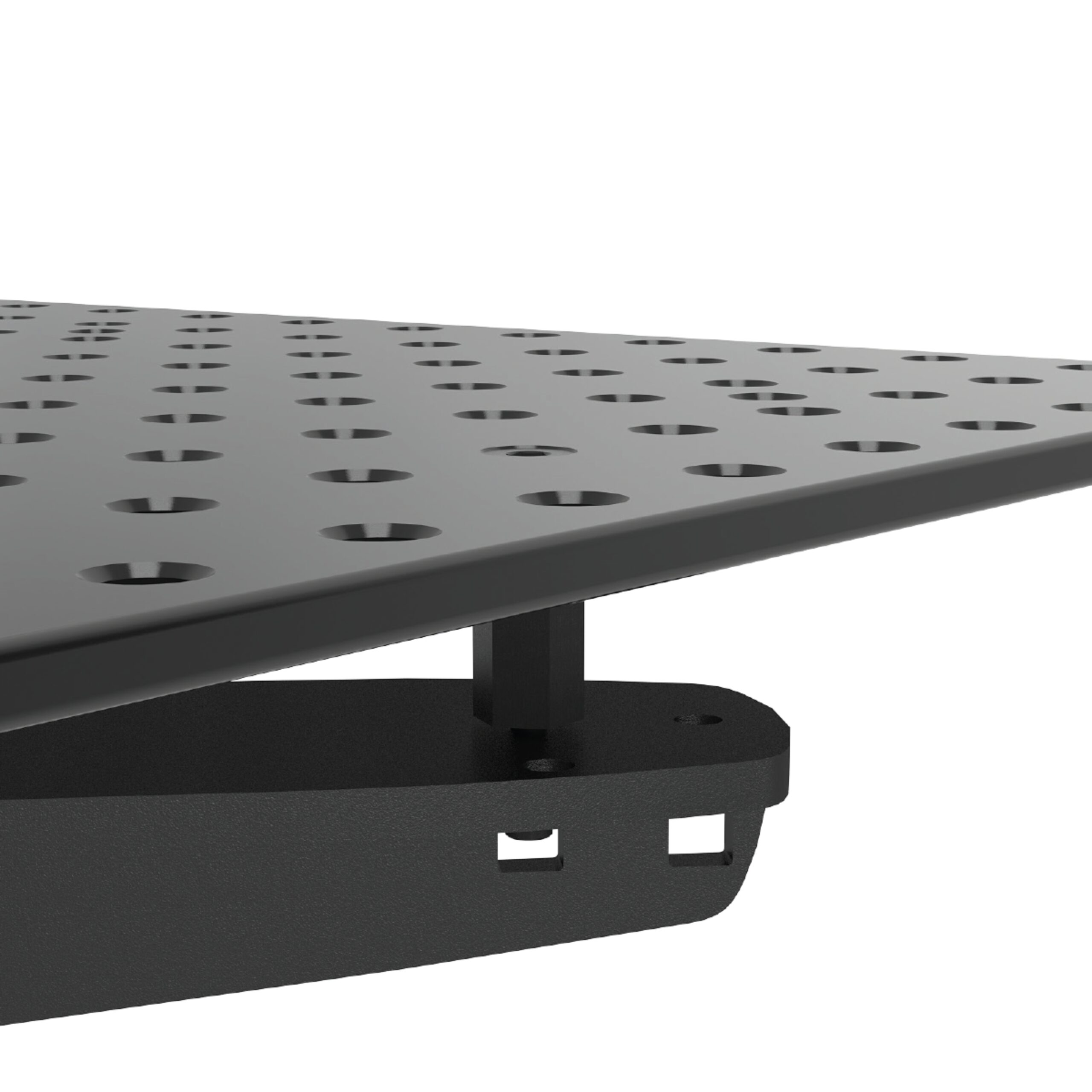

Precision Levelling
Easy fine tuning
Adjustment screws
Mounts in system holes

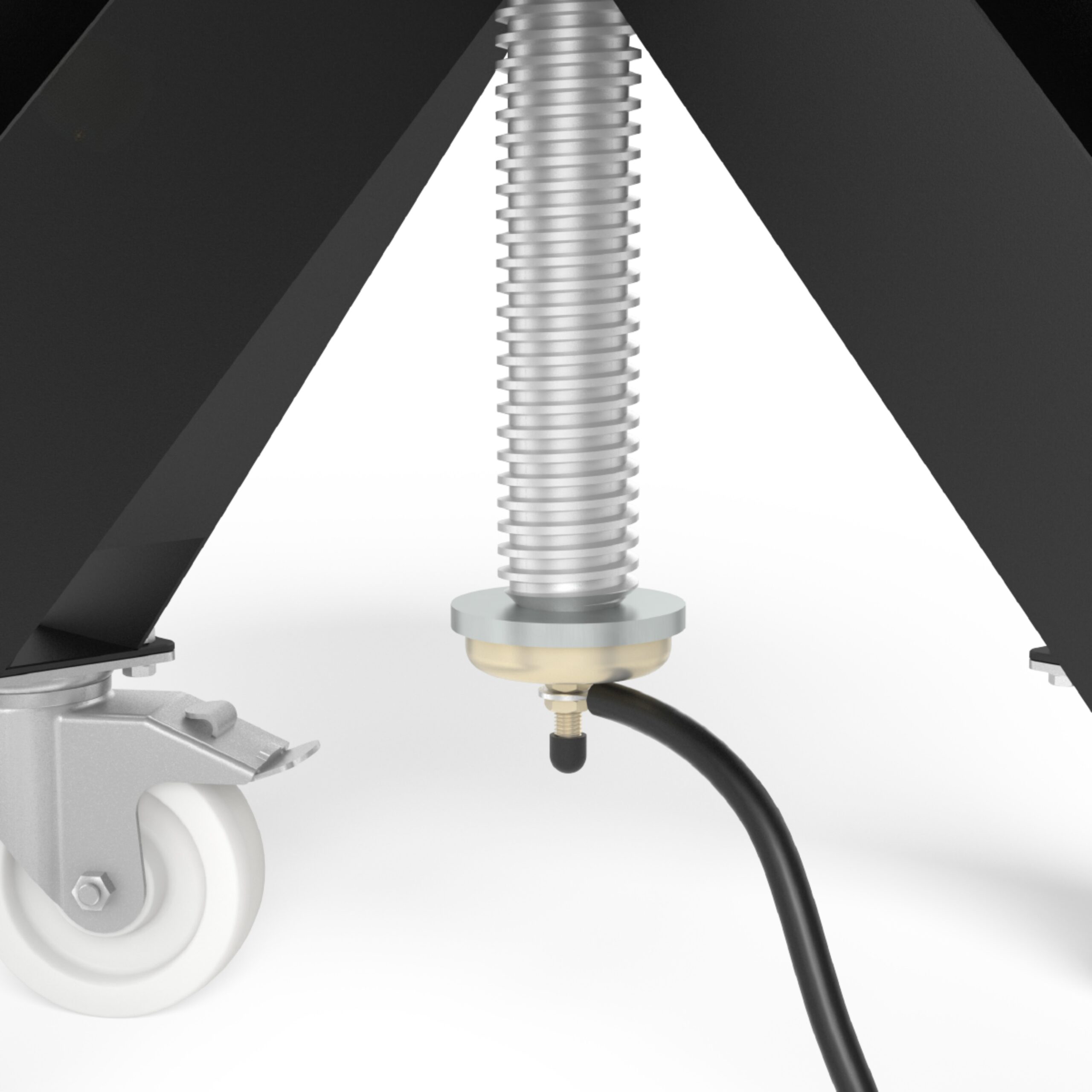

Magnetic Groundig
Fast, secure connection
No cable twisting
Table Versions

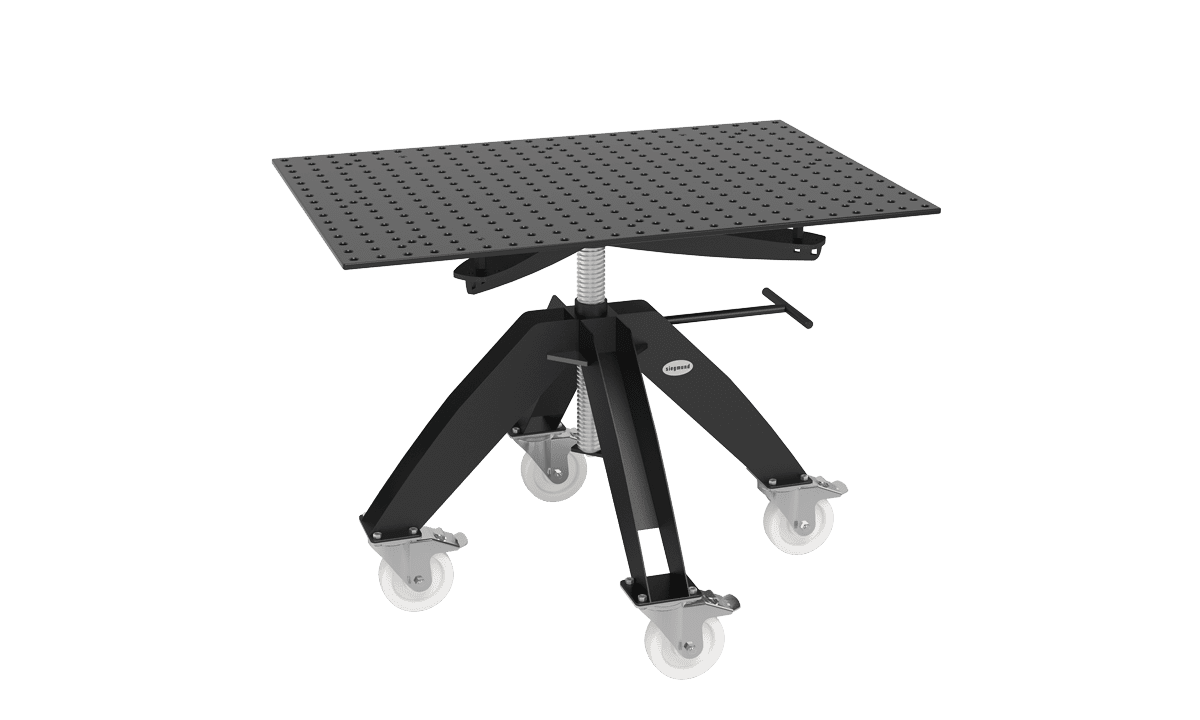

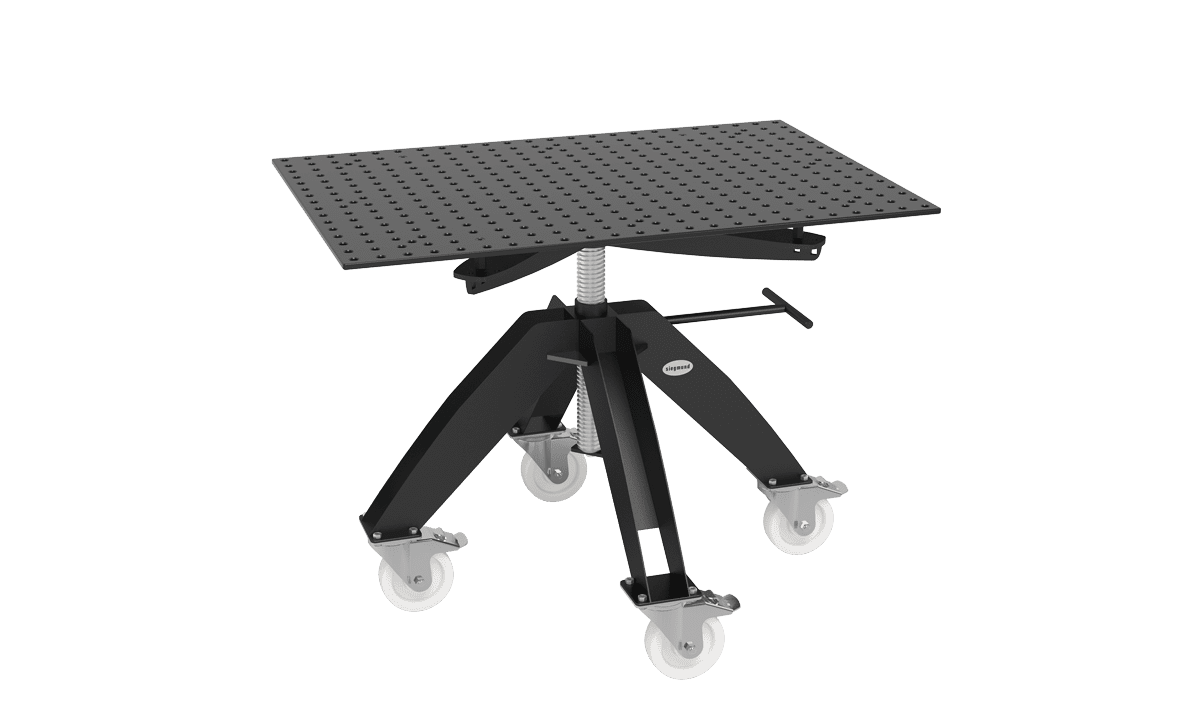

Basic Frame Static
Steel construction
Powder coated finish
Delivered pre assembled
4 castors with locking brake
Dimensions (L × W): approx. 795 × 795 mm
Weight (without plate): approx. 70 kg
Maximum load capacity: 1000 kg (basic frame)
Working height: 780 mm to 1100 mm

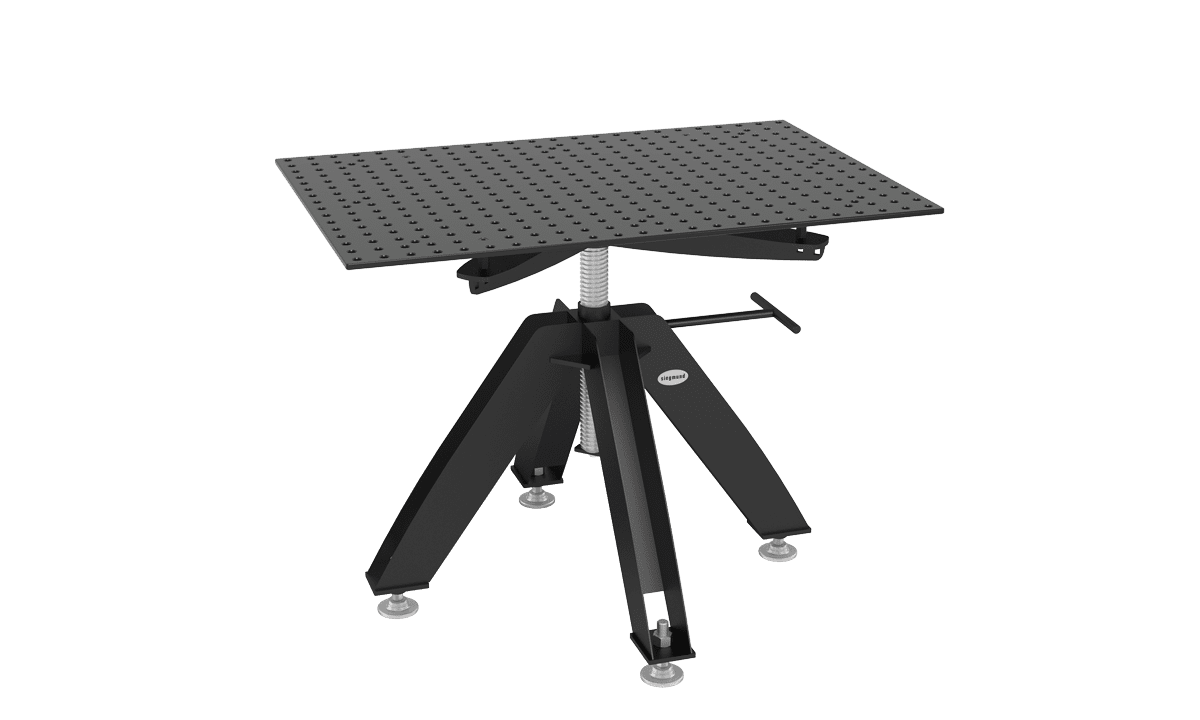

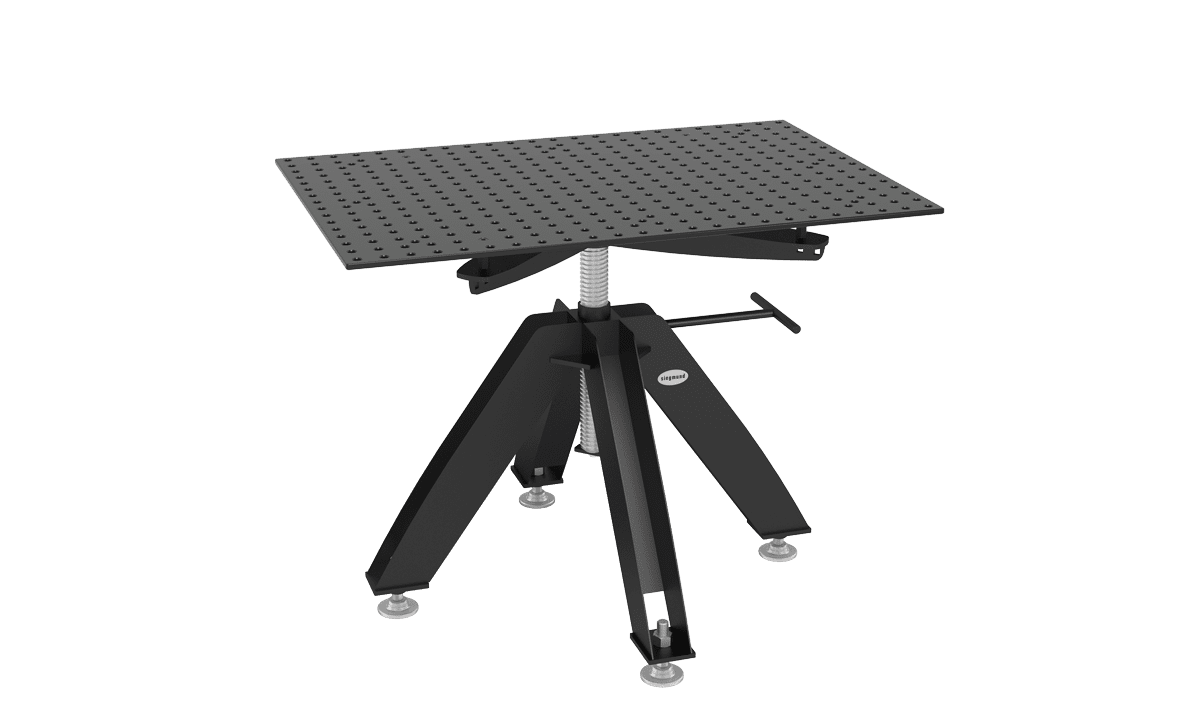

Basic Frame Portable
Steel construction
Powder coated finish
Delivered pre assembled
4 base plates Ø 90 mm
Dimensions (L × W): approx. 785 × 785 mm
Weight (without plate): approx. 70 kg
Maximum load capacity: 1000 kg (basic frame)
Working height: 780 mm to 1100 mm
360° ACCESS
Full rotation for easy handling from every angle
ADJUSTABLE HEIGHT
Stepless height control from 780–1100 mm.
SMART GROUNDING
Quick leveling and magnetic ground connection.
Suitable Products

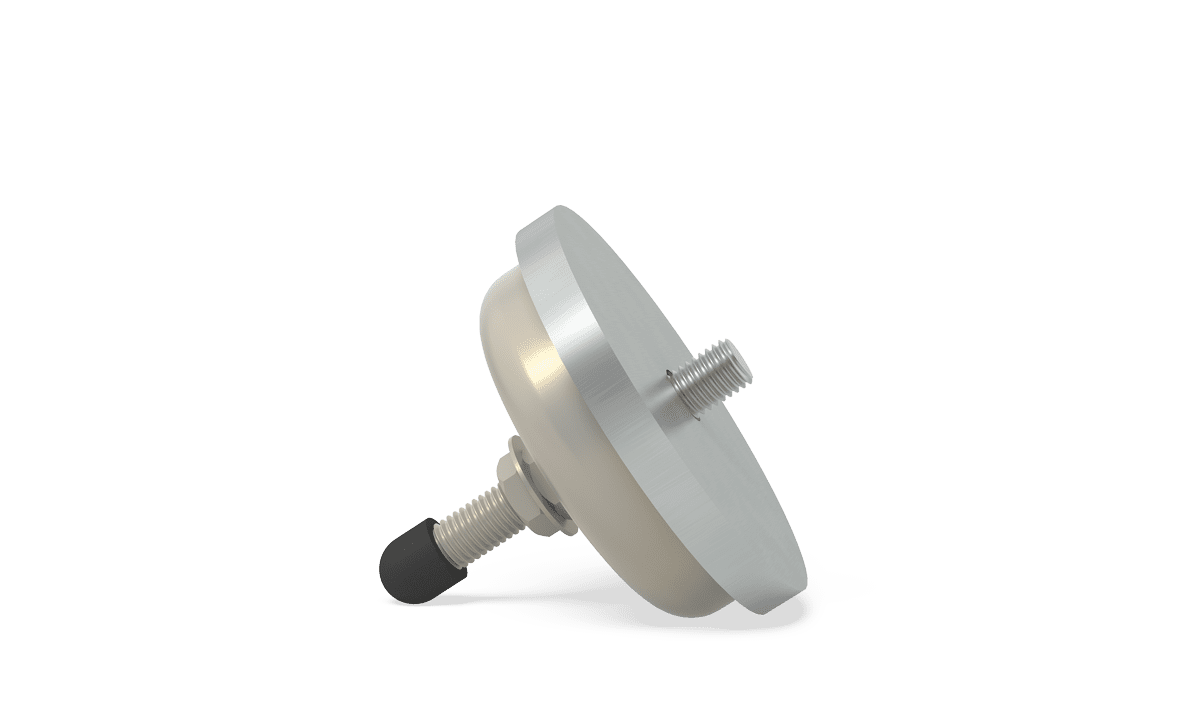

Magnetic Ground Connection
Magnetic ground connection with rotary joint for a high holding force on clean and smooth surfaces. No more twisting cables thanks to the quick and easy grounding. Connection can be clamped or hard wired. In combination with an adapter plate and countersunk head screw, it is perfectly suited as a retrofit set for the rotating table.
Siegmund Perforated Plate
We offer plasma nitrided perforated plates with different system boreholes with 16 mm, 22 mm and 28 mm diameter and in diverse materials.
The surface boreholes enable easy fastening of components with the Siegmund tooling.
