SIEGMUND

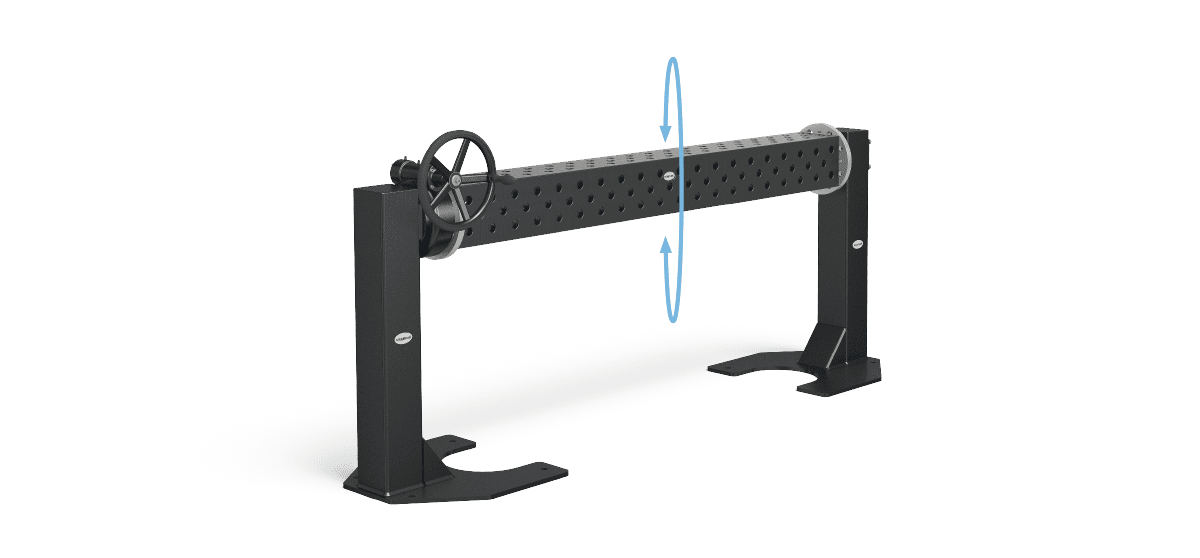

M-Positioner

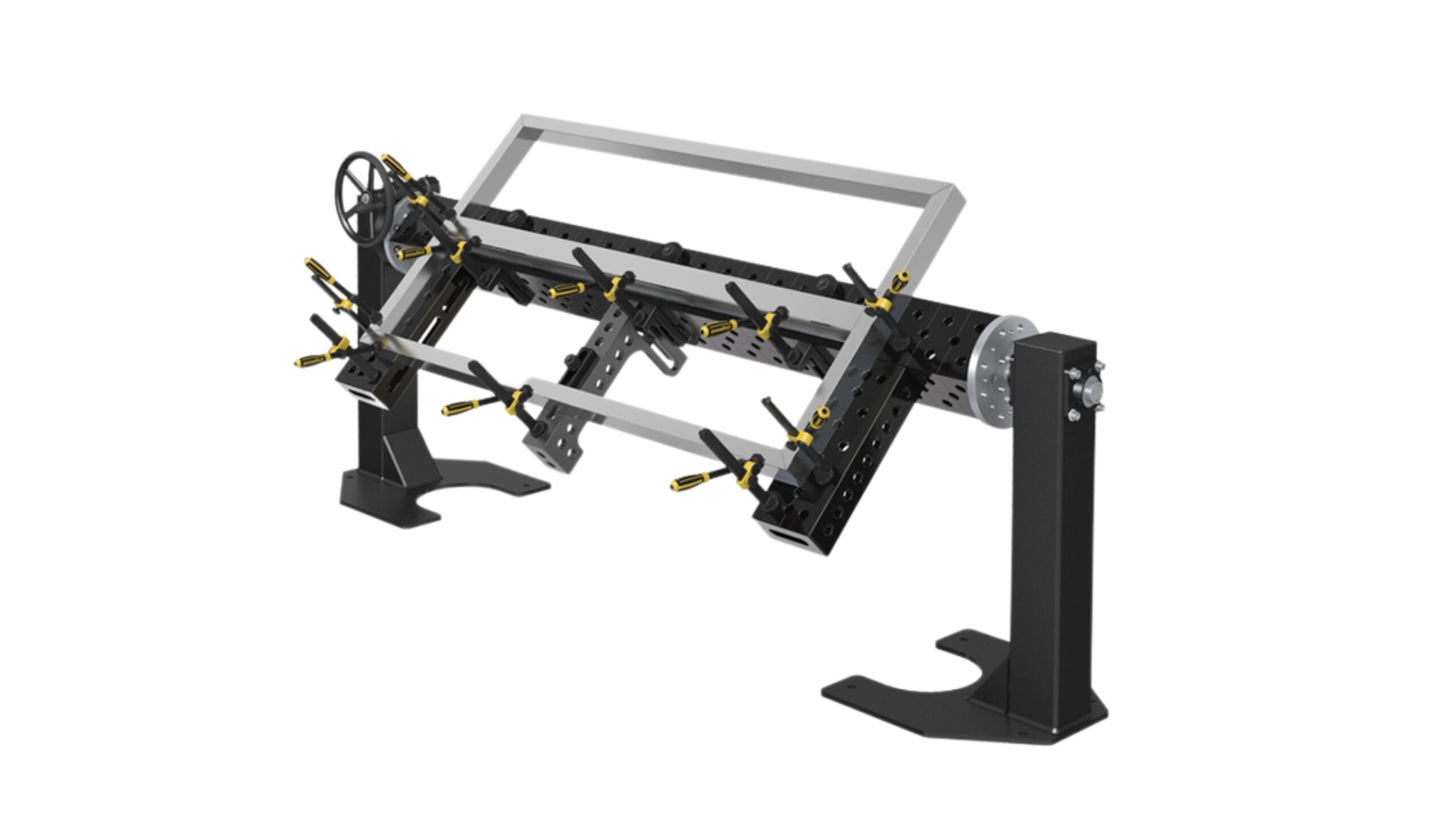

Tackle welding, assembly and maintenance with total control using the Siegmund M-Positioner, available now at MPAC. With smooth manual operation and precision gear driven rotation, it allows you to position heavy components quickly and ergonomically. Compact, powerful and easy to integrate, it’s everything you need in one positioner.
CONTROL
Manual wheel
Smooth rotation
360° motion
CAPACITY
500-1500 kg
Compact size
Stable anchoring
FIT
System 16/28
U-Squares ready
Universal flange
DURABILITY
Strong bearings
High precision
Tough build
Technical Details
MP 500
✔ Weight positioner: approx. 110 kg
✔ Max load bearing capacity*: 500 kg
✔ Turning moment: 100 Nm
✔ Control: Hand wheel with handle Ø 200 mm
✔ Drive: Manual
✔ Gear ratio: 1:73
✔ Axis of rotation: Horizontal
✔ Square U-Shape compatibility: System 16
✔ Max length square U-Shape: 1500 mm

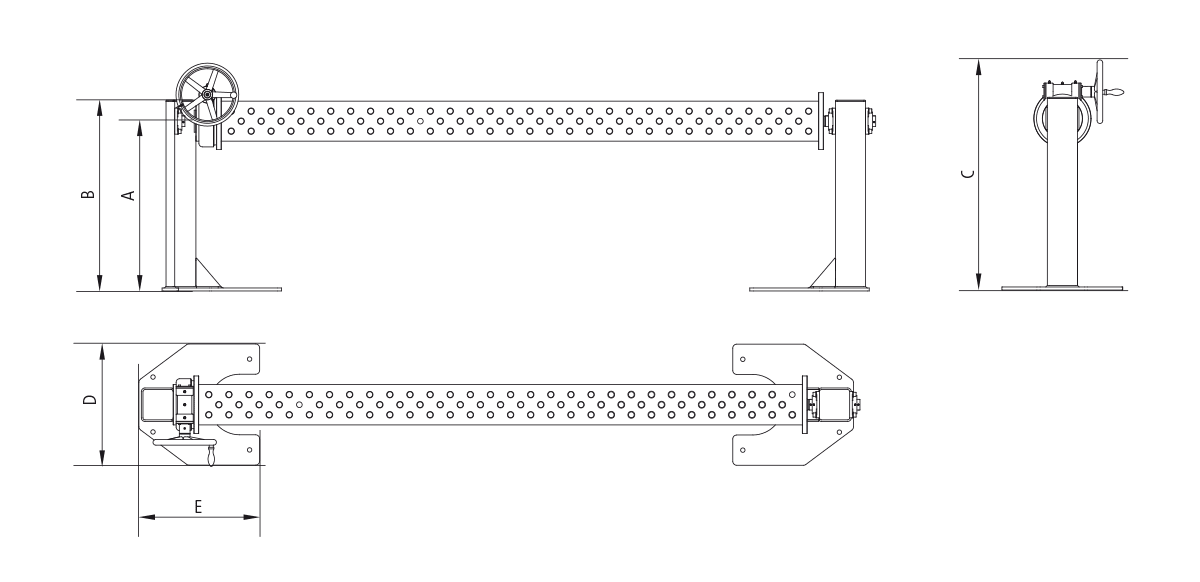

✔ Working height (A): 850 mm
✔ Tower height (B): 955 mm
✔ Total height (C): 1083 mm
✔ Base plate width (D): 500 mm
✔ Base plate length (E): 400 mm
MP 1500
✔ Weight positioner: approx. 180 kg
✔ Max load bearing capacity*: 1500 kg
✔ Turning moment: 900 Nm
✔ Control: Hand wheel with handle Ø 315 mm
✔ Drive: Manual
✔ Gear ratio: 1:73
✔ Axis of rotation: Horizontal
✔ Square U-Shape compatibility
✔ Max length square U-Shape: 3000 mm
✔ Working height (A): 850 mm
✔ Tower height (B): 955 mm
✔ Total height (C): 1140 mm
✔ Base plate width (D): 600 mm
✔ Base plate length (E): 600 mm
Suitable Products
Square U-Shape
Siegmund positioners enable precise, ergonomic welding, assembly and maintenance. Paired with U-Squares and octagonal tables, they enhance the Siegmund modular system.
