SIEGMUND

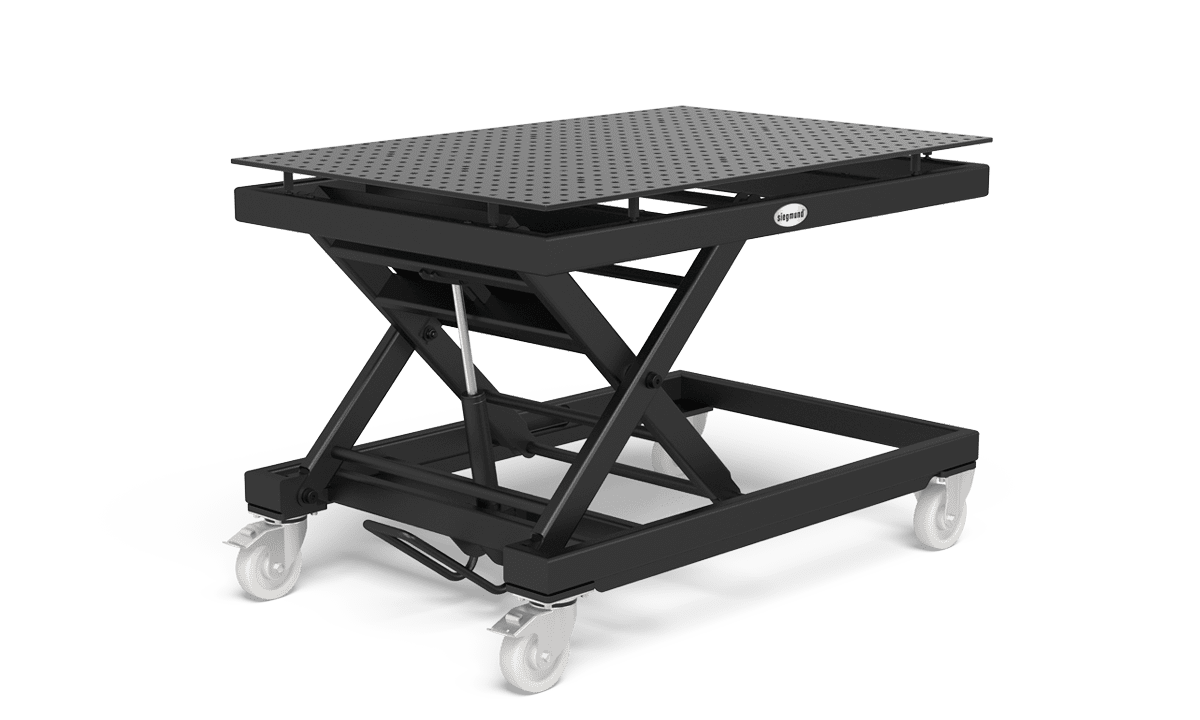

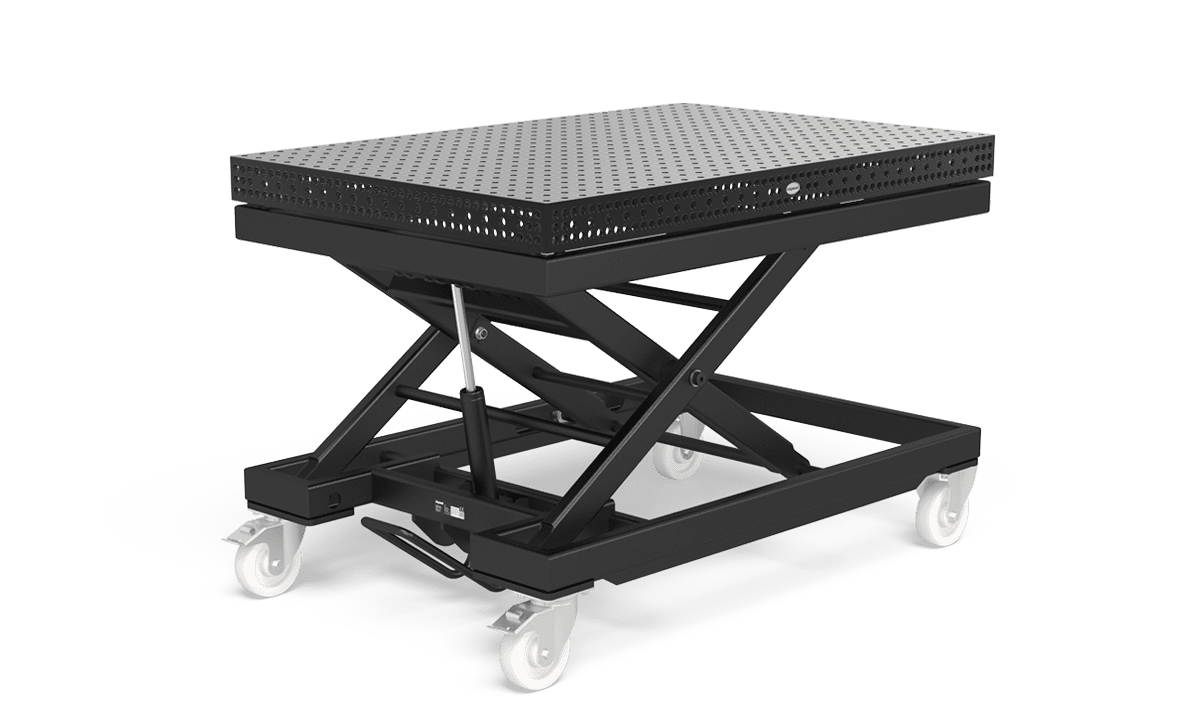

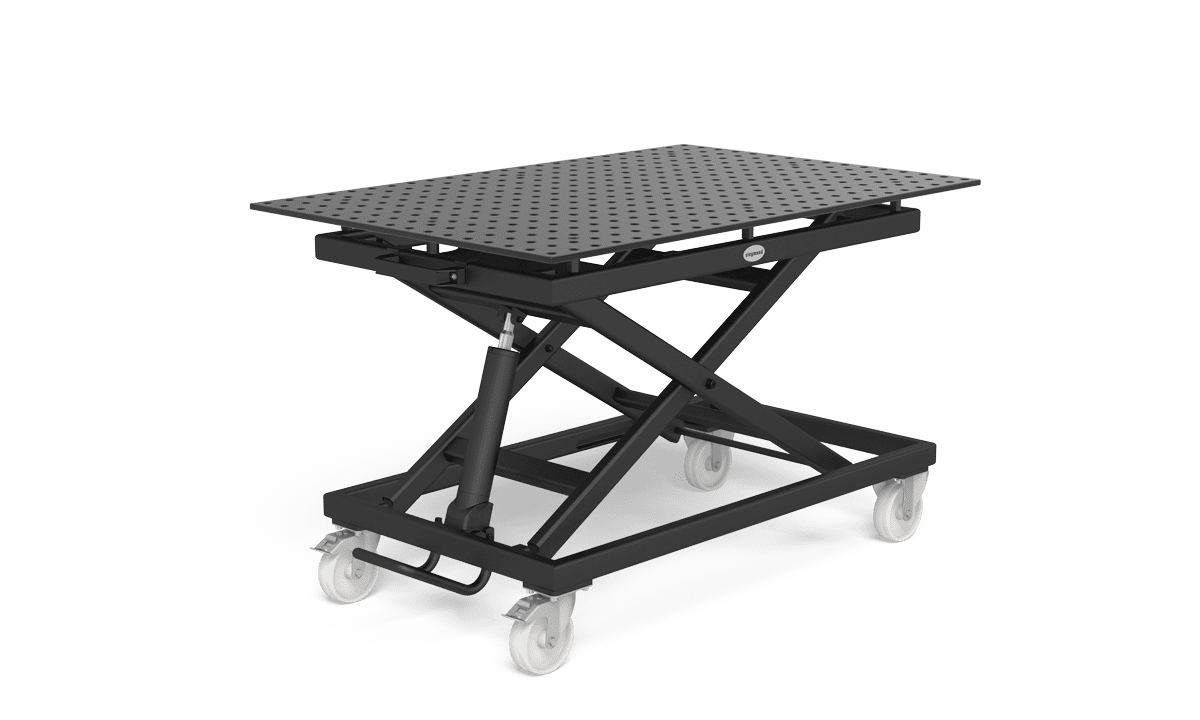

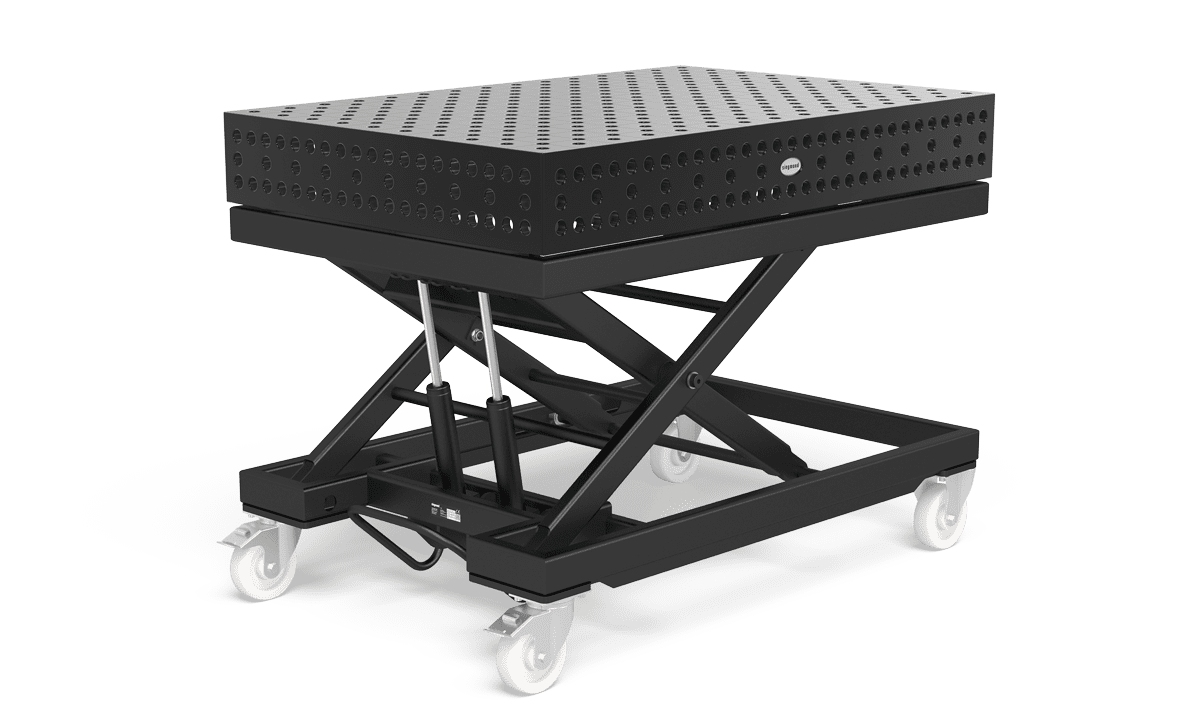

Mobile Lifting Table
The Siegmund Mobile Lifting Table offers ultimate flexibility for clamping, assembly and workspace expansion. With smooth height adjustment, it ensures ergonomic, pain free working for precision tasks. Built for durability and versatility, it provides optimal stability and performance across a range of applications, making it the ideal choice for both light and heavy duty work.
Performance
Height adjustment
Multiple load options
Optimised workspace
Stability
Stable base
Precise foot leveling
High load stability
Versatility
Mobile design
Modular add-ons
Adjustable height
Control
Rugged construction
Heavy-duty load capacity
Compact design
Table Features in Detail

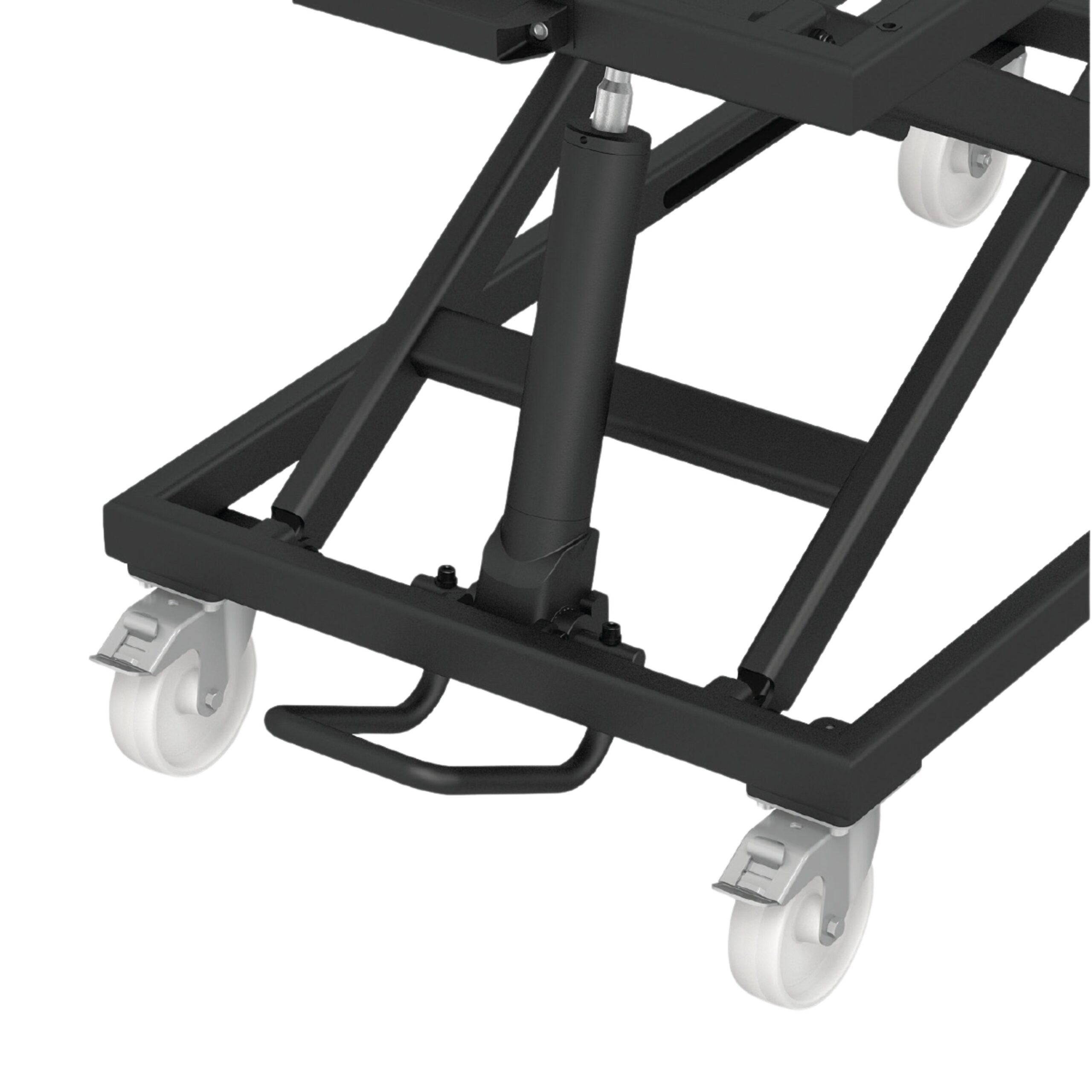

Height Adjustment
- Manual hydraulic pump
- Working height approx 700-1100 mm

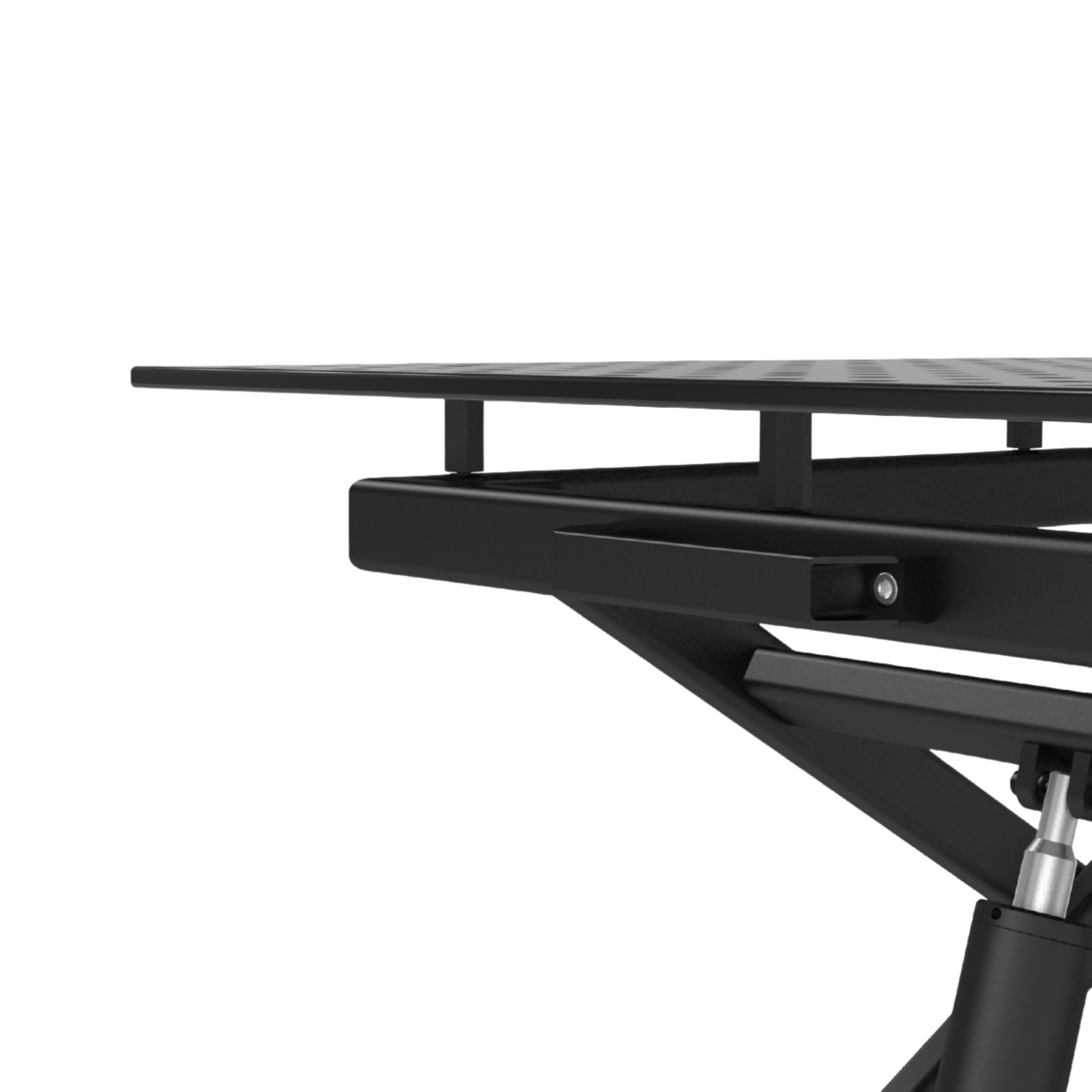

Fine Adjustment
- Perfect leveling
- Screws for fine adjustment
- Mounting in system boreholes

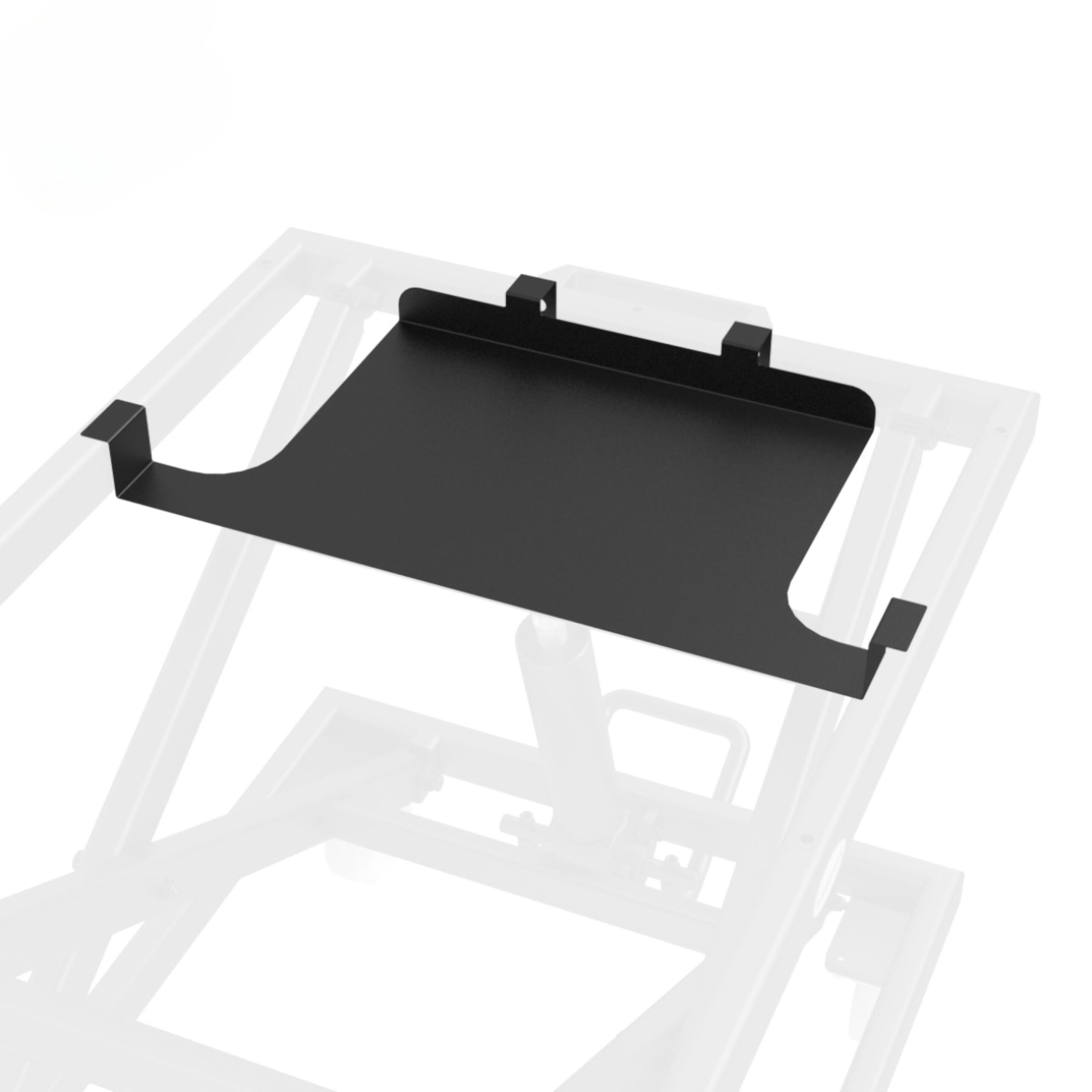

Protective Plate
- Protective plate below the worktop
- Protects hydraulic unit from dirt from above

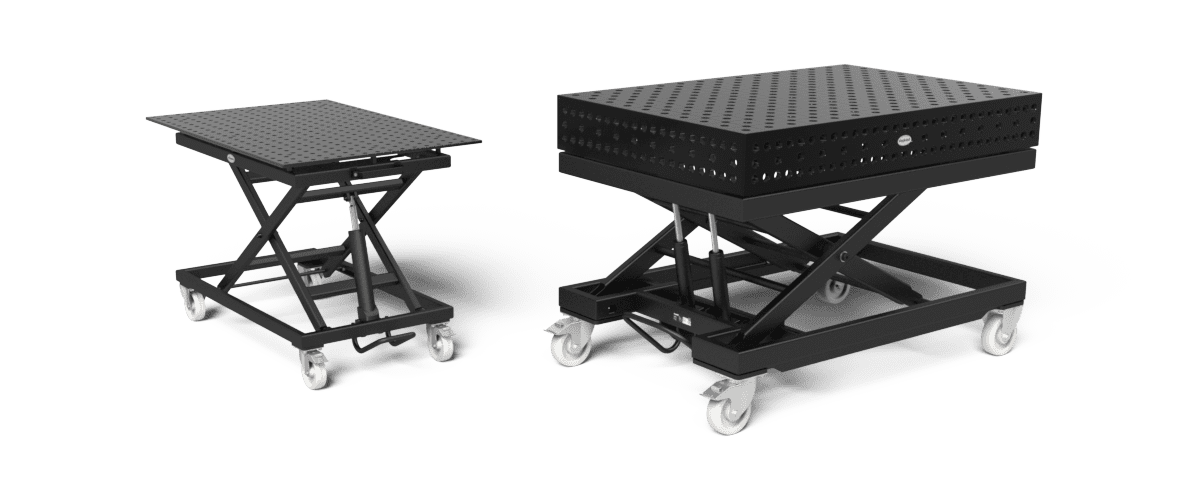

Table Versions

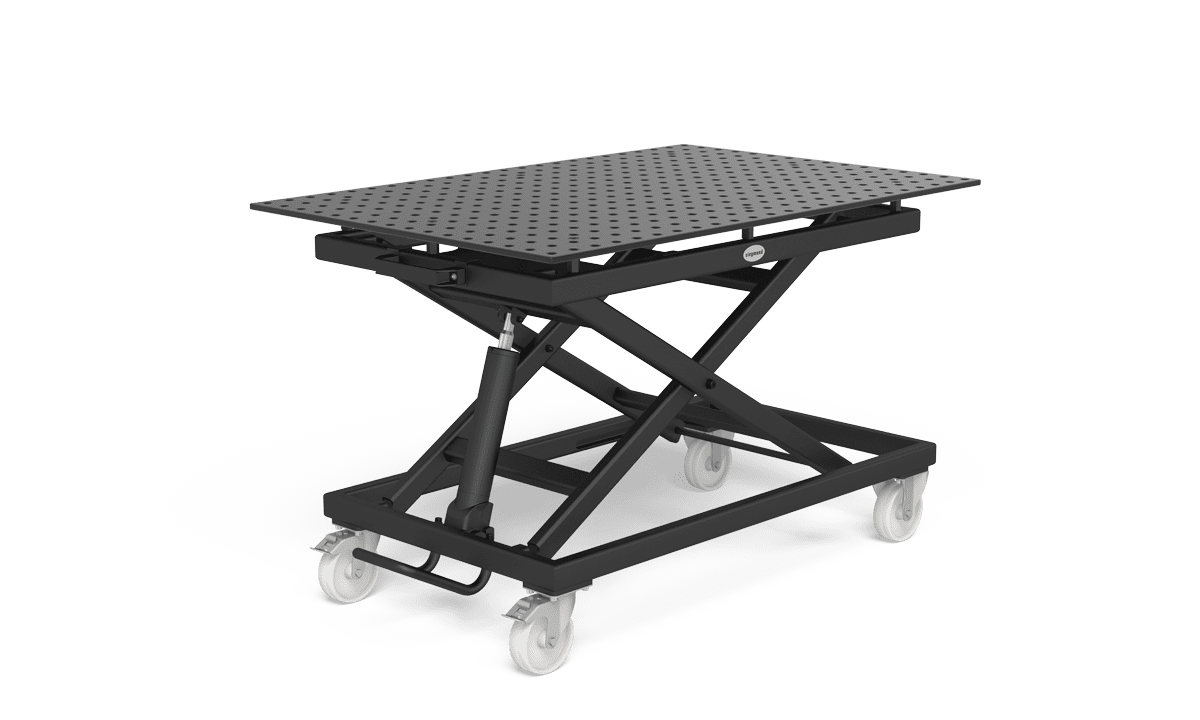

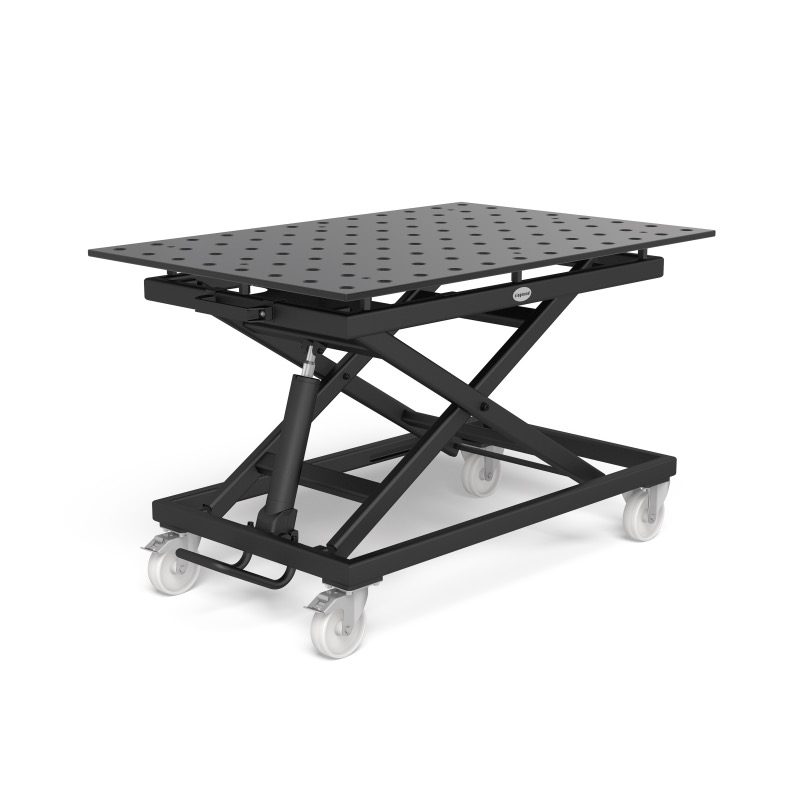

Mobile Lifting Table 500 kg
- Weight (without plate): approx. 65 kg
- Max load capacity 500 kg (without plate)
- Dimensions (L x W): approx. 1115×630 mm

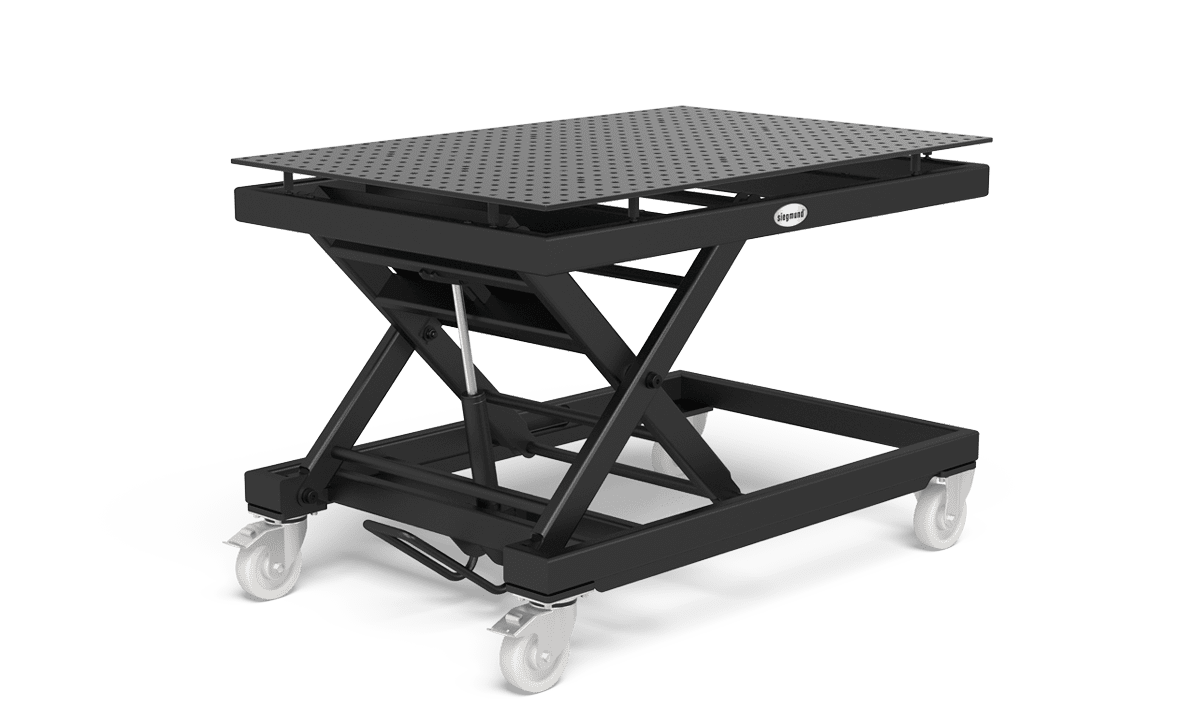

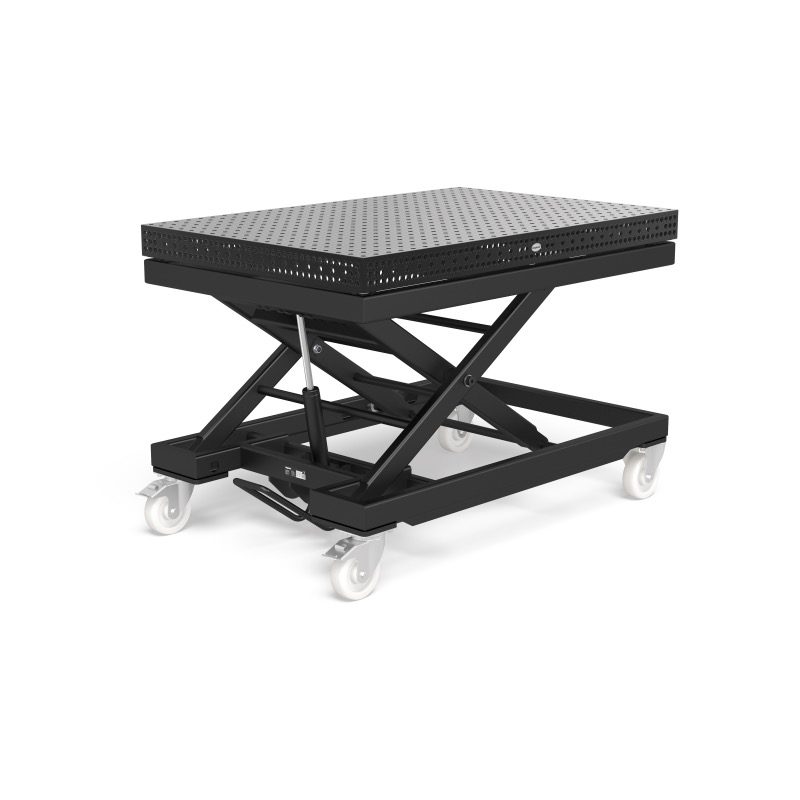

Mobile Lifting Table 1000 kg
- Weight (without plate): approx. 200 kg
- Max load capacity 1000 kg (without plate)
- Dimensions (L x W): approx. 1490×990 mm

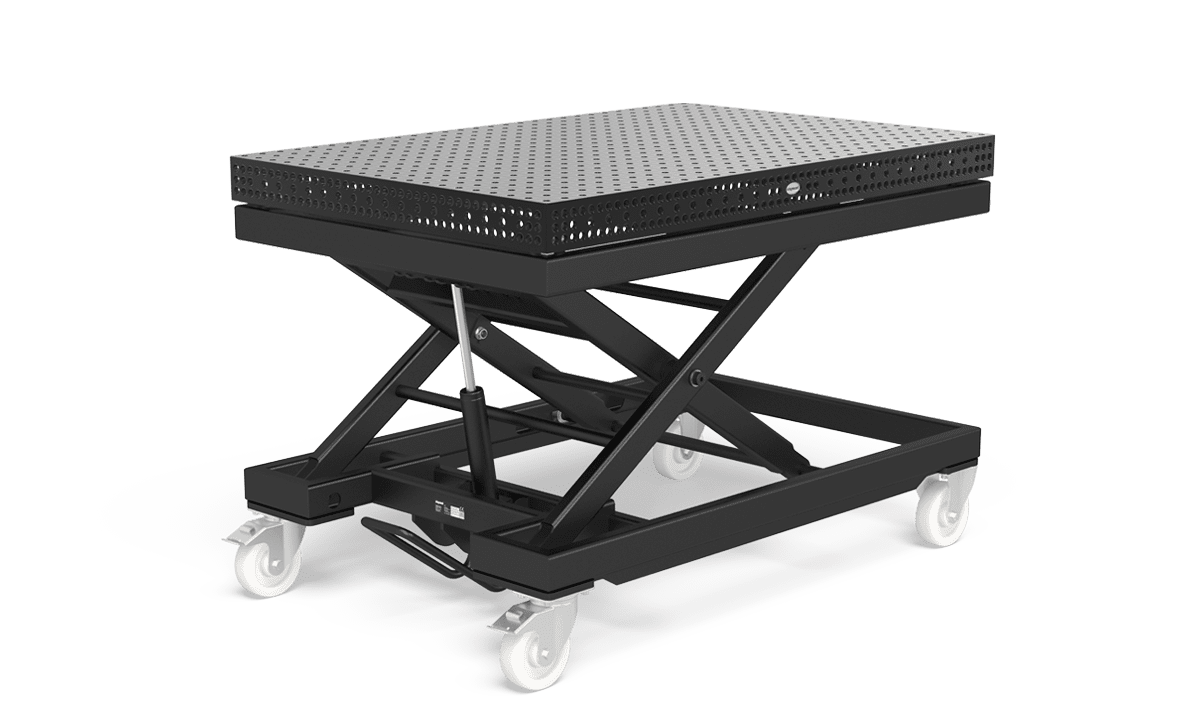

Mobile Lifting Table 1200 kg
- Weight (without plate): approx. 210 kg
- Max load capacity 1200 kg (without plate)
- Dimensions (L x W): approx. 1490×990 mm

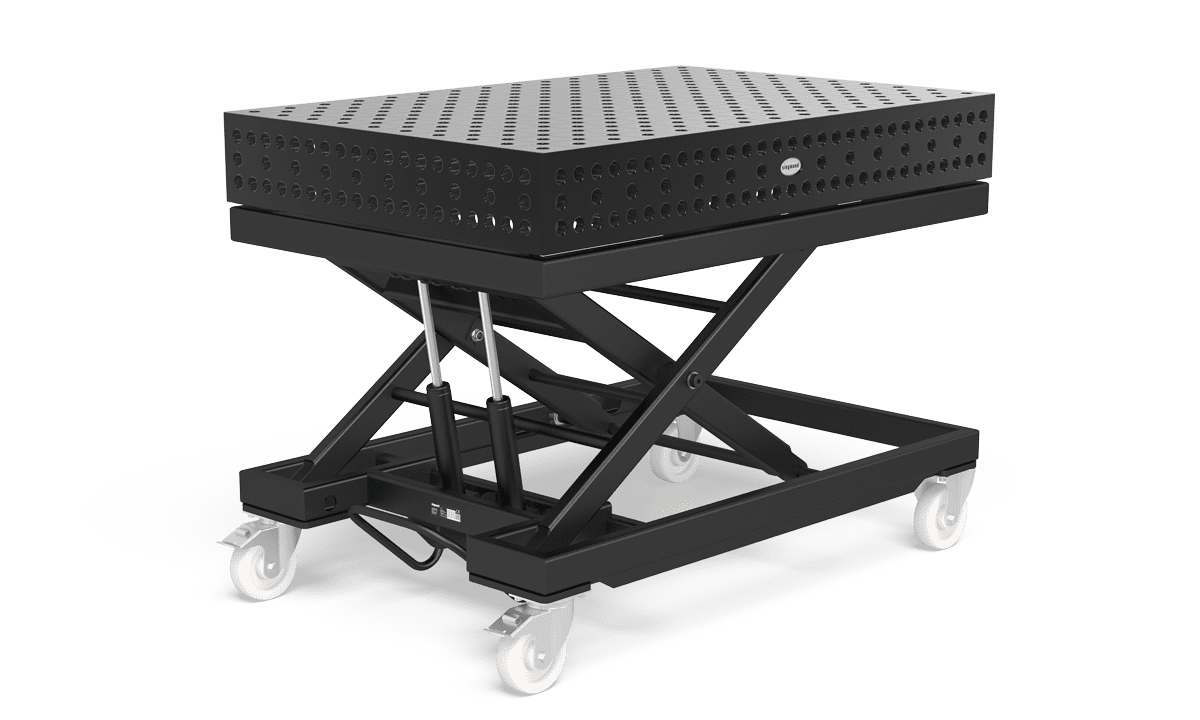

Mobile Lifting Table 1700 kg
- Weight (without plate): approx. 214 kg
- Max load (without plate): 1700 kg.
- Dimensions (L x W): approx. 1490×990 mm
Suitable Products

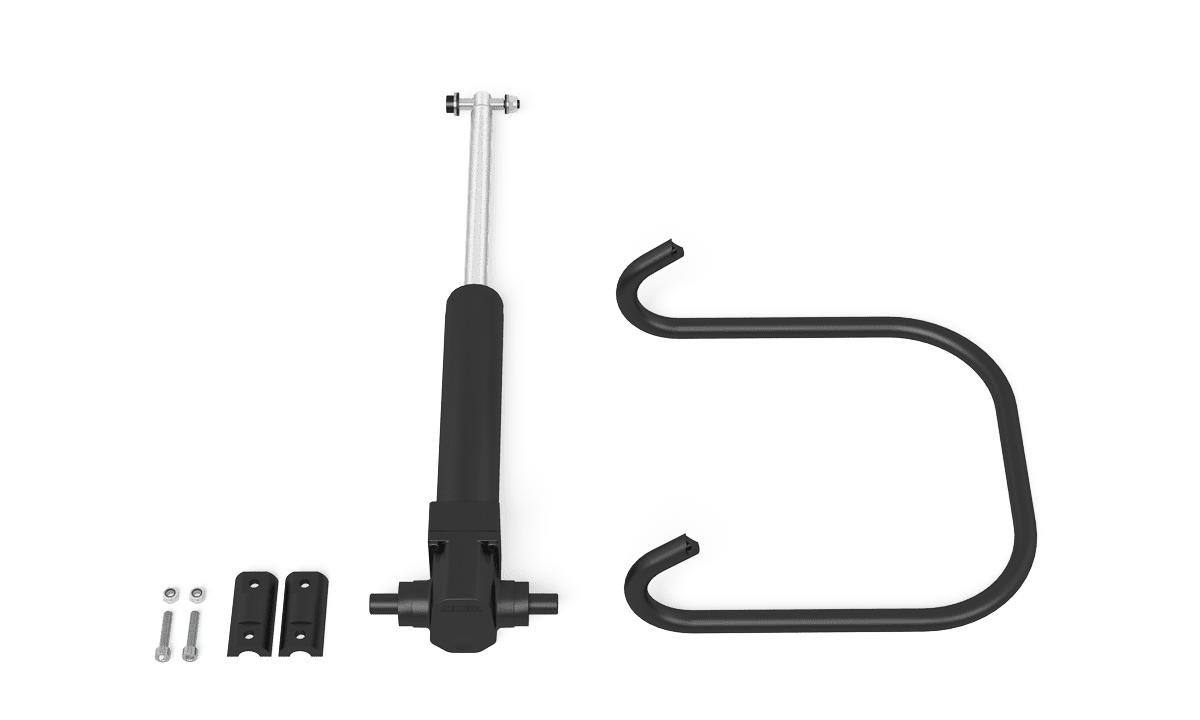

Supplementary set, load bearing capacity 1700 kg
- Only compatible with mobile lifting table 1200 kg
- Maximum load capacity of the mobile lifting table with supplementary set 1700 kg (without plate)
- Scope of delivery: 1x lifting cylinder, 1x foot pedal, fastening material

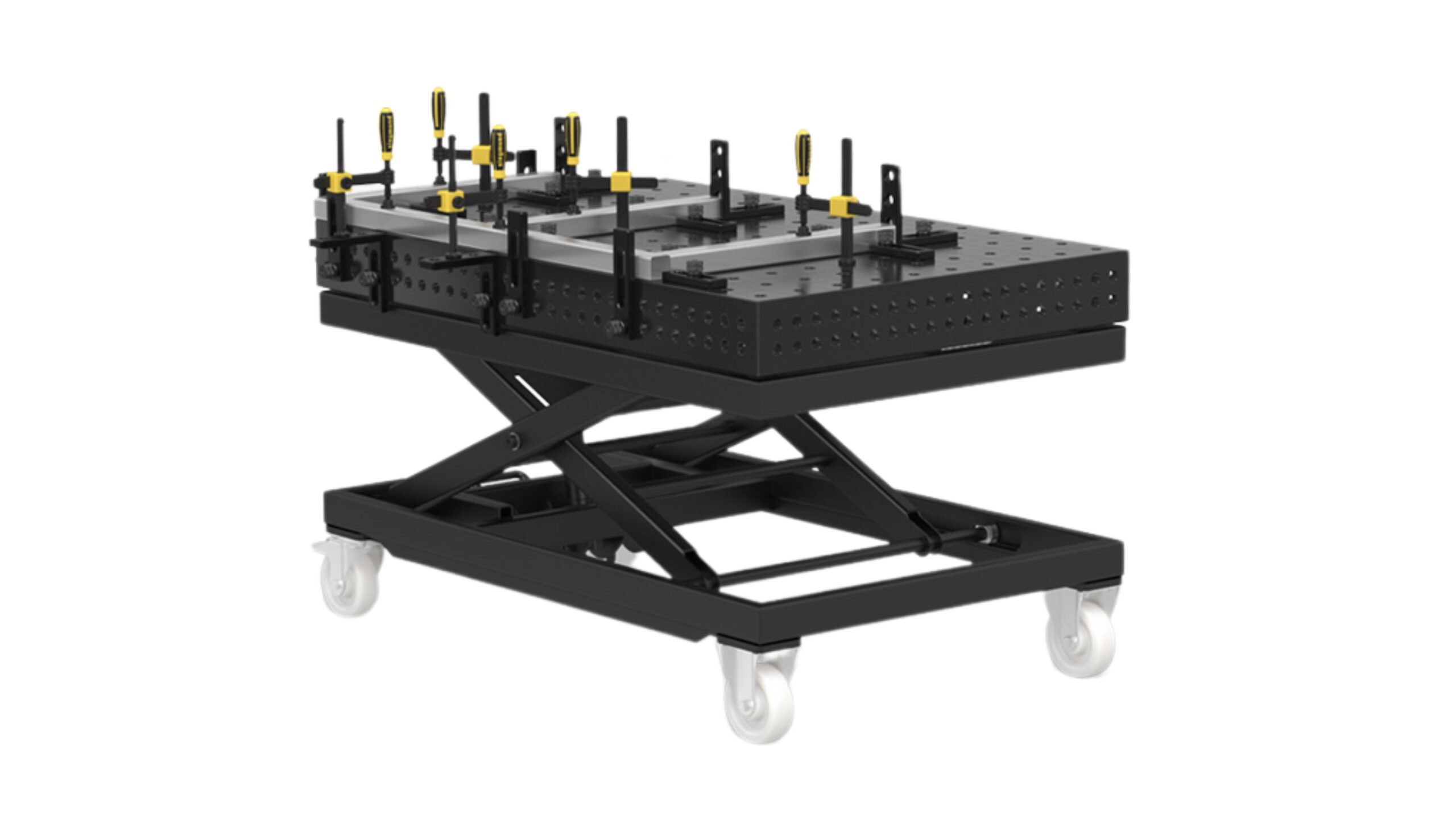

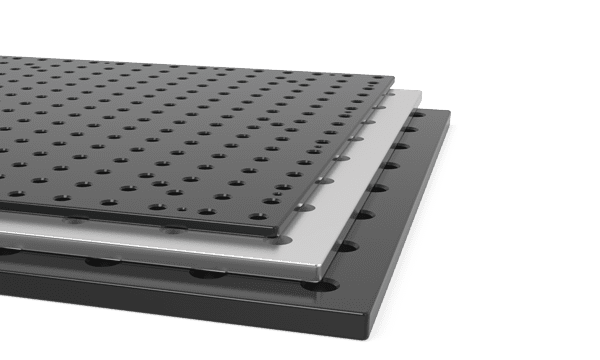

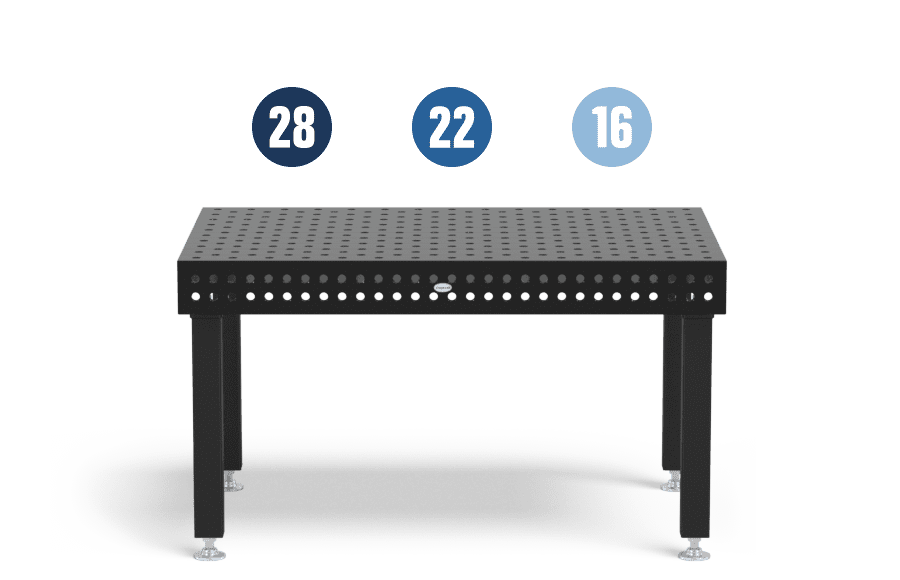

Siegmund perforated plate sturdy work surfaces
We offer plasma nitrided perforated plates with different system boreholes with 16 mm, 22 mm and 28 mm diameter and in diverse materials.
The surface boreholes enable easy fastening of components with the Siegmund tooling.
Not sure which product is right for you?

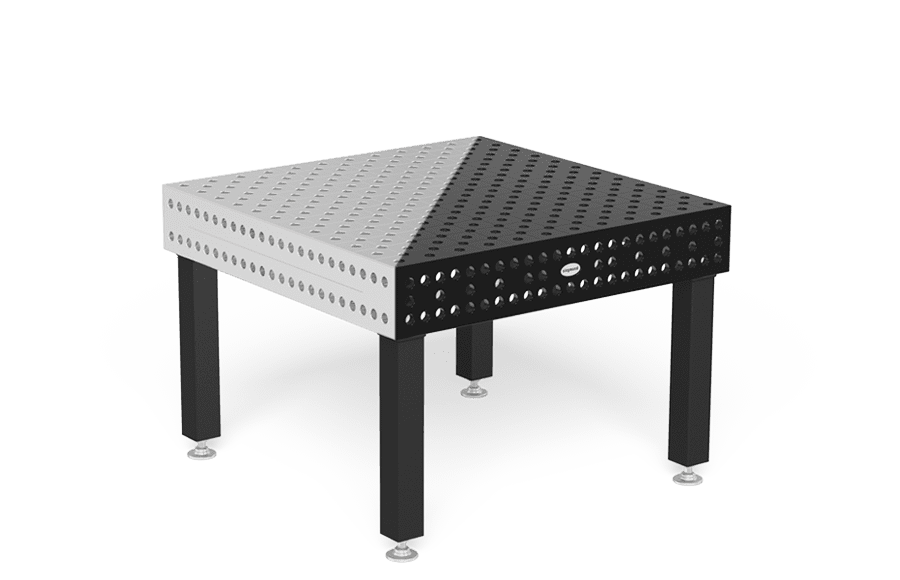

Explore our diverse range of Siegmund welding tables, crafted from premium materials. With a variety of sizes and customisable table legs, you’re sure to find the perfect match for your needs.
