FLAIG HOLDING

Material Handling & Cleaning Magnets

Flaig Holding Magnets

SPREADING

PLATE SPREADING MAGNETS
Flaig plate spreading magnets separate stacked steel sheets using magnetic force, easing handling. Durable, pneumatically or hydraulically activated for efficient sheet separation.

Model

Product number

Sheets up to (mm)

Dimension length (mm)

Dimension width (mm)

Dimension height (mm)

Borehole

Weight (kg)

Spreading magnet up to 0.7mm

3005 0701

0.7

75

75

30

2 x M8

1

Spreading magnet up to 0.7mm

3005 0702

0.7

275

75

130

2 x M8

3.5

Spreading magnet up to 0.7mm

3005 0703

0.7

340

75

30

2 x M8

4.5

Spreading magnet up to 1mm

3005 1001

1

105

105

30

2 x M8

2

Spreading magnet up to 1mm

3005 1002

1

210

105

30

2 x M8

3.5

Spreading magnet up to 1mm

3005 1003

1

310

105

30

2 x M8

5.5

Spreading magnet up to 1mm

3005 1004

1

340

105

30

2 x M8

6

Spreading magnet up to 2mm

3005 2001

2

145

105

50

2 x M8

4

Spreading magnet up to 2mm

3005 2002

2

210

105

50

2 x M8

5.5

Spreading magnet up to 2mm

3005 2003

2

280

105

50

2 x M8

7.5

Spreading magnet up to 2mm

3005 2004

2

310

105

50

2 x M8

8

Spreading magnet up to 2mm

3005 2005

2

345

105

50

2 x M8

9

Spreading magnet up to 2mm

3005 2006

2

410

105

50

3 x M8

-

Spreading magnet up to 2mm

3005 2007

2

445

105

50

3 x M8

12

Spreading magnet up to 2mm

3005 2008

2

510

105

50

3 x M8

13.5

Spreading magnet up to 2mm

3005 2009

2

610

105

50

4 x M8

-

Spreading magnet up to 2mm

3005 2010

2

765

105

50

4 x M8

20

Spreading magnet up to 4mm

3005 4001

4

280

180

90

2 x M12

23

Spreading magnet up to 4mm

3005 4002

4

400

105 , 180

90

3 x M12

33

Spreading magnet up to 6mm

3005 6001

6

345

280

95

3 x M12

43

Spreading magnet up to 6mm

3005 6002

6

545

280

95

4 x M12

69

Spreading magnet up to 6mm

3005 6003

6

610

280

95

4 x M12

77

Spreading magnet up to 6mm

3005 6004

6

815

280

95

4 x M12

103

Flaig Holding Magnets

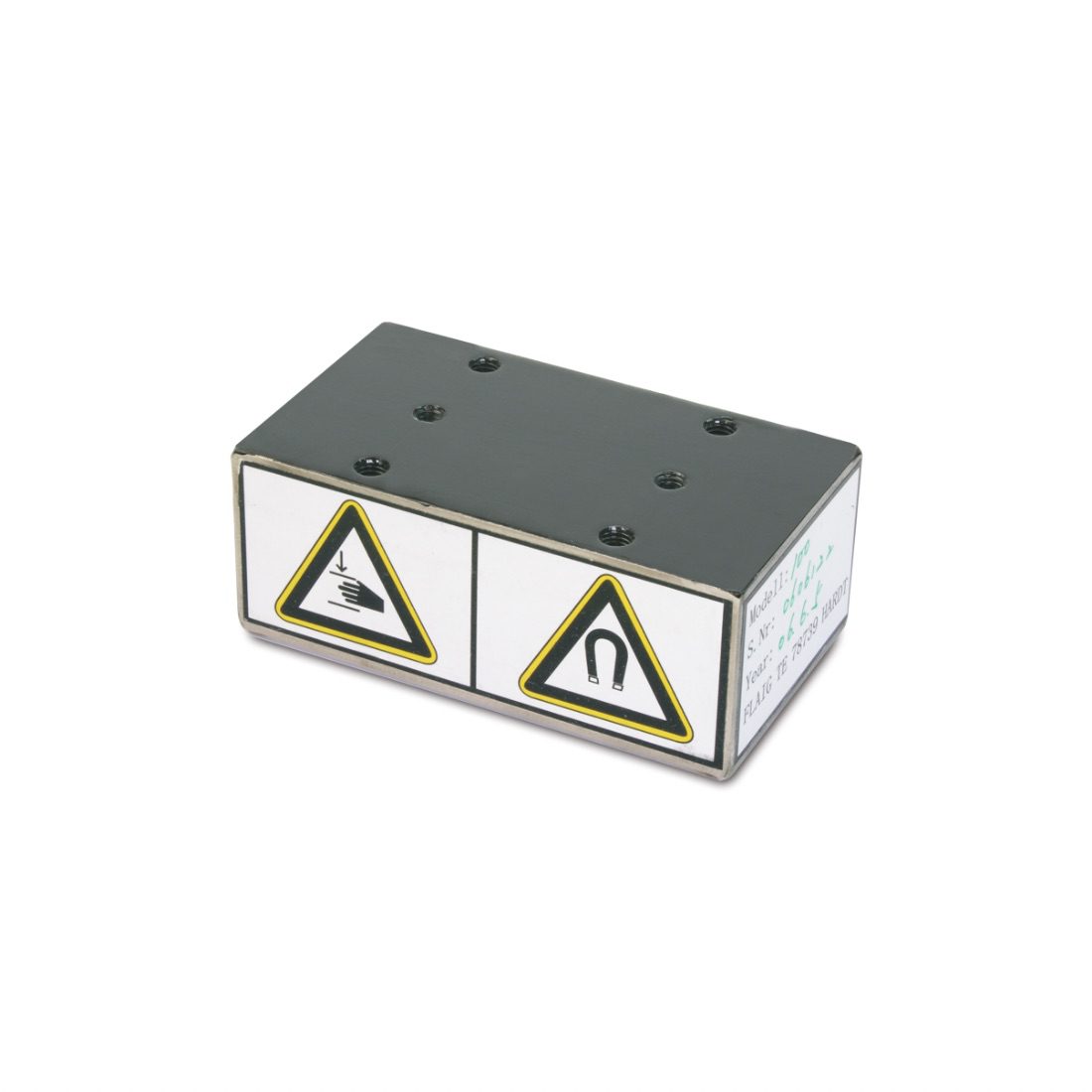

SM

PROTECTION MAGNETS

SM protective magnets are designed to prevent damage to machines and equipment by capturing metal parts, ensuring safe and reliable operation in industrial environments.

Model

Product number

max. operating temperature (°C)

Dimension length (mm)

Dimension width (mm)

Dimension height (mm)

Borehole

Weight (kg)

SM 100

3016 0100

80

100

55

40

6 x M6

1.7

SM 300

3016 0300

80

300

55

40

18 x M6

5

Flaig Holding Magnets

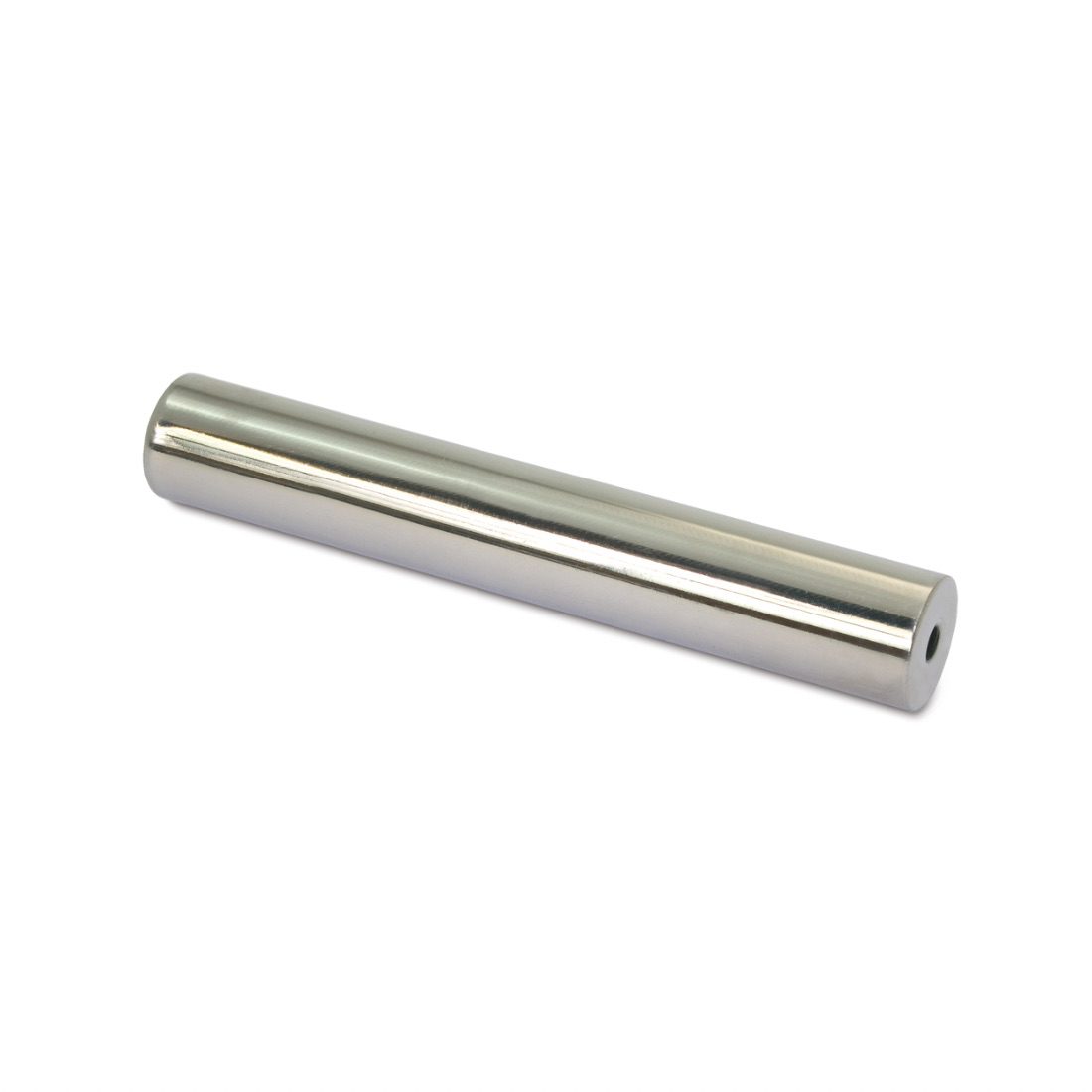

MFS-ND

PROTECTION MAGNETS
MFS-ND protective magnets are used to clean granulates, bulk materials and liquids by removing metal particles, ensuring product purity and protecting processing equipment.

Model

Product number

Dimension length (mm)

Dimension width (mm)

Dimension height (mm)

Borehole

MFS-ND 22/100

3016 22100

271

80

22

2 x M6

MFS-ND 22/150

3016 22150

402

80

22

2 x M6

MFS-ND 22/200

3016 22200

555

80

22

2 x M6

MFS-ND 22/250

3016 22250

668

80

22

2 x M6

MFS-ND 22/300

3016 22300

805

80

22

2 x M6

MFS-ND 22/350

3016 22350

910

80

22

2 x M6

MFS-ND 22/400

3016 22400

1074

80

22

2 x M6

MFS-ND 22/450

3016 22450

1211

80

22

2 x M6

MFS-ND 22/500

3016 22500

1348

80

22

2 x M6

MFS-ND 22/550

3016 22550

1475

80

22

2 x M6

MFS-ND 22/600

3016 22600

1605

80

22

2 x M6

MFS-ND 25/100

3016 25100

365

80

25

2 x M6

MFS-ND 25/150

3016 25150

526

80

25

2 x M6

MFS-ND 25/200

3016 25200

704

80

25

2 x M6

MFS-ND 25/250

3016 25250

875

80

25

2 x M6

MFS-ND 25/300

3016 25300

1051

80

25

2 x M6

MFS-ND 25/350

3016 25350

1326

80

25

2 x M6

MFS-ND 25/400

3016 25400

1605

80

25

2 x M6

MFS-ND 25/450

3016 25450

1778

80

25

2 x M6

MFS-ND 25/500

3016 25500

1851

80

25

2 x M6

MFS-ND 25/550

3016 25550

2100

80

25

2 x M6

MFS-ND 25/600

3016 25600

2300

80

25

2 x M6

Flaig Holding Magnets

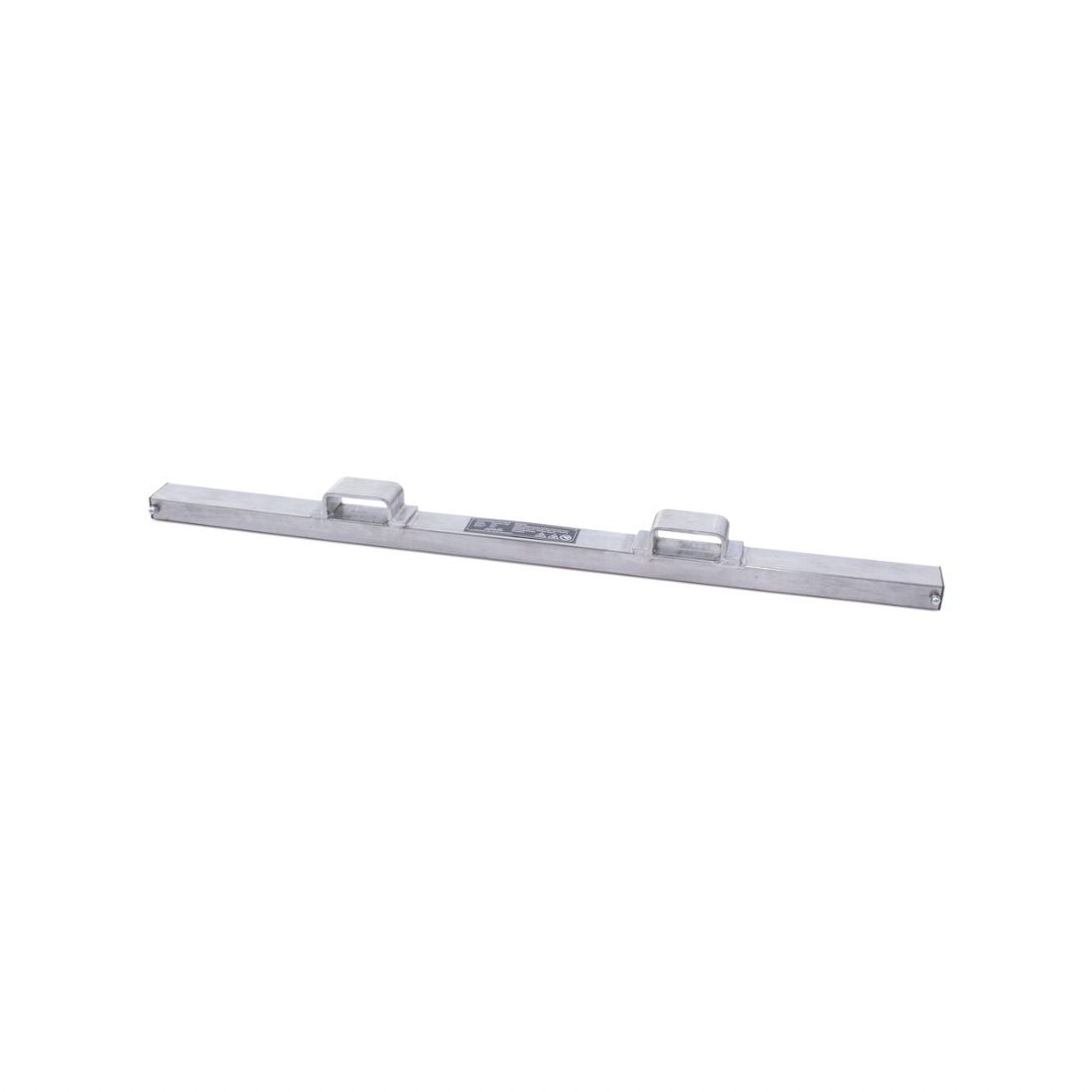

GRM-INOX

RAILING CLEANING MAGNET
GRM-INOX is used to clean large areas by removing loose metal parts, ensuring a safe and debris free workspace.

Model

Product number

Working width (mm)

Fork spacing (mm)

Weight (kg)

GRM-INOX 1200

3004 1200

1200

650

36

GRM-INOX 1500

3004 1500

1500

650

45

GRM-INOX 2000

3004 2000

2000

650

65

Flaig KMF Cleaning Magnet

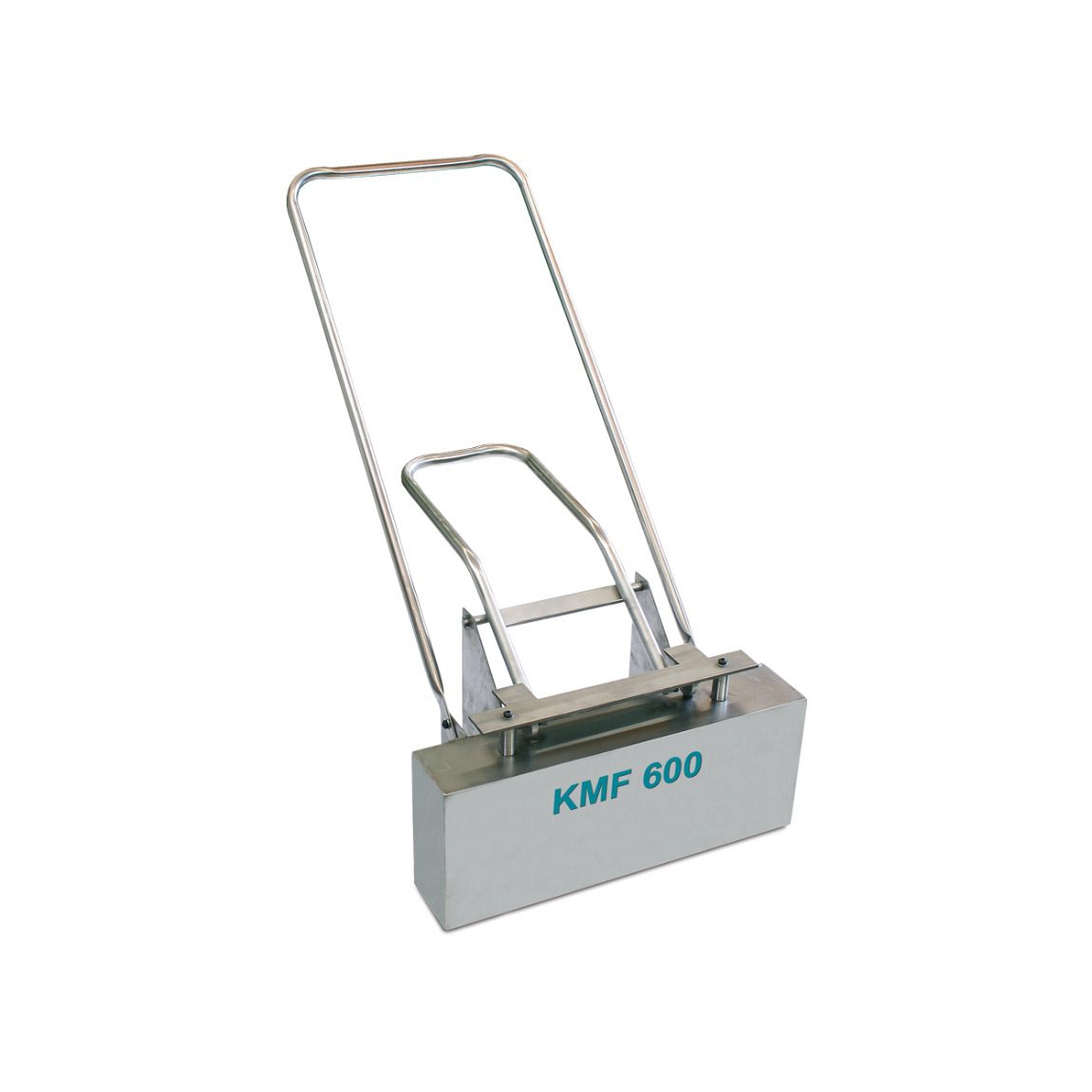

KMF-600

KMF magnetic sweepers

KMF magnetic sweepers pick up chips, nails and metal scraps with a deep magnetic field. Built in stainless steel, height adjustable, maintenance free and ideal for indoor or outdoor use.

Contact

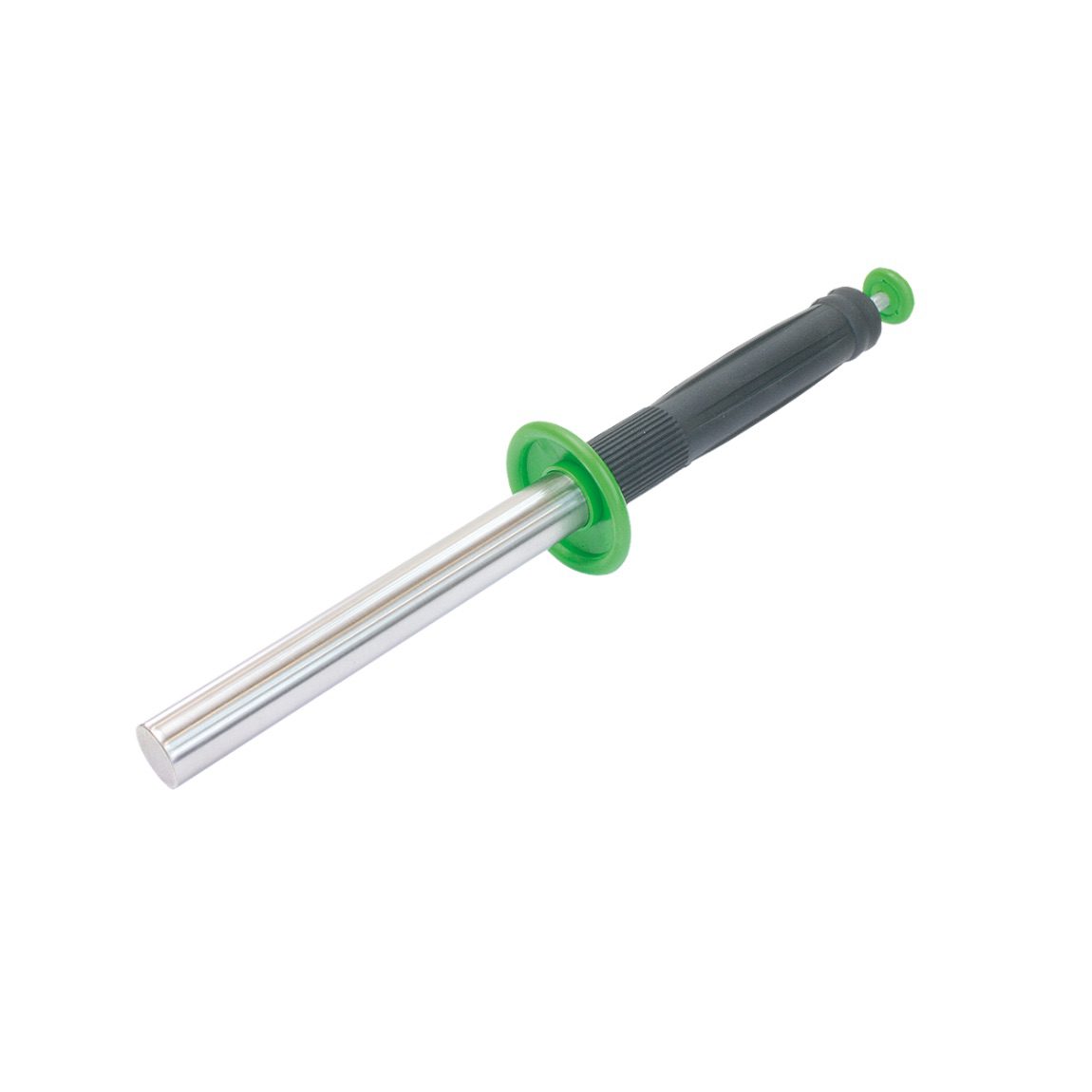

Flaig PP1 Chip Collector

PP1

Chip Collector

The PP1 chip collector quickly gathers metal chips from machines, workplaces or sweepings. Collected parts are easily released by pulling the button on the back.
