Sine Tables

Flaig Clamping Magnets

NMSI

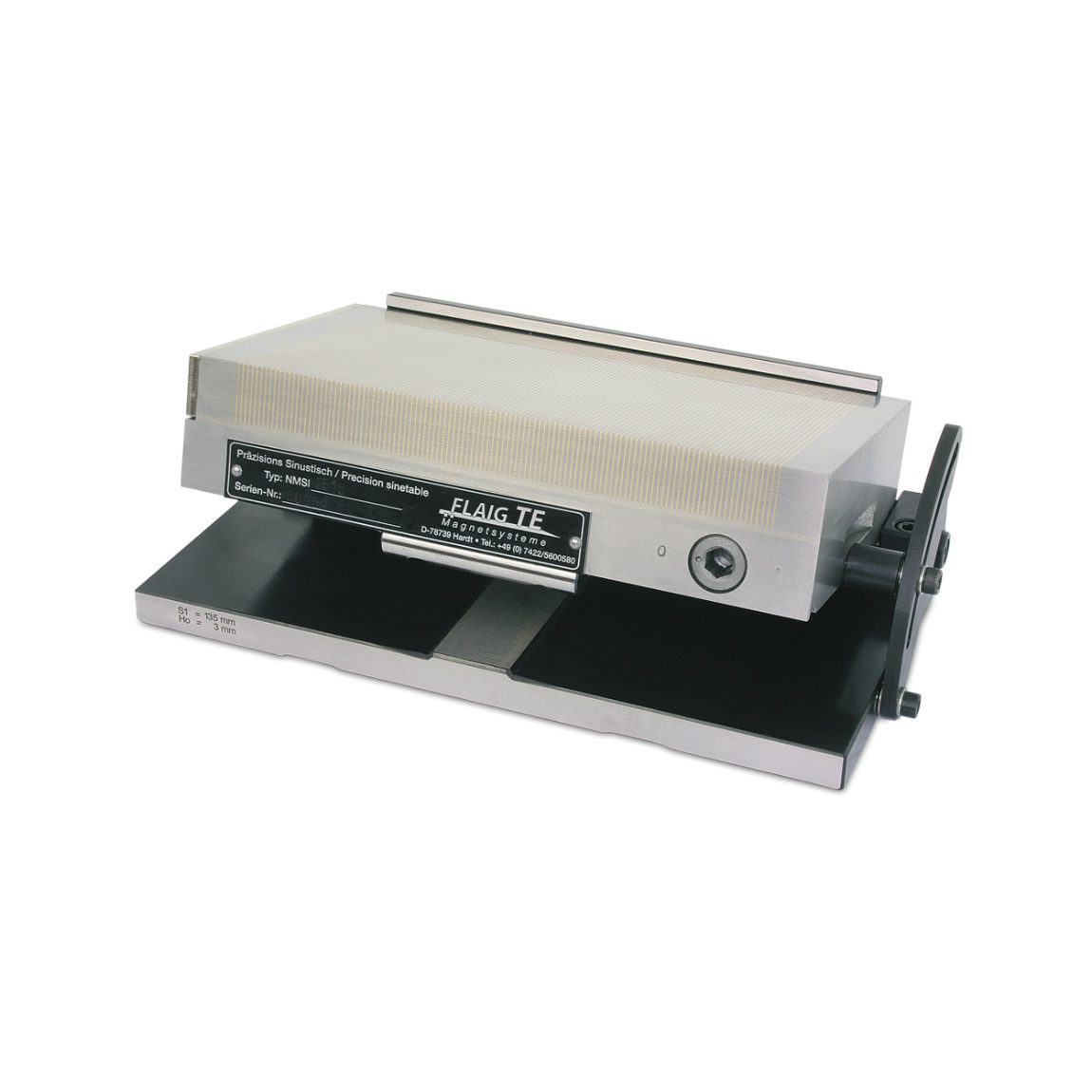

NMSI Sine tables
Sine tables with fine pole clamping plates and one or two swivel axes enable precise, adjustable positioning of workpieces for accurate machining and measurement tasks.

Model

Product Number

Plate Length (mm)

Plate Width (mm)

Table Length (mm)

Table Width (mm)

Max Angle

Swivel Axis

Weight (kg)

NMSI 1710

2011 1710

175

100

215

115

45°

Longitudinal

10

NMSI 2513

2011 2513

255

130

295

145

45°

Longitudinal

20

NMSI 2515

2011 2515

250

150

290

165

45°

Longitudinal

21.5

NMSI 3015

2011 3015

300

150

340

165

45°

Longitudinal

27

NMSI 3020

2011 3020

300

200

340

215

45°

Longitudinal

35

NMSI 3515

2011 3515

350

150

390

165

45°

Longitudinal

34.5

NMSI 4020

2011 4020

400

200

440

215

45°

Longitudinal

52

NMSI 4515

2011 4515

450

150

490

165

45°

Longitudinal

44

NMSI 6020

2011 6020

600

200

640

215

45°

Longitudinal

78

NMSI 6030

2011 6030

600

300

660

320

45°

Longitudinal

121

Flaig Clamping Magnets

NMSIL

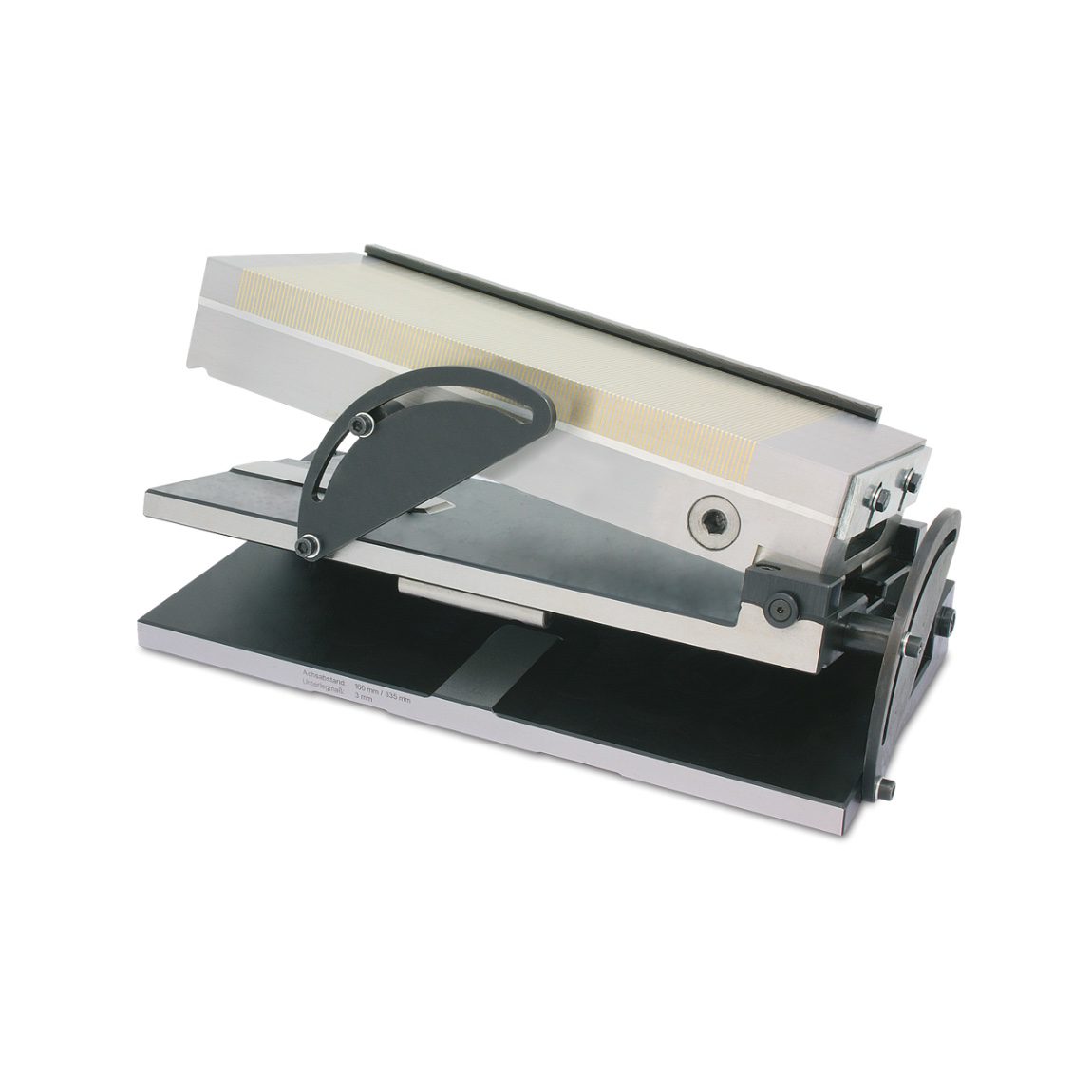

NMSIL Sine tables
NMS precision sine tables with built in PMNM clamping plates offer excellent workmanship and accuracy. The hardened (60 HRC), burnished, and precision ground base allows precise angle adjustment via the sine principle with end masses.

Model

Product Number

Plate Length (mm)

Plate Width (mm)

Table Length (mm)

Table Width (mm)

Height at 0° (mm)

Dimension F (mm)

Max Angle

Swivel Axis

Weight (kg)

NMSIL 1710

2014 1710

175

100

190

140

76

160

30°

Transverse

10

NMSIL 2513

2014 2513

255

130

270

170

76

240

30°

Transverse

21

NMSIL 3015

2014 3015

300

150

315

190

76

285

30°

Transverse

27

NMSIL 4020

2014 4020

400

200

415

240

88

385

30°

Transverse

53.5

NMSIL 4515

2014 4515

450

150

465

190

88

435

30°

Transverse

46

NMSIL 5020

2014 5020

500

200

515

240

88

485

30°

Transverse

99

NMSIL 6020

2014 6020

600

200

615

240

88

585

30°

Transverse

108

NMSIL 6030

2014 6030

600

300

615

340

88

585

30°

Transverse

125

Flaig Clamping Magnets

NMSID

NMSID Sine table
NMS precision sine tables with built in PMNM clamping plates feature a hardened, burnished base and sine based angle adjustment, offering top accuracy for EDM, grinding and measuring tasks.

Model

Product Number

Plate Length (mm)

Plate Width (mm)

Table Length (mm)

Table Width (mm)

Height at 0° (mm)

Dimension F (mm)

Max Angle

Swivel Axis

Weight (kg)

NMSID 1710

2012 1710

175

100

210

140

104

165/110

45° / 30°

Longitudinal & Transverse

15

NMSID 2513

2012 2513

255

130

290

170

120

245/140

45° / 30°

Longitudinal & Transverse

32

NMSID 3015

2012 3015

300

150

335

190

123

290/160

45° / 30°

Longitudinal & Transverse

43.5

NMSID 3515

2012 3515

350

150

385

190

123

340/160

45° / 30°

Longitudinal & Transverse

49.5

NMSID 4020

2012 4020

400

200

435

240

124

390/210

45° / 30°

Longitudinal & Transverse

73

NMSID 4515

2012 4515

450

150

485

190

124

440/160

45° / 30°

Longitudinal & Transverse

52

NMSID 5020

2012 5020

500

200

535

240

126

490/210

45° / 30°

Longitudinal & Transverse

84

NMSID 6020

2012 6020

600

200

635

240

126

590/210

45° / 30°

Longitudinal & Transverse

102

NMSID 6030

2012 6030

600

300

635

340
